StarTech Accessory TB2DOCK4K2DP Thunderbolt2 Docking Station 4K RJ-45 mDisplayPort/USB Retail
- SKU: 183961
- Vendor: StarTech
- UPC: 065030860000

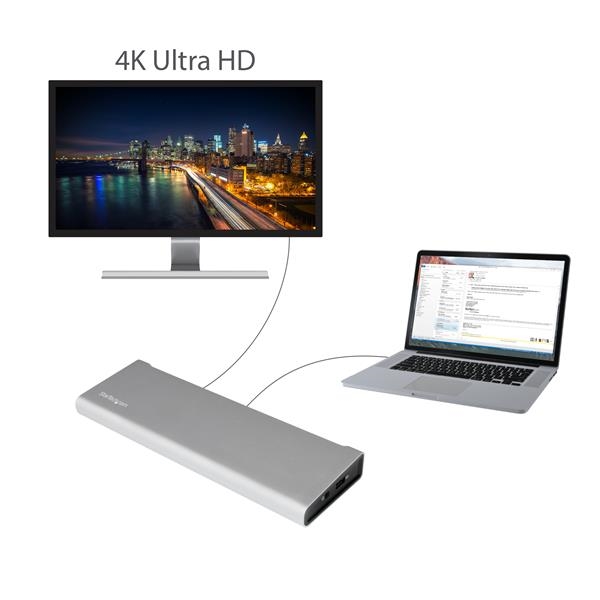

• Connect a single 4K (3840 x 2160p) monitor, or a DisplayPort and a Thunderbolt display with 4K resolution on the DisplayPort monitor

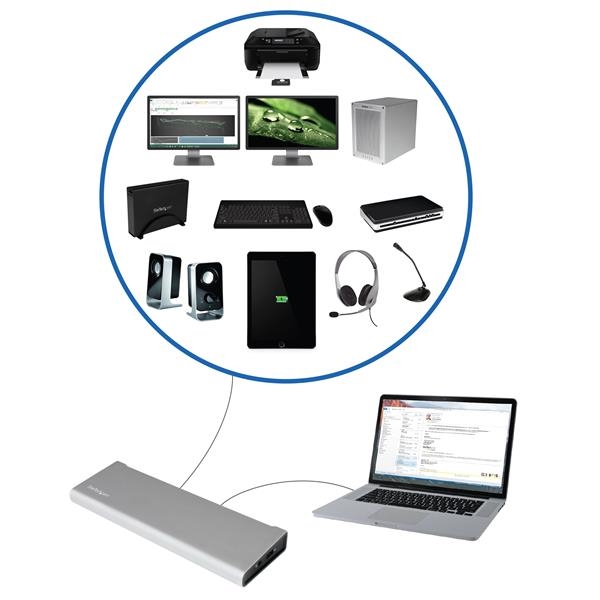

• 20Gbps throughput lets you connect up to 12 peripherals, including 5.1 digital optical audio and eSATA devices
• Charge mobile devices faster, even without a laptop connection, with a side-panel USB 3.0 fast-charge and sync port
• Four USB 3.0 ports, including one always-on fast-charge port (USB Battery Charging Specification 1.2 compliant) and three standard ports
• Supports S/PDIF 5.1 digital optical audio output, line input, 3.5mm 4-position TRRS headset port (audio/microphone), in both Windows and Mac operating systems
• eSATA port for high-speed external storage devices

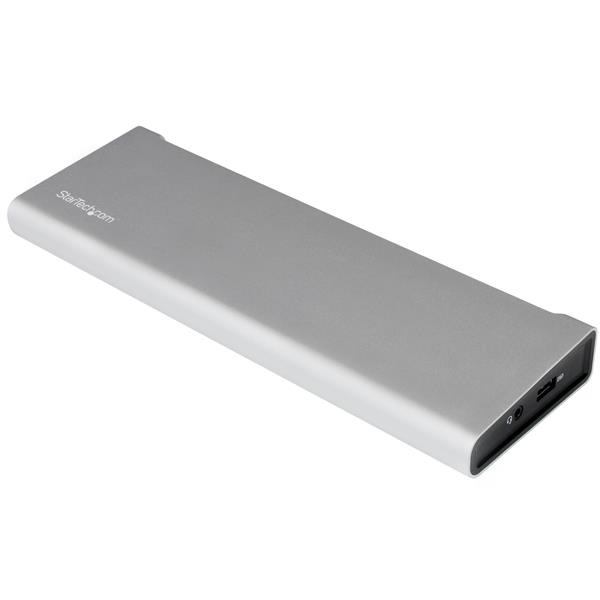

• Sleek and stylish, with a silver, sandblasted finish that matches your Apple MacBook
• Durable, aluminum housing offers reliable performance
• Gigabit Ethernet RJ45 port with Wake-on-LAN (WOL) support
• Supports DisplayPort 1.2
• Supports Thunderbolt daisy chaining
• Includes 1m Thunderbolt cable
Hardware
4K Support
Yes
Bus Type
Thunderbolt 2
Chipset ID
Intel - Falcon Ridge DSL5520 (Thunderbolt)
Fresco Logic - FL1100EX (USB 3.0 w/ Charge)
ASMedia - ASM1061 (eSATA)
CMedia - CM6500 (Digital Audio)
Texas Instruments - PCM2912A (Audio)
Intel - WGI210AT (LAN)
Displays Supported
2
Fast-Charge Port(s)
Yes
Industry Standards
Thunderbolt 2 - Backward compatible with Thunderbolt 1
USB Battery Charging Specification Rev. 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0/1.1
Performance
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Data Transfer Rate
20 Gbps (Thunderbolt 2)
5 Gbps (USB 3.0)
6 Gbps (eSATA)
2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions
Single Display: DisplayPort or Thunderbolt (mDP) only: 3840 x 2160
Dual Display: DisplayPort + DisplayPort: 2560 x 1600 + 2560 x 1600
DisplayPort + Thunderbolt: 3840 x 2160 + 3440 x 1440 (tested up to)
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate
Thunderbolt 2 - 20 Gbit/s
UASP Support
Yes

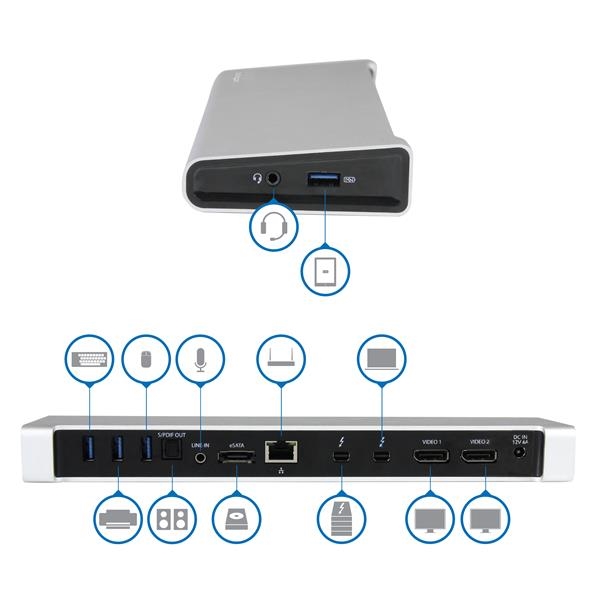

Connector(s)
Connector Type(s)
2 - Thunderbolt 2 (20 pin) Female
2 - DisplayPort (20 pin) Female
1 - USB 3.0 A (Fast-Charge 9 pin SuperSpeed) Female
1 - Toslink (SPDIF Optical) Female
3 - USB Type-A (9 pin) USB 3.0 Female
1 - 3.5 mm Mini-Jack (4 Position) Female
1 - eSATA (7 pin Data) Female
1 - 3.5 mm Mini-Jack (3 Position) Female
1 - RJ-45 Female
Software
OS Compatibility
Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit)
Mac OS 10.9 and later (tested up to 10.11)
Special Notes / Requirements
Note

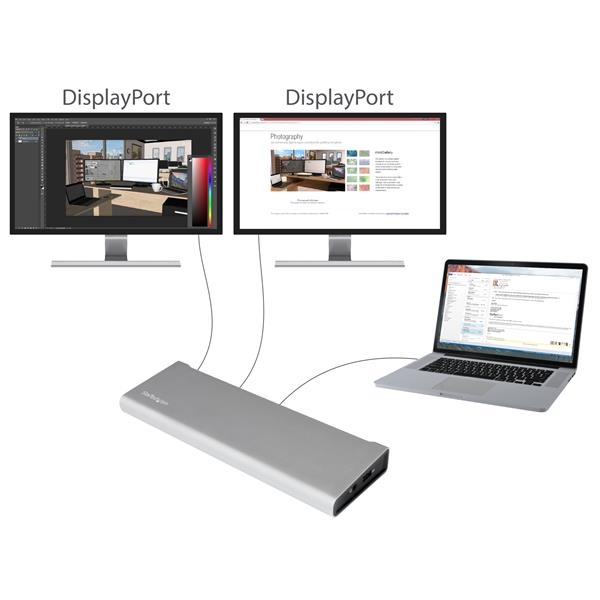

Dual-display configuration is available when connected to two DisplayPort monitors, or a DisplayPort and a Thunderbolt monitor. Your laptop hardware must support dual-external displays through its Thunderbolt 2 port
A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K)
If connected to a Thunderbolt 1 host port, performance may be limited
USB 3.0 is also known as USB 3.1 Gen 1 this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements
Thunderbolt 2 enabled computer with a Thunderbolt 2 port
Indicators
LED Indicators
1 - Link (Green)
1 - Activity (Yellow)
Power
Center Tip Polarity
Positive
Input Current
2 A
Input Voltage
100 240 AC
Output Current
6 A
Output Voltage
12 DC
Plug Type
N
Power Consumption
72 W Max
Power Source
AC Adapter Included
Environmental
Humidity
5-90% RH (Non-condensing)
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 70oC (-4oF to 158oF)
Physical Characteristics
Color : Silver
Enclosure Type : Aluminum and Plastic
Included in Package
1 - Thunderbolt 2 dual-video docking station
1 - Thunderbolt cable
1 - universal power adapter
4 - power cords (NA/EU/UK/AU)
1 - instruction manual
Item Dimension (L inchxW inchxH inch)
14 x 6 x 4
Weight
3.97 lb
Warranty Information
2 Year Warranty
