StarTech Accessory ST12MHDLANUR 1080p HDMI Video and USB Over IP Receiver Retail
- SKU: 185262
- Vendor: StarTech
- UPC: 065030863704
Versatile configuration options
In a point-to-multipoint setup, the HDMI over IP kit can be connected through an unmanaged or managed Gigabit LAN portal. You can connect one or multiple sources (transmitters) to multiple displays (receivers) over IP, using a managed Gigabit Ethernet switch (with IGMP). For additional scalability, you can combine up to 16 different transmitters and an unlimited number of receivers, depending on available network bandwidth.
Extend up to four USB devices at each remote display
With a built-in USB extension hub, you can add up to four remote USB devices at each remote display. This enables you, or your customers, to control a computer at the video source device from the remote location and lets you create interactive digital signage to engage your customers. Or, if you're using the video-over-IP extender as part of your I.T infrastructure, you can use the USB extenders to add a remote KVM console that you can use to control your servers from different remote locations.
Manage your video distribution from your mobile device
The HDMI distribution kit features easy-to-use video control software that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall for an impressive digital signage presentation, to catch the attention of your audience.
Audio
Yes
Cabling
Cat 5e UTP or better
Daisy-Chain
Yes
Ports
1
Rack-Mountable
Yes
Audio Specifications
Stereo Audio
Max Distance
100 m / 330 ft
Maximum Digital Resolutions
1920x1200 at 60Hz
Supported Resolutions
1920 x 1200
1920 x 1080
1600 x 1200
Wide Screen Supported
Yes

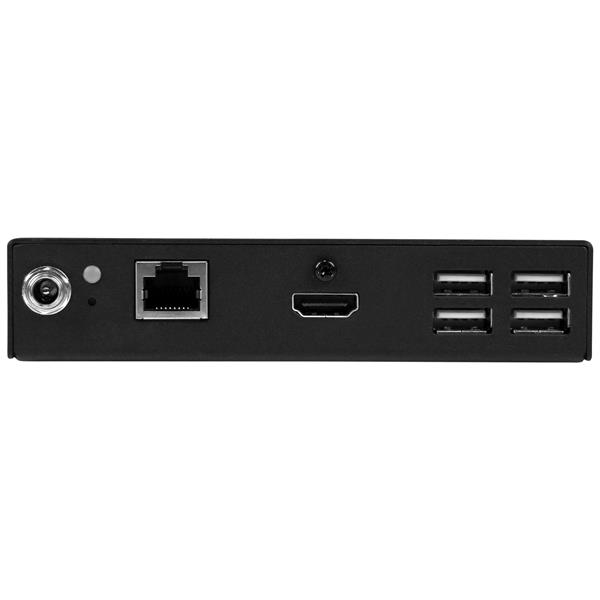

Connector B
1 x HDMI (19 pin) Female Output
1 x RJ-45 Female Output
4 x USB A (4 pin) Female
LED Indicators
1 x Link OK / POWER - Transmitter
1 x Reset - Transmitter
1 x Link OK / POWER - Receiver
1 x Reset - Receiver
Center Tip Polarity
Positive
Input Current
0.6 A
Input Voltage
100 to 240 AC
Output Current
1.5 A
Output Voltage
12 DC
Plug Type
M
Power Source
AC Adapter Included
Humidity
0% to 80 %
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-10oC to 60oC (14oF to 140oF)
Color
Black
Enclosure Type
Aluminum
Included in Package
1 x HDMI over IP receiver
1 x universal power adapter (NA / EU / UK / AU)
1 x screw kit
1 x mounting bracket
1 x foot pad set
1 x CAT5 cable
1 x quick install guide
Item Dimension (L inchxW inchxH inch)
15 x 10 x 7
Weight
7.00lb
Warranty Information
2 Year Warranty
