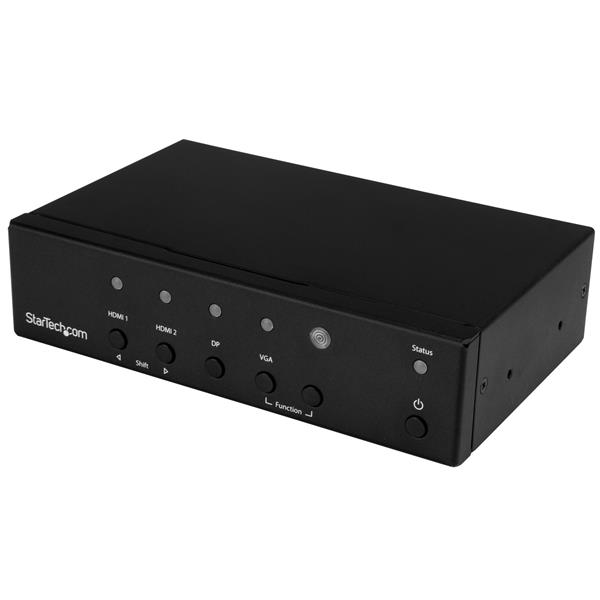

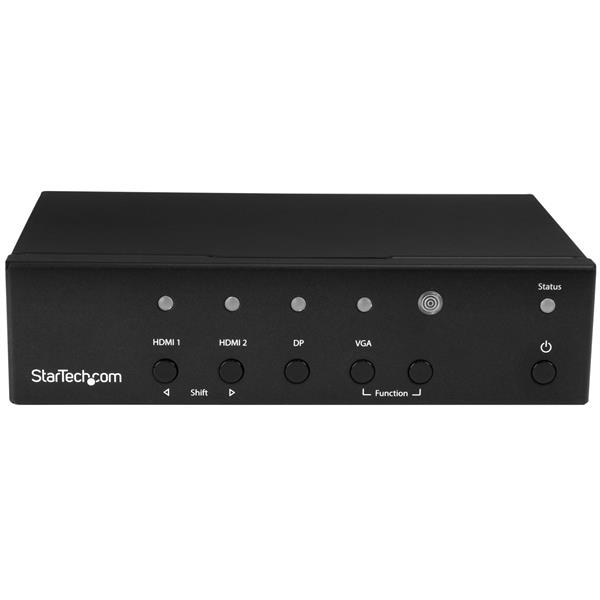

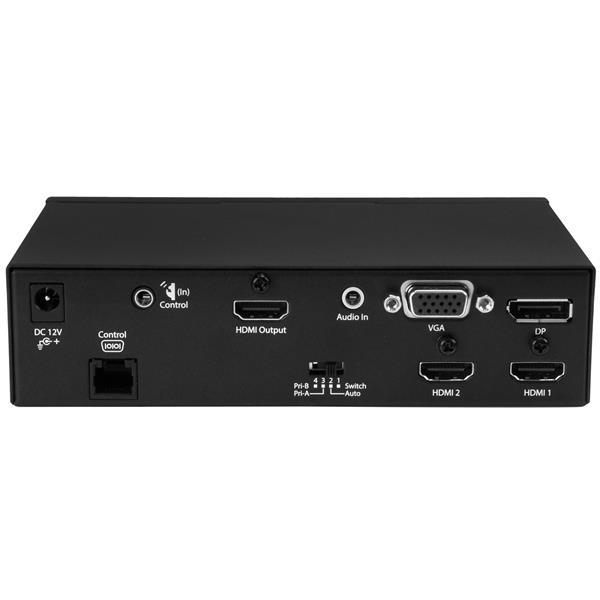

StarTech Accessory HDVGADP2HD 4K Multi-Input to HDMI Automatic Switch and Converter Retail

  • SKU: 185271
  • Vendor: StarTech
  • UPC: 065030863476
This multi-input converter switch lets you connect your DisplayPort (DP), HDMI® and VGA audio/video sources to one HDMI display or projector. The switch enables you to automatically or manually switch between your video sources and features built-in signal conversion, which eliminates the cost and hassle of using additional adapters for the sake of compatibility.

This versatile A/V switch supports video resolutions up to 1920x1200 (1080p) on your VGA source and up to 4K at 30 Hz on your DisplayPort and HDMI video sources. For a tidy, professional installation, the converter switch includes mounting hardware.

Save time with a single switch for DisplayPort, HDMI and VGA

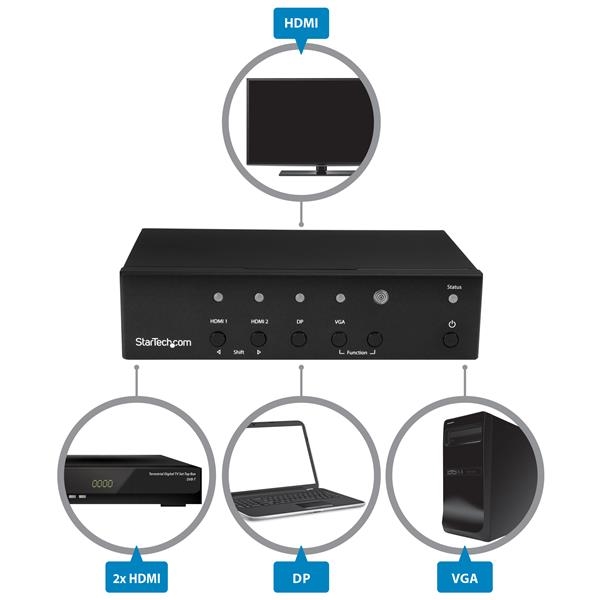

The A/V switch features built-in HDMI conversion, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same HDMI display, without having to use additional adapters or scalers.

Effortless control with automatic or priority switching
The converter switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching. The converter switch is perfect for digital signage applications where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages.

Audio
Yes

Ports
4

Audio Specifications
2-channel 3.5mm stereo audio (VGA)
2-channel DisplayPort stereo audio (DP)
7.1 surround sound (HDMI)

Maximum Analog Resolutions
1920 x 1200 at 60 Hz

Maximum Digital Resolutions
3840x2160 at 30 Hz

Supported Resolutions
HDMI and DisplayPort:
1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
VGA:
1024 x 768
1280 x 720 (High-definition 720p)
1920 x 1080 (High-definition 1080p)
1920 x 1200

Wide Screen Supported
Yes

LED Indicators
4 x selected port LEDs
1 x status LED

Center Tip Polarity
Positive

Input Voltage
100 to 240 AC

Output Current
1.5 A

Output Voltage
12 DC

Plug Type
M

Power Source
AC Adapter Included

Humidity
0% to 80%

Operating Temperature
0oC to 40oC (32oF to 104oF)

Storage Temperature
-10oC to 60oC (14oF to 140oF)

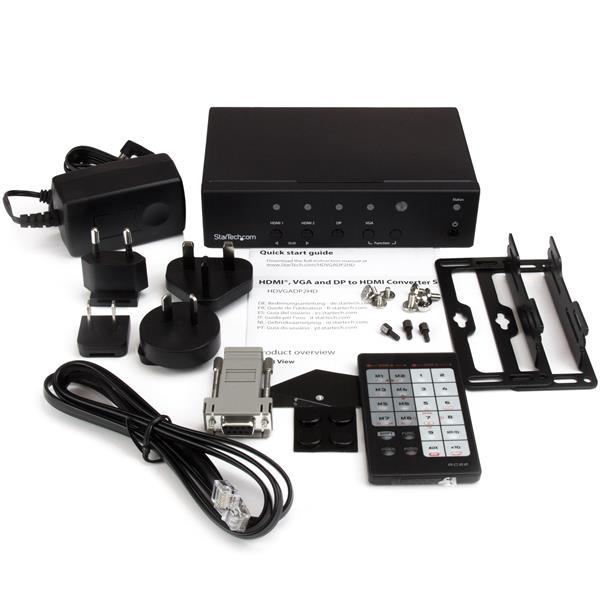

Included in Package
1 x converter switch
1 x IR remote control
1 x screw kit
1 x mounting bracket kit
1 x footpad set
1 x RJ11-to-RS232 converter
1 x RJ11 cable
1 x universal power adapter (NA / EU / UK / AU)
1 x quick start guide

Item Dimension (L inchxW inchxH inch)
12 x 9 x 3

Weight
2.00lb

Warranty Information
2 Year Warranty
