StarTech Accessory DKT30CHPDW USB-C Multiport Adapter for Laptops with Power Delivery Silver and White Retail
- SKU: 197010
- Vendor: StarTech
- UPC: 065030871037

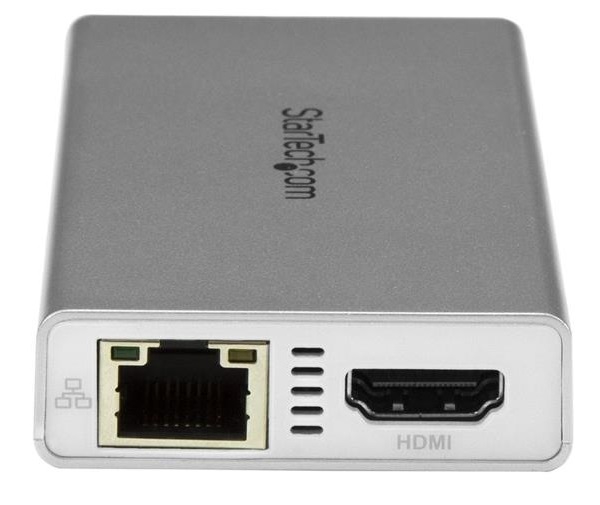

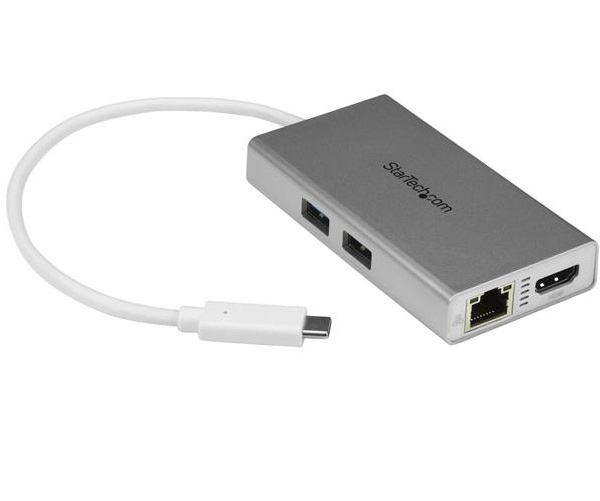

The USB-C adapter lets you create a powerful workstation virtually anywhere, providing 4K Ultra HD (3840 x 2160p) HDMI video output, two USB 3.0 ports, and a Gigabit Ethernet port. You can also power both the multiport adapter and your laptop simultaneously, with support for USB Power Delivery 2.0.
Create a powerful workstation
When coupled with your laptop display, this versatile USB-C multiport adapter makes it easy to create a dual-monitor workstation when you need it. It offers a 4K HDMI® port (with audio), so you can easily connect a high-resolution monitor and gain access to more screen space. With higher resolutions, you can view more windows at once and increase your productivity.

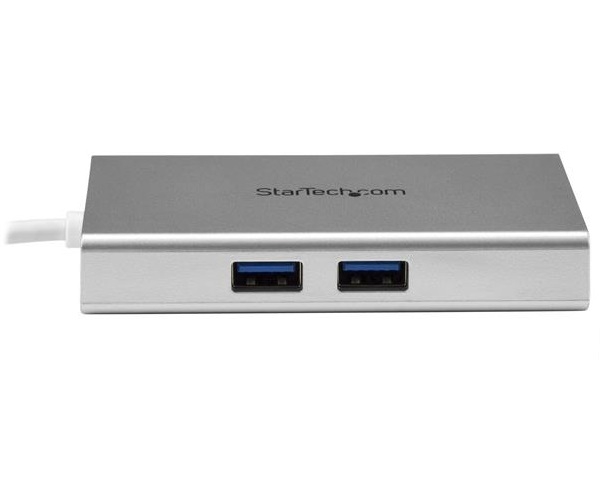

The Gigabit Ethernet port ensures reliable wired network access, which is ideal for areas with limited Wi-Fi access. Plus, with two additional USB 3.0 ports (USB Type-A) you can connect your existing peripheral devices, like your mouse or flash drive.
Designed for easy portability

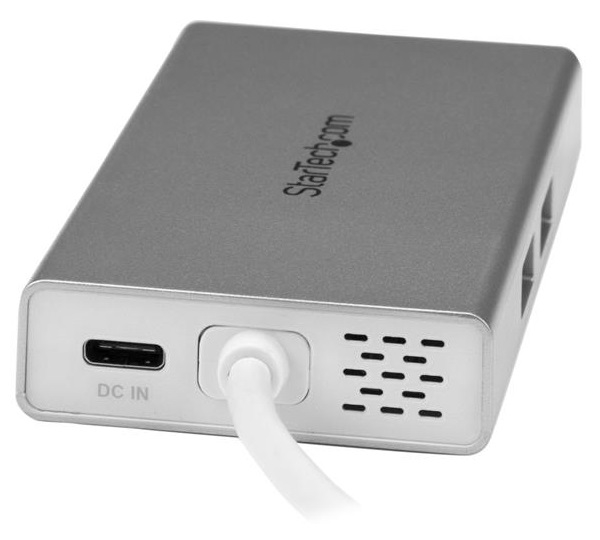

This multiport adapter means you don’t have to carry multiple power adapters with you. Ideal for mobile use, it features a USB-C port that supports USB Power Delivery 2.0 (USB PD 2.0), so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.
The versatile multiport adapter is compact and lightweight, so it's easy to tuck into your laptop bag. It consolidates multiple ports into a single adapter, which means you don’t need to bring along multiple single-function adapters.
Hardware
4K Support: Yes
Bus Type: USB-C
Chipset ID:
- VLI - VL813 (USB 3.0 Hub)
- VLI - VL100 (USB Power Delivery)
- Chrontel - CH7525A (HDMI)
- ASIX - AX88179 (LAN)
Displays Supported: 1
Fast-Charge Port(s): No
Industry Standards:
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- USB 3.0 - Backward compatible with USB 2.0 and 1.1
Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate:
- 5 Gbps (USB 3.0)
- 2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p at 24Hz or 3840 x 2160p (HDMI) at 30Hz
Maximum Power Delivery Support: 60 W
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector(s)
Connector Type(s):

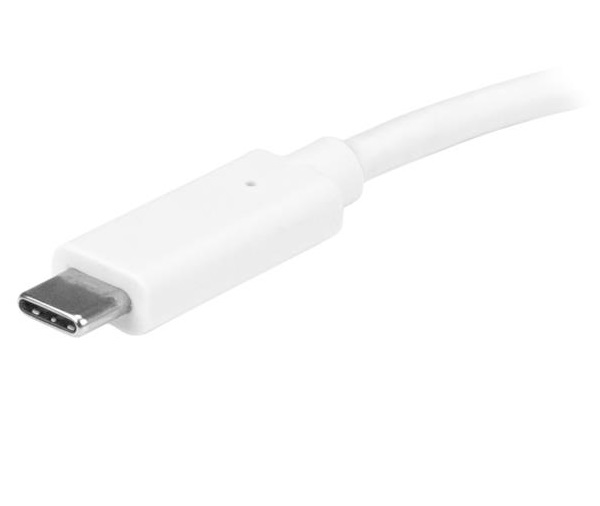

- 1 - USB Type-C (24 pin) USB 3.0 Male
- 1 - HDMI (19 pin) Female
- 1 - RJ-45 Female
- 2 - USB Type-A (9 pin) USB 3.0 Female
- 1 - USB Type-C (24 pin) USB 3.0 Female
Software
OS Compatibility:
- Windows 7, 8, 8.1, 10
- Mac OS 10.9 to 10.12
- Chrome OS
Special Notes / Requirements
Note:
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
The adapter can connect to a host laptops USB-C port that doesnt support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
USB 3.0 is also known as USB 3.1 Gen 1 this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements:
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
Optional: USB-C power adapter (for example, your laptops USB-C based power adapter)
Power
Power Source: USB-Powered
Environmental
Humidity: 0 to 85% RH (Non-condensing)
Operating Temperature: 0oC to 50oC (32oF to 122oF)
Storage Temperature: -10oC to 65oC (14oF to 149oF)
Cable Length
13.7 in 348 mm
Color: Silver and White
Enclosure Type: Plastic
Included in Package
1 - USB-C multiport adapter
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
8 x 6 x 2
Weight
1.00 lb
Warranty Information
3 Year Warranty
