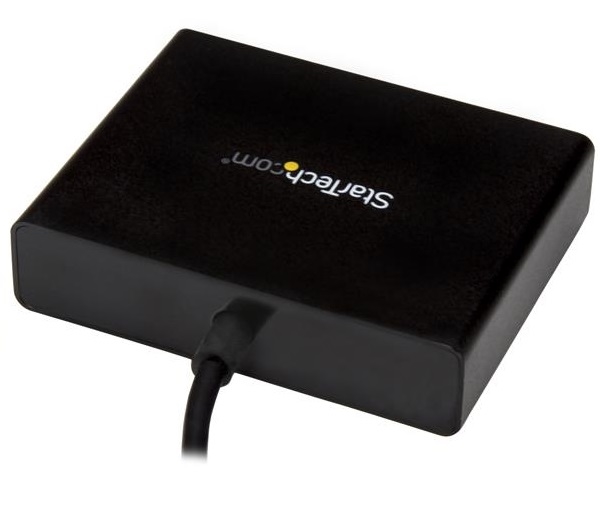

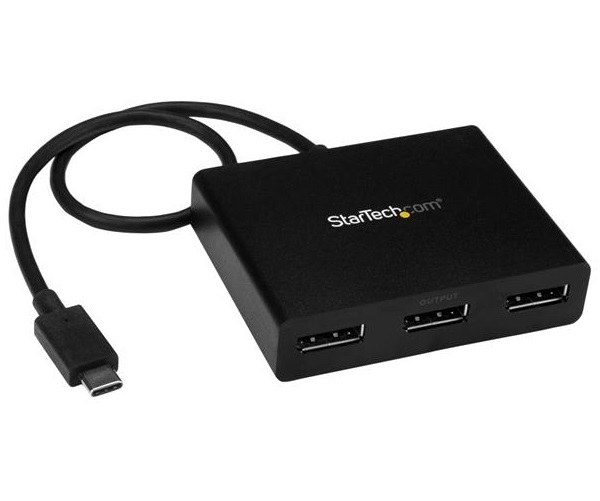

StarTech Accessory MSTCDP123DP 3Port Daisy Chainabl USB-C DisplayPort Monitor Hub Retail

  • SKU: 201151
  • Vendor: StarTech
  • UPC: 065030864503
This MST hub lets you connect three DisplayPort monitors to your USB-C™ computer. MST ensures hassle-free setup by natively working on any Windows® device that supports DP alt mode over USB Type-C™, such as models of Dell Precision™, Dell XPS™ laptops and ASUS® ROG GL752.

The MST hub also works with Thunderbolt™ 3 ports to provide Thunderbolt 3 to triple DisplayPort conversion. Plus with a lower price point than docks, MST offers a multi-monitor solution that’s more cost-effective than a traditional laptop docking station.

Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever. Unfortunately, this means you’re left with fewer video outputs and a small integrated screen. This MST hub solves these problems by letting you connect three displays to a single USB-C port on your computer, which makes multitasking much easier.

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. This makes it easier to multitask and increase your productivity, which is perfect for creating an easy-to-dock hot-desk solution with a wireless keyboard and mouse peripheral set.

You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Audio
Yes

Chipset ID
STDP4320 - VL100

Converter Type
MST Hub

Output Signal
DisplayPort

Ports
3

Maximum Digital Resolutions
3840 x 2160 at 30hz

Supported Resolutions
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.
Average resolution bandwidth allocation
1920 x 1080 (High-definition 1080p) at 60hz - 22%
1920 x 1200 at 60hz - 30%
2560 x 1440 at 60hz - 35%
2560 x 1600 at 60hz - 38%
3840 x 2160 (Ultra HD 4K) at 30hz - 38%
Note: Exceeding 100% will reduce functionality.

Wide Screen Supported
Yes

Connector A

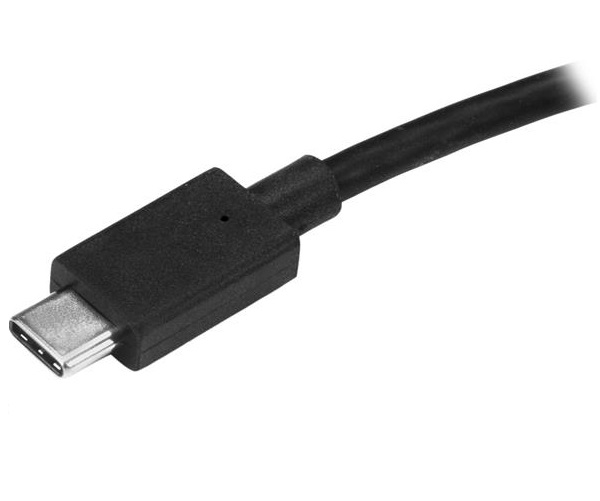

1 - USB-C (24 pin) DisplayPort Alt Mode Male Input

Connector B

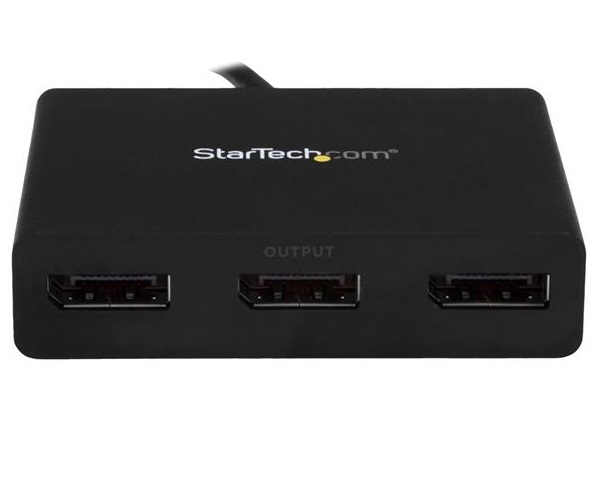

3 - DisplayPort (20 pin) Female Output

Operating Temperature
0oC to 45oC (32oF to 113oF)

Storage Temperature
-20oC to 70oC (-4oF to 158oF)

Cable Length
12.7 in (322 mm)

Color
Black

Enclosure Type
Plastic

Included in Package
1 - MST hub
1 - quick-start guide

Item Dimension (L inchxW inchxH inch)
10 x 7 x 3

Weight
2.00 lb

Warranty Information
2 Years Warranty
