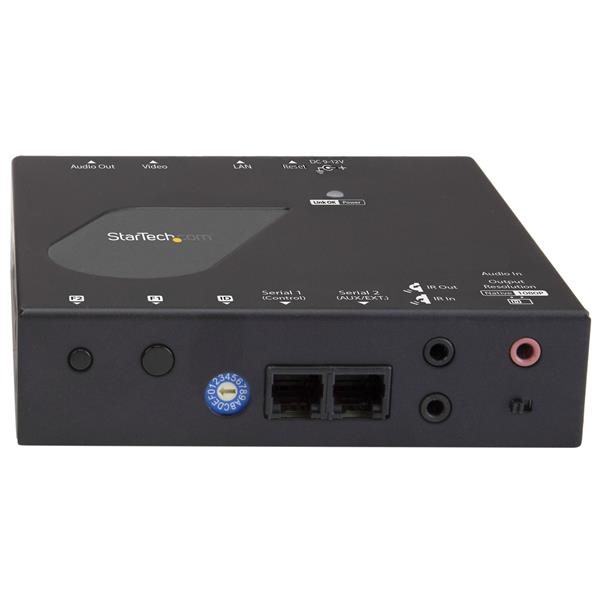

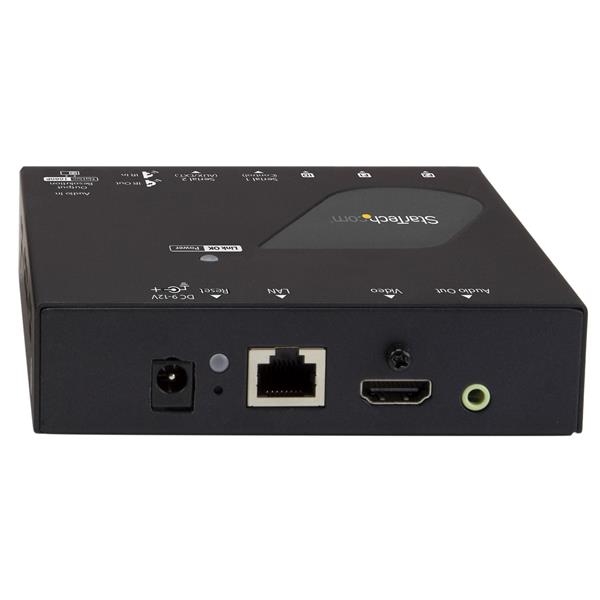

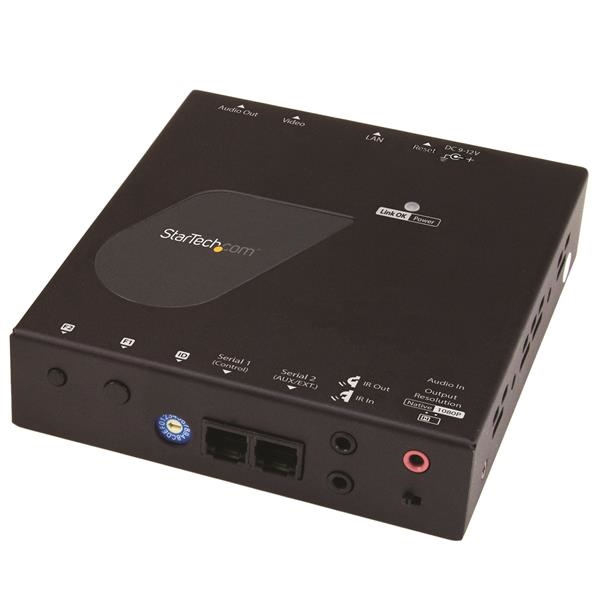

StarTech Accessory ST12MHDLAN4K 4K HDMI Over IP Extender Kit Retail
- SKU: 203217
- Vendor: StarTech
- UPC: 065030868372
You can add multiple receivers to your HDMI over IP extender kit to create a point-to-multipoint setup or video wall. In these configurations, you can also add additional sources (transmitters) with even more displays (receivers) over your Gigabit Ethernet switch with IGMP. For further scalability, you can combine up to 16 total (transmitters) and as many receivers (displays) as your network bandwidth can support.
The extender also features a separate 3.5 mm audio source that enables you to switch between the native HDMI audio and a separate 3.5 mm audio source, so you can distribute a single audio source to multiple remote locations over IP (also requires a Gigabit Ethernet switch with IGMP).
Ultra HD 4K resolution at 60Hz
This HDMI over IP kit uses H.264 compression to deliver astonishing 4K UHD video to your remote 4K displays over an IP connection. With support for 4K, you can achieve an output resolution of up to 3840 x 2160p at 30Hz, which enables you to extend a 4K video source to multiple remote locations -- perfect for digital signage or entertainment video distribution throughout large buildings such as schools, hospitals, shopping centers or areas.
The extender is backward compatible with lower resolutions such as 1080p or 720p, making it great for lower resolution applications while future-proofing your infrastructure for 4K implementation.
Ports
1
Audio Specifications
Stereo Sound
Max Distance
100 m / 330 ft
Maximum Digital Resolutions
4K 30Hz
Supported Resolutions
3840x2160 (4K) 30Hz
2560x1600
1920x1200 60Hz
1920x1080 (1080p)
1280x720 (720p)
Wide Screen Supported
Yes
Connector A
1 - HDMI (19 pin) Female Output
1 - RJ-45 Female
2 - RJ-11 Female
4 - 3.5 mm Mini-Jack (3 Position) Female
Center Tip Polarity
Positive
Input Current
0.6 A
Input Voltage
100 240 AC
Output Current
1.5 A
Output Voltage
12 DC
Plug Type
M
Power Consumption (In Watts)
18
Power Source
AC Adapter Included
Humidity
0% - 80 %
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-10oC to 60oC (14oF to 140oC)
Color
Black
Enclosure Type
Aluminum
Included in Package
1 - HDMI over IP receiver
1 - universal power adapter (NA, EU, UK, ANZ)
1 - mounting bracket
1 - CAT5 cable
1 - RJ11 to RS232 adapter
1 - RJ11 cable
1 - plastic screwdriver
1 - quick-start guide
Audio
Yes
Cabling
Cat 5e UTP or better
Daisy-Chain
Yes
Output Signal
HDMI
Rack-Mountable
Yes
Item Dimension (L"xW"xH")
15 x 10 x 3
Weight
4.94lbs
Warranty
2 Year
