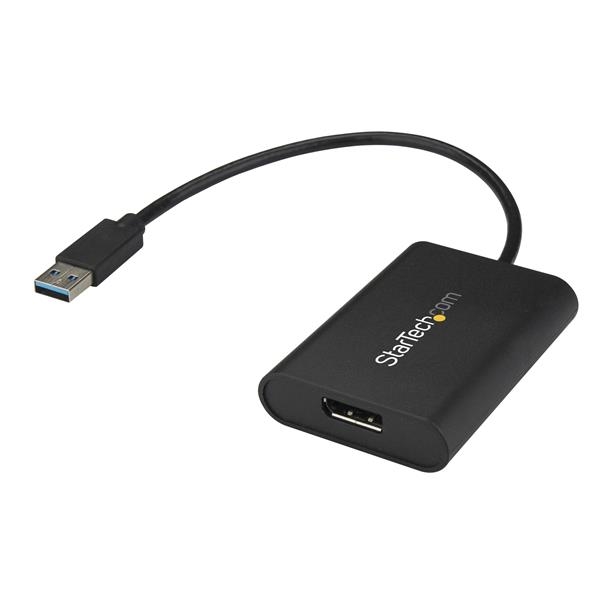

StarTech Accessory USB32DPES2 USB to DisplayPort Adapter USB 3.0 4K 30Hz Retail
- SKU: 211068
- Vendor: StarTech
- UPC: 065030875561
Increase your productivity by adding a 4K display
This USB to DP adapter can boost your productivity by providing more screen space to work with. Having multiple displays gives you the freedom to access two full-screen applications simultaneously, enabling you to reference material on one display while composing on another. The adapter even supports display rotation for a vertical screen that’s ideal for viewing spreadsheets, newsfeeds or stock tickers.
Easy-to-install
The multi-monitor adapter is powered by your computer's USB Type-A port, so you won’t need to connect a bulky external power adapter. Plus, the drivers install quickly and easily and only need to be installed once, regardless of how many USB video adapters you want to connect.
Get astonishing picture quality with 4K video
Even if your system doesn’t natively support 4K video output, this USB video adapter lets you enjoy the picture quality of Ultra HD video. With support for 4K at 30Hz, you get sharp and crisp picture quality that’s richer and more true-to-life than traditional HD, with far greater detail in both darker and brighter images.
Hardware
Audio:Yes
Chipset ID:MCT - T6-688L
Memory:DDR 4Gb
Output Signal:DisplayPort
Ports:1
USB Pass-Through:No
Performance
Audio Specifications:2-channel stereo
General Specifications:This USB video adapter uses a Trigger family chipset. If youre connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
Maximum Digital Resolutions:4K x 2K at 30Hz
Supported Resolutions:Widescreen(16/32 bit):
38402160, 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720
Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640X480
Wide Screen Supported:Yes
Connector(s)

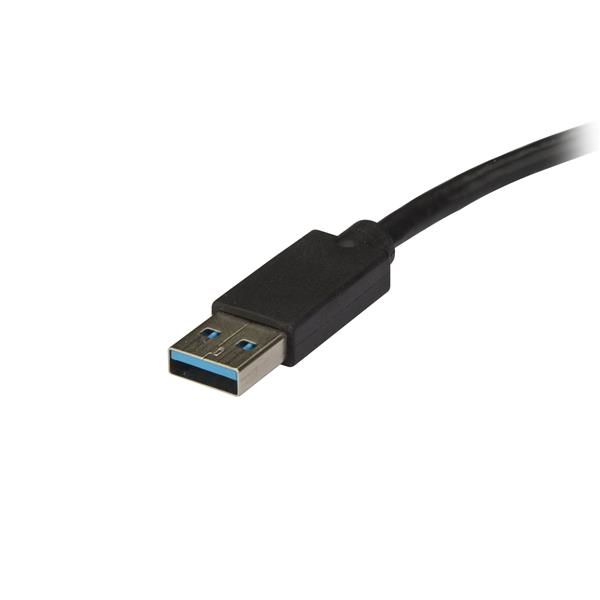

Connector A:1 - USB Type-A (9 pin) USB 3.0 Male Input

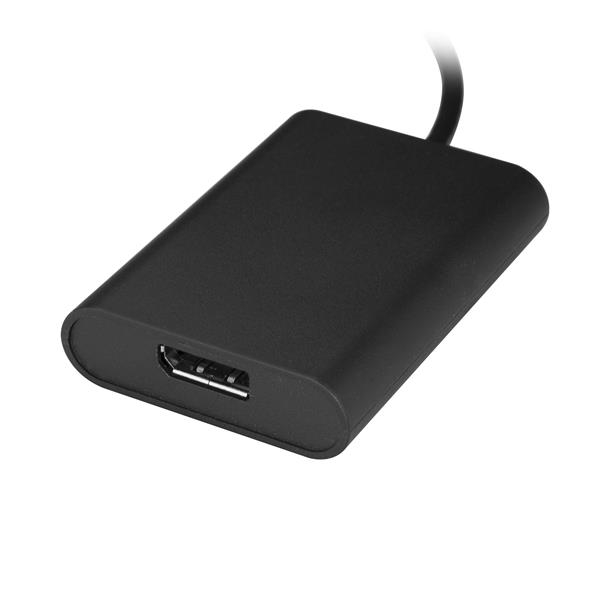

Connector B:1 - DisplayPort (20 pin) Female Output
Software
Microsoft WHQL Certified:Yes
OS Compatibility:Windows 10 (32/64)
Windows 8 / 8.1 (32/64)
Windows 7(32/64)
Special Notes / Requirements
Note:This USB video adapter uses a Trigger family chipset. If youre connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink or Fresco Logic
This USB video adapter is not intended for graphical intensive applications
System and Cable Requirements:For 1 - 2 video adapters
- CPU: Intel Core TM i3 2.8 GHz or equivalent (Core i5 recommended for HD video)
- RAM: 2 GB or more (4 GB recommended for HD video)
For 3 - 4 video adapters
- CPU: Intel Core i5 Quad Core 2.8 GHz or equivalent
- RAM: 4 GB or more
For 5 video adapters
- CPU: Intel Core i7 Quad Core 3.0 GHz or equivalent
- RAM: 8 GB or more
Power
Power Source:USB-Powered
Environmental
Humidity:< 85% non-condensing
Operating Temperature:0oC to 45oC (32oF to 133oF)
Storage Temperature:-15oC to 75oC (5oF to 167oF)
Physical Characteristics
Cable Length:2.4 in (62 mm)
Color:Black
Enclosure Type:Plastic
Whats in the Box
Included in Package:1 - USB video adapter
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
9 x 6 x 2
Weight
1.00lb
Warranty Information
2 Years
