StarTech Accessory RKCONS1908K 1U 8-Port Rackmount KVM Console for Server Rack 19in Retail
- SKU: 217042
- Vendor: StarTech
- UPC: 065030872508
- EAN: NO
Maximize your IT budget, minimize your hassle

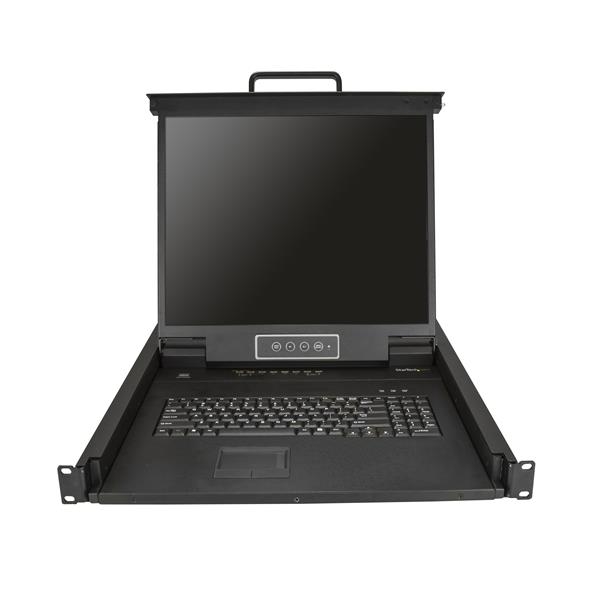

This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring

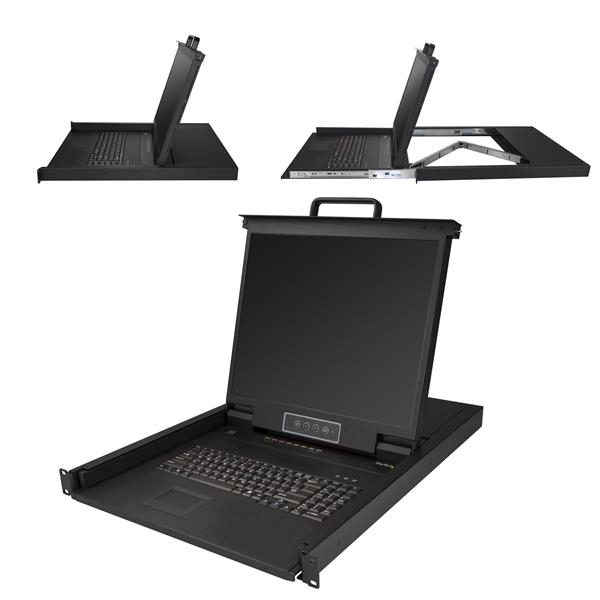

The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. You can also connect to additional servers by connecting to KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
HARDWARE
Audio:No
Cables Included:Yes
Daisy-Chain:Yes
Display Size:19in
Front Door Key Lock:No
KVM Ports:8
Number of Monitors Supported:1
Panel Type:Active Matrix TFT LCD
PC Interface:USB and PS/2
PC Video Type:VGA
Rack-Mountable:Yes
U Height:1U
PERFORMANCE
Brightness:250 cd/m
Color Depth:8-bit, 16.7M colors
Contrast Ratio:1000:1
IP Control:No
Maximum Analog Resolutions:1280 x 1024
Maximum Number of Users:1
MTBF:50, 000 Hrs
Pixel Pitch Support:0.264 x 0.264 mm
Supported Resolutions:
1024x768
1280x720 (High-definition 720p)
1280 x 1024
Lower resolutions are also supported
CONNECTOR(S)

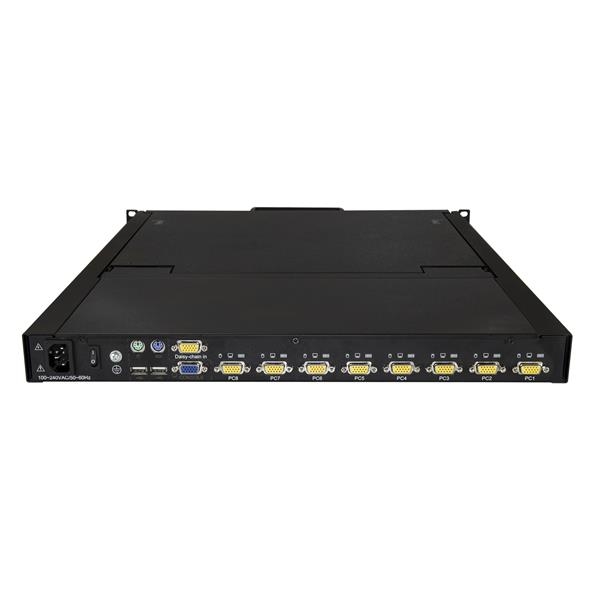

Console Interface(s):8 - VGA (15 pin, High Density D-Sub) Female Input
Host Connectors:1 - VGA (15 pin, High Density D-Sub) Female Output
Other Interface(s):1 - VGA (15 pin, High Density D-Sub) Female Input
2 - USB Type-A (4 pin) USB 2.0 Female Input
2 - PS/2 (6 pin, Mini-DIN) Female Input
POWER
Power Consumption (In Watts):21W
ENVIRONMENTAL
Humidity:10 to 80% RH
Operating Temperature:0oC to 40oC (32oF to 104oF)
Storage Temperature:-20oC to 60oC (-4oF to 140oF)
WHATS IN THE BOX

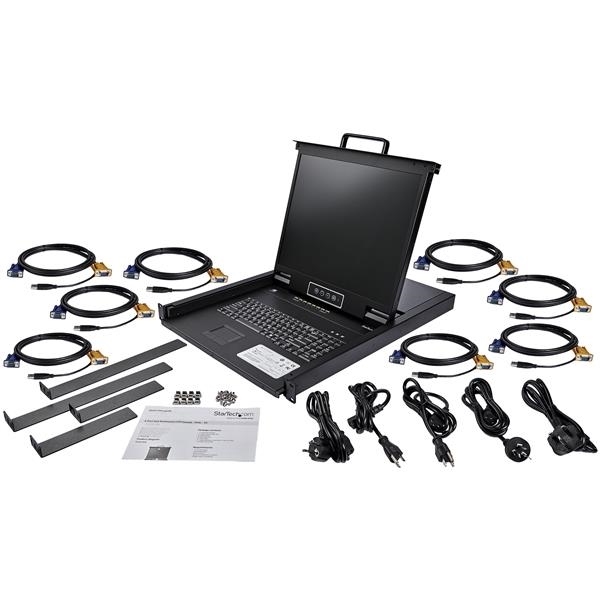

Included in Package:
1 - rack console
8 - KVM cables
8 - M5 cage nuts
8 - M5 screws
5 - regional power cords (NA, JP, UK, EU, ANZ)
4 - mounting rails (variable lengths) for consistency
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
31 x 25 x 8
Weight
45.00lb
Warranty Information
2 Year Warranty
