StarTech Accessory RKCONS1701 Single-Port Rackmount KVM Console with 17 inch Display Retail
- SKU: 224547
- Vendor: StarTech
- UPC: 065030872522
An All-Inclusive Solution

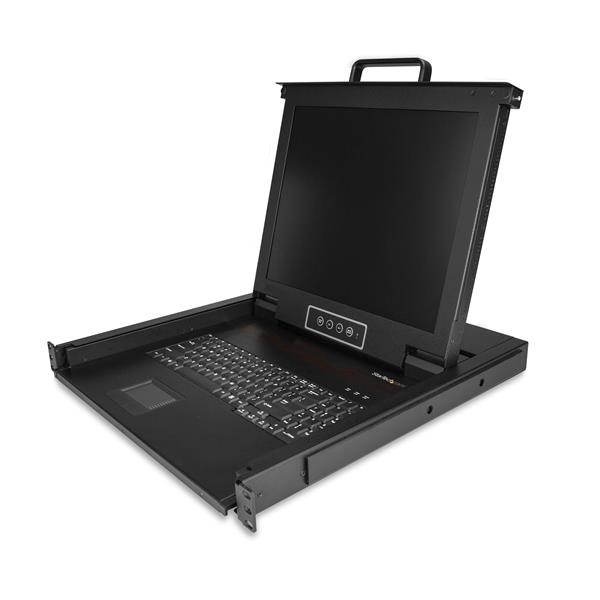

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
Thissingle-portKVM consoleincludes everythingyou need to set up right out of the box:
1 VGA KVM Cable
Mounting Rails
M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Hardware
Audio: No
Cables Included: Yes
Daisy-Chain: No
Display Size: 17in
Front Door Key Lock: No
KVM Ports: 1
Number of Monitors Supported: 1
Panel Type: Active Matrix TFT LCD
PC Interface: USB
PC Video Type: VGA
Rack-Mountable: Yes
U Height: 1U
Performance
Aspect Ratio: 5:4
Brightness: 250 cd/m2
Color Depth: 8-bit, 16.7M colors
Contrast Ratio: 1000:1
IP Control: No
Maximum Analog Resolutions: 1280 x 1024
Maximum Number of Users: 1
MTBF: 50, 000 Hrs
Pixel Pitch Support: 0.264 x 0.264 mm
Response Time: 5ms
Supported Resolutions: Resolutions up to 1280 x 1024 at 60Hz
Viewing Angle: 170o (H), 160o (V)
Connector(s)
Host Connectors: 1 - VGA (15 pin, High Density D-Sub) Female Input
Indicators
LED Indicators: 1 - Power / Status LED
Power
Input Current: 1.5A
Input Voltage: 100 - 240 AC
Power Consumption (In Watts): 13W
Power Source: International Power Cords
Environmental
Humidity: 10 - 80% RH (non-condensing)
Operating Temperature: 0oC to 40oC (32oF to 104oF)
Storage Temperature: -20oC to 60oC (-4oF to 140oF)
Physical Characteristics
Cable Length: 6ft
Color: Black
Enclosure Type: Steel
Whats in the Box
Included in Package:
1 - KVM console
1 - KVM cable
8 - M5 cage nuts
8 - M5 screws
5 - regional power cords (NA, JP, UK, EU, ANZ)
2 - mounting rails
1 - quick-start guide
Item Dimension (L"xW"xH")
31 x 25 x 8
Weight
45 lbs
Warranty Information
2 Year Warranty
