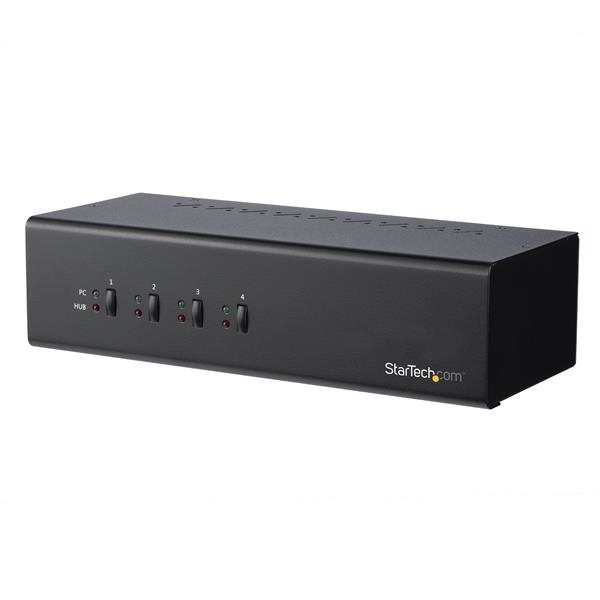

StarTech KVM Switch SV431DD2DU3A 4-Port Dual-Monitor DVI KVM Switch with USB3.0 Hub Retail
- SKU: 224549
- Vendor: StarTech
- UPC: 065030858205
Increase Productivity
The KVM switch supports four separate multimedia computer systems and the use of a dual DVI-D single-link monitor workstation, increasing productivity by enabling you to access more information at once.
Integrated USB 3.0 Hub
The 2-port hub thats built into the USB 3.0 KVM switch sharestwo additional peripherals(in addition to keyboard and mouse)among attached computers as if they were directly connected while supporting high-performance peripherals such as flash drives and video capture devices.
Full Multimedia Support
With support for separate stereo audio and microphones, the KVM switch box connects everything you need directly to your systems, saving you money and desk space.
Easyto Operate

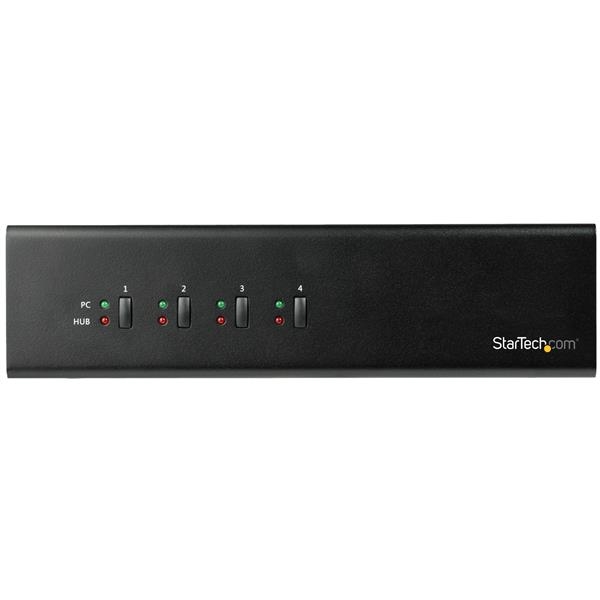

Thefront-panel push-buttonsmake it easy to switch between systemsand activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, whilean optionalbuzzer sound confirms the switch.
StarTech.comoffersa wide selection of high-quality KVMswitchesand KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.This4-port DVI USB KVM switch is backed by a 2-year warranty and free lifetime technical support.
Hardware
Audio: Yes
Cables Included: No
Daisy-Chain: Yes
KVM Ports: 4
Number of Monitors Supported: 2
PC Interface: USB 3.0
PC Video Type: DVI
Rack-Mountable: No
Performance
Auto Scan: 10, 20, 30, 40, 50, and 60 seconds
DVI Support: Yes - Single Link
Hot-Key Selection: Yes
IP Control: No
Maximum Analog Resolutions: 2048 x 1536 at 85Hz
Maximum Data Transfer Rate: 5 Gbps
Maximum Digital Resolutions: 1920 x 1200 at 60Hz
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys
Supported Resolutions: Minimum 640 x 480
Wide Screen Supported: Yes

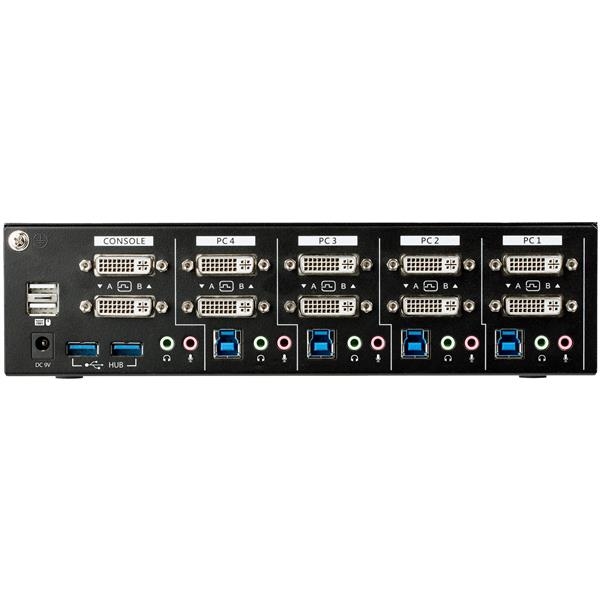

Connector(s)
Console Interface(s):
2 - DVI-I (29 pin) Female Output
2 - USB Type-A (4 pin HID Port) USB 1.1 Female Input
2 - USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Female
1 - 3.5 mm Mini-Jack (3 Position) Female Input
1 - 3.5 mm Mini-Jack (3 Position) Female Output
Host Connectors:
8 - DVI-I (29 pin) Female Input
4 - 3.5 mm Mini-Jack (3 Position) Female Input
4 - 3.5 mm Mini-Jack (3 Position) Female Output
4 - USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps) Female
Indicators
LED Indicators:
4 - Red
4 - Green
Power
Center Tip Polarity: Positive
Input Current: 0.8A
Input Voltage: 100 - 240 AC
Output Current: 2A
Output Voltage: 9 DC
Plug Type: M
Power Consumption (In Watts): 18 W
Power Source: AC Adapter Included
Environmental
Humidity: 0-90% RH, Non-condensing
Operating Temperature: 0-40 degree C
Storage Temperature: -20-60 degree C
Physical Characteristics
Color: Black
Enclosure Type: Steel
Whats in the Box
Included in Package:
1 - KVM switch
1 - universal power adapter (NA/JP, EU, UK, ANZ)
1 - quick-start guide
Item Dimension (L"xW"xH")
11 x 7 x 8
Weight
5 lbs
Warranty Information
2 Year Warranty
