StarTech Accessory RKCONS1716K 16Port 1U Rackmount KVM Console with 17 inch Display Black Retail
- SKU: 225248
- Vendor: StarTech
- UPC: 065030872546
An All-Inclusive Solution

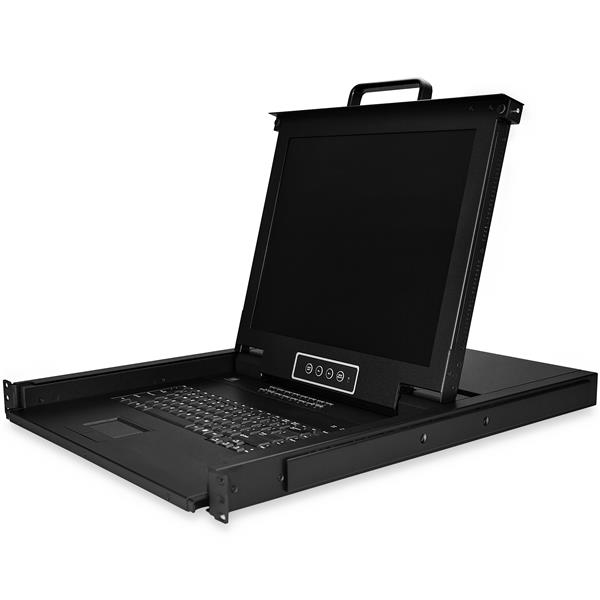

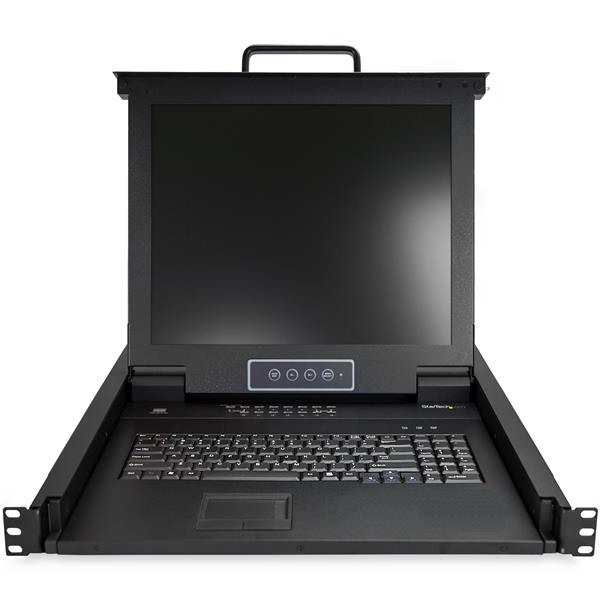

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This16-portKVM consolecomes with everythingyou need to set up right out of the box:
16 VGA KVM Cables
Mounting Rails
M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support
Hardware
Audio
No
Cables Included
Yes
Daisy-Chain
No
Display Size
17in
Front Door Key Lock
No
KVM Ports
16
Number of Monitors Supported
1
Panel Type
Active Matrix TFT LCD
PC Interface
USB
PC Video Type
VGA
Rack-Mountable
Yes
U Height
1U
Performance
Aspect Ratio
5:4
Brightness
250 cd/m2
Color Depth
8-bit, 16.7M colors
Contrast Ratio
1000:1
Hot-Key Selection
Yes
IP Control
No
Maximum Analog Resolutions
1280 x 1024
Maximum Number of Users
1
MTBF
50, 000 Hrs
On-Screen Display
Yes
Pixel Pitch Support
0.264 x 0.264 mm
Port Selection Support
Push Button, Hotkeys, and OSD (On Screen Display)
Response Time
5ms
Supported Resolutions
Resolutions up to 1280 x 1024 at 60Hz
Viewing Angle
170o (H), 160o (V)
Connector(s)
Console Interface(s)
1 - VGA (15 pin, High Density D-Sub) Female Output
2 - USB Type-A (4 pin) USB 2.0 Female Input
2 - PS/2 (6 pin, Mini-DIN) Female Input

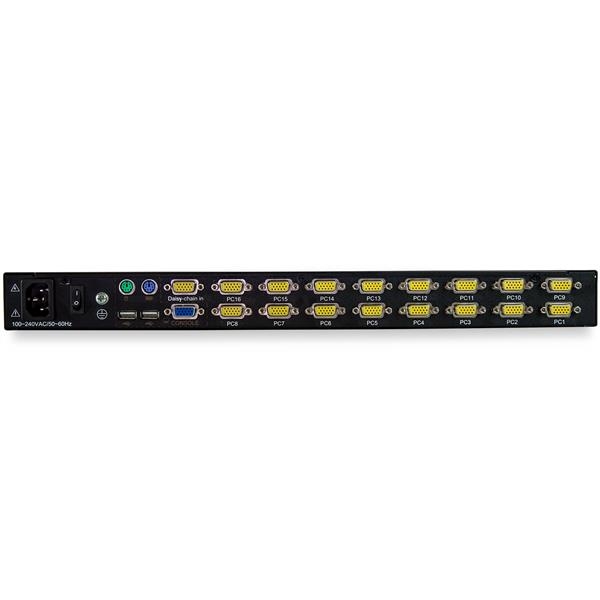

Host Connectors
16 - VGA (15 pin, High Density D-Sub) Female Input
Other Interface(s)
1 - 15 Pin High Density D-Sub Female Input
Indicators
LED Indicators
16 - Green/Red - Online/Selected LED
Power
Input Current
1.5A
Input Voltage
100 - 240 AC
Power Consumption (In Watts)
23W
Power Source
International Power Cords
Environmental
Humidity
10 - 80% RH
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-4oF to 140oF)
Physical Characteristics
Cable Length
6 ft
Color
Black
Enclosure Type
Steel
Maximum Mounting Depth
35.4 in 90 cm
Minimum Mounting Depth
22 in 56 cm
Whats in the Box
Included in Package
1 - KVM console
16 - KVM cables
8 - M5 cage nuts
8 - M5 screws
5 - Regional Power Cords (NA, JP, UK, EU, ANZ)
2 - Mounting Rails
1 - Quick-Start Guide
Item Dimension (L"xW"xH")
31 x 25 x 8
Weight
46.3 lbs
Warranty Information
2 Year Warranty
