StarTech Accessory DKT30CHVCM USB-C Multiport Adapter with HDMI and VGA 1xUSB-A Retail
- SKU: 226045
- Vendor: StarTech
- UPC: 065030880152
With easy plug-and-play installation on most operating systems, the USB-C adapter doesnt require additional drivers or software. Its the perfect accessory for MacBook Pro, Dell XPS, Chromebook or other USB-C laptops.
Connect a UHD 4K HDMI or VGA Monitor
The USB Type-C multiport adapter keeps you prepared for business travel. You can extend your laptops display by connecting to a 4K HDMI (4096x2160 or 3840 x 2160p) or VGA (1920 x 1200p) monitor or projector, to make presentations or set up a workstation.
Convenient Cable Management

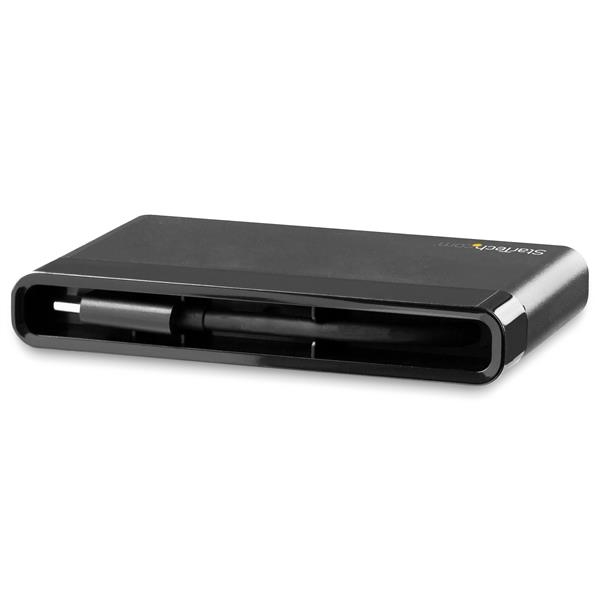

With multiple ports and an easily accessible hideaway cable, the USB-C all-in-one adapter makes an ideal travel dock, for easy connections on the go. Plus, the USB Type-C adapter is bus powered, so theres no need to carry around a separate power adapter.
Enhance Productivity
Connect a flash drive, mouse or other peripheral to your USB-C or Thunderbolt 3 laptop using the USB 3.0Type-A port. The USB-C adapter adds wired network connectivity with the GbE port, making it ideal in areas without Wi-Fi.
DKT30CHVCM is backed by a StarTech.com 3-year warranty and free lifetime technical support.
HARDWARE
4K Support
Yes
Bus Type
USB-C
Chipset ID
Genesys Logic - GL3523
Realtek - RTL8153
Eton Technology - EJ899T
Parade Technologies - PS176
ITE -IT6516
Displays Supported
1
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
PERFORMANCE
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Analog Resolutions
1920 x 1200p at 60Hz (VGA)
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions
4096 x 2160p at 24Hz or 3840 x 2160p at 30Hz (HDMI)
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
CONNECTOR(S)
Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male
1 - HDMI (19 pin) Female
1 - VGA (15 pin, High Density D-Sub) Female
1 - RJ-45 Female
1 - USB Type-A (9 pin) USB 3.0 Female
SOFTWARE
OS Compatibility
Windows 7, 8, 8.1, 10
macOS 10.11 to 10.14
Chrome OS
SPECIAL NOTES / REQUIREMENTS
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
Only one video output port can be used at the same time (HDMI or VGA). If two displays are connected, the HDMI port takes priority.
A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
USB 3.0 is also known as USB 3.1 Gen 1 this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements
Host laptop with an available USB-C port (to ensure full functionality, the laptops USB-C port must support DP alt mode).
POWER
Power Source
USB-Powered
ENVIRONMENTAL
Humidity
0-90% RH
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 70oC (-4oF to 158oF)
PHYSICAL CHARACTERISTICS
Cable Length
3.3 in 85 mm
Color
Black
Enclosure Type
Plastic
WHATS IN THE BOX
Included in Package
1 - Multiport Adapter
1 - Instruction Manual
Item Dimension (L"xW"xH")
7 x 6 x 2
Weight
1 lb
Warranty Information
3 Year Warranty
