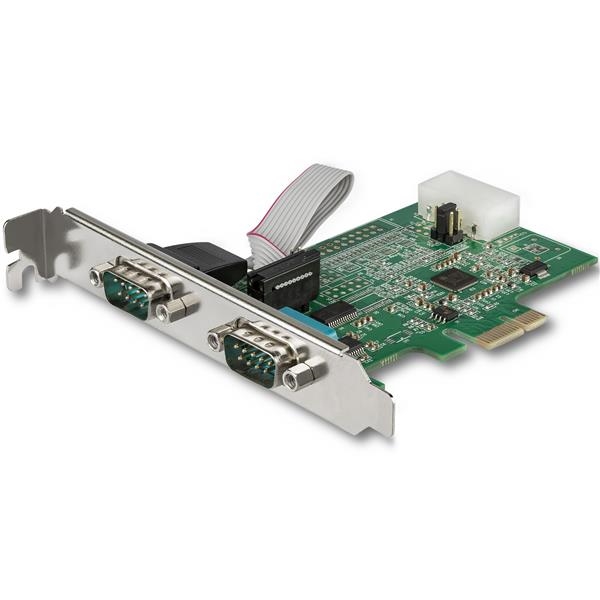

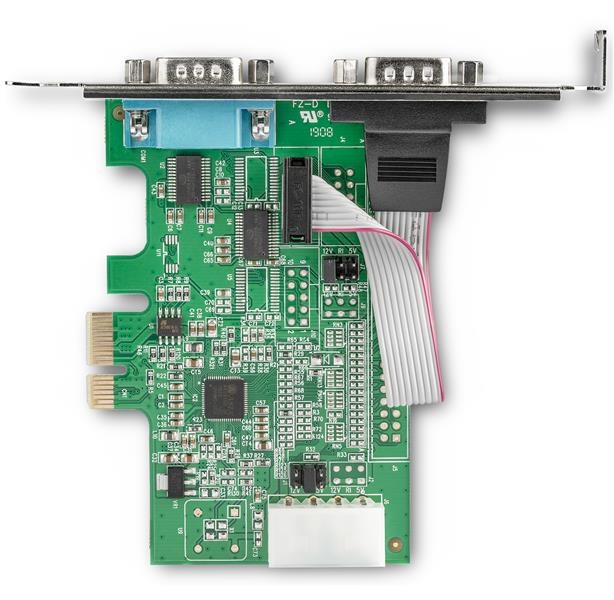

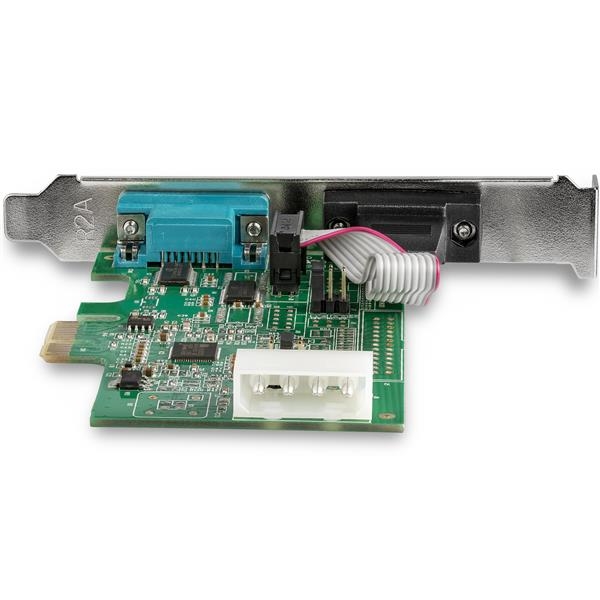

StarTech I/O Cards PEX2S953LP 2Port RS232 Serial Adapter Card with 16950 UART Retail
- SKU: 229986
- Vendor: StarTech
- UPC: 065030881166
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
•Compatible with industry standard 16950 UART
•Supports max baud rate of up-to 921.4Kbps
•Provides 5/12V power output on Pin 9 when external power is connected
•128-byte depth FIFO per transmitter and receiver
•Supports 9, 8, 7, 6, 5 data bits
•Asix AX99100 chipset
•PCI Express 1.1 compliant
PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
HARDWARE
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Chipset ID
Asix AX99100
Interface
Serial
Port Style
Integrated on Card
Ports
2
PERFORMANCE
Data Bits
5, 6, 7, 8, 9
FIFO
256 Bytes
Flow Control
None, Xon/Xoff, RTS/CTS
Max Baud Rate
921.6 Kbps
Parity
None, Odd, Even, Space, Mark
Serial Protocol
RS-232
Stop Bits
1, 1.5, 2
CONNECTOR(S)
Connector Type(s)
1 - PCI Express x1 Male
External Ports

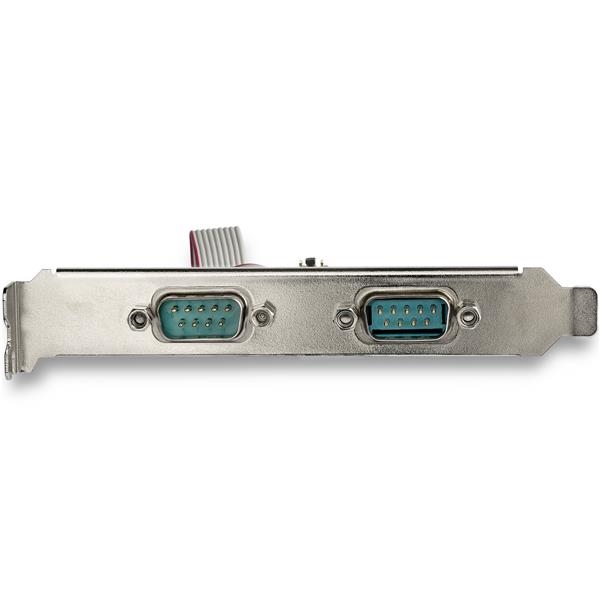

2 - DB-9 (9 pin, D-Sub) Male
Internal Ports
1 - LP4 (4 pin Large Drive Power) Male Input
SOFTWARE
Microsoft WHQL Certified
Yes
OS Compatibility
Windows 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Linux 2.4.x to 2.6.x LTS Versions only
SPECIAL NOTES / REQUIREMENTS
Note
Selectable power output on pin 9 of the serial port
ENVIRONMENTAL
Humidity
5 to 85% RH
Operating Temperature
-10oC to 80oC (14oF to 176oF)
Storage Temperature
-20oC to 100oC (-4oF to 212oF)
WHATS IN THE BOX
Included in Package
1 - PCIe Serial Card
1 - Full-Profile Bracket
1 - User Manual
Item Dimension ( L inchxW inchxH inch)
7 x 6 x 2
Weight
1 lb
Warranty Information
Lifetime Warrant
