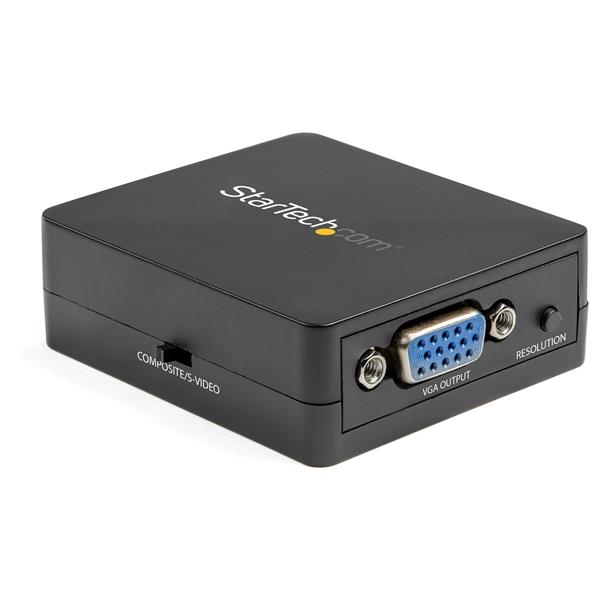

StarTech Accessory VID2VGATV3 Composite to VGA Video Converter 1920x1200 NTSC and PAL Retail
- SKU: 238075
- Vendor: StarTech
- UPC: 065030882606
Hassle-Free Setup and Easy to Use
Equipped with an on-screen display (OSD) menu and a toggle switch for simple configuration and selection of your video output settings, this compact S-Video to VGA video converter installs quickly and easily, for a true plug-and-play experience.
Save on Upgrade Costs
By using this AV to VGA adapter you’ll be able to continue using your legacy equipment (VCR, DVD player, etc.) with your VGA display or monitor, ultimately saving the costs of upgrading your equipment. It's ideal for boardroom settings, medical imaging and watching old home videos on your VGA display or new HDTV.
Crystal-Clear Picture Quality
The AV to VGA converter features an integrated video scaler circuit that dynamically converts the S-Video or composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. It supports resolutions up to 1920x1200 @ 60Hz, so you can enjoy high-definition video without having to sacrifice picture quality.
VID2VGATV3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
HARDWARE
Active or Passive Adapter
Active
Audio
No
AV Input
Composite
S-Video
AV Output
VGA
PERFORMANCE
Signal Levels
Input
Video at 1V p-p, 75 ohm
Y at 1 V p-p, 75 ohm
Color at 0.7V p-p, 75 ohm
Supported Resolutions
1920x1200 (60Hz)
1920x1080
1680x1050
1600x1200
1600x900
1280x1024
1024x768
800x600
CONNECTOR(S)
Connector A

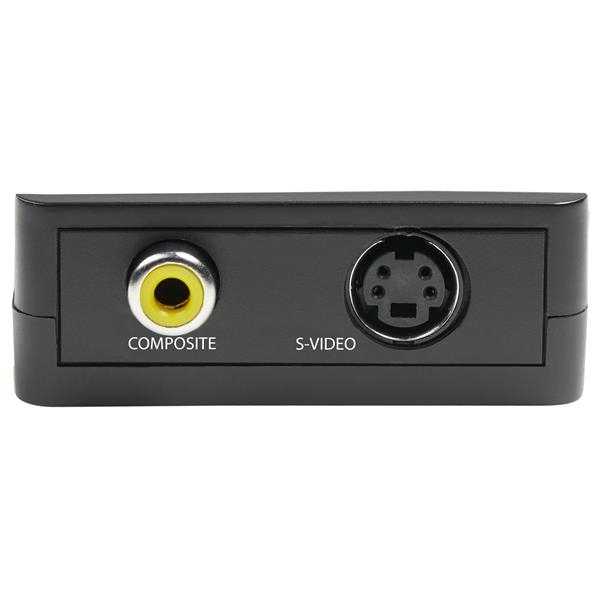

1 - Composite Video (1 x RCA) Female Input
1 - S-Video (4 pin, Mini-DIN) Female Input
Connector B

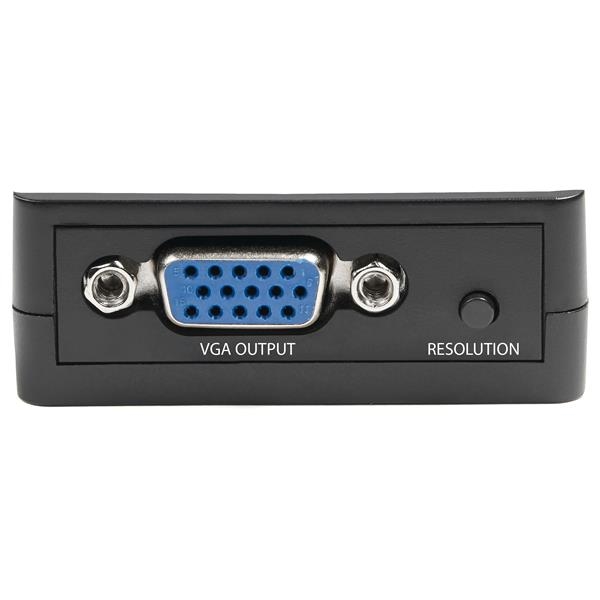

1 - VGA (15 pin, High Density D-Sub) Female Output
POWER
Power Source

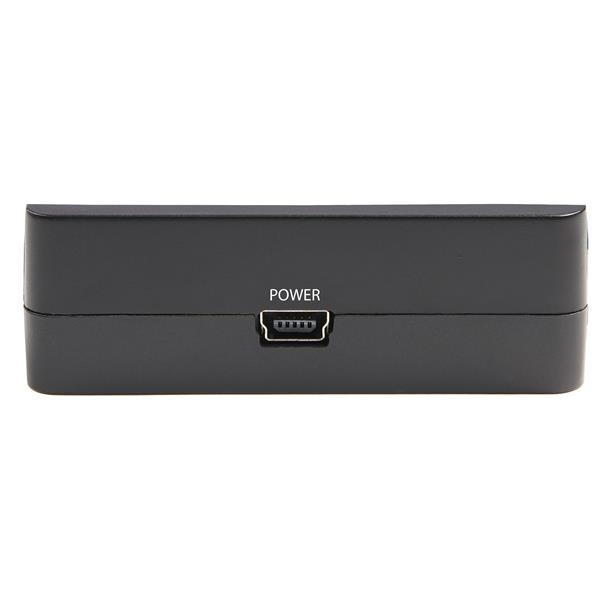

USB-Powered
ENVIRONMENTAL
Humidity
5-90% RH
Operating Temperature
0oC to 50oC (32oF to 122oF)
Storage Temperature
-10oC to 80oC (14oF to 176oF)
PHYSICAL CHARACTERISTICS
Color
Black
Material
Plastic
WHATS IN THE BOX
Included in Package
1 - Video Scaler Converter
1 - USB-A to USB Mini Cable
1 - Quick-Start Guide
Item Dimension (L"x W"x H")
6 x 5 x 2
Weight
1.00 LB
Warranty Information
2 Year Warranty
