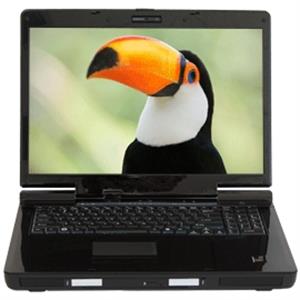

ASI Notebook IQ17 D2 17.1inch WUXGA Intel Core 2 Quad DVDRW Bluetooth Wireless 2xATI Crossfire VGA
| Model
|
:
|
| SKU
|
:80168
|
| Vendor
|
:Intel
|
| MPN
|
:ODMH-RB2472BNNNNN00
|
| UPC
|
:
|
| EAN
|
:
|
|
|
Marketing Information
ASI IQ17-D2 is a high end notebook that supports the Intel Core 2 Quad QX9300 processor, dual ATI Radeon Mobility 3870 Crossfire VGA cards, dual 2.5” SATA HDs for RAID 0 or 1 configurations, a 17 inch WUXGA (1920x1200) LCD supporting 1080p, built in sub woofer, and a color switchable backlight KB delivering performance gains on many levels.
|
Product Specifications by ASI
To report any errors in the specs, please email SKUECTeam@asipartner.com
Key Features
|
Display:
|
17" WUXGA (1920 x 1200)
|
|
Chipset:
|
Intel Cantiga PM45
|
|
OS:
|
Supports Windows Vista
|
|
Processor:
|
Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo Mobile
|
|
RAM:
|
Up to 4GB DDR3 800 / 1066
|
|
Optical Drive:
|
Super-Multi DVDRW Combo
|
|
Graphics Controller:
|
ATI Mobility Radeon HD 3870 with 2x512MB VRAM
|
Detail Specifications
|
|
Intel Core 2 Extreme processor (45nm) w/ 12MB L2 Cache and 1066MHz FSB (Socket-P Only) (Penryn)
Intel Core 2 Quad processor (45nm) w/ 12MB L2 Cache and 1066MHz FSB (Socket-P Only) (Penryn)
Intel Core 2 Duo processor (45nm) w/ 6MB L2 Cache and 1066MHz FSB (Socket-P Only) (Penryn)
Intel Core 2 Duo processor (45nm) w/ 6MB L2 Cache and 800MHz FSB (Socket-P Only) (Penryn)
|
|
|
Processor Speeds Supported :
|
|
|
Core 2 Extreme (Penryn) QX9300 (2.53GHz)
Core 2 Quad (Penryn) Q9100 (2.26GHz)
Core 2 Duo (Penryn) T9600 (2.80GHz), T9400 (2.53GHz), P8600 (2.4GHz), P8400 (2.26GHz)
Core 2 Duo (Penryn) T9500 (2.60GHz), T9300 (2.50GHz), T8300 (2.4GHz), T8100 (2.1GHz)
|
|
|
Chipset : Intel Cantiga PM45 / ICH9M-Enhanced
|
|
|
Memory : 2 memory slots expandable to 4 GB using SO-DIMM (204-pin) devices. Supports DDR3 - 800 / 1066 RAM modules in sizes of: 1GB, and 2GB. Dual Channel supported.
|
|
|
Graphics : Dual (2x512MB) (Crossfire) ATI MXM Card - ATI Mobility Radeon HD 3870 (M88) Graphics processor.
|
|
|
Display : 17" WUXGA (1920 x 1200) Glare Type Screen
|
|
|
Hard Drive : Dual 2.5" (9.5mm) SATA HDD with support for 80 - 320 GB capacities. (7200/5400 RPM support). Can be used individually or in RAID 0, or RAID 1. (utilizing Intel onboard chipset RAID)
|
|
|
Optical Multimedia : Super-Multi DVDRW Combo
|
|
|
Networking : Integrated 10/100/1000 Mbps PCI Express x1 Gigabit Ethernet (Yukon 88E8055)
|
|
|
ExpressCard Slot : One PCI Express x1 slot supporting ExpressCard 34/54 mm devices
|
|
|
Mouse : Touchpad with click button (left and right) support for scroll up/down
|
|
|
Keyboard and Hot Keys : Desktop-like full-size 100-key keyboard w/ number pad, 2.5mm Travel 5 Launch Buttons - Internet, E-mail, Music, DVD, TV buttons located above the keyboard. Backlit Keyboard (Red, Green, Blue or Off (controlled by FN key + F10))
|
|
|
Sound : Built-in 2-channel Intel HD Audio Controller (Realtek ALC269), with 3D effect full duplex. Built-in 2W stereo speakers (front), and subwoofer (bottom)
|
|
|
Card Reader : 7-in-1 built-in card reader (Ricoh RL5C843, 592 PCI controller): MMC/RSMMC/MS/MS PRO/MS DUO/SD/Mini-SD
|
|
|
TV Tuner : Not yet available
|
|
|
Not Included : Carrying Bag
|
|
|
1 x RJ-45 LAN
1 x Optical Audio Out
3 x USB 2.0 Ports
1 x Coaxial In
1 x VGA port/Mini D-sub 15 pins
Kensington Lock hole
1 x Headphone-out jack
1 x Microphone-in jack
1 x HDMI
1 x ExpressCard 34 / 54
1 x eSATA
1 x IEEE 1394 (Ricoh RL5C832)
1 x CIR
|
|
|
Wireless : Included Intel WiFi Link 5300 (802.11agn) Wi-Fi Mini-PCI express module
|
|
|
Camera : Integrated 2.0 Megapixel Camera (Flextronics)
|
|
|
Integrated Authen Tec, Inc. AES1610 fingerprint biometric reader located to the right-side of KB rest.
Vitakey Fingerprint Solution software.
|
|
|
Bluetooth : Broadcom BCM2046 Bluetooth V2.0 + EDR module
|
|
|
Other Optional Items : extra regular battery (ASI SKU 76081), extra AC adapter (ASI SKU 76080), TV Tuner (NA)
|
|
|
Recommended Operating Systems :
|
|
|
Microsoft Windows Vista 32/64-bit Premium / Business / Ultimate - Note : Windows XP is not supported at this time
|
|
|
Battery : Lithium-Ion battery w/12 cells, 14.8V, 6450mAh
|
|
|
Output 20 DC, 11A, 220W
Input 100-240V AC, 3A, 50/60Hz
|
|
|
Top Cover : Logo cut-out with dimension of 108.98mm x 35.98mm, 4x10mm radius corners - Material: PC t is 1.4mm
|
|
|
Dimensions : 15.63" x 11.81 x 1.65" (WxDxH)
|
|
|
Weight : 10 lbs. fully configured with battery pack installed
|
|
ASI Build-To-Order (BTO) Notebook
Contact ASI Tech Support
If you are experiencing a technical problem with your notebook, please contact ASI Tech Support.
By Telephone:
US: 1-888-888-4ASI Option 1
Canada: 1-888-200-0274 Option 1, 2
|
|
|
|
|
ASI Build-To-Order (BTO) Notebook
Support and Limited Warranty Information
IF YOU ARE EXPERIENCING A TECHNICAL PROBLEM WITH YOUR NOTEBOOK, PLEASE CONTACT:
US: 1-888-888-4ASI Option 1
Canada: 1-888-200-0274 Option 1, 2
To View ASI’s Return Policy [Click Here]
Subject to the limitations and conditions described below, ASI Corp. (“ASI”) offers a one-year warranty on parts and labor (unless otherwise noted on the ASI SKU description found on your invoice) on all ASI White Box Notebooks starting from the invoice date of the original purchase. You can purchase an additional 2-year parts warranty, but this must be done at the time of the original purchase. This warranty applies to White Box Notebooks configured by ASI as well as the Notebook shells sold as parts only. Any product covered by this warranty is referred to herein as the “Product”.
*** Please note that the battery and A/C Adapter only carry a 1-year manufacturer's warranty even when the 2-year extended warranty is added to your order. ***
The Product is to be free from defects in material and workmanship under normal use and conditions for the Limited Warranty Period referred to above.
ASI is not the manufacturer of the software or operating system and does not guarantee that software or operation system will be free from errors, either in isolation or in combination with hardware.
THIS LIMITED WARRANTY DOES NOT COVER:
A. Damage to the system or parts of other manufacturers added to or connected to the Product.
B. Additional software, hardware or accessories installed after the Product was shipped from ASI.
C. Damage caused by improperly packaging the warranted Product before being shipped in for repair.
D. Damage or improper operation of the warranted Product resulting from: (i) external causes such as negligence, misuse, abuse, or accident; (ii) failure to follow operating instructions provided with the Product or failure to perform preventive maintenance; (iii) modifications or repairs by anyone not authorized by ASI to perform service; (iv) connection to the equipment of other manufacturers or improper power sources; and (v) using software, accessories, parts, or components not supplied by ASI.
E. Normal wear and tear and any cosmetic damage to a Product that does not affect functionality.
F. Any Product as to which the serial number sticker is missing, defaced, or modified in any manner.
G. Any Product for which ASI has not received payment.
H. Any Product that is not returned to ASI in accordance with the Priority Warranty Repair Policy
described below.
This limited warranty does not cover misuse or minor imperfections in products that meet design specifications or imperfections that do not materially alter functionality.
Any warranty applicable to software is provided by the original manufacturer.
The Warranty gives you specific legal rights, and you may also have other rights which vary from state to state (or jurisdiction to jurisdiction). ASI’s responsibility for malfunctions and defects in hardware is limited to repair and replacement as set forth in this warranty statement. All express and implied warranties for the product, including but not limited to any implied warranties and conditions of merchantability and fitness for a particular purpose, are limited in time to the term of the limited warranty period reflected on your packing slip or invoice. No warranties, whether express or implied, will apply after the limited warranty period has expired. Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you.
We do not accept liability beyond the remedies provided for in the limited warranty or for consequential or incidental damages, including, without limitation, any liability for third-party claims against you for damages, for products not being available for use, or for lost data or lost software. Our liability will be no more than the amount you paid for the product that is the subject of a claim. This is the maximum amount for which we are responsible.
Some states do not allow the exclusion of limitation of incidental or consequential damages. So the above limitation or exclusion may not apply to you.
This warranty is valid only in the Unites States. This warranty applies only to the original purchaser and is non-transferable.
LCD "Dead Pixel" Policy
- During the LCD manufacturing process, it is not uncommon for one or more pixels to be fixed in an unchanging state. The visible result is a tiny fixed pixel that appears extremely bright or dark. There is no one clear industry standard regarding an acceptable level of dead pixels. Each LCD screen manufacturer and each laptop maker have their own dead pixel standards. Our notebook vendors allow for up to 5 dead pixels and the screen will be replaced if it has 6 or more during the Limited Warranty Period.
ASI's Warranty Repair Policy
- During the Limited Warranty Period, any defective Product will be considered an ASI Corp. Warranty Repair.
- ASI's Warranty Repair service consists of depot repair service at ASI's Fremont facility.
- All returned notebooks must have an RMA number assigned by ASI prior to its shipping back. Previous RMA numbers may not be reused. Please call 1-888-888-4ASI to obtain an RMA number after talking to a technician.
- All RMA products must be returned within 15 days of receipt of an RMA number, otherwise the RMA number will be voided and the package will be refused.
- ASI Corp. reserves the right to inspect and test all merchandise.
- No replacement or exchange if the returned merchandise has been tested and found that it meets manufacturer’s specifications and operates correctly.
- No replacement or exchange if the returned merchandise falls within any of the exclusions from warranty coverage described above.
- Any returned product tested that is not defective or does not belong to ASI will be returned to the customer.
- Returned merchandise(s) should be in their original boxes, if possible, and packaged properly in another outside box with good packing materials. Due to vibration, Pelaspan (Styrofoam “peanuts”) is not a suitable packing material when used alone. The customer is responsible for improperly packaged notebooks which get damaged in transit.
- The RMA number must be prominently displayed on the front of the shipping box.
- All contents within the box must include a description of the problem.
- ASI is not responsible for any damaged package shipped from the customer to ASI.
General Information
- After receiving the RMA return, the purchaser must inspect the shipment immediately for any physical damage, which must be reported within 24 hours to ASI.
- ASI reserves the right to modify the above terms and conditions at anytime without the consent of our customers.
- After being received by ASI, out-of-warranty RMA returns will be shipped back to the customer within 30 days. Some special items may take longer due to manufacturer shortage of stock.
- Pats replaced or purchased as part of an out-of-warranty service have 3-month warranty from the date of the replacement.
- Out-of-warranty repairs must be pre-approved and are subject to a minimum $50 labor Fee for evaluation. Repairs will be billed at a $50 per hour labor fee plus parts.
Technical Support
- If you are experiencing a technical problem with your notebook, please contact: 1-888-888-4ASI Option 1
- If resellers buy a barebone notebook, ASI will provide technical support for the shells only. If resellers buy a complete notebook, ASI will provide support for all the parts in the original sale and any operating system which was loaded by ASI.
Miscellaneous
- The rights and obligations of you and ASI shall be governed by and construed in accordance with the laws of the State of California, excluding its choice of law provisions. All disputes arising under or related to this warranty statement which are not settled by agreement of the parties shall be litigated in the State or Federal Courts in the State of California, County of Alameda.
- Please send correspondence regarding this warranty statement to:
US: ASI Technical Support Department
Attention: White Box Notebook Support and Warranty Service
48329 Fremont Boulevard
Fremont, California 94538
Canada: ASI Canada Technical Support Department
Attention: White Box Notebook Support and Warranty Service
3930 14th Avenue, Unit # 1
Markham, Ontario
Canada L3R 0A8
|
|
|
|
|
