Product Detail

Essentials

Product Collection

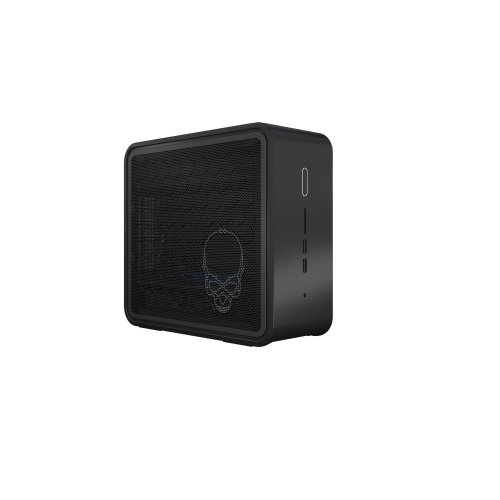

Intel NUC Kit with 9th Generation Intel Core^TM Processors

Code Name
Products formerly Ghost Canyon

Supported Operating Systems
Windows 10, 64-bit, Linux

Board Number
NUC9i9QNB

Board Form Factor
PCIe

Internal Drive Form Factor
M.2 SSD

Number of Internal Drives Supported
3

Board Chipset
Mobile Intel CM246 Chipset

Processor Included
Intel Core^TM i9-9980HK Processor (16M Cache, up to 5.00 GHz)

Intel vPro^TM Platform Eligibility
No

Number of Cores
8

Number of Threads
16

Processor Base Frequency
2.40 GHz

Max Turbo Frequency
5.00 GHz

Supplemental Information
Embedded Options Available
No

Memory and Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-2666
Max Number of Memory Channels
2
Max Memory Bandwidth
42.6 GB/s
Max Number of DIMMs
2
ECC Memory Supported
No

Processor Graphics
Processor Graphics
Intel UHD Graphics 630
Integrated Graphics
Yes
Graphics Output
2x Thunderbolt 3, HDMI 2.0a
Number of Displays Supported
3
Discrete Graphics
Via PCIe add-in card(s)

Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
2x M.2 PCIe X4 slots (PCH), 1x M.2 PCIe X4 slot (CPU)
Double-wide PCIe X16 (CPU) slot shared with PCIe X4 (CPU) slot, 8" max card length
PCIe x4 Gen 3
1
PCIe x16 Gen 3
1
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
2x via PCH + 1x via CPU (NVMe)

I/O Specifications

Number of USB Ports
11

USB Configuration
4x rear USB 3.1g2, 2x Thunderbolt 3 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 2.0 via internal headers, 1x USB 2.0 internal

USB Revision
3.1 Gen2, 2.0

USB 2.0 Configuration (External + Internal)
3x int.

Total Number of SATA Ports
3

Max Number of SATA 6.0 Gb/s Ports
3

RAID Configuration
2x M.2 SATA/PCIe SSD, SATA header (RAID-0 RAID-1)

Audio (back channel + front channel)
7.1 digital, L+R+mic (F), L+R+TOSLINK (R)

Integrated LAN
Intel Ethernet Connection i219-LM and i210-AT

Integrated Wireless
Intel Wi-Fi 6 AX200

Integrated Bluetooth
Yes

S/PDIF Out Connector
TOSLINK

Additional Headers
CEC, 2x USB2.0, FRONT_PANEL

Number of Thunderbolt^TM 3 Ports
2

Advanced Technologies
Intel Optane^TM Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro^TM Platform Eligibility
No
TPM
Yes
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
Yes

Security and Reliability
Intel AES New Instructions
Yes

Item Dimension (L inchxW inchxH inch)
19 x 16 x 19

Weight
10.00 lb

Warranty Information
3-year limited
