The Intel Arc graphics is designed from the ground up featuring the Intel Xe HPG microarchitecture with advanced Xe cores that deliver high-performance gaming and immersive digital creation experiences. With built in AI machine learning, advanced graphics acceleration, hardware ray tracing, Direct X12 Ultimate, AV1 encoding, and AI Enhanced upscaling with Intel Xe Super Sampling, Intel Arc graphics unites fluid gaming, lifelike visuals, and rich content creation across desktop, mobile, and small form factor systems.
Intel Arc Graphics deliver supercharged gaming and cutting-edge creation. From high-performance AAA gaming on the Intel Arc A770, A750, and A580, to enhanced mainstream gaming on the Intel Arc A380.
ASRock Intel Arc Graphics Cards

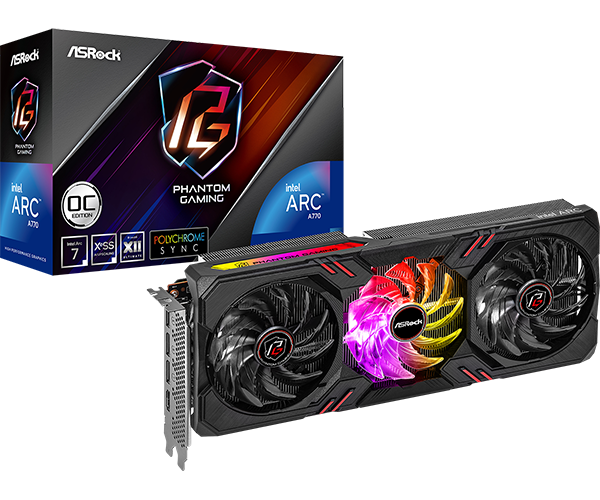

ASRock Intel Arc A770 Phantom Gaming 8GB OC
A770 PGD 8GB | ASI SKU 268914
- Intel ARC A770 Graphics
- Intel Xe HPG Microarchitecture
- Intel Xe Super Sampling
- Intel Deep Link
- 8GB 256 bit GDDR6
- Direct X12 Ultimate
- Hardware Ray Tracing
- PCI Express 4.0×16
- Hardware Accelerated AV1, VP9, H.264, and H.265 Video Encoding
- 8K Resolution Support
- 1xHDMI 2.1, 3xDisplayPort 2.0
- 2 x 8-pin Power Connector

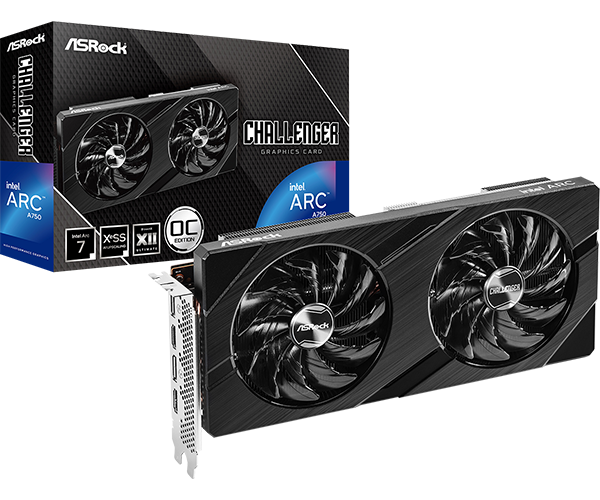

ASRock Intel Arc A750 Challenger D 8GB OC
A750 CLD 8GB | ASI SKU 268913
- Intel ARC A750 Graphics
- Intel Xe HPG Microarchitecture
- Intel Xe Super Sampling
- Intel Deep Link
- 8GB 256 bit GDDR6
- Direct X12 Ultimate
- Hardware Ray Tracing
- PCI Express 4.0×16
- Hardware Accelerated AV1, VP9, H.264, and H.265 Video Encoding
- 8K Resolution Support
- 1xHDMI 2.0b,1xHDMI 2.1, 2xDisplayPort 2.0
- 2 x 8-pin Power Connector

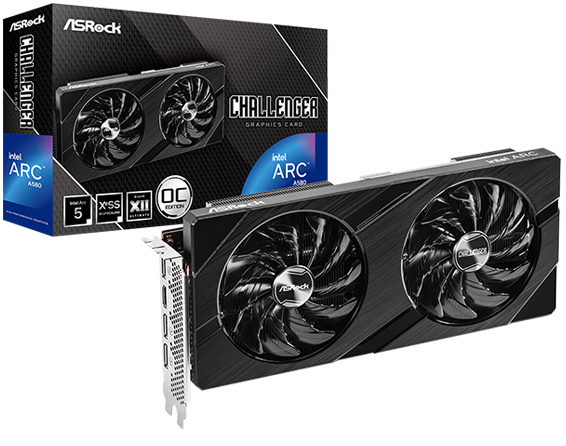

ASRock Intel Arc A580 Challenger 8GB OC
A580 CL 8GB | ASI SKU 278773
- Intel® Arc™ A580 Graphics
- 8GB 256-bit GDDR6
- GPU Clock: 2000 MHz
- Memory Clock: 16 Gbps
- Intel® Xe HPG Microarchitecture
- Intel® Xe Super Sampling (XeSS)
- DirectX 12 Ultimate
- 2 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.0 / 1 x HDMI 2.0b
- Dual Fan Design
- Stylish Metal Backplate
- Striped Axial Fan
- Ultra-fit Heatpipe
- 0dB Silent Cooling
- Super Alloy Graphics Card

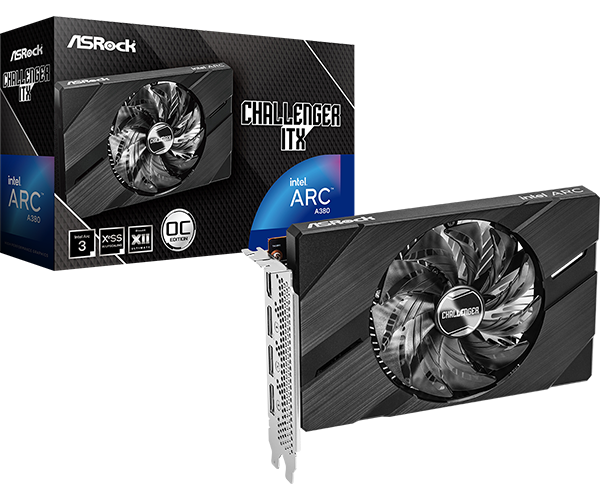

ASRock Intel Arc A380 Challenger ITX 6GB OC
A380 CLI 6GB | ASI SKU 268087
- Intel ARC A350 Graphics
- Intel Xe HPG Microarchitecture
- Intel Xe Super Sampling
- Intel Deep Link
- 6GB 96 bit GDDR6
- Direct X12 Ultimate
- Hardware Ray Tracing
- PCI Express 4.0 x8 (Slotted for PCIe x16)
- Hardware Accelerated AV1, VP9, H.264, and H.265 Video Encoding
- 8K Resolution Support
- 1xHDMI 2.0b, 3xDisplayPort 2.0 with DSC
- 1 x 8-pin power connector
Intel Arc Graphics Technologies

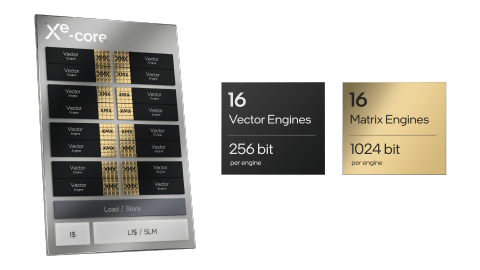

Intel Xe HPG Microarchitecture
Intel’s Xe HPG GPU is engineered form the ground-up to deliver breakthrough performance, efficiency, and scalability for gamers as well as creators. The Xe HPG GPU utilizes Intel Xe cores to elevate experiences across multiple platforms. Each Xe core includes sixteen 256-bit Vector Engines designed to accelerate gaming applications and traditional workloads. Additionally, the Xe core also features sixteen 1024-bit Matrix Engines to accelerate AI workloads. Learn more about Intel Xe HPG Microarchitecture >
Intel Xe Super Sampling (Intel XeSS)
Intel Xe Super Sampling is an AI-enhanced upscaling technology that takes advantage of the XMX AI hardware acceleration integrated in the Intel Xe cores to enable more performance with high image quality. The goal with Intel XeSS is to give users both high framerates and high resolution without having to choose between the two. With this in mind Intel XeSS offers four different upscaling options ranging from maximum detail (ultra quality mode) to maximum speed (performance mode). Learn more about Intel XeSS >
Intel Deep Link
Intel Deep Link Technology is designed to pair select Intel Core Processors with Intel Arc GPUs for greater performance and efficiency across workloads. Intel DLT allows the processor to have a direct link to the GPU so workloads can be shared between the integrated graphics on the CPU and the discrete graphics installed on the motherboard. Learn more about Intel Deep Link >
AV1 Video Encoding
Intel Arc GPUs support a wide range of video encoding and also includes hardware accelerated encoding for AV1, which is an open source royalty fee video codec. AV1 provides significantly better compression performance with up to 50% smaller file sizes compared to H.264, allowing users to create, stream, share, and consume high quality content, up to 8K resolutions, with new levels of performance and efficiency. Learn more about AV1 Video Encoding >
