ASRock manufactures a diverse line up of NUC class PCs including both tall and slim form factor models, as well as configurations that support DDR4 SODIMM for more maximum memory, up to 64GB, or that support DDR5 SODIMM memory for higher bandwidth performance.
Additionally, ASRock offers a full family of NUC class motherboards that can be utilized in industrial, IOT, or edge compute applications.

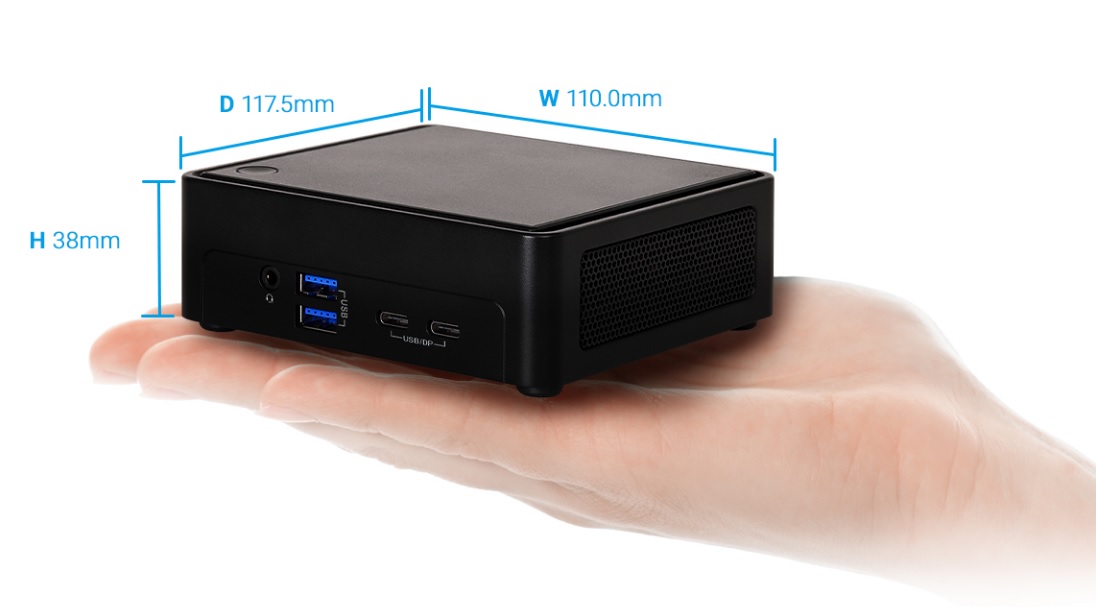

ASRock NUCS BOX
ASRock’s NUCS BOX (S-Series) family utilizes the latest 13th Gen Intel Core Mobile Processors, supports two DDR4 SODIMM Slots for up to 64GB of memory, has one M.2 2280 PCIe Gen4x4 SSD Slot for storage, can support up to four monitors, has an onboard TPM 2.0 IC, one 2.5Gigabit LAN, and more all integrated into a slim form factor measuring 38mm high (Just 1mm more than the Intel Slim NUC).

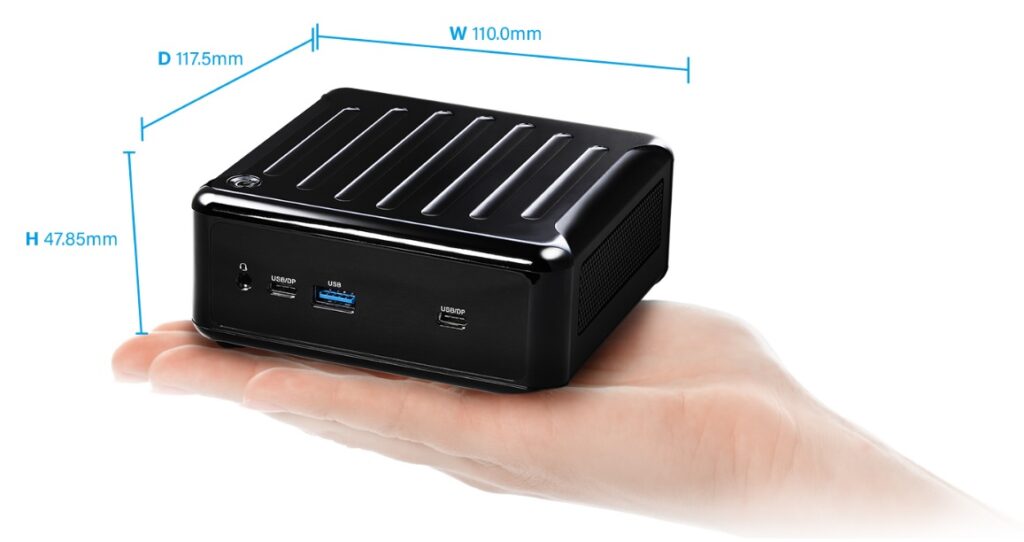

ASRock NUC BOX

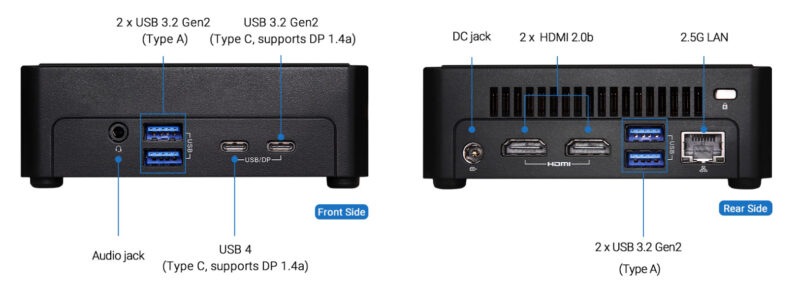

The ASRock NUC BOX family combine a robust set of features including Intel 13th Gen Core mobile Processors, support for Intel vPro on select models, either DDR4 for maximum memory capacity or DDR5 memory for maximum throughput, onboard TPM 2.0, two Intel 2.5G LAN ports, an M.2 PCIe NVMe SSD slot and support for a 2.5” SATA drive as well as support for up to four monitors all in a form factor smaller than the standard Intel NUC (ASRock NUC Box = 117.5x110x47.85mm Intel = 117x112x54mm)
ASRock NUC Motherboard
ASRock has invested significantly in the area of IOT and Industrial compute through their ASRock Industrial Business Unit. In addition to industrial grade products such as fan less small form factor PCs, UTX, Pico-ITX, and SBC form factors, the ASRock product line includes a full family of NUC motherboards ideal for customers that focus on embedded solutions. The boards which measure approximately 4×4 inches include versions with Intel 13th Gen Core i3, Core i5, or Core i7 Processors and are available with support for DDR4 or DDR5 memory.
