SIIG Accessory ID-US0B11-S2 Industrial 16Ports 600Watts PD ChargingStation w/USB-C 5Gbps Hub Brown Box
- SKU: 288824
- Vendor: SIIG
- MPN: ID-US0B11-S2
- UPC: 662774046464

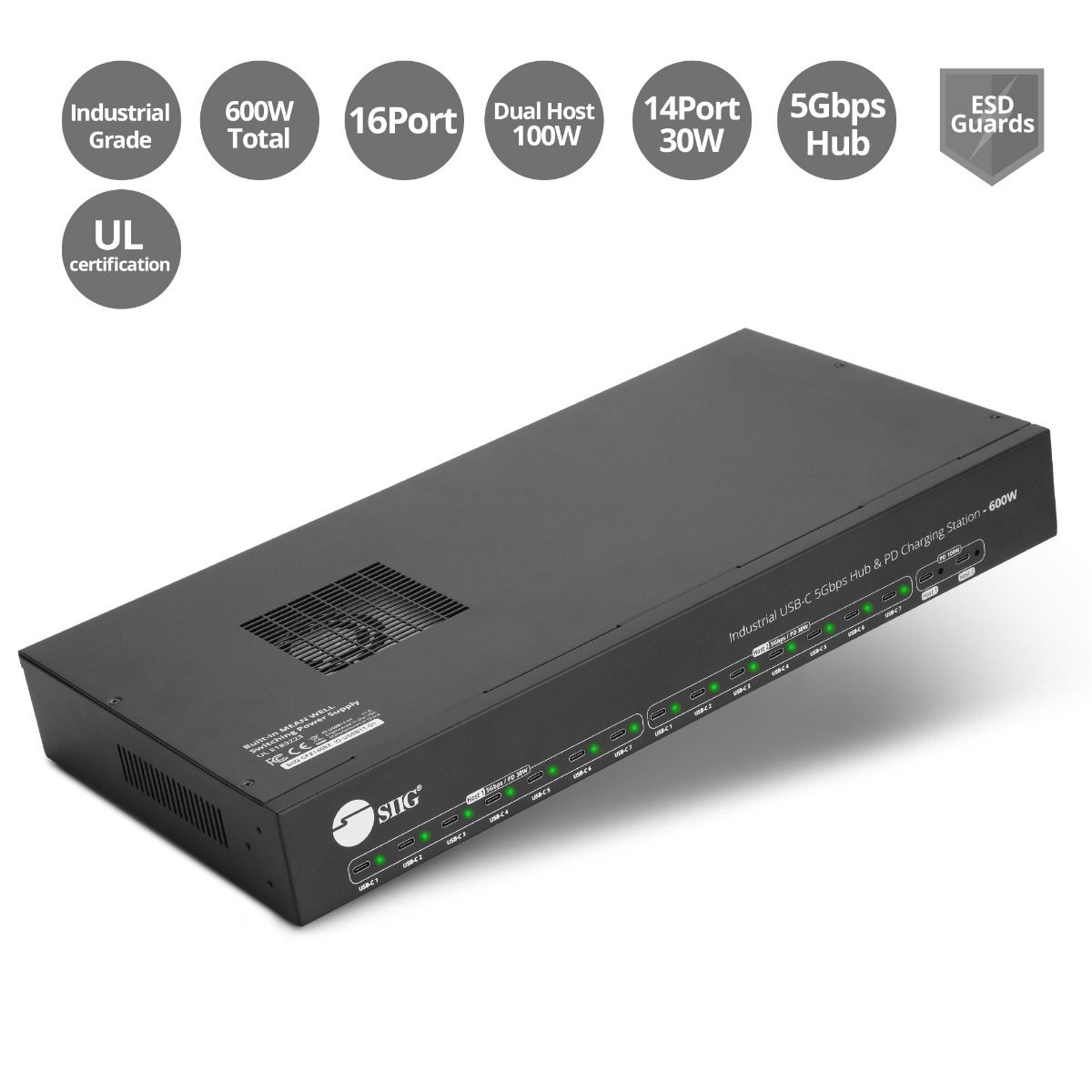

Industrial Grade USB-C 5Gbps Hub & PD Charging Station - 600W, Adds 16 USB-C Charging Ports, 2-port 100W & 14-port Charging up to 30W; 14 Port USB Hub, Data Transfer up to 5Gbps, PD 2.0 & 3.0 for 5V/3A, 9V/3A and 12V/2.5A, Over Current, Over Voltage, Over Heating, Short Circut, ESD Protection, Metal Housing, UL Certification
Features
Unrivaled Charging Capability
600W total power output ensures sufficient power for all connected devices
16 USB-C charging ports
2 ports deliver up to 100W for fast charging laptops and tablets
14 ports offer up to 30W for charging smartphones, wearables, and other devices
Supports PD 2.0 & 3.0 ensuring compatibility with a wide range of devices
Multiple voltage outputs: 5V/3A, 9V/3A, and 12V/2.5A for flexible charging options
Built-in Meanwell brand power IC with UL certification
USB 5Gbps Data Transfer
Delivers 14-port USB-C data port via one system or Dual system share the dual USB-C input port
Support data transfer up to 5Gbps and PD charging back to system up to 100W
Effortlessly handle large files, backups, and data-intensive tasks
Includes USB-C to A+C Adapter Cables
This cable use for iPhone 15, Plus / Pro / Pro Max, iPad Pro, iPad Mini when using data sync on USB-C 1 to 7 port and not compatible with "Host" port
Please plug the USB-A to C adapter to ID-US0B11-S2 USB-C 1 to 7 port, and then plug the USB-C connector of the cable to iPhone 15 or iPad Pro / iPad Mini device. This can let the iPhone 15 or iPad Pro / iPad Mini device charging and do the data sync simultaneously, not just charging
Specifications
Chipset:
VL103R
Internal Power Supply:
600W-24V Meanwell switching power supply
Input:
Input Voltage: 110V AC
Frequency: 50Hz / 60Hz
Input Current: 12A/115VAC
USB-C Input:
2x USB-C port, Female with PD 100W
Output
USB Port: 14 x USB-C, Female, data transfer up to 5Gbps
PD output power: 30W (5V/3A, 9V/3A, 12V/2.5A)
Efficiency: VIN equal 24V, VOUT equal 5V/3A, Conversion Efficiency is 92%
USB-C Protocol
Support 5V / 9V / 12V Voltage output
Support PD 2.0 / PD 3.0
PPS support 3 to 11V, 20mV/step Voltage output
Output specification
Support USB-C PD output
Support BC 1.2_DCP, Apple, Samsung protocol
Support MTK PE+1.1 and MTK PE+2.0
Support Fast Charging protocol FCP and AFC (Max 12V)
2 port Host LED indicators:
LED On: Charging
LED Off: Not Charging
14 port USB-C LED indicators:
RED color: Device connected
GREEN color: Power On
Output overcurrent protection:
output >3.5 to 3.9A, USB port current output automatic disconnect
Output overvoltage protection:
When the output terminal voltage>16V or more due to an accidental cause, the TVS discharge on the terminal circuit causes the input circuit fuse to open, cutting off power to the circuit and thus protecting the equipment at this port
Product:
Color: Black
Housing: Metal housing with standard 19 inch rack mounting
Connectors:
1x AC Power Jack
1x Power Switch
2x USB Type-C, Female, for Host 1 and 2, PD 100W
14x USB Type-C, Female, data transfer up to 5Gbps, PD 30W
Environmental conditions:
Operating temperature: 14 to 131 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 20% to 90% RH (non-condensing)
Working Altitude: Less than 2km
Certifications/Standards:
FCC, CE, RoHS, UL
UL E183223
Country of origin:
China
Package contents
1x 16-port Industrial 600W USB-C PD Charging Station with 5Gbps USB Hub
1x Power cord
2x Mounting Bracket
8x Screws
2x USB-C to C cable(1m)
3x USB-C to A + C adapter cable
1x User Manual
Item Dimension (L"xW"xH")
22 x 3 x 11
Weight
7.7 lbs
Warranty Information
2 year limited
