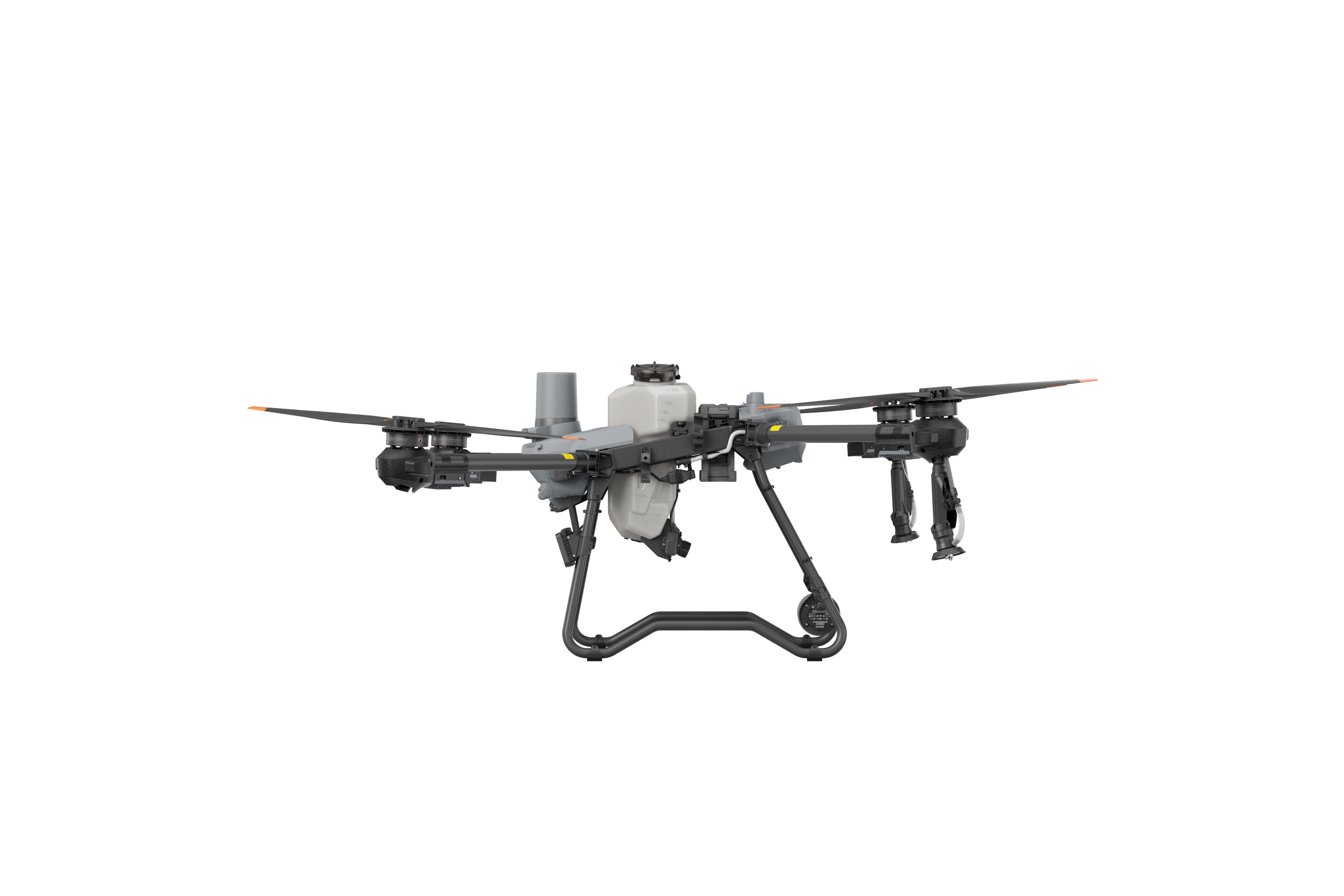

DJI Drone CP.AG.00001004.04 AGRAS T25P (Oversea V2) Retail
- SKU: 302292
- Vendor: DJI
- MPN: CP.AG.00001004.04
- UPC: 190021136489
- EAN: 6937224110991
The DJI Agras T25P drone retains its compact, foldable design, featuring 20 kg spraying[1], an upgraded 25 kg[1] high-precision screw feeder spreading system 4.0, and Safety System 3.0[2]. It excels in aerial mapping and plant protection, offering flexible operations and convenient mobility, making it ideal for solo operations.
Note
[1] Data was measured at sea level. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
[2] The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing is used to assist in Terrain Following flight and altitude stabilization, while other directions assist with obstacle avoidance. Any collision between the bottom of the aircraft and obstacles shall be the customer's responsibility. In scenarios without linear obstacles, if a collision occurs at speeds up to 10 m/s resulting in aircraft damage, responsibility can be determined through log analysis, and the aircraft may be eligible for free warranty if non-human causes are identified. If there are linear obstacles like wires or guy wires on utility poles, please mark them as obstacles; otherwise, failure to bypass them will be the customer's responsibility. Note 1. Downward sensing assists in Terrain Following flight. If the bottom collides with obstacles, it is considered user responsibility. Note 2. Due to limitations in safety system performance, the aircraft cannot automatically avoid moving objects, and accidents of this nature will be attributed to user responsibility.
Aircraft
Max Takeoff Weight1
Max takeoff weight for spraying: 53 kg
Max takeoff weight for spreading: 60 kg
Max Diagonal Wheelbase
1970 mm
Dimensions
Spraying:
2650x2700x820 mm (arms and propellers unfolded)
1520x1580x820 mm (arms unfolded and propellers folded)
1120x700x850 mm (arms and propellers folded)
Spreading:
2650x2700x850 mm (arms and propellers unfolded)
1520x1580x850 mm(arms unfolded and propellers folded)
1120x700x850 mm(arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK enabled:
Horizontal: +/-10 cm, Vertical: +/-10 cm
RTK disabled:
Horizontal: +/-60 cm, Vertical: +/-30 cm
Max Configurable Flight Radius
2000 m
Operating Temperature
0o to 40o C
Max Wind Resistance
Level 3 wind (<6 m/s)
Propulsion System - Motors
Stator Size
100x28 mm
KV
59 RPM/V
Propulsion System - Propellers
Material
Nylon carbon fiber
Dimensions
50 in
Quantity
4
Spraying System - Spray Tank
Material
Plastic (HDPE)
Volume
20 L
Operating Payload
20 kg
Spraying System - Sprinklers
Model
LX07550SX
Quantity
Standard Configuration 2
Nozzle Distance
1420 mm (Rear Nozzles)
Droplet Size
50-500 micrometer
Effective Spray Width2
4-7 m (at a height of 3 m above the crops)
Spraying system - Delivery Pumps
Type
Impeller Pump (Magnetic Drive)
Quantity
2
Max Flow Rate
16 L/min (2 nozzles)
24 L/min (4 nozzles)
Spreading System 4.0
Compatible Material Diameter
0.5-5 mm dry granules
Spreading Tank Volume
30 L
Spreader structure type
Centrifugal Disc
Discharge Structure Type
Feeder Feeding
Max Discharge Rate
190 kg/min (compound fertilizer)
Max load inside the spreading operation box
25 kg
Effective spreading width3
3-8 m
Safety System 3.0
Millimeter-Wave Radar EIRP
<20 dBm (NCC/MIC/KC/CE/FCC)
Operating Temperature
0o to 40o C,
Operating Environment
Adequate light and discernible surroundings
Operating Frequency
24.05-24.25 GHz (NCC/FCC/MIC/KC/CE)
Field of View (FOV)
Front phased array digital radar: Horizontal 360o, Vertical +/-45o, Upper +/-45o (cone)
Rear phased array digital radar: Vertical 360o, Horizontal +/-45o
Tri-camera vision system: Horizontal 90o, Vertical 180o
Range4
is less than or equal to 60 m
Effective safe obstacle avoidance speed5
is less than or equal to 10 m/s
Effective Obstacle Avoidance Height
is more than or equal to 1.5 m
Remote Controller
Model
TKPL 2
Screen
7-inch LCD touchscreen, resolution: 1920x1200, brightness: 1400 cd/m2
Storage Temperature Range
Less than one month: -30o to 45o C (-22o to 113o F)
One to three months: -30o to 35o C (-22o to 95o F)
Three months to one year: -30o to 30o C (-22o to 86o F)
Charging Temperature
5o to 40o C (41o to 104o F)
Internal Battery Runtime
3.8 hours
External Battery Runtime
3.2 hours
Charging Type
It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.
Charging Time
2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)
DB800 Intelligent Flight Battery
Capacity
15500 mAh
Nominal Voltage
52.22 V
D6000i Multifunctional Inverter Generator
Battery charging time6
To fully charge one battery (DB800 battery) takes 9-12 mins
Fuel tank capacity
20 L
Starting Method
Starting the Generator via the One-Button Start Switch
Max Power of Engine
6 kW
Fuel type
Unleaded gasoline with RON is more than or equal to91 (AKI is more than or equal to87) and alcohol content less than 10%
(Brazil: unleaded gasoline with RON is more than or equal to 91 and alcohol content of 27%)
Reference fuel consumption
600 ml/kWh
Engine Oil Capacity
0.8 L
Engine Oil Model
SJ10W-40
C8000 Intelligent Power Supply
Input
100-240 Vac
Output
Output Voltage: 59.92VOutput Current: 100A max
Charging Time6
Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery)
Protection Functions
Over-voltage, over-charge, under-voltage and over-temperature protection.
Charging Safety
AC wire protection, power wire protection, and charge connector protection
Annotation
1. When the sea level height is measured, the DJI Agriculture App will intelligently recommend the load weight based on the current aircraft status, environmental conditions, and operational tasks. The maximum weight of the materials loaded by the user should not exceed the recommended value, as this may affect flight safety.
2. The effective spray width of the spraying system depends on the actual working scene.
3. The effective spreading width is measured at a flight altitude of 3 m, and the actual operation is related to the disc rotation speed, material type, material mu usage, and site environment.
4. The observation distance of the safety system 3.0 varies due to different environmental light, rain, Fog, and the material, Location, and shape of the subject object.
5. Except for linear obstacle scenes, damage to the aircraft due to obstacle avoidance failure within 10 m/s can be analyzed through log responsibility analysis, and non-human causes can be repaired for free, if there are wires, guy wires on Power Poles, and other linear obstacles, please mark them as obstacles, otherwise, failure to bypass obstacles will be the customers responsibility.
Note:1. The downward perception is used to assist terrain-following altitude flight. If a collision with an obstacle occurs below, it is considered the customers responsibility.2. Due to the performance limitations of the safety system, the aircraft cannot actively avoid moving objects. Accidents in such scenes are considered the customers responsibility.
6. Sea level height, environmental temperature between 15-40 degrees Celsius, time to charge the battery from 30% to 95%, fast charging is supported when the battery cell temperature is within the range of 15-75 degrees Celsius, charging time varies depending on input power, ASL, initial charge level, and other factors.
Item Dimension (L inchxW inchxH inch)
46 x 38 x 29
Weight
365.00 lb
Warranty Information
1 year
