Potensic Drone APM2530221 ATOM 2 Fly More Combo with Camera Retail
- SKU: 296630
- Vendor: Potensic
- MPN: APM2530221
- UPC: 850045729806
Drone
Max Speed(Sport Mode)
Ascent speed 5 m/s
Descent speed 4 m/s,
Horizontal speed 16 m/s
Max Wind Speed Resistance
38 km/h(Level 5)
Maximum Flight Altitue
120 m
Max Takeoff Altitude
4000 m
GNSS
GPS + GLONASS + Galileo + BeiDou
Operating Temperature
0o to 40o
Operating Frequency
2.400 to 2.4835 GHz
Transmission Power
2.4 GHz: <20 dBm
Hovering Accuracy Range
Vertical: +/-0.1 m (with Vision Positioning),
+/-0.5 m (with GNSS Positioning)
Horizontal: +/-0.3 m (with Vision Positioning),
+/-1.5 m (With GNSS Positioning)
Extra Payload
Not supported
Max Flight Time
32mins(measured at a speed of 5m/s in low-altitude, windless conditions)
Max Hovering Time
29mins(measured in indoor hovering)
Camera
Image Sensor
1/2"
Effective Pixel
48MP
ISO Range
Normal video mode: 100 - 6400 AI Night: 100 - 25600
Shutter Speed
1/24s to 1/25000s
FOV
79.4o
Aperture
F1.8
Photo Resolution
8000x6000 (4:3)
Image Format
JPG/JPG + RAW (DNG)
Video Resolution
4K: 3840x2160 (16:9) at 24/25/30 fps
2.7K: 2704x2028 (4:3)/2704x1520 (16:9)/1520x2704 (9:16) at 24/25/30 fps
FHD: 1920x1440 (4:3)/1920x1080 (16:9)/1080x1920 (9:16) at 24/25/30/50/60 fps
Slow Motion: 1920x1080 (16:9) at 2/3/4/5 x
Video Format
MP4(H.264)
Max Video Bitrate
80 Mbps
Supported File Formats
FAT32 (is less than or equal to 32 GB) exFAT (>32 GB)
Supported SD Card Type
microSD card (U3 or V30 rating or above)
Max Vertical Image Size
1520x2704 (9:6)
Still Photography Mode
Single shot JPG: 12 MP and 48 MP
Single shot JPG+RAW: 12 MP
BRK: 3/5 frames (12 MP+JPG)
Burst shooting: up to 7 frames (12 MP+JPG)
Interval timer shooting: 2/3/4/5/6/7/8/9/10/15/20/25/30 s (12 MP+JPG)
Panoroma: Wide angle, 180o, Vertical
Color Mode
HDR
Defog Mode
Yes
Digital Zoom
4K: 1-2x, 2.7K: 1-3x, FHD: 1-4x
Intelligent Flight Mode
Pull-Away, Spiral, Rocket, Circle, Boomerang and Dolly Zoom
Tracking Modes
AI Track
Gimbal
Mechanical Range
Tilt: -125o to +45o Roll: +/-45o Pan: +/-30o
Controllable Range
Tilt: -90o to +10o Roll: +35o
Max Control Speed(tilt)
100o/s
Angular Vibration Range
+/-0.01o
Downward Vision System
Hovering Range
0.3 - 5 m (ideal environment),
Available at 0.3 - 10 m
Visual Positioning Inoperative Scenarios
1. Monochrome surfaces, such as pure black or pure white.
2. Surfaces with strong reflections, such as smooth metal surfaces.
3. Transparent object surfaces, such as water or glass.
4. Surfaces of moving objects, such as running pets, grass blown by strong wind, or above a crowd of people.
5. Scenes with dramatic changes in lighting, such as flying suddenly from indoors to bright outdoor light.
6. Environments that are very dark or very bright.
7. Surfaces with highly repetitive textures or patterns, such as small tiles with the same design.
8. Surfaces with highly uniform stripes.
Video Transmission
Video Transmission System
PixSync 4.0
Operating Frequency
2.402 to 2.4835 GHz
Transmitter Power(EIRP)
2.4 GHz, is less than or equal to 20 dBm
Live View Quality
1080P at 30fps
Latency
200ms
Max Transmission Bitrate
6 Mpbs
Max Transmission Distance
FCC: 10 km c
CE/SRRC: 6 km
Antenna
Dual antennas
Max Wi-Fi Download Speed
Wi-Fi 5 and 5 GHz: 25 MB/s
Remote Controller
Model
DSRC23A
Operation Frequency
2.402 to 2.4835 GHz
Max Transmission Distance (unobstructed, free of interference)
FCC: 10 km CE/SRRC: 6 km
Operting Temperature
0oC to 40oC
Battery
5000 mAh, lithium-ion
Transmitter Power(EIRP)
2.4 GHz, is less than or equal to 20 dBm
Charging Interface
USB-C
Charging Specification
USB-C, supporting up to 18W PD fast charge
Video Transimission System
PixSync 4.0
Video Transmission Quality
1080P
Latency
200ms
Supported Mobile Device Size
L: 170 mm W: 100 mm H: 12.5 mm
Note: For mobile devices with protruding rear cameras, the maximum supported thickness is 18 mm.
Supported Mobile Device Port Type
Lightning, USB-C, Micro-USB
Note: Using a mobile device with Micro-USB port requires the Standard Micro-USB connector, which is sold separately.
Smart Flight Battery
Model
DSBT02B
Capacity
2230 mAh
Voltage
7.7V
Battery Type
Li-Po 2S
Energy
17.18 Wh
Battery Weight
84g
Operating Temperature
0oC to 40oC
Charging Method
1. USB-C (max 5V/3A)
2. Parallel Charging Hub (supports simultaneous charging for 3 batteries at 18W each)
Charging Environment Temperature
5oC to 40oC
Fastest Charging Time
1.3h With Parallel Charging Hub

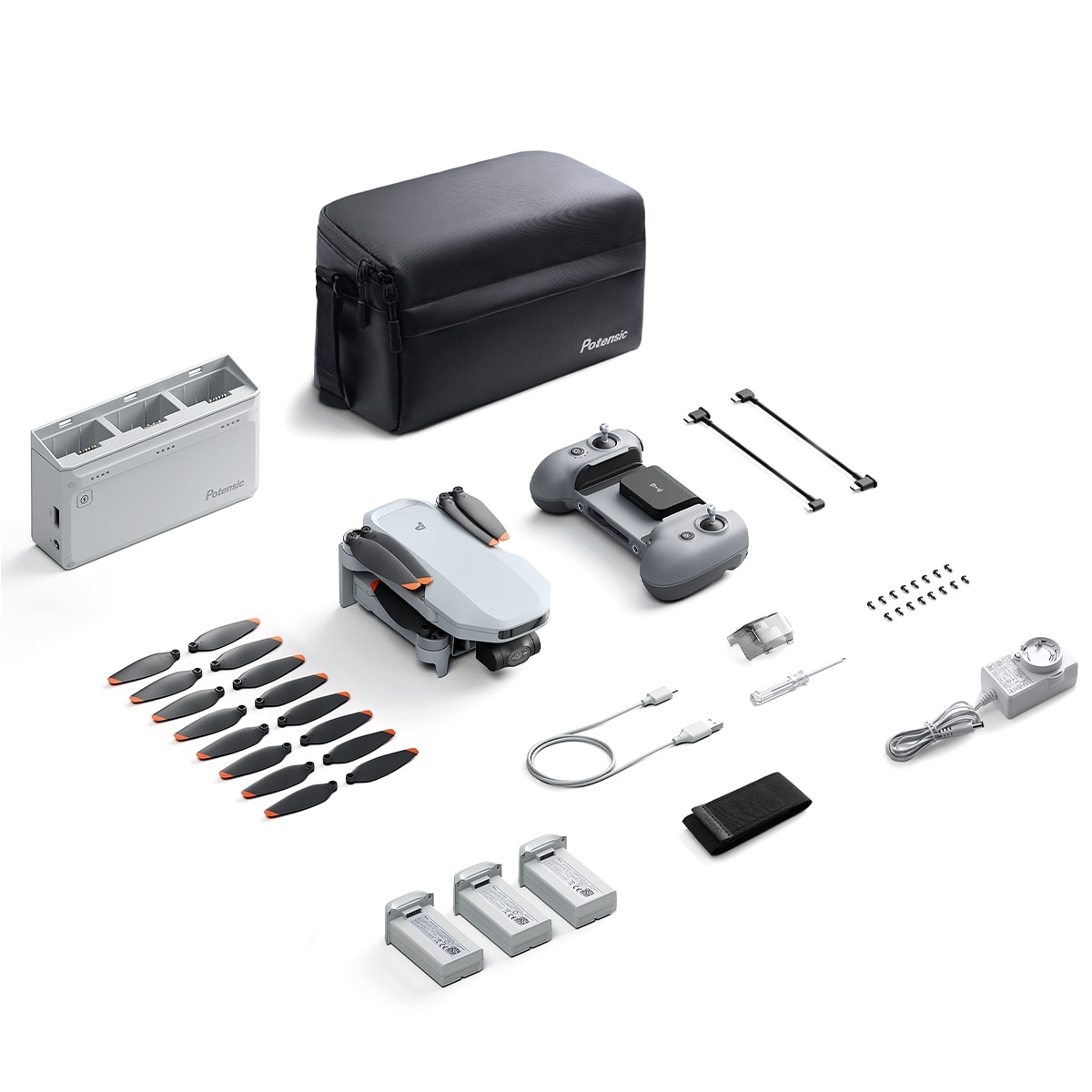

Package Contents:
Potensic ATOM 2 Drone with Camera for Adults 4K Video, 8K Photo, Under 249g, 3-Axis Gimbal, 10KM Transmission, AI Track, Vertical Shooting, AI Night Shot, QuickShots, Fly More Combo (96-Min Flight)
1 x Propeller Holder Strap,
16 x Spare Propellers (8 Pairs),
16 x Spare Screws,
1 x Screwdriver,
1 x Shoulder Bag,
1 x ATOM 2 Drone,
1 x Remote Controller,
1 x Gimbal Protector,
3 x Batteries,
1 x Parallel Charging Hub,
1 x USB-C Charging Cable,
2 x Adapter Cable (USB Type-C Connector and Lightning Connector)
Item Dimension (L inchxW inchxH inch)
11 x 6 x 8
Weight
4.00lb
Warranty Information
1 year
