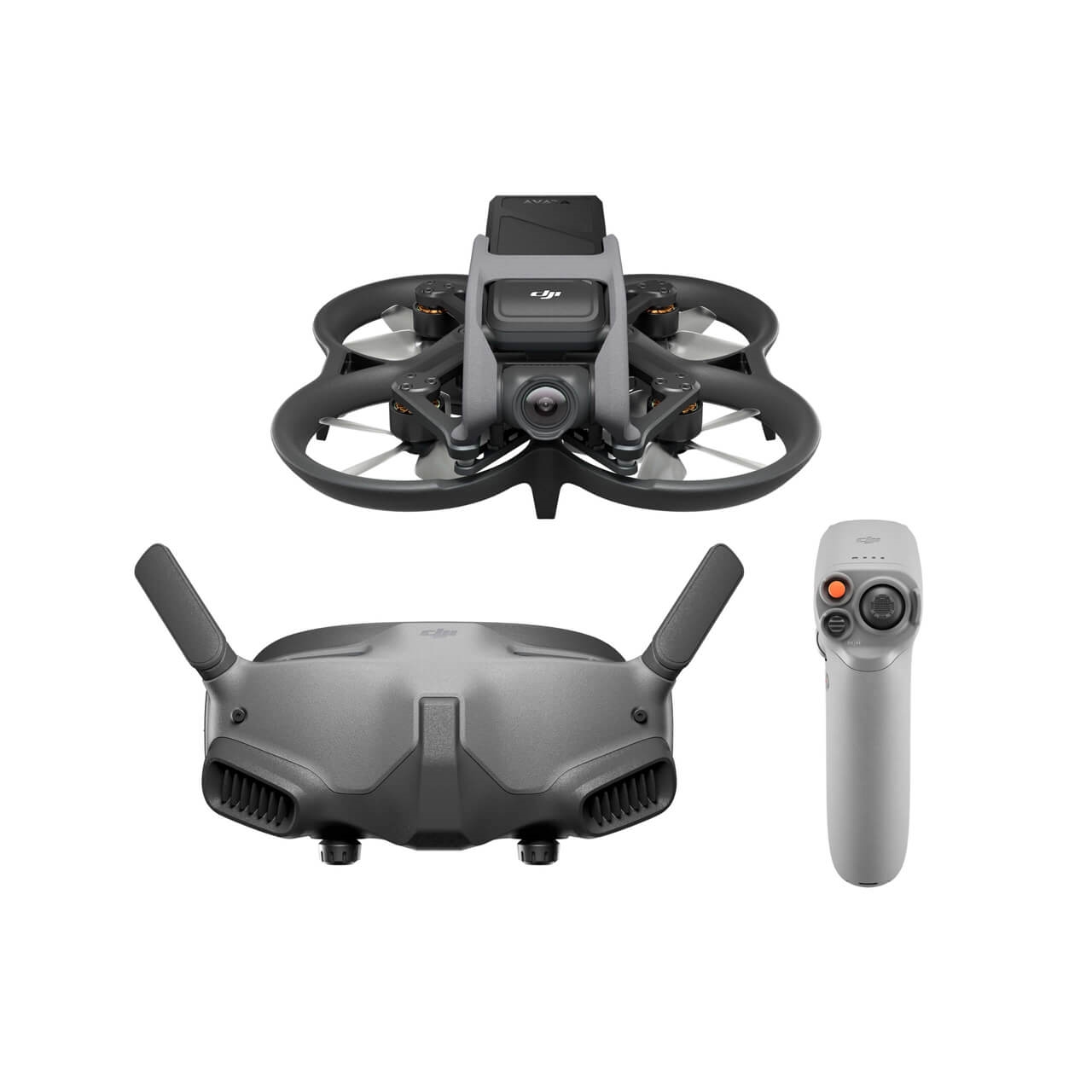

DJI Drone CP.FP.00000115.01 Avata Pro-View Combo RC Motion2 Retail
- SKU: 272420
- Vendor: DJI
- MPN: CP.FP.00000115.01
- UPC: 190021077461
- EAN: 6941565952219
• Intuitive Motion Control
• 4K/60fps 155° Super-Wide FOV Videos
• Powerful Video Stabilization
• Weighs About 410 g, Lightweight and Portable
• Enhanced Safety with Built-in Propeller Guard
• 1080p/100fps video transmission quality: the lowest latency of 30 ms
• Dual 1080p Micro-OLED Screens
Discover the Freedom of Flight
Lose yourself in total immersion as you swoop and dive like never before. Combine Avata with DJI goggles for a life-like flying experience.
Get a Feel for Flying
Flight is accessible to all with the DJI Motion Controller. It follows your hand movements and allows users of all levels to fly with confidence.
Super-Smooth 4K Video
Shoot 4K/60fps video with the 155° FOV for visuals that stand out. And keep your footage stable with RockSteady and HorizonSteady. [1][2]
Light and Agile
Avata's compact design makes it more convenient to carry and perfect for hitting the tightest gaps. Take it with you and fly like never before.
Note:
1. The 155° FOV is only available when the aspect ratio is 4:3, and the video recording specification is 2.7K@50/60fps or 1080p@50fps/60fps; the aspect ratio is 16:9, and the video recording specification is 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
2. HorizonSteady is only available in Normal mode FOV with an aspect ratio of 16:9 and the video recording specification of 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps. RockSteady is unavailable when the video recording specification is 2.7K@100/120fps or 1080p@100/120fps.
Camera
Sensor
1/1.7-inch CMOS
Effective Pixels: 48 MP
Lens
FOV: 155o
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to infinity
ISO Range
100-6400 (Auto)
100-25600 (Manual)
Shutter Speed
Video: 1/8000-1/50 s
Photo: 1/8000-1/50 s
Still Photography Mode
Single Shot
Max Image Size
4000x3000
Photo Format
JPEG
Video Resolution
With DJI Goggles 2:
4K at 30/50/60fps
2.7K at 30/50/60/100/120fps
1080p at 30/50/60/100/120fps
Video Format
MP4
Max Video Bitrate
150 Mbps
Color Mode
Standard
D-Cinelike
EIS
Supports RockSteady and HorizonSteady
Can be disabled
Distortion Correction
Supports Normal Mode, Wide Mode, and Ultra Wide Mode
Supported File System
exFAT (recommended)
FAT32
Gimbal
Mechanical Range
Tilt: -95o to 75o
Controllable Range
Tilt: -80o to +65o
Stabilization
Single-Axis (tilt)
Max Control Speed
60o/s
Angular Vibration Range
+/-0.01o
Electronic Roll Axis
Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.
Aircraft
Model
QF2W4K
Takeoff Weight
Approx. 410 g
Diagonal Distance
120 mm
Max Ascent Speed
6 m/s (Normal Mode, Sport Mode)
Max Descent Speed
6 m/s (Normal Mode, Sport Mode)
Max Speed (Note1)
8 m/s (Normal Mode)
14 m/s (Sport Mode)
27 m/s (Manual Mode)
Maximum Takeoff Altitude
5000 m
Max Hover Time
Approx. 18 mins (Note2)
Max Flight Distance
11.6 km
Max Wind Speed Resistance
10.7 m/s (Level 5)
Operating Temperature Range
-10o to 40o C (14o to 104o F)
Transmission Power (EIRP)
FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
Antennas
Dual Antennas, 2T2R
GNSS
GPS + Galileo + BeiDou
Hovering Accuracy Range
Vertical:
+/-0.1 m (with Vision Positioning)
+/-0.5 m (with GNSS Positioning)
Horizontal:
+/-0.3 m (with Vision Positioning)
+/-1.5 m (with GNSS Positioning)
Supported SD Cards
microSD (up to 256 GB)
Recommended microSD Cards
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas GoPlus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC
Internal Storage
20 GB
Sensing System
Downward (Binocular Vision and ToF) (Note3)
ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-10 m
Vision Sensor Hovering Range: 0.5-20 m
Operating Environment
Diffuse reflective surfaces with a clear pattern > 20% (such as walls, trees, or people)
Adequate lighting (lux > 15, normal indoor lighting conditions)
Intelligent Flight Battery
Battery Capacity
2420 mAh
Voltage
14.76 V
Charging Voltage Limit
17 V
Type
Li-ion
Chemical System
LiNiMnCoO2
Energy
35.71 Wh at 0.5C
Discharge Rate
Typical: 7C
Charging Temperature Range
5o to 40o C (41o to 104o F)
Video Transmission
Communication Frequency
2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) (Note4)
Communication Bandwidth
Max 40 MHz
Live View Quality and Latency (Note5)
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
Max Video Transmission Bitrate (Note6)
50 Mbps
Max Video Transmission Range (Note7)
10 km (FCC), 2 km (CE), 6 km (SRRC)
Audio Transmission
N/A
DJI Goggles 2
Model
RCDS18
Screen Size (single screen)
0.49-inch
Resolution (single screen)
1920x1080
Refresh Rate
Up to 100 Hz
Interpupillary Distance Range
56-72 mm
Diopter Adjustment Range
-8.0 D to +2.0 D
FOV (single screen)
51o
Communication Frequency
2.400-2.4835 GHz
5.725-5.850 GHz (Note4)
Transmission Power (EIRP)
2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz (Note4): < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Wi-Fi Protocol
Wi-Fi 802.11b/a/g/n/ac
Wi-Fi Communication Frequency
2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) (Note8)
5.725-5.850 GHz (Note4)
Wi-Fi Transmission Power (EIRP)
2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
5.1 GHz (Note8): < 20 dBm (FCC/CE/KC)
5.8 GHz (Note4): < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)
Bluetooth Protocol
Bluetooth 5.2
Bluetooth Communication Frequency
2.400-2.4835 GHz
Bluetooth Transmission Power (EIRP)
< 8 dBm
Max Video Transmission Bitrate (Note6)
50 Mbps
Video Recording Format
MOV
Supported Video and Audio Playback Formats
MP4 and MOV (video coding formats: H.264 and H.265, audio format: ACC, PCM)
Wi-Fi Wireless Streaming
Supports DLNA Protocol
Operating Temperature Range
-10o to 40o C (14o to 104o F)
Power Input
DJI Goggles 2 Battery
Supported SD Cards
microSD (up to 256 GB)
DJI Goggles 2 Battery
Capacity
1800 mAh
Voltage
7-9 V (1.5 A)
Type
Li-ion
Chemical System
LiNiMnCoO2
Energy
18 Wh
Charging Temperature Range
0o to 45o C (32o to 113o F)
Max Charging Power
12.6 W (5 V/2 A, 9 V/1.4 A)
Operating Time
Approx. 2 hours
Other
Footnotes
1. The max flight speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.
2. Tested when hovering in an environment without wind or interference.
3. DJI Avata only supports downward obstacle sensing when used with DJI FPV Remote Controller 2, or DJI Motion Controller in N Mode and S Mode.
4. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
5. Tested in an outdoor open environment without interference. The video transmission latency data varies with different models.
6. Tested in an outdoor open environment without interference. The video transmission bitrate varies with operating environments.
7. FCC compliant and tested in an outdoor open environment without interference. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI Avata in countries/regions of different standards:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions.
SRRC: Mainland China.
CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions.
8. The 5.1 GHz frequency band is currently banned in China and Thailand. For details, please refer to local laws and regulations.

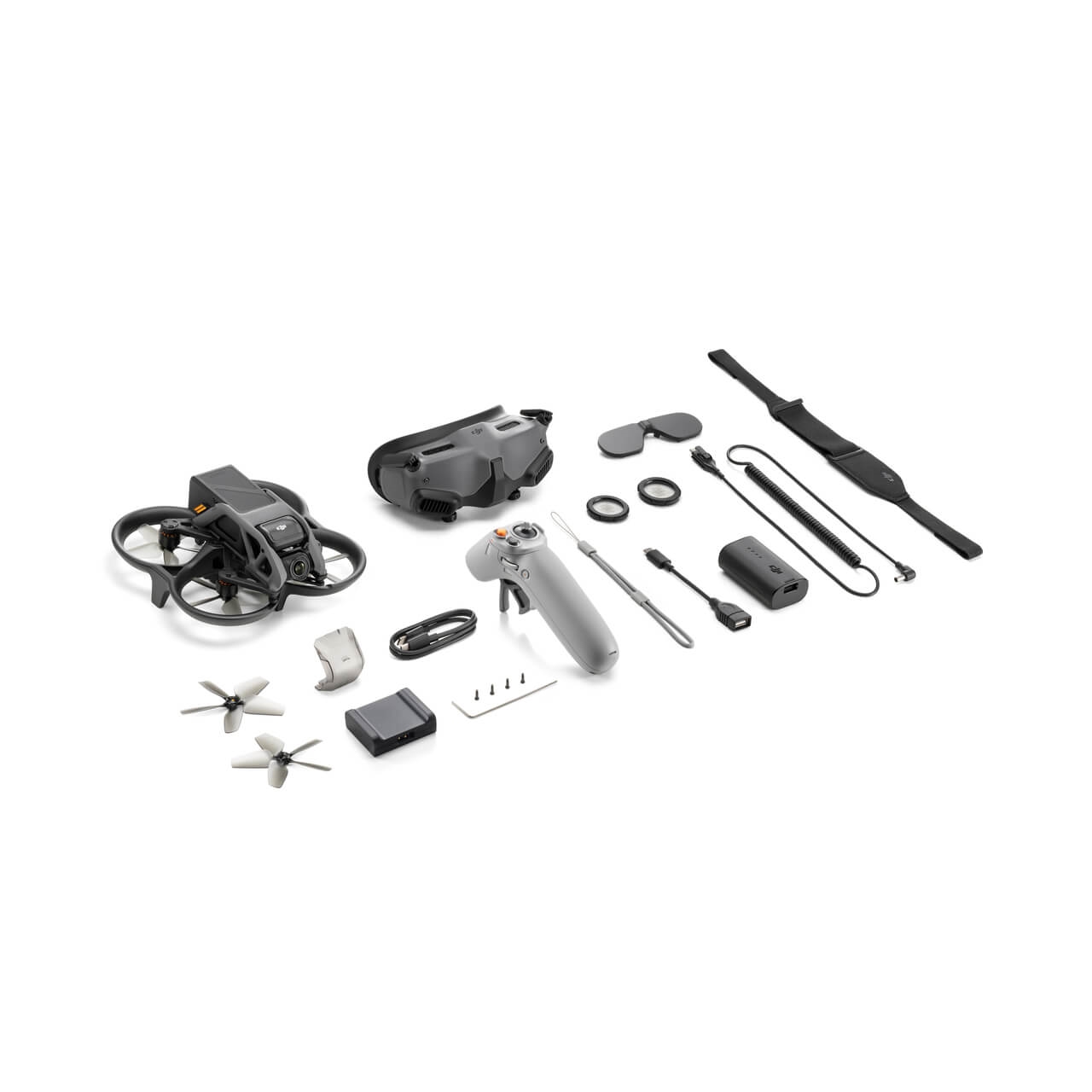

In the Box
DJI Avata x 1
DJI Goggles 2 x 1
DJI RC Motion 2 x 1
DJI Avata Intelligent Flight Battery x 1
DJI Avata Propellers (Pair) x 3
DJI Avata Power Adapter x 1
DJI Avata Gimbal Protector x 1
Type-C to Type-C PD Cable x 1
Screwdriver x 1
Screws (M2x7) x 4
DJI Goggles 2 Battery x 1
DJI Goggles 2 Eyeglass Frames (Pair) x 1
DJI Goggles 2 Screen Protector x 1
DJI Goggles 2 Headband x 1
DJI Goggles 2 Power Cable x 1
DJI Goggles 2 Dual-Band Antenna (Pair) x 1
USB-C OTG Cable x 1
Lanyard x 1
Item Dimension (L inchxW inchxH inch)
9 x 9 x 8
Weight
5.00 lb
Warranty Information
1 Year
