DJI Drone CP.MA.00000654.01 Mavic 3 Pro(DJI RC)(NA) Retail
- SKU: 273541
- Vendor: DJI
- MPN: CP.MA.00000654.01
- UPC: 190021082175
- EAN: 6941565956934

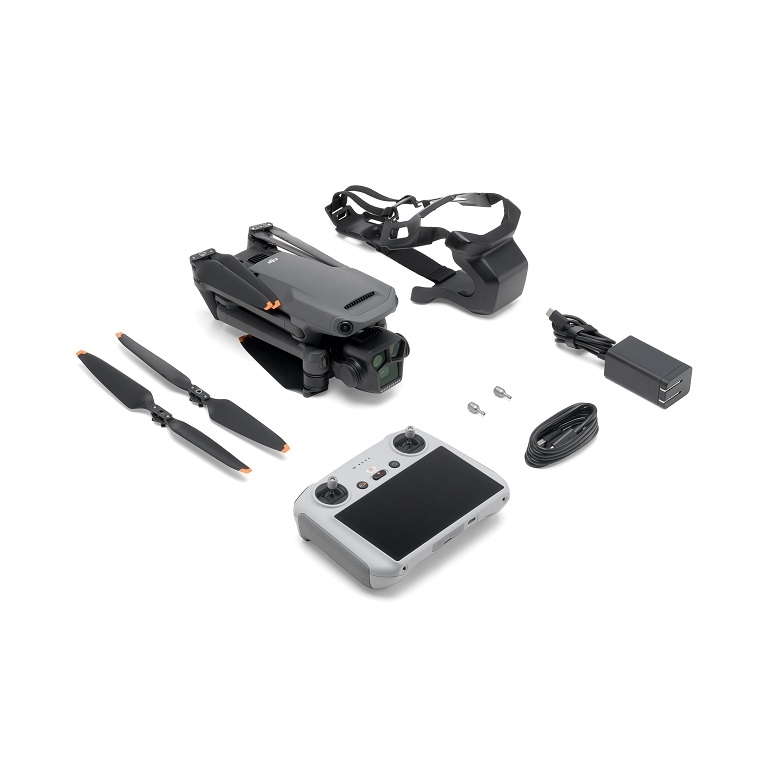

In the Box

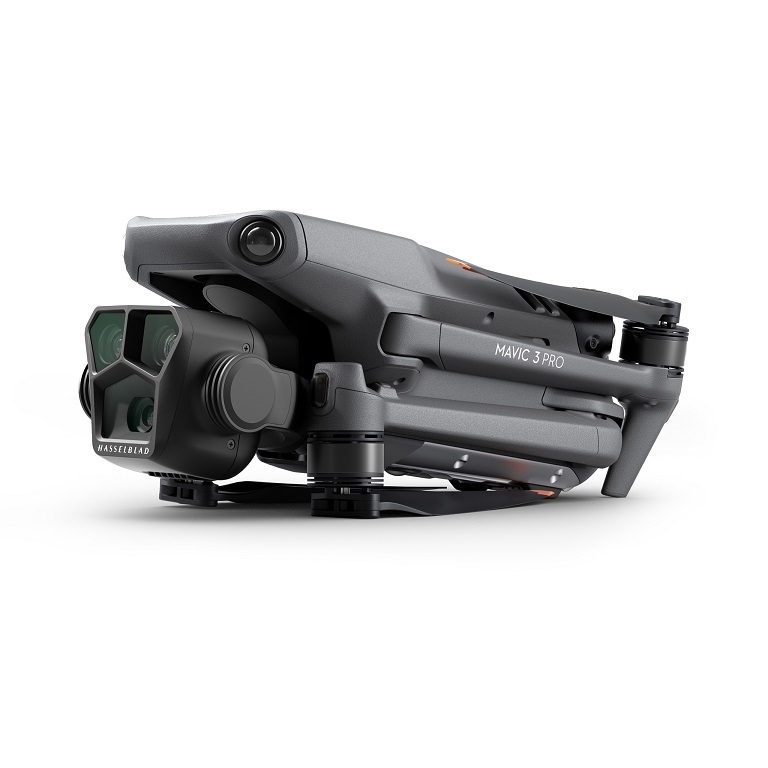

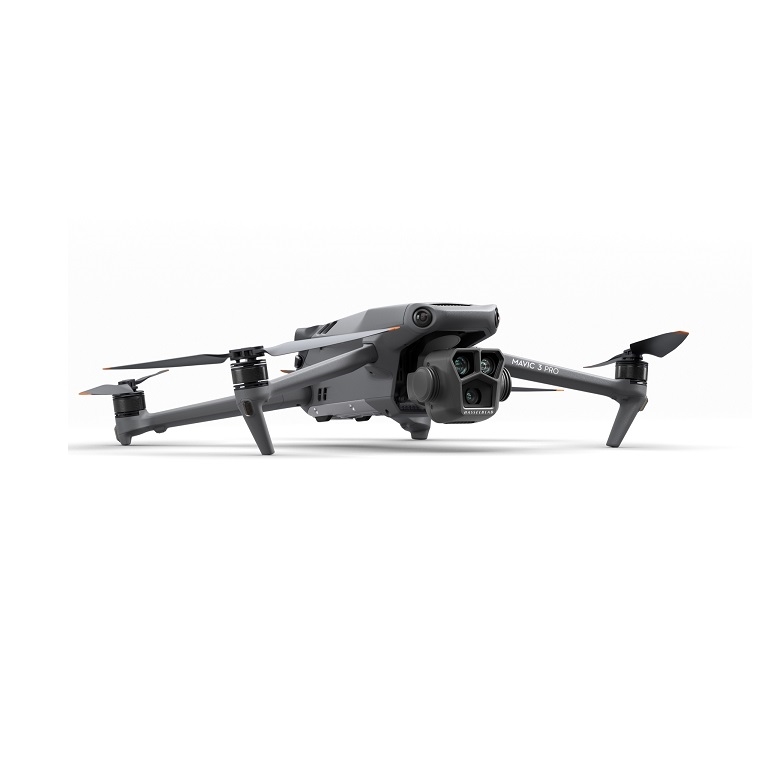

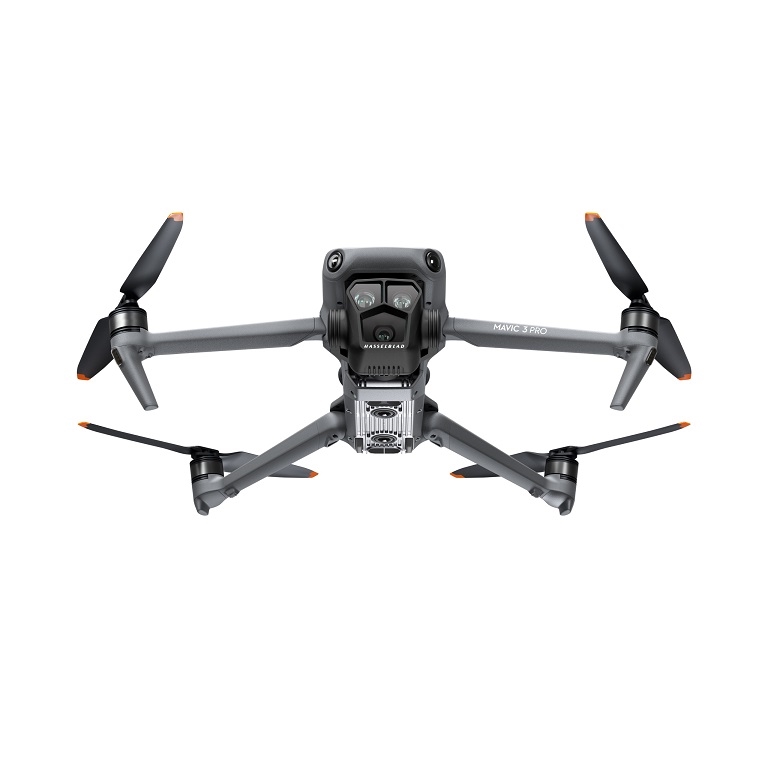

DJI Mavic 3 Pro
x 1
DJI RC
x 1
DJI Mavic 3 Intelligent Flight Battery
x 1
DJI Mavic 3 Low-Noise Propellers (pair)
x 3
DJI 65W Portable Charger
x 1
DJI Mavic 3 Pro Storage Cover
x 1
USB 3.0 Type-C Cable
x 1
DJI RC Spare Control Sticks (pair)
x 1
Aircraft
Takeoff Weight
Mavic 3 Pro: 958 g
Mavic 3 Pro Cine: 963 g
Dimensions
Folded (without propellers): 231.1x98x95.4 mm (LxWxH)
Unfolded (without propellers): 347.5x290.8x107.7 mm (LxWxH)
Max Ascent Speed
8 m/s
Max Descent Speed
6 m/s
Max Horizontal Speed (at sea level, no wind)
21 m/s
Max Takeoff Altitude
6000 m
Max Flight Time
43 minutes
Measured in a controlled test environment. Specific test conditions are as follows: flying at a constant speed of 32.4 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Max Hovering Time
37 minutes
Measured in a controlled test environment. Specific test conditions are as follows: hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Max Flight Distance
28 km
Max Wind Speed Resistance
12 m/s
Max Tilt Angle
35o
Operating Temperature
-10o to 40o C (14o to 104o F)
Global Navigation Satellite System
GPS + Galileo + BeiDou
Hovering Accuracy Range
Vertical:
+/-0.1 m (with vision positioning)
+/-0.5 m (with GNSS positioning)
Horizontal:
+/-0.3 m (with vision positioning)
+/-0.5 m (with high-precision positioning system)
Internal Storage
Mavic 3 Pro: 8 GB (approx. 7.9GB available space)
Mavic 3 Pro Cine: 1 TB (approx. 934.8GB available space)
Camera
Image Sensor
Hasselblad Camera: 4/3 CMOS, Effective Pixels: 20 MP
Medium Tele Camera: 1/1.3 CMOS, Effective Pixels: 48 MP
Tele Camera: 1/2 CMOS, Effective Pixels: 12 MP
Lens
Hasselblad Camera
FOV: 84o
Format Equivalent: 24mm
Aperture: f/2.8-f/11
Focus: 1 m to infinity
Medium Tele Camera
FOV: 35o
Format Equivalent: 70mm
Aperture: f/2.8
Focus: 3 m to infinity
Tele Camera
FOV: 15o
Format Equivalent: 166mm
Aperture: f/3.4
Focus: 3 m to infinity
ISO Range
Video
Normal and Slow Motion:
100-6400 (Normal)
400-1600 (D-Log)
100-1600 (D-Log M)
100-1600 (HLG)
Night:
800-12800 (Normal)
100-6400
Shutter Speed
Hasselblad Camera: 8-1/8000 s
Medium Tele Camera: 2-1/8000 s
Tele Camera: 2-1/8000 s
Max Image Size
Hasselblad Camera: 5280x3956
Medium Tele Camera: 8064x6048
Tele Camera: 4000x3000
Still Photography Modes
Hasselblad Camera
Single Shot: 20 MP
Burst Shooting: 20 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step
Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s
Medium Tele Camera
Single Shot: 12 MP or 48 MP
Burst Shooting: 12 MP or 48 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12 MP or 48 MP, 3/5 frames at 0.7 EV step
Timed:
12 MP: 2/3/5/7/10/15/20/30/60 s
48 MP: 7/10/15/20/30/60 s
Tele Camera
Single Shot: 12 MP
Burst Shooting: 12 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s
Photo Format
JPEG/DNG (RAW)
Video Resolution
Hasselblad Camera
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422 LT
5.1K: 5120x2700 at 24/25/30/48/50fps
DCI 4K: 4096x2160 at 24/25/30/48/50/60/120fps
4K: 3840x2160 at 24/25/30/48/50/60/120fps
H.264/H.265
5.1K: 5120x2700 at 24/25/30/48/50fps
DCI 4K: 4096x2160 at 24/25/30/48/50/60/120fps
4K: 3840x2160 at 24/25/30/48/50/60/120fps
FHD: 1920x1080 at 24/25/30/48/50/60/120/200fps
Recording frame rates. The corresponding video plays as slow-motion video.
Medium Tele Camera
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422 LT
4K: 3840x2160 at 24/25/30/48/50/60fps
H.264/H.265
4K: 3840x2160 at 24/25/30/48/50/60fps
FHD: 1920x1080 at 24/25/30/48/50/60fps
Tele Camera
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422 LT
4K: 3840x2160 at 24/25/30/48/50/60fps
H.264/H.265
4K: 3840x2160 at 24/25/30/50/60fps
FHD: 1920x1080 at 24/25/30/50/60fps
Video Format
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
MOV (Apple ProRes 422 HQ/422/422 LT)
Max Video Bitrate
H.264/H.265: 200 Mbps
Apple ProRes 422 HQ: 3772 Mbps
Apple ProRes 422: 2514 Mbps
Apple ProRes 422 LT: 1750 Mbps
Supported File System
exFAT
Color Mode and Sampling Method
Hasselblad Camera
Normal:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
8-bit 4:2:0 (H.264/H.265)
D-Log:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
10-bit 4:2:0 (H.264/H.265)
HLG/D-Log M:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
10-bit 4:2:0 (H.265)
Medium Tele Camera
Normal:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
10-bit 4:2:0 (H.265)
Tele Camera
Normal:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
8-bit 4:2:0 (H.264/H.265)
Digital Zoom (only in Normal Video Mode and Explore Mode)
Hasselblad Camera: 1-3x
Medium Tele Camera: 3-7x
Tele Camera: 7-28x
Gimbal
Stabilization
3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range
Tilt: -140o to 50o
Roll: -50o to 50o
Pan: -23o to 23o
Controllable Range
Tilt: -90o to 35o
Pan: -5o to 5o
Max Control Speed (tilt)
100o/s
Angular Vibration Range
Hovering Without Wind: +/-0.001o
Normal Mode: +/-0.003o
Sport Mode: +/-0.005o
Sensing
Sensing Type
Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
Forward
Measurement Range:
0.5-20 m
Detection Range:
0.5-200 m
Effective Sensing Speed:
Flight Speed less than or equal 15 m/s
FOV:
Horizontal 90o, Vertical 103o
Backward
Measurement Range:
0.5-16 m
Effective Sensing Speed:
Flight Speed less than or equal 12 m/s
FOV:
Horizontal 90o, Vertical 103o
Lateral
Measurement Range:
0.5-25 m
Effective Sensing Speed:
Flight Speed less than or equal 15 m/s
FOV:
Horizontal 90o, Vertical 85o
Upward
Measurement Range:
0.2-10 m
Effective Sensing Speed:
Flight Speed less than or equal 6 m/s
FOV:
Front and Back 100o, Left and Right 90o
Downward
Measurement Range:
0.3-18 m
Effective Sensing Speed:
Flight Speed less than or equal 6 m/s
FOV:
Front and Back 130o, Left and Right 160o
Operating Environment
Forward, Backward, Left, Right, and Upward:
surfaces with discernible patterns and adequate lighting (lux > 15)
Downward:
surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)
Video Transmission
Video Transmission System
O3+
Live View Quality
Remote Controller:
1080p/30fps, 1080p/60fps
Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP)
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
Max Transmission Distance (unobstructed, free of interference)
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.
Max Transmission Distance (unobstructed, with interference)
Strong Interference: Urban landscape, approx. 1.5-3 km
Medium Interference: Suburban landscape, approx. 3-9 km
Low Interference: Suburb/seaside, approx. 9-15 km
Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Transmission Distance (obstructed, with interference)
Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km
Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Download Speed
O3+:
5.5 MB/s (with DJI RC-N1 Remote Controller)
15 MB/s (with DJI RC Pro)
5.5 MB/s (with DJI RC)
Wi-Fi 6: 80 MB/s
Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the internal storage. Download speeds may vary depending on the actual conditions.
Lowest Latency
130 ms (with DJI RC-N1 Remote Controller)
120 ms (with DJI RC Pro)
130 ms (with DJI RC)
Depending on the actual environment and mobile device.
Antenna
4 antennas, 2T4R
Battery
Capacity
5000 mAh
Weight
335.5 g
Nominal Voltage
15.4 V
Max Charging Voltage
17.6 V
Type
Li-ion 4S
Energy
77 Wh
Charging Temperature
5o to 40o C (41o to 104o F)
Charging Time
Approx. 96 minutes
Use the included data cable of the DJI 65W Portable Charger.
Approx. 70 minutes
Use the DJI 100W USB-C Power Adapter and DJI Mavic 3 Series 100W Battery Charging Hub.
Charger
Input
DJI 65W Portable Charger:
100-240 V (AC), 50-60 Hz, 2 A
DJI 100W USB-C Power Adapter:
100-240 V (AC), 50-60 Hz, 2.5 A
Output
DJI 65W Portable Charger:
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A
DJI 100W USB-C Power Adapter:
Max 100 W (total)
When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.
Rated Power
DJI 65W Portable Charger: 65 W
DJI 100W USB-C Power Adapter: 100 W
Battery Charging Hub
Input
USB-C: 5-20 V, max 5 A
Output
Battery Port: 12-17.6 V, max 5 A
Rated Power
Battery Charging Hub: 65 W
Battery Charging Hub (100W): 100 W
Charging Type
Three batteries charged in sequence.
Compatibility
DJI Mavic 3 Intelligent Flight Battery
Car Charger
Input
Car Power Input:
12.7-16 V, 6.5 A, rated voltage 14 V (DC)
Output
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A
Rated Power
65 W
Charging Temperature
5o to 40o C (41o to 104o F)
Storage
Recommended microSD Cards
Lexar 1066x 64GB V30 A2 microSDXC
Lexar 1066x 128GB V30 A2 microSDXC
Lexar 1066x 256GB V30 A2 microSDXC
Lexar 1066x 512GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk High Endurance 128GB V30 microSDXC
SanDisk High Endurance 256GB V30 microSDXC
Kingston Canvas Go Plus 64GB V30 A2 microSDXC
Kingston Canvas Go Plus 128GB V30 A2 microSDXC
Kingston Canvas Go Plus 256GB V30 A2 microSDXC
Kingston Canvas Go Plus 512GB V30 A2 microSDXC
Samsung EVO Plus 512GB V30 A2 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC
Samsung PRO Plus 512GB V30 A2 microSDXC
Item Dimension (L"xW"xH")
13 x 9 x 7
Weight
6 lbs
Warranty Information
1 Year
