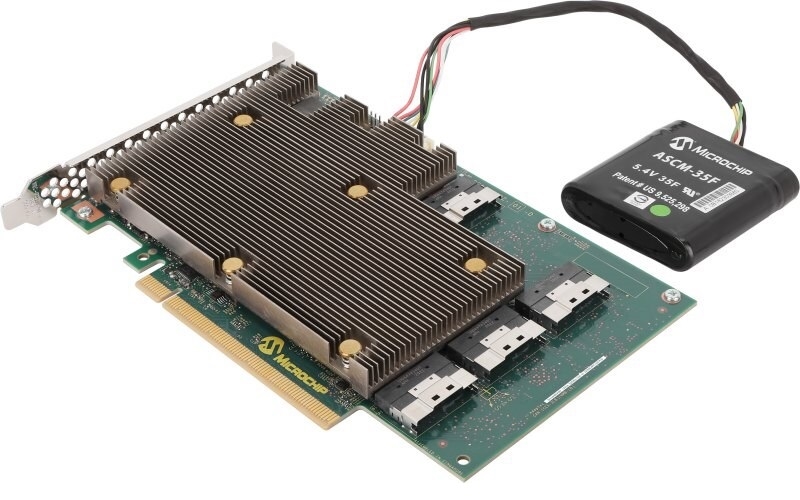

Adaptec Controller Card 3258UPC32IX2S SmartRAID 32Port Int24Gbps SAS/SATA/NVMe PCIe Gen4 Retail
- SKU: 274429
- Vendor: Adaptec
- MPN: 3258UPC32IX2S
- UPC: 760884158999
• 16 Gbps NVMe Gen 4, 24 Gbps SAS-4, and 6 Gbps SATA full Tri-mode SAS/SATA/NVMe adapters
• Industry's only 32-port RAID adapter for maximum design flexibility
• 16-lane (x16) PCIe Gen 4 host interface
• Dynamic power management to save up to 30% power
Performance
• Superior performance with up to 29.6 GB/s throughput and 3.5M+ IOPs 4K random reads
• Accelerate storage with up to 8 GB of high-speed DRAM cache with integrated cache protection
• 144-bit DDR4 3200 MHz memory option with enhanced throughput on redundant RAID writes and NVMe CBE (11.7 GByte/s for RAID5 writes and 17 GB/s for NVMe CBE)
• Integrated PCIe Switch enables DirectPath technology for the industry's lowest latency and high bandwidth NVMe solution
• Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled throughput
Security
• Microchip’s Trusted Platform support with a new level of compute and supply chain security based on Hardware Root of Trust
• Expanded unique maxCrypto™ Controller-Based Encryption (CBE) solution to support SAS, SATA, and now NVMe media
• Self-Encrypting Drive (SED) management software
CBE (Controller Based Encryption):
Yes
Cache Memory:
8 GB DDR4/3200 MHz
Cache Protection:
ASCM40F (included)
Form Factor:
Full-height, half-length
Generation:
PCIe Gen 4 / SAS-4
Port Count Supported Devices:
SATA,SAS-4,NVMe
Product Type:
RAID Adapter
maxCache:
4.0
Bus Type:
PCIe Gen 4
Internal Ports:
32
External Ports:
0
PCIe Lanes:
x16
Basic RAID:
0,1,10
Advanced RAID:
5,6,50,60
Multimode:
yes
Product Name:
SmartRAID Ultra 3258-32i /e
Product Description:
24Gbps SAS/SATA/NVMe PCIe Gen 4 Smart Storage Products - SmartRAID Adapters
Item Dimension (L inchxW inchxH inch)
15 x 10 x 2
Weight
3.00 lb
Warranty Information
3 years
