Product Detail

Aircraft
Takeoff Weight
< 249 g
Standard aircraft weight (including the Intelligent Flight Battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. Registration is not required in some countries and regions. Always check local laws and regulations before use. With the Intelligent Flight Battery Plus, the aircraft will weigh more than 249 g. Always check and strictly abide by local laws and regulations before flying.
The Intelligent Flight Battery Plus is not sold in Europe.
Dimensions

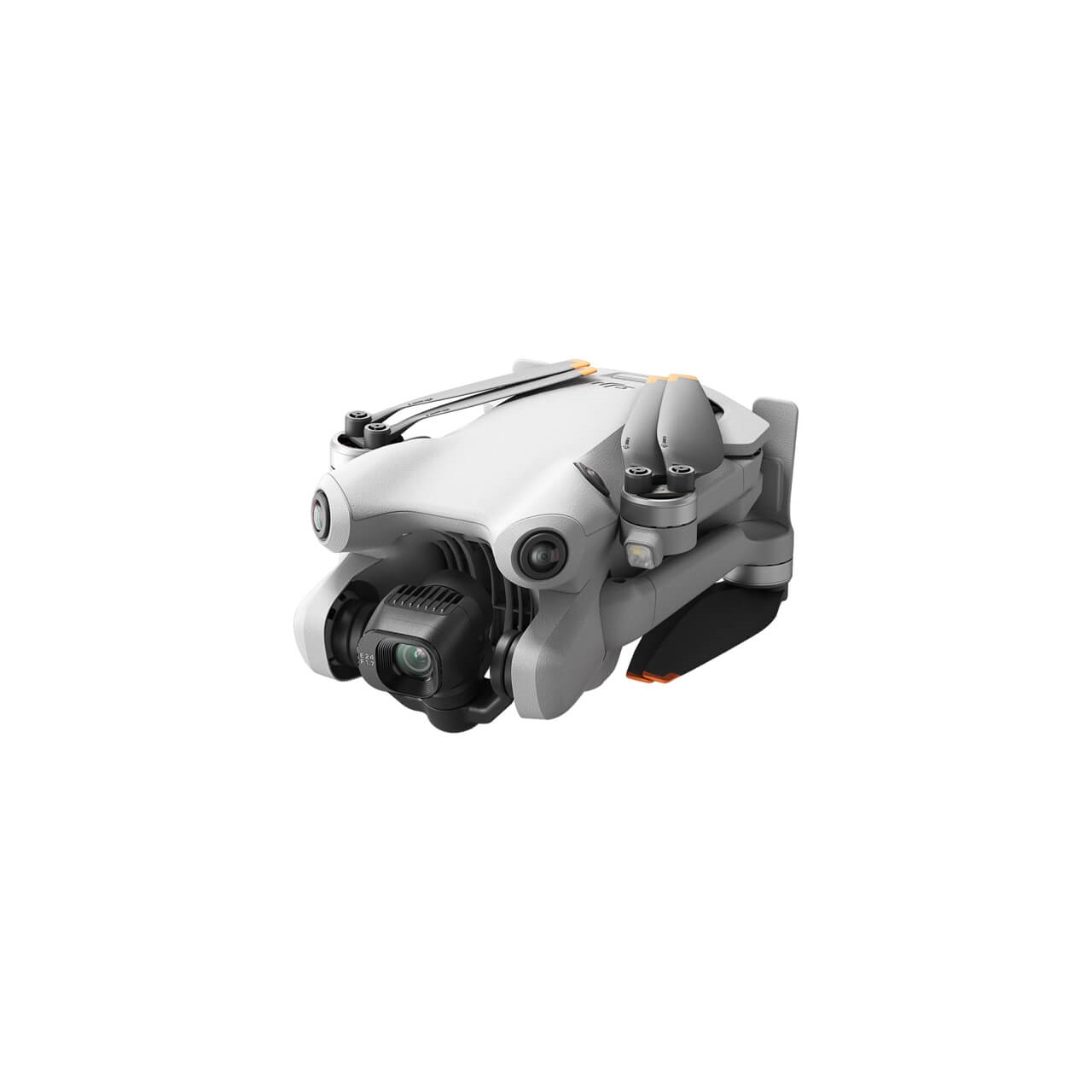

Folded (without propellers): 148x94x64 mm (LxWxH)
Unfolded (with propellers): 298x373x101 mm (LxWxH)
Max Ascent Speed
5 m/s (S Mode)
5 m/s (N Mode)
3 m/s (C Mode)
Max Descent Speed
5 m/s (S Mode)
5 m/s (N Mode)
3 m/s (C Mode)
Max Horizontal Speed (at sea level, no wind)
16 m/s (S Mode)
12 m/s (N Mode)
12 m/s (C Mode)
The max horizontal speed is subject to dynamic local restrictions. Always abide by local laws and regulations when flying.
Max Takeoff Altitude
With DJI Mini 4 Pro Intelligent Flight Battery: 4000 m
With DJI Mini 3 Series Intelligent Flight Battery Plus: 3000 m
Increase in aircraft weight can affect flight propulsion. When the aircraft is using the Intelligent Flight Battery Plus, do not mount additional payloads like a propeller guard or third-party accessories to avoid diminished propulsion.
The Intelligent Flight Battery Plus is not sold in Europe.
Max Flight Time
34 minutes (with Intelligent Flight Battery)
45 minutes (with Intelligent Flight Battery Plus)

Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 21.6 kph in a windless laboratory environment at 20 meters above sea level, in photo mode (without photo taking operation during flight), with Obstacle Avoidance Action set to Off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
The Intelligent Flight Battery Plus is not sold in Europe.
Max Hovering Time
30 minutes (with Intelligent Flight Battery)
39 minutes (with Intelligent Flight Battery Plus)
Measured in a controlled test environment. Specific test conditions are as follows: hovering in a windless laboratory environment at 20 meters above sea level, in photo mode (without photo taking operation during flight), with Obstacle Avoidance Action set to Off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
The Intelligent Flight Battery Plus is not sold in Europe.
Max Flight Distance
18 km (with Intelligent Flight Battery and measured while flying at 40.7 kph in a windless environment at 20 meters above sea level)
25 km (with Intelligent Flight Battery Plus and measured while flying at 44.3 kph in a windless environment at 20 meters above sea level)
The Intelligent Flight Battery Plus is not sold in Europe.
Max Wind Speed Resistance
10.7 m/s
Max Pitch Angle
35^o
Operating Temperature
-10^o to 40^o C (14^o to 104^o F)
Global Navigation Satellite System
GPS + Galileo + BeiDou
Hovering Accuracy Range (windless or breezy)
Vertical:
+/-0.1 m (with vision positioning)
+/-0.5 m (with GNSS positioning)
Horizontal:
+/-0.1 m (with vision positioning)
+/-0.5 m (with GNSS positioning)
Internal Storage
2 GB

Camera
Image Sensor
1/1.3-inch CMOS, Effective Pixels: 48 MP
Lens
FOV: 82.1^o
Format Equivalent: 24 mm
Aperture: f/1.7
Focus: 1 m to infinity
ISO Range
Video
Normal and Slow Motion:
100-6400 (Normal)
100-1600 (D-Log M)
100-1600 (HLG)
Night:
100-12800 (Normal)
12 MP: 100-6400
48 MP: 100-3200
Shutter Speed
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s
Max Image Size
8064x6048
Still Photography Modes
Single Shot: 12 MP and 48 MP
Burst Shooting:
12 MP, 3/5/7 frames
48 MP, 3 frames
Automatic Exposure Bracketing (AEB):
12 MP, 3/5/7 frames at 0.7 EV step
48 MP, 3 frames at 0.7 EV step
Timed:
12 MP, 2/3/5/7/10/15/20/30/60 s
48 MP, 5/7/10/15/20/30/60 s
Photo Format
JPEG/DNG (RAW)
Video Resolution
H.264/H.265
4K: 3840x2160 at 24/25/30/48/50/60/100fps
FHD: 1920x1080 at 24/25/30/48/50/60/100/200fps
Recording frame rates. The corresponding video plays as slow-motion video. 4K/100fps and HLG/D-Log M only support H.265 coding.
Video Format
MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
Max Video Bitrate
H.264/H.265: 150 Mbps
Supported File System
exFAT
Color Mode and Sampling Method
Normal:
8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M:
10-bit 4:2:0 (H.265)
Digital Zoom
12MP Photo: 1-2x
4K: 1-3x
FHD: 1-4x

Gimbal
Stabilization
3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range
Tilt: -135^o to 80^o
Roll: -135^o to 45^o
Pan: -30^o to 30^o
Controllable Range
Tilt: -90^o to 60^o
Roll: -90^o or 0^o
Max Control Speed (tilt)
100^o/s
Angular Vibration Range
+/-0.01^o

Sensing
Sensing Type
Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft
Forward
Measurement Range: 0.5-18 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed less than or equal 12 m/s
FOV: Horizontal 90^o, Vertical 72^o
Backward
Measurement Range: 0.5-15 m
Effective Sensing Speed: Flight Speed less than or equal 12 m/s
FOV: Horizontal 90^o, Vertical 72^o
Lateral
Measurement Range: 0.5-12 m
Effective Sensing Speed: Flight Speed less than or equal 12 m/s
FOV: Horizontal 90^o, Vertical 72^o
Upward
Measurement Range: 0.5-15 m
Effective Sensing Speed: Flight Speed less than or equal 5 m/s
FOV: Front and Back 72^o, Left and Right 90^o
Downward
Measurement Range: 0.3-12 m
Effective Sensing Speed: Flight Speed less than or equal 5 m/s
FOV: Front and Back 106^o, Left and Right 90^o
Operating Environment
Forward, Backward, Left, Right, and Upward:
Surfaces with discernible patterns and adequate lighting (lux > 15)
Downward:
Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)
3D Infrared Sensor
Measurement Range: 0.1-8 m (reflectivity > 10%)
FOV: Front and Back 60^o, Left and Right 60^o

Video Transmission
Video Transmission System
O4
Live View Quality
Remote Controller:
Up to 1080p/60fps (available when the aircraft is flying in Photo or Video mode)
Up to 1080p/30fps (available when the aircraft is flying in Video mode)
Up to 1080p/24fps (available when the aircraft is in standby mode on the ground)
Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.
Transmitter Power (EIRP)
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
Max Transmission Distance (unobstructed, free of interference)
FCC: 20 km
CE: 10 km
SRRC: 10 km
MIC: 10 km
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the DJI Fly app during your flight.
Max Transmission Distance (unobstructed, with interference)
Strong Interference: urban landscape, approx. 1.5-4 km
Medium Interference: suburban landscape, approx. 4-10 km
Low Interference: suburb/seaside, approx. 10-20 km
Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Transmission Distance (obstructed, with interference)
Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km
Data tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Download Speed
O4:

10 MB/s (with DJI RC-N2)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s
Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the internal storage. Download speeds may vary depending on the actual conditions.
Lowest Latency
Aircraft + Remote Controller: approx. 120 ms
Depending on the actual environment and mobile device.
Antenna
4 antennas, 2T4R

Battery
Compatible Battery
DJI Mini 4 Pro Intelligent Flight Battery, DJI Mini 3 Series Intelligent Flight Battery Plus
The Intelligent Flight Battery Plus is not sold in Europe.
Capacity
Intelligent Flight Battery: 2590 mAh
Intelligent Flight Battery Plus: 3850 mAh
The Intelligent Flight Battery Plus is not sold in Europe.
Weight
Intelligent Flight Battery: approx. 77.9 g
Intelligent Flight Battery Plus: approx. 121 g
The Intelligent Flight Battery Plus is not sold in Europe.
Nominal Voltage
Intelligent Flight Battery: 7.32 V
Intelligent Flight Battery Plus: 7.38 V
The Intelligent Flight Battery Plus is not sold in Europe.
Max Charging Voltage
Intelligent Flight Battery: 8.6 V
Intelligent Flight Battery Plus: 8.5 V
The Intelligent Flight Battery Plus is not sold in Europe.
Type
Li-ion
Energy
Intelligent Flight Battery: 18.96 Wh
Intelligent Flight Battery Plus: 28.4 Wh
The Intelligent Flight Battery Plus is not sold in Europe.
Charging Temperature
5^o to 40^o C (41^o to 104^o F)
Charging Time
Intelligent Flight Battery:
70 minutes (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)
58 minutes (with the DJI 30W USB-C Charger and the battery inserted into the Two-Way Charging Hub)
Intelligent Flight Battery Plus:
101 minutes (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)
78 minutes (with the DJI 30W USB-C Charger and the battery inserted into the Two-Way Charging Hub)
The Intelligent Flight Battery Plus is not sold in Europe.

Charger
Recommended Charger
DJI 30W USB-C Charger or other USB Power Delivery chargers (30 W)
When you charge the battery mounted to the aircraft or inserted into the Two-Way Charging Hub, the maximum charging power supported is 30 W.

Charging Hub
Input
5 V, 3 A
9 V, 3 A
12 V, 3 A
Output
USB-A: Max Voltage: 5 V Max Current: 2 A
Charging Type
Three batteries charged in sequence.
Compatibility
DJI Mini 4 Pro Intelligent Flight Battery, DJI Mini 3 Series Intelligent Flight Battery/Intelligent Flight Battery Plus
The Intelligent Flight Battery Plus is not sold in Europe.

Storage
Recommended microSD Cards
SanDisk Extreme PRO 32GB V30 U3 A1 microSDHC
Lexar 1066x 64GB V30 U3 A2 microSDXC
Lexar 1066x 128GB V30 U3 A2 microSDXC
Lexar 1066x 256GB V30 U3 A2 microSDXC
Lexar 1066x 512GB V30 U3 A2 microSDXC
Kingston Canvas GO Plus 64GB V30 U3 A2 microSDXC
Kingston Canvas GO Plus 128GB V30 U3 A2 microSDXC
Kingston Canvas React Plus 64GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 128GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 256GB V90 U3 A1 microSDXC
Samsung EVO Plus 512GB V30 U3 A2 microSDXC

DJI RC-N2
Max Operating Time
Without charging any mobile device: 6 hours
When charging a mobile device: 3.5 hours
Max Supported Mobile Device Size
180x86x10 mm (LxWxH)
Operating Temperature
-10^o to 40^o C (14^o to 104^o F)
Charging Temperature
5^o to 40^o C (41^o to 104^o F)
Charging Time
2.5 hours
Charging Type
It is recommended to use a 5V/2A charger.
Battery Capacity
18.72 Wh (3.6 V, 2600 mAh x 2)
Supported Mobile Device Port Type
Lightning, USB-C, Micro-USB
Using a mobile device with Micro-USB port requires the DJI RC-N1 RC Cable (Standard Micro USB connector), which is sold separately.
Video Transmission Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
Transmitter Power (EIRP)
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 30 dBm (SRRC)

Item Dimension (L"xW"xH")
8 x 7 x 6

Weight
3 lbs

Warranty Information
1 year
