TP-Link Networking EAP772 Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point Retail
- SKU: 286790
- Vendor: TP-Link
- MPN: EAP772
- UPC: 810142821728
BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
BE11000 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 4320 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).
A clear 6 GHz band brings cleaner and wider band resources.
1x 2.5G Port unlocks the full potential of Wi-Fi 7.
320 MHz bandwidth enables many more simultaneous transmissions.
Multi-Link Operation and Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, mesh, and seamless roaming.

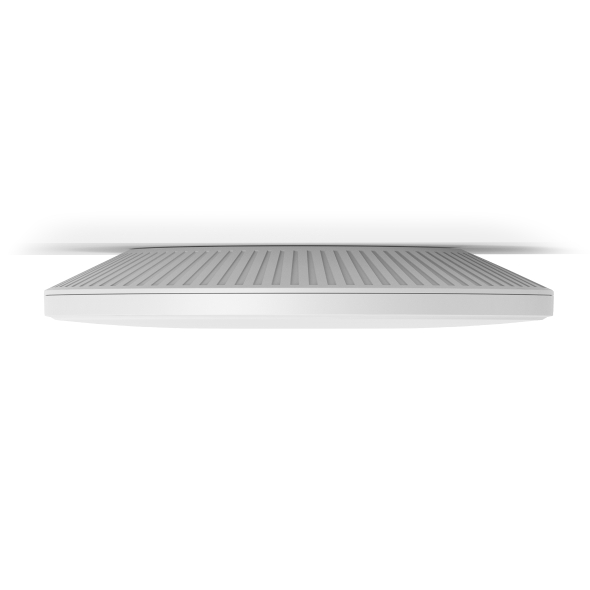

Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
HARDWARE FEATURES
Interface
1x 2.5G Ethernet Port
Button
Reset
Power Supply
802.3at PoE or 12V/2.5A DC
Max. Power Consumption
25.44 W (For PoE)
22.57 W (For DC)
Antenna
2.4 GHz: 2x 4.0 dBi
5 GHz: 2x 5.0 dBi
6 GHz: 2x 5.0 dBi
Bluetooth
1 4.0 dBi, Bluetooth 5.2
Firmware update may be required.

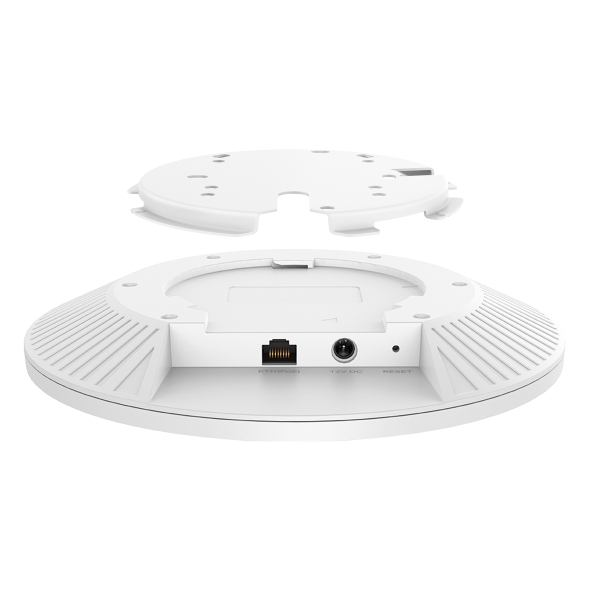

Mounting
Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage
140 m2(1500 ft2)
Concurrent Clients
380+
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
6 GHz, 5 GHz, and 2.4 GHz
Signal Rate
574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Wireless Functions
MLO
4K-QAM
Seamless Roaming(802.11k/v/r)
MU-MIMO
EHT320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication
Wireless Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
< 25dBm (2.4GHz
< 25dBm (5GHz)
< 23dBm (6GHz)
Management Features
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Yes
Web-based Management
Yes
OTHERS
Certification
CE, FCC, RoHS, IC
Package Content
EAP772
Installation Guide
Ceiling/Wall Mounting Kit
Note: Power Adapter is NOT included.
Environment
Operating Temperature: 0 oC-40 oC (32 oF-104 oF)
Storage Temperature: -40 oC-70 oC (-40 oF-158 oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Item Dimension (L"xW"xH")
12 x 11 x 4
Weight
4 lbs
Warranty Information
5-year
