Antigravity Drone DE001-03 Antigravity A1 Infinity Bundle 8K Drone Retail
- SKU: 303828
- Vendor: Antigravity
- MPN: DE001-03
- UPC: 810203080033
- EAN: 6978913850026
SEE THE WORLD ANEW
Put on the Vision goggles and experience a truly immersive experience in 360 degrees. Turn your head freely and take in the wonders of the world.
SKY PATH
SHARE THE THRILLS
Create your own flight path and let A1 fly it. Hand over the Vision goggles and let friends experience the fun without having to fly. Turn a solo experience into a shared adventure.
EASY TO FLY
TWO CONTROL MODES, TOTAL FREEDOM
Two control modes, a new dimension for flight. FreeMotion mode, a world-first by Antigravity⁶, along with FPV mode. In FreeMotion mode, simply point to fly. In FPV mode, a subtle turn of your wrist translates into precise directional control.
FREEMOTION MODE
NO PILOTING SKILLS? NO PROBLEM.
Meet the world's first FreeMotion control mode.⁶ No complex sticks, no steep learning curves. Just hold the Grip controller, point in any direction, pull the trigger, and A1 flies there. Intuitive, instant, and designed for everyone.
FLIGHT SIMULATOR
TRAIN FOR YOUR FIRST FLIGHT
Master the controls in realistic virtual environments before you do it for real. Build your skills risk-free, so when it's time to take to the skies, you're ready.
Drone
Class
EU C0 (with Standard Flight Battery)
EU C1 (with High-Capacity Battery)
Max Flight Time
24 minutes (with Flight Battery)
39 minutes (with High-Capacity Flight Battery)
Note: Tested in a controlled windless environment at 25oC (77oF), 5.2K30fps (video recording disabled), with the drone flying forward at 6 m/s (13.4 mph) at an altitude below 50 m (164 ft) until low-battery auto-landing was triggered. Flight time may vary under different conditions.
Max Flight Distance (per charge)
13 km (8.0 mi) (with Flight Battery)
23 km (14.3 mi) (with High-Capacity Flight Battery)
Note: Tested in a controlled windless environment at 25oC (77oF), 5.2K30fps (video recording disabled), with the drone flying forward at 12 m/s (26.8 mph) at an altitude below 50 m (164 ft) until low-battery auto-landing was triggered. Flight time may vary under different conditions.
Max Ascent Speed
8 m/s (17.9 mph) (S Mode)
6 m/s (13.4 mph) (N Mode)
3 m/s (6.7 mph) (C Mode)
Note: Tested in a controlled windless environment at 25oC (77oF) at an altitude below 50 m (164 ft).
Max Descent Speed
8 m/s (17.9 mph) (S Mode)
6 m/s (13.4 mph) (N Mode)
3 m/s (6.7 mph) (C Mode)
Note: Tested in a controlled windless environment at 25oC (77oF) at an altitude below 50 m (164 ft).
Max Horizontal Speed (at sea level, no wind)
16 m/s (35.8 mph) (S Mode)
12 m/s (26.8 mph) (N Mode)
3 m/s (6.7 mph) (C Mode)
Note: Tested in a controlled windless environment at 25oC (77oF) at an altitude below 50 m (164 ft).
Max Wind Speed Resistance
10.7 m/s (24 mph) (Level 5)
Max Takeoff Altitude
4,000 m (13,123 ft) (with Flight Battery)
3,000 m (9,842 ft) (with High-Capacity Flight Battery)
Global Navigation Satellite System
GPS + Galileo + Beidou
Hovering Accuracy Range
Vertical:
+/-0.1 m (0.33 ft) (with vision positioning) / +/-0.5 m (1.64 ft) (with GNSS positioning)
Horizontal:
+/-0.1 m (0.33 ft) (with vision positioning) / +/-0.5 m (1.64 ft) (with GNSS positioning)
Operating Temperature
-10oC to 40oC (14oF to 104oF)
Internal Storage
20GB
Internal File System
exFAT
Supported Storage
microSD (up to 1TB)
Recommended Memory Cards
SanDisk
SanDisk Extreme PRO 64GB V30 U3 A2 microSDXC
SanDisk Extreme PRO 128GB V30 U3 A2 microSDXC
SanDisk Extreme PRO 256GB V30 U3 A2 microSDXC
SanDisk Extreme PRO 512GB V30 U3 A2 microSDXC
SanDisk Extreme PRO 1TB V30 U3 A2 microSDXC
Lexar
Lexar Silver Plus 64GB A2 V30 microSDXC
Lexar Silver Plus 128GB A2 V30 microSDXC
Lexar Silver Plus 256GB A2 V30 microSDXC
Lexar Silver Plus 512GB A2 V30 microSDXC
Lexar Silver Plus 1TB A2 V30 microSDXC
Kingston
Kingston CANVAS GO Plus 64GB A2 V30 microSDXC
Kingston CANVAS GO Plus 128GB A2 V30 microSDXC
Kingston CANVAS GO Plus 256GB A2 V30 microSDXC
Kingston CANVAS GO Plus 512GB A2 V30 microSDXC
Kingston CANVAS GO Plus 1TB A2 V30 microSDXC
Camera
Image Sensor
1/1.28-inch
Lens Aperture
F2.2
Video Resolution
8K: 7680x3840 at 30/25/24fps
5.2K: 5248x2624 at 60/50/30/25/24fps
4K: 3840x1920 at 100fps
4K Slow Motion: 3840x1920 at 30/25/24fps
Photo Resolution
55 MP (10496x5248)
14 MP (5248x2624)
Video Format
INSV (Exported through Antigravity App or Antigravity Studio)
Photo Format
INSP (Exported through Antigravity App or Antigravity Studio)
DNG
Video Modes
Standard Video, Slow Motion
Photo Modes
Standard Photo, HDR, Burst, AEB
Video Encoding Format
H.264, H.265
Max Video Bitrate
170Mbps
ISO Range
100-6400
Shutter Speed
14MP Photo: 1/8000-1/2s
55MP Photo: 1/8000-1/20s
Sensing
Sensing Type
Forward and downward vision sensors, complemented by bottom infrared sensors.
Forward
Measurement Range: 0.5-18 m (1.6-59.1 ft)
Effective Sensing Speed: Flight Speed is less than or equal to 12 m/s (26.8 mph)
FOV: Horizontal 93o, Vertical 104o
Downward
Measurement Range: 0.3-7.5 m (1.0-24.6 ft)
Effective Sensing Speed: Flight Speed is less than or equal to 6 m/s (13.4 mph)
FOV: Front and Back 107o, Left and Right 90o
Operating Environment
Forward:
Surfaces with discernible patterns and adequate lighting (lux > 15)
Downward:
Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. cement pavement, stout trees), and adequate lighting (lux > 15)
Video Transmission
Video Transmission System
OmniLink 360
Live View Quality
2K at 30fps
Operating Frequency
2.400 GHz-2.4835 GHz
5.150 GHz-5.250 GHz
5.725 GHz-5.850 GHz
Note: 5.150 GHz-5.250 GHz and 5.725 GHz-5.850 GHz can be used only in coutries and regions where permitted by local laws and regulations.
Transmitter Power (EIRP)
2.4 GHz: < 30 dBm (FCC) / < 20 dBm (CE/SRRC/MIC)
5.1 GHz: < 23 dBm (CE) / < 21 dBm (FCC)
5.8 GHz: < 30 dBm (FCC/SRRC) / < 14 dBm (CE)
Max Transmission Distance (open, free of interference)
10 km (6.2 mi) (FCC)
8 km (5.0 mi) (SRRC)
6 km (3.7 mi) (CE)
4 km (2.5 mi) (MIC)
Note: Tested outdoors at 25oC (77oF) in an open, interference-free environment. Data reflects maximum one-way transmission distance without return-to-home under each standard. Actual performance may vary depending on environment, usage, and firmware.
Max Transmission Distance (open, with interference)
Strong Interference (urban/industrial): approx. 1-4 km (0.6-2.5 mi)
Medium Interference (suburban): approx. 3-6 km (1.9-3.7 mi)
Low Interference (seaside/suburb): approx. 5-10 km (3.1-6.2 mi)
Note: Tested under FCC standard in open environments with typical interference. Used for reference purposes only.
Max Transmission Distance (obstructed, with interference)
Low Interference/Buildings: approx. 0.1-0.5 km (0.06-0.31 mi)
Low Interference/Trees: approx. 0.5-2 km (0.31-1.24 mi)
Note: Tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Transmission Rate
30Mbps
Average Latency
Approx. 150 ms
Note: Tested in a open, interference-free environment. Actual latency may vary depending on the environmental differences.
Antenna
4 antennas, 2T2R
Wi-Fi
Protocol
802.11 a/b/g/n/ac
Operating Frequency
2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Note: 5.150-5.250 GHz and 5.725-5.850 GHz are only available in select countries and regions in accordance with local regulations.
Transmitter Power (EIRP)
2.4 GHz: < 20 dBm (CE/SRRC/FCC)
5.1 GHz: < 20 dBm (FCC/CE/SRRC)
5.8 GHz: < 20 dBm (FCC/SRRC) / < 14 dBm (CE)
Bluetooth
Protocol
Bluetooth 5.0
Operating Frequency
2.400 GHz-2.4835 GHz
Transmitter Power (EIRP)
<10 dBm
Flight Battery
Capacity
2360mAh (with Standard Flight Battery)
4345mAh (with High-Capacity Battery)
Energy
16.9Wh (with Standard Flight Battery)
31.1Wh (with High-Capacity Battery)
Nominal Voltage
7.16V (with Standard Flight Battery)
7.16V (with High-Capacity Battery)
Charging Limit Voltage
8.6V (with Standard Flight Battery)
8.6V (with High-Capacity Battery)
Battery Type
Li-ion 2S
Charging Temperature
5oC to 45oC
Charging Time
Flight Battery: Approx. 45 mins (Hub) / Approx. 58 mins (Drone)
High-Capacity Flight Battery: Approx. 60 mins (Hub) / Approx. 103 mins (Drone)
Note: Charging times are measured in a controlled environment at 25oC (77oF).
Charger
Recommended Charger
Antigravity 65W GaN Fast Charger
Charging Hub
USB-C Input
PPS: 5-10V 5A
PD: 5V 3A, 9V 5A, 12V 5A, 15V 4A
Output
PD 3.0: 30W
15V 2A, 12V 2.5A, 9V 3A, 5V 3A
Compatibility
Antigravity A1 Flight Battery
Antigravity A1 High-Capacity Flight Battery

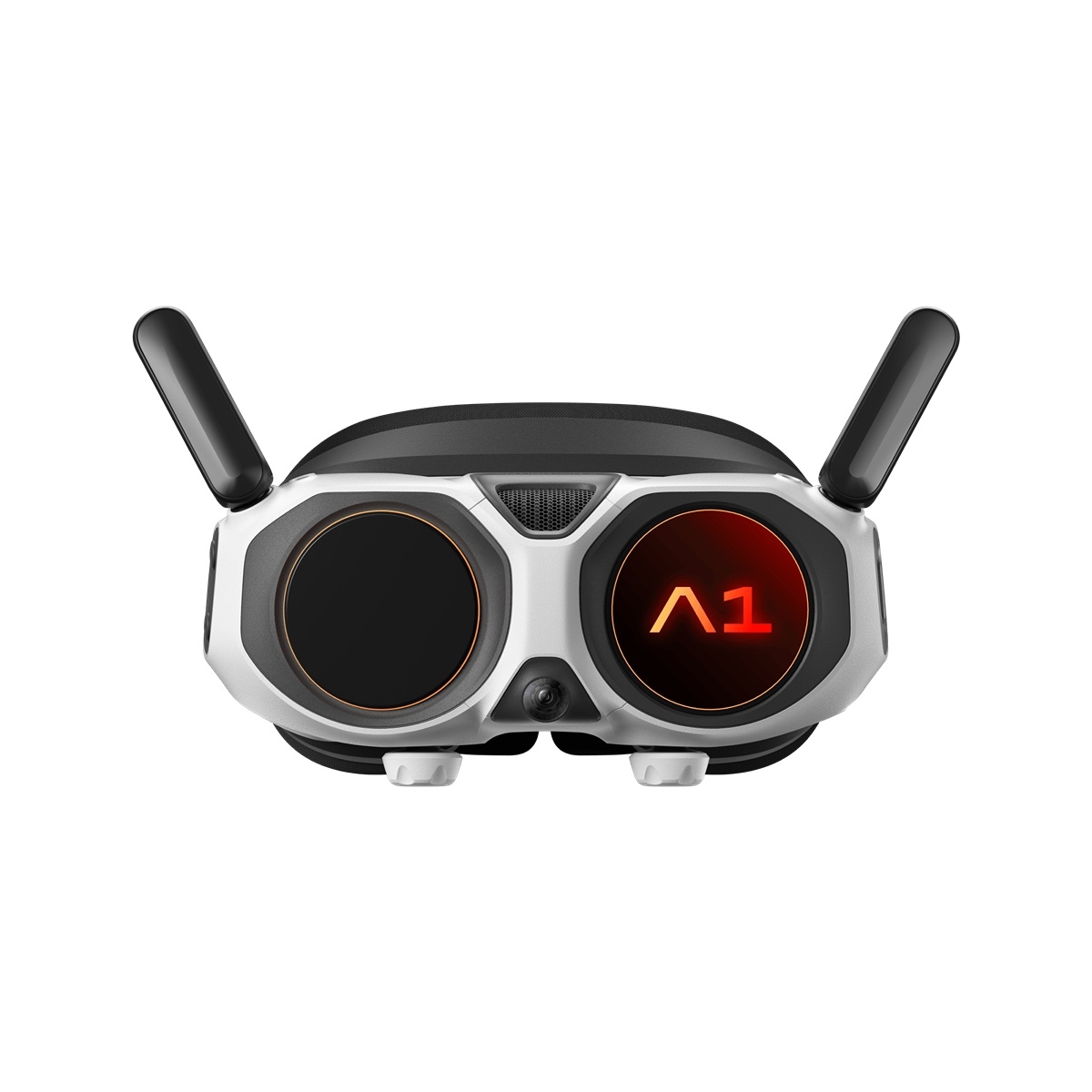

Vision Goggles
Goggles
Internal Screen Size (single screen)
1.03-inch Micro-OLED with TUV Rheinland Low Blue Light Certification
Internal Display Resolution (single screen)
2560x2560
Refresh Rate
72Hz
Optical Engine
Pancake Optical Display System
Interpupillary Distance Range
59-72 mm (2.32-2.83 in)
Diopter Adjustment Range
-5.0 D to +2.0 D
Note: Vision Goggles natively support vision correction from +2.0D to -5.0D. With the optional -3.0D corrective lenses, the range extends from +2.0D to -8.0D.
FOV (single screen)
DFOV:90o
HFOV/VFOV:65o
Video Recording Format
INSV
Video Recording Resolution
1600x1600
Screen Recording Frame Rate
30fps
Supported Video and Audio Playback Formats
MP4, MOV, JPG, PNG, INSP, INSV
Real View FOV
DFOV: 115o / HFOV: 93o / VFOV: 93o
Real View Resolution
1088x1088
Real View Frame Rate
50fps
Operating Temperature
-10oC to 40oC (14oF to 104oF)
Power Input
Supports only Vision goggles dedicated battery, requires USB-C to DC cable.
Internal Storage
Approx.30GB
Internal File Sysyem
exFAT
Supported Storage
microSD (up to 1TB)
Recommended Memory Cards
SanDisk
SanDisk Extreme PRO 64GB V30 U3 A2 microSDXC
SanDisk Extreme PRO 128GB V30 U3 A2 microSDXC
SanDisk Extreme PRO 256GB V30 U3 A2 microSDXC
SanDisk Extreme PRO 512GB V30 U3 A2 microsDXC
SanDisk Extreme PRO 1TB V30 U3 A2 microSDXC
Lexar
Lexar Silver Plus 64GB A2 V30 microSDXC
Lexar Silver Plus 128GB A2 V30 microSDXC
Lexar Silver Plus 256GB A2 V30 microSDXC
Lexar Silver Plus 512GB A2 V30 microSDXC
Lexar Silver Plus 1TB A2 V30 microSDXC
Kingston
Kingston CANVAS GO Plus 64GB A2 V30 microSDXC
Kingston CANVAS GO Plus 128GB A2 V30 microSDXC
Kingston CANVAS GO Plus 256GB A2 V30 microSDXC
Kingston CANVAS GO Plus 512GB A2 V30 microSDXC
Kingston CANVAS GO Plus 1TB A2 V30 microSDXC
Vision Goggles Battery
Max Runtime
Approx. 2.5 hours
Note: Measured with an ambient temperature of 25oC (77oF), connected to the drone and controller, video transmission set to automatic, internal screen brightness set to default and always-on, outer screen brightness set to default, light ring on, WiFi and Bluetooth on, screen recording on.
Nominal Voltage
7.3V
Capacity
4,500mAh
Energy
32.85Wh
Charging Port/Charging Power
USB-C (5V 3A, 9V 3A, 12V 2A)
Charging Temperature
5oC to 45oC (41oF to 113oF)
(Stop charging when the temperature exceeds 55oC (131oF))

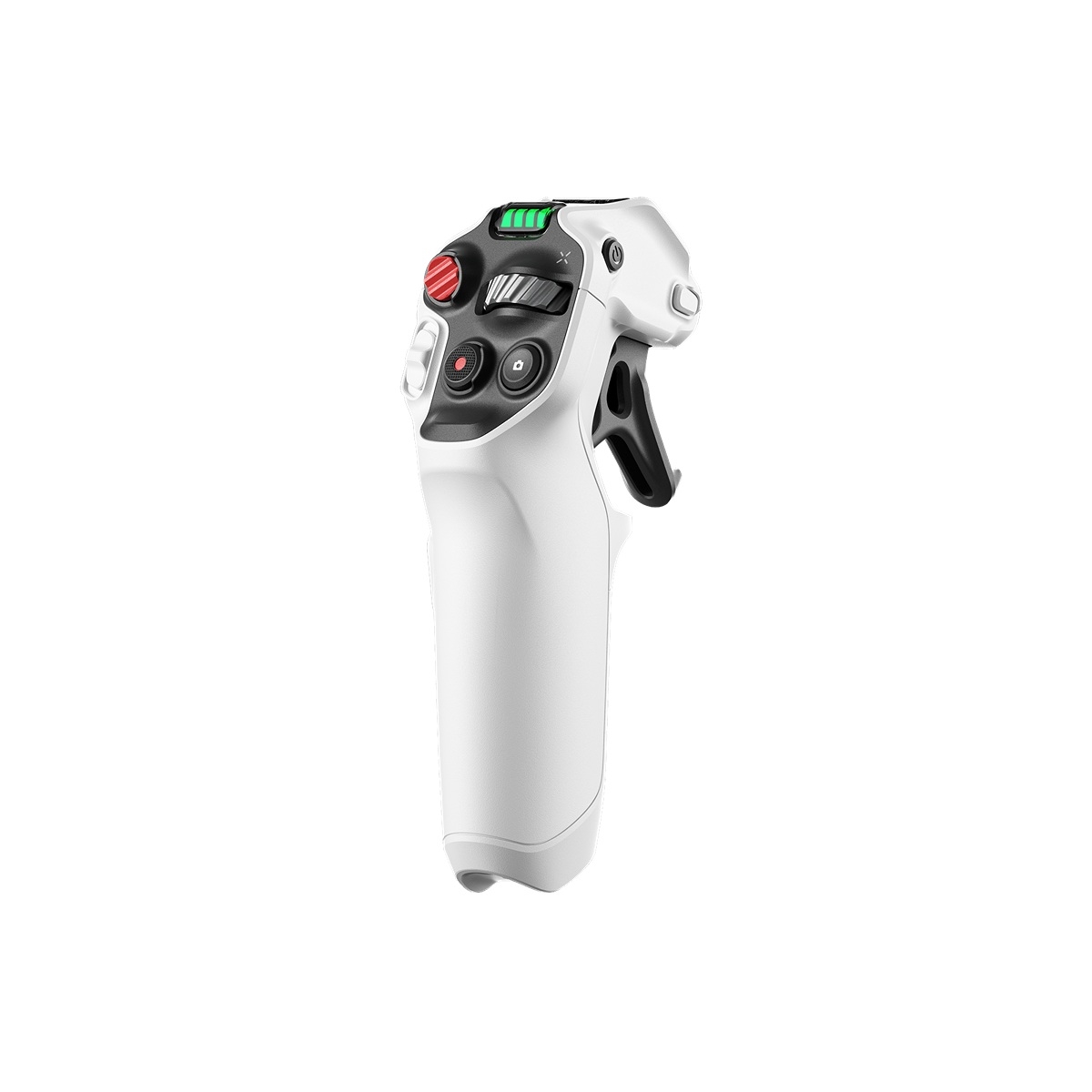

Grip Motion Controller
Controller
Operating Frequency
2.4000-2.4835 GHz
Transmitter Power (EIRP)
< 10 dBm
Max Transmission Distance (open, free of interference)
< 10 m (32.8 ft)
Note: Tested outdoors in an open, interference-free environment, representing the maximum communication distance between the Grip Controller and the Vision Goggles under typical working conditions.
Operating Temperature
-10oC to 40oC (14oF to 104oF)
Battery
Operating Time
Approx. 4 hours
Note: Measured with an ambient temperature of 25oC (77oF), the Grip Controller, when connected to the Vision Goggles, can last up to 4 hours under typical working conditions.
Charging Temperature
5oC to 45oC (41oF to 113oF)
Note: Charging stops automatically if temperature exceeds 55oC (131oF).
Charging Time
< 2.5 hours
Nominal Voltage
3.6V
Capacity
2300mAh

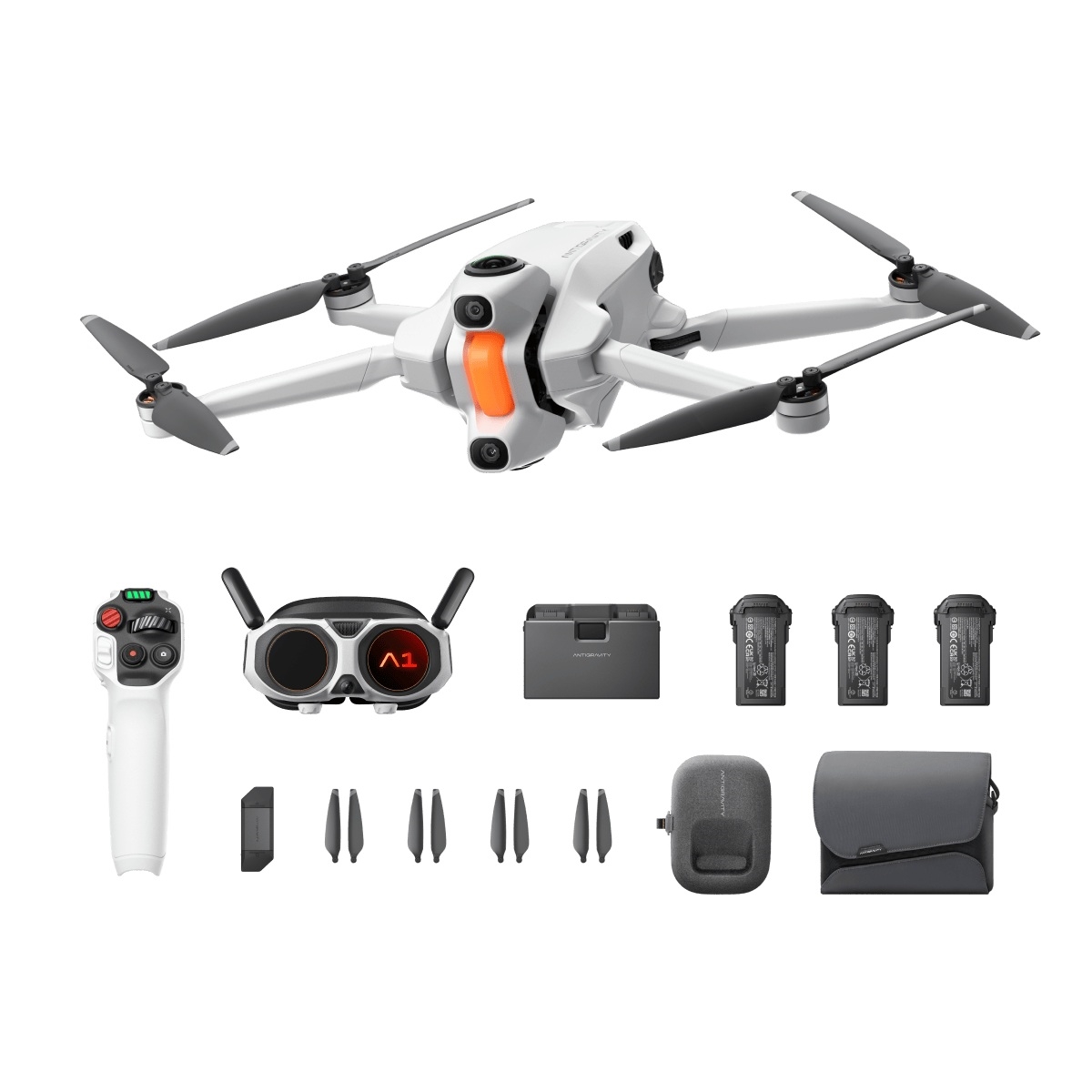

IN THE BOX
A1 Drone x 1
Antigravity Vision Goggles x 1
Grip Motion Controller x 1
Antigravity A1 High-Capacity Flight Battery x 3
Antigravity A1 Propellers x 8
Charging Hub x 1
Antigravity A1 Sling Bag x 1
Quick Reader x 1
A1 Drone Carry Case x 1
Item Dimension (L inchxW inchxH inch)
12 x 9 x 7
Weight
6.00 lb
Warranty Information
1 Year
