Product Detail

Product
NVIDIA RTX PRO 4000 Blackwell SFF Edition

PNY Part Numbers
VCNRTXPRO4000BLP-PB

Architecture
NVIDIA Blackwell Architecture

Foundry
TSMC

Process Size
4N NVIDIA Custom Process

Die Size
378 mm

Transistors
45.6 billion

CUDA Parallel Processing cores
8960

Single-Precision Performance
24 TFLOPS

Tensor Performance
770 AI TOPS

RT Core Performance
73 TFLOPS

GPU Memory
24 GB GDDR7 with ECC

Memory Interface
192-bit

Memory Bandwidth
432 GB/s

Maximum Power Consumption
70W

Graphics Bus
PCI Express 5.0 x83

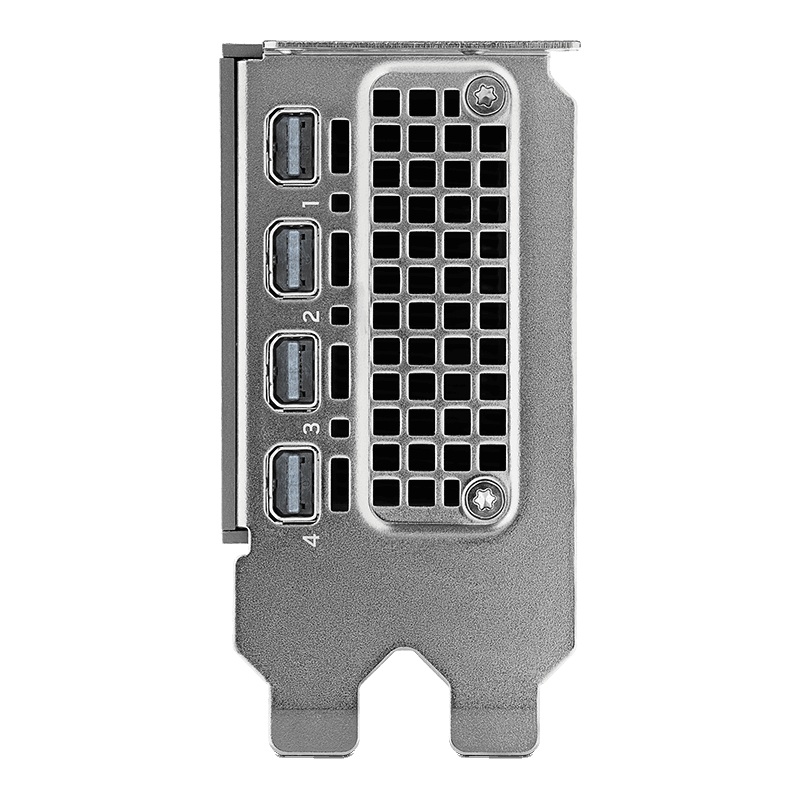

Display Connectors
mDP 2.1b (4)3

Form Factor
2.7 H x 6.6 L, HHHL Dual Slot

Thermal Solution
Blower Active Fan

NVIDIA 3D Vision and 3D Vision Pro
Support via 3-pin mini DIN

Frame lock Compatible
(with RTX PRO Sync)

Power Connector
N/A

NVENC NVDEC JPEG
2x 2x 1x

System Requirements
System Requirements
Intel Core i5, i7, i9, or Xeon processor or later
AMD Ryzen or Epyc class processor or later
PCI Express 4.0 x16 (preferred) expansion slot
System memory greater than or equal to GPU memory, twice the GPU memory recommended
Internet connection for driver installation
DisplayPort 1.4a (preferred), HDMI, or DVI-compatible display(s)
Supported Platforms
Microsoft Windows 11 (64-bit)
Microsoft Windows 10 (64-bit)
Red Hat Enterprise Linux 7.x
SUSE Linux Enterprise Desktop 15.x
Fedora 31
Ubuntu 18.04
FreeBSD 11.x
Solaris 11

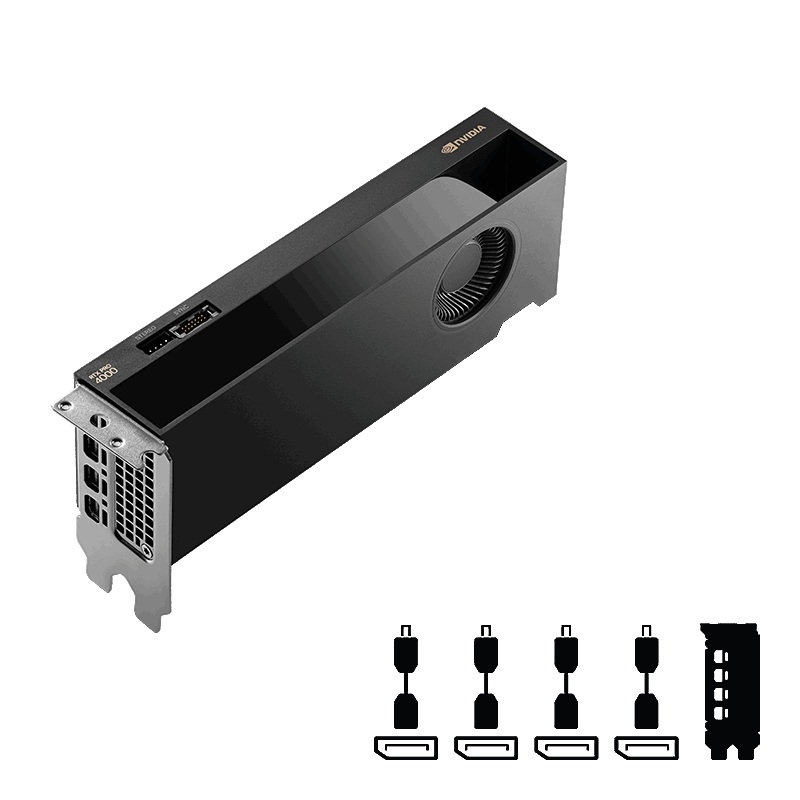

Package Contains
NVIDIA RTX PRO 4000 SFF Blackwell professional graphics card
ATX (full-height) bracket attached and LP (low-profile) bracket in the box
4x mDP to DP NVIDIA Certified Latching Adapters

Item Dimension (L"xW"xH")
15 x 9 x 4

Weight
4 lbs

Warranty Information
3-Year Limited Warranty
