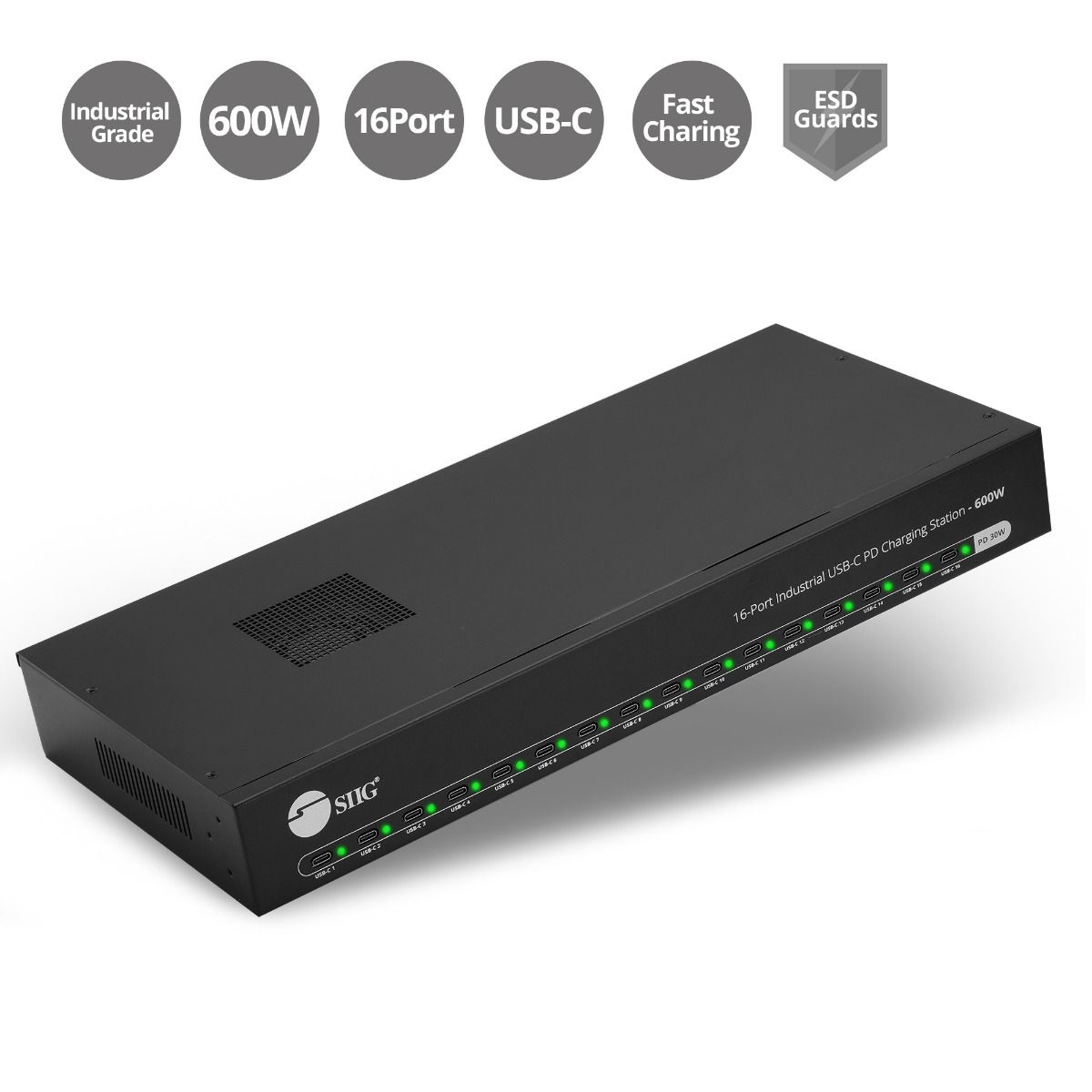

SIIG Accessory ID-US0A11-S1 16PT Industrial USB-C PD Charging Station 30Watts per port Brown Box
- SKU: 273867
- Vendor: SIIG
- MPN: ID-US0A11-S1
- UPC: 662774045856
Easily and quickly charge up to 16 USB-C devices such as iPhone/iPad, Tablet, Smart Phone, Mobile device and each port up to 30W charging power
Support Power Delivery 2.0 and 3.0 for 5V/3A, 9V/3A and 12V/2.5A charging specification
Industrial grade and built-in 24V 600W (Meanwell Brand) power adapter with UL certification to keep the safe charges
Power switch conserves energy when not in use, built-in LED provides easy recognition of power status

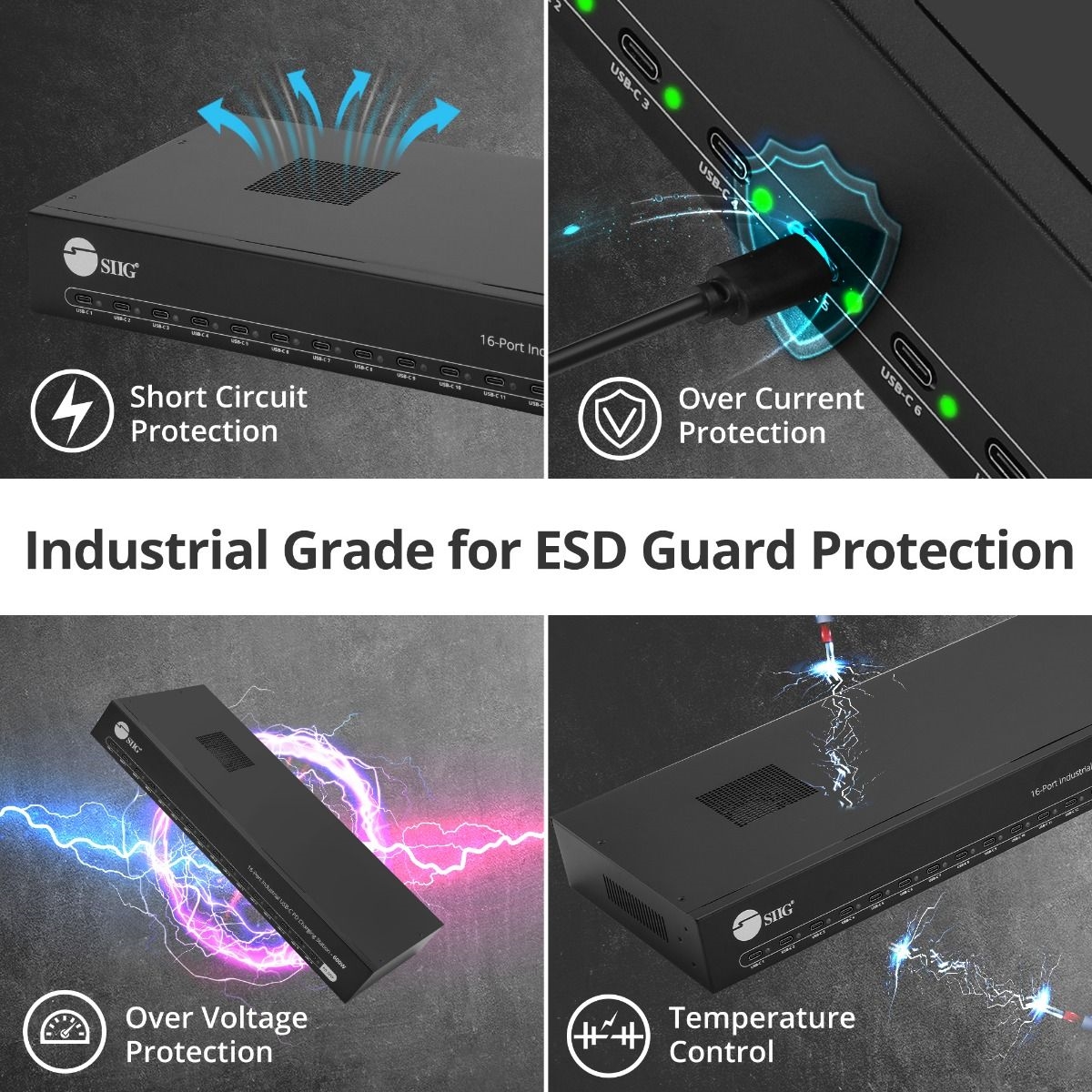

Protection and Reliability for Over-voltage, input under voltage, output short circuit, output over current, system over temperature
Enables to turn on/off the fans automatically according to the temperature setup

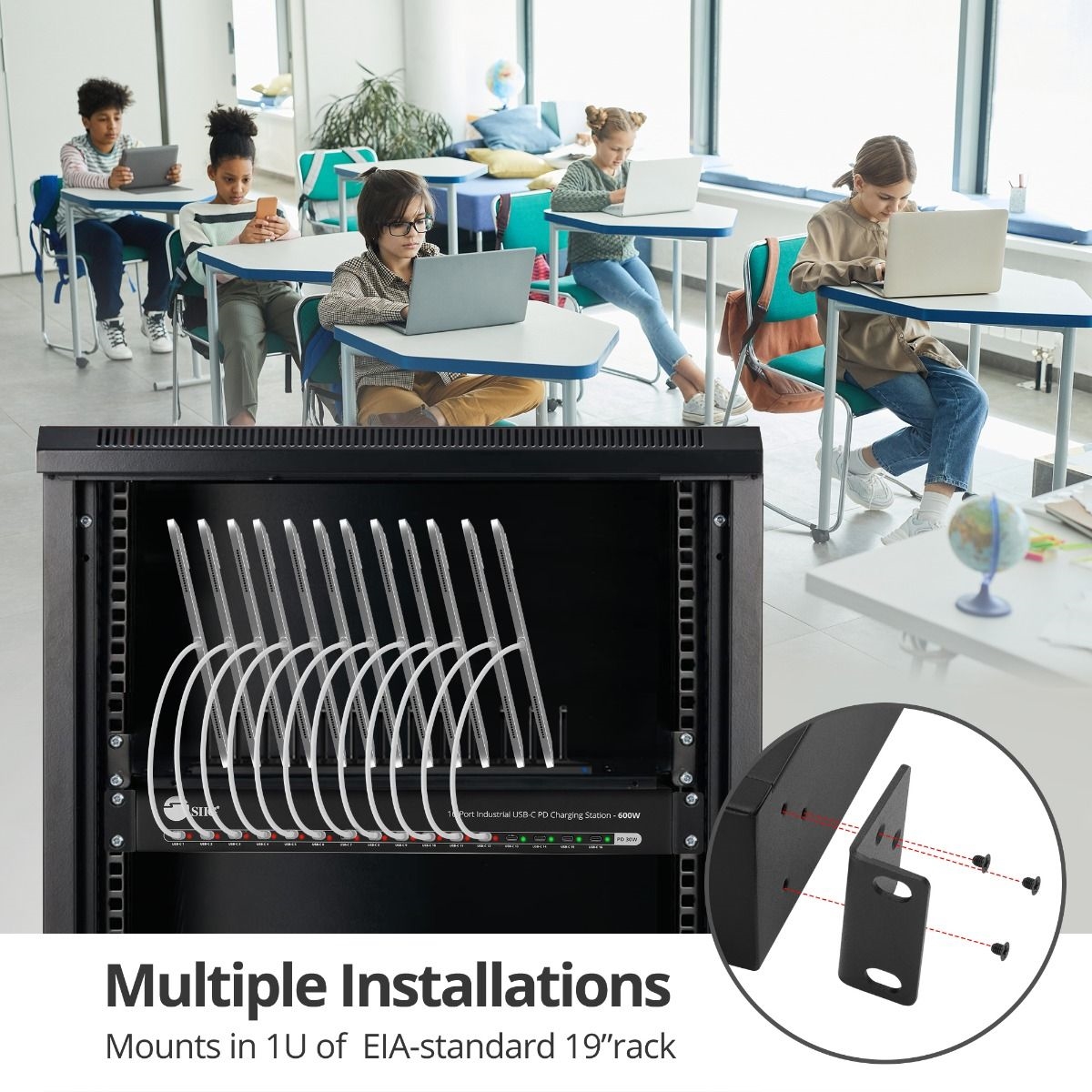

Fully heat dissipating and durable metal housing rack mountable into a standard 19-inch rack

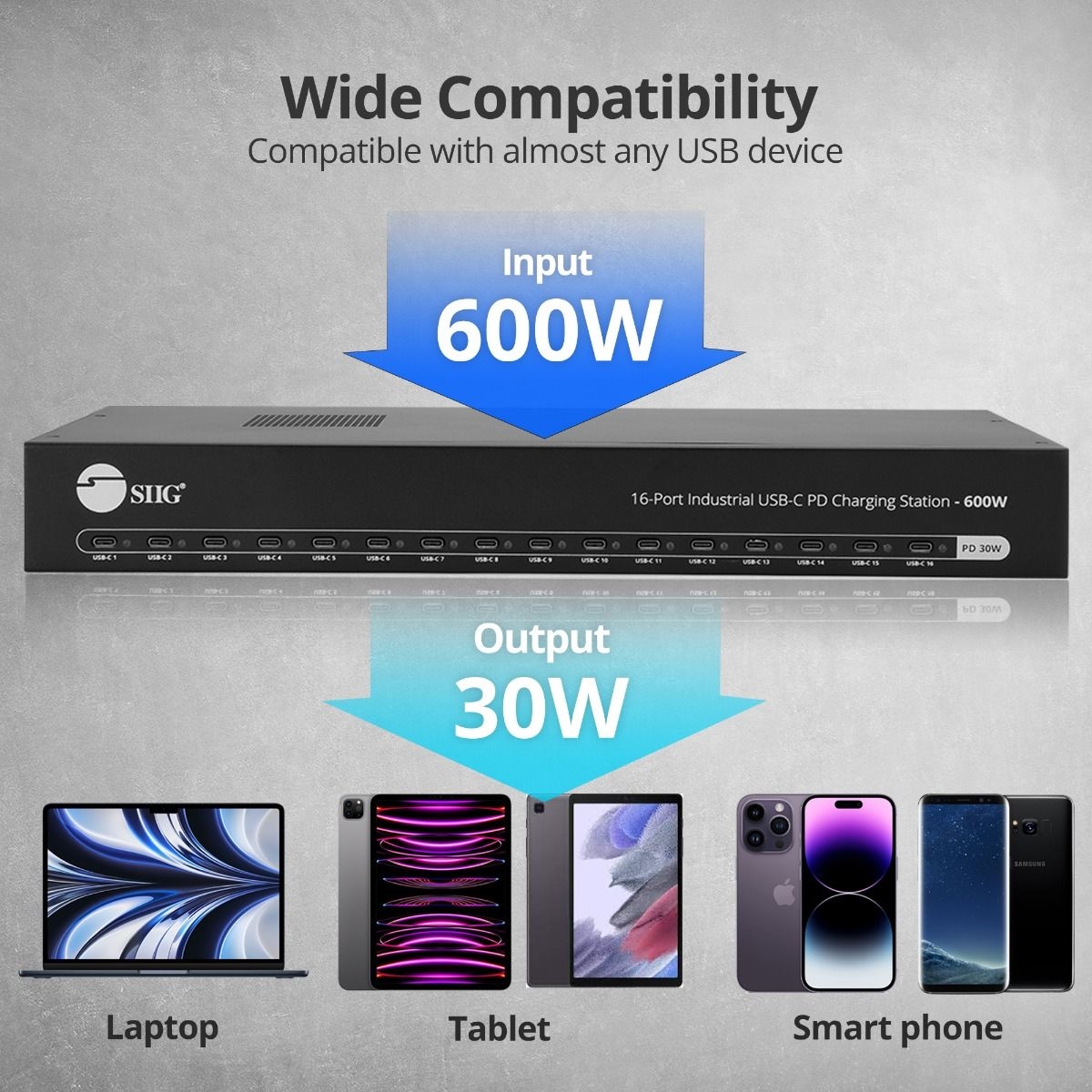

Compatible with Apple iPhone 14/13/12/11/X, iPhone 8, iPhone 8 Plus, Samsung Galaxy Note 8, S8, S8 plus and more, Tablets/ Laptop for Apple iPad, MacBook 12-inch, MacBook Air/Pro and more USB-C devices. This is an excellent choice for charging USB-C products
Applications
School
Restaurant
Airport
Industrial Environment
Educational Institution
Shopping Center
Data Center
High Speed Rail Station
Testing lab
Chipset:
IP6520T
Internal Power Supply:
600W24V Meanwell switching power supply
Input:
Input Voltage: 110VAC/220VAC select by Switch
Frequency: 50Hz / 60Hz
Input Current: 12A/115VAC, 7.5V/230VAC
Output
USB Port: 16 x USB-C, Female
PD output power: 30W (5V/3A, 9V/3A, 12V/2.5A)
Efficiency: VIN24V, VOUT5V/3A, Conversion Efficiency is 92%
USB-C Protocol
Support 5V / 9V / 12V Voltage output
Support PD 2.0 / PD 3.0
PPS support 3 to 11V, 20mV/step Voltage output
Output specification
Support USB-C PD output
Support BC 1.2_DCP, Apple, Samsung protocol
Support Qualcomm QC2.0 / QC3.0
Support MTK PE+1.1 and MTK PE+2.0
Support Fast Charging protocol FCP and AFC (Max 12V)

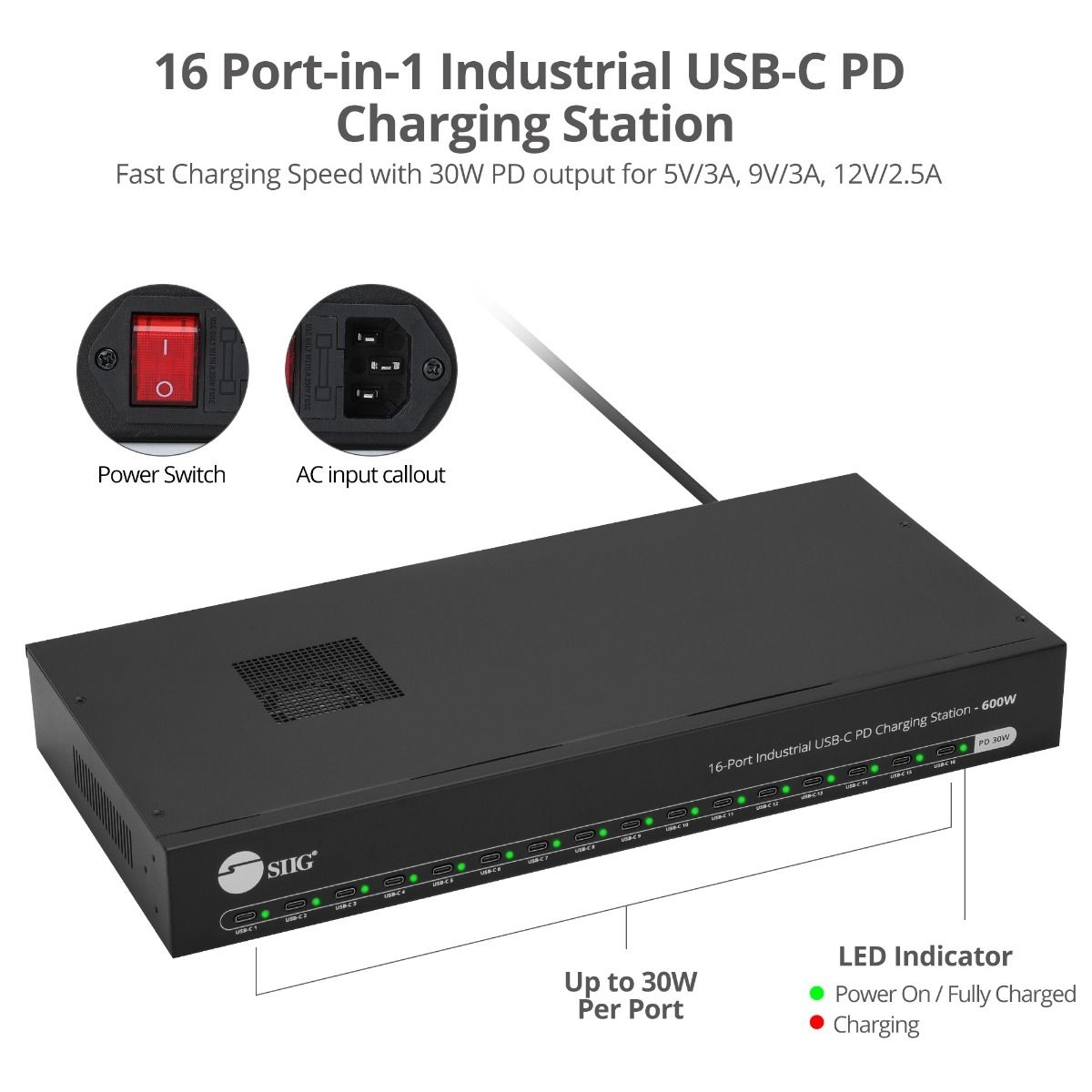

LED indicators:
Charging in progress: RED color
Power On or Fully charged: GREEN color
Output overcurrent protection:
output >3.5 to 3.9A, USB port current output automatic disconnect
Output overvoltage protection:
When the output terminal voltage>16V or more due to an accidental cause, the TVS discharge on the terminal circuit causes the input circuit fuse to open, cutting off power to the circuit and thus protecting the equipment at this port
Product:
Color:
Black
Housing:
Metal housing with standard 19 inch rack mounting
Connectors:
1x AC Power Jack
1x Power Switch
16x USB Type-C, Female, USB device connection
Environmental conditions:
Operating temperature:
14 to 131 degrees F
Storage temperature:
-4 to 158 degrees F
Relative humidity:
20% to 90% RH (non-condensing)
Working Altitude:
Less than 2km
Certifications/Standards:
FCC, CE, RoHS, UL
UL E183223
Country of origin:
Engineered in USA , Manufactured in China
Item Dimension (L"xW"xH")
23 x 4 x 10
Weight
7.44 lbs
Warranty Information
2 year limited
