TP-Link Router Fusion 2.5G Omada Fusion 2.5G Gateway Retail
- SKU: 308803
- Vendor: TP-Link
- MPN: FUSION 2.5G
- UPC: 840460617536
Omada Fusion 2.5G Gateway
• License-Free Cloud Management for Easy and Secure Remote Access
• Simplified Setup with App-Guided Onboarding via Bluetooth and One-Tap Bulk Device Adoption
• Enterprise-Grade Performance: Quad-Core CPU, 5× 2.5G Ports, Up to 4-WAN Load Balancing with Auto Failover, 2.1 Gbps-Class IDS/IPS Throughputnote1
• Quick Troubleshooting via Touchscreen, Reducing On-Site Visits
• Secure Remote Network Access in One Click Away with Omada LightLink VPN
• Advanced Software Capabilities: App-Based ACL, Auto QoS, Full Mesh SD-WAN, Content Filtering & Ad Blocking, DPI
• Flexible Mounting Options: Desktop, Wall-Mountablenote2, Rack-Mountablenote2
Fast Deployment. Cloud Management. Subscription-Free.
Omada Fusion 2.5G
Fusion Gateway at the Center of the Omada Networking Ecosystem
Gateway and controller integrated into a single device, delivering a unified solution that combines networking and centralized management at the core of the Omada networking ecosystem—improving the installation and management experience.
License-Free Cloud Management, Lower Ongoing Costs
Simplified Setup for Faster Deployment, Boosting Efficiency
Easily set up the Fusion 2.5G via Bluetooth using the Omada App. Automatically discover and batch adopt all other Omada networking devices at once, saving time and simplifying IT deployment.
Note
1. Actual throughput may vary depending on traffic conditions, enabled features, and network environment.
2. Magnetic-mount plate and rack-mount kit are sold separately.
Overview
Built-In Omada Applications
Network Application
Managed Omada Devices
Recommended for up to 30 devicesnote1
Client Capacity
Recommended for up to 300 connected clientsnote1
Interface

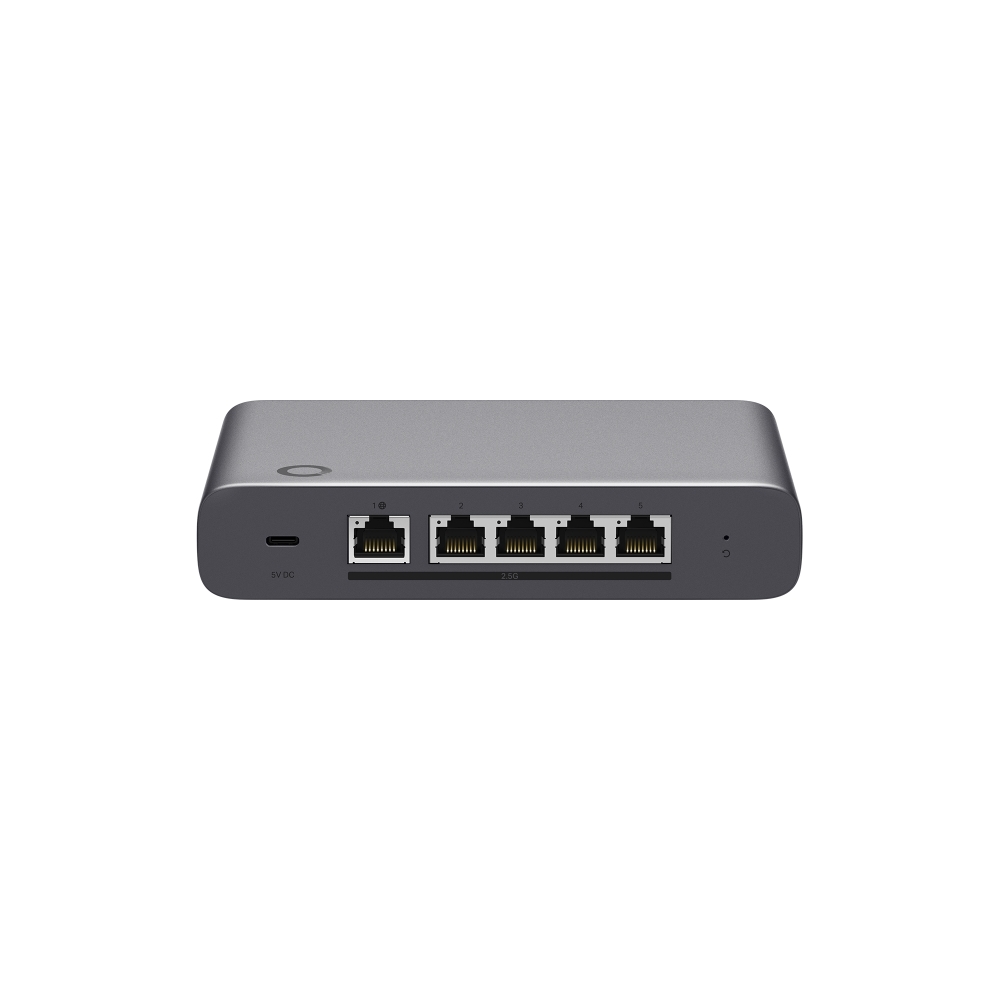

- 1x 2.5G RJ45 WAN port
- 4x 2.5G RJ45 LAN/WAN ports
- Up to 4 simultaneous WAN ports
IPS Throughput
2,183 Mbps
Site-to-Site VPN Throughput
1,023 Mbpsnote2
Management
Cloud, local, and Omada App management
Mounting
- Desktop
- Wall-mount (magnetic-mount plate sold separately)
- Rack-mount (rackmount kit sold separately)
Built-in Omada Controllernote1
Cloud Access
Yes
Local Management
Yes
Omada App
Yes
Multi-Site Management
Via the Omada Cloud Management Platform
Restore and Backup
Yes
Automatic Device Discovery
Yes
Network Topology
Yes
Dashboard
Yes
Device List / Client List
Yes
Logs / Alerts / Events
Yes
Batch Firmware Upgrade
Yes
Health Monitoring
Yes
Internet Activity
Yes
Captive Portal
Yes
RADIUS / LDAP Authentication
Yes
802.1X Authentication
Yes
OUI-Based VLAN
Yes
Diagnostics Tools
Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring
SNMP
v1/v2c/v3
SECURITY
IDS/IPS
Yes
DPI
Yes
Application-Based ACL
Yes
Content Filtering
Yes
Ad Blocker
Yes
Safe Search
Yes
DNS Security
Yes
Firewall
Yes
Attack Defense
Yes
ARP Inspection
Yes
VPN and SD-WAN
Omada LightLink VPN
Yes
Site-to-Site VPN
WireGuard VPN / IPsec VPN
VPN Server
WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN
VPN Client
WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN
SD-WAN
Full Mesh Mode
VPN Throughput
- Omada LightLink VPN: 527 Mbps
- IPsec VPN: 1,023 Mbps
- WireGuard VPN: 605 Mbps
- OpenVPN: 223 Mbps
- L2TP VPN: 892 Mbps
- PPTP VPN: 193 Mbps
- SSL VPN: 250 Mbps
Networking
WAN Connection
Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite
Multi-WAN Failover and Load Balancing
Yes
DHCP Server
Yes
VLAN Segmentation
Yes
Bandwidth Control
Yes
QoS
Yes
Static Routing
Yes
Policy Routing
Yes
NAT
Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT
Dynamic DNS
TP-Link DDNS, 3rd-party DDNS, custom DDNS
IPv6
Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode
Bonjour / mDNS
Yes
IGMP v2/v3 Proxy
Yes
HARDWARE
Touchscreen
2.51-inch color LCM touchscreen
Button
Reset button
Memory
2 GB DDR4
Power Supply
USB-C power adapter, 100-240 V AC, 50/60 Hz input, 5 V DC / 3 A output
Max Power Consumption
8.18 W, with power adapter
Enclosure
Polycarbonate
LED
Ethernet
Fan
Fanless
Surge Protection
4 kV surge protection
ESD Protection
+/-8 kV (Air), +/-4 kV (Contact)
Onboarding
Bluetooth or Ethernet
Certifications
CE, FCC, RoHS
Environment
- Operating Temperature: 14 oF to 104 oF (-10 oC to 40 oC)
- Storage Temperature: -22 oF to 158 oF (-30 oC to 70 oC)
- Operating Humidity: 10% to 90% RH, non-condensing
- Storage Humidity: 5% to 90% RH, non-condensing
Note
1. Controller and management features may vary depending on connected Omada devices, software versions, and deployment modes. The stated management capacity is based on laboratory testing. Actual management capacity and performance may vary depending on deployment and network conditions.
2. Performance data is based on IPsec VPN.
Item Dimension (L inchxW inchxH inch)
9 x 8 x 4
Weight
3.00lb
Warranty Information
5-year
