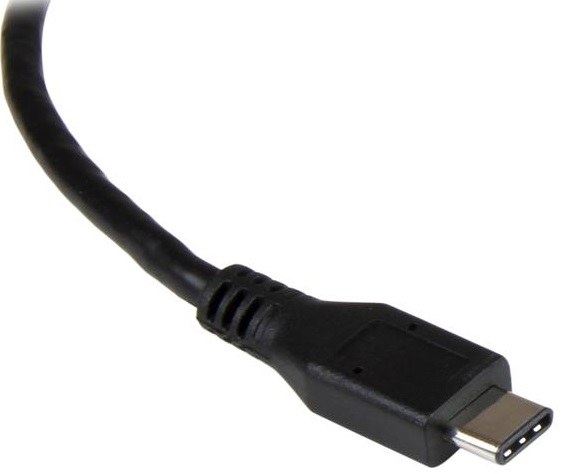

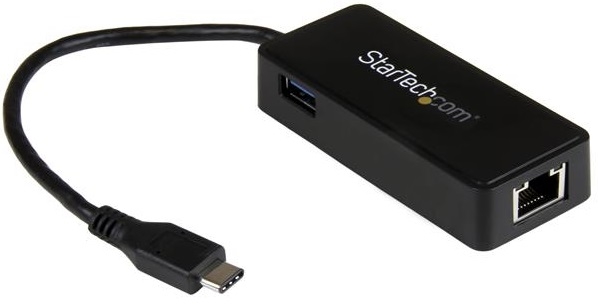

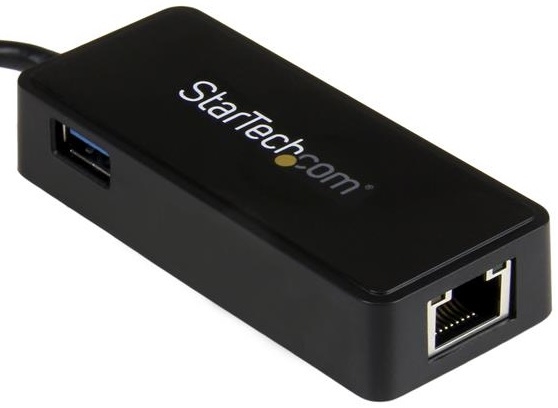

StarTech Accessory US1GC301AU USB-C to Gigabit Network Adapter with Extra USB 3.0 Port Retail

  • SKU: 177295
  • Vendor: StarTech
  • UPC: 065030862806
Now, you can easily connect to a Gigabit network through the USB-C or Thunderbolt 3 port on your laptop or desktop computer, and add connectivity for an additional USB (Type-A) peripheral device. This Gigabit Ethernet (GbE) network adapter provides a reliable network connection without having to install drivers. It’s ready to go - with native driver support to ensure a quick setup.

Powerful Gigabit Network Connections

The USB-C network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.1 Gen 1 (5 Gbps). You can quickly access very large files over the network at Gigabit speed.

Native Driver Support Makes Installation Easy

Get up and running quickly. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset provides native driver support in Chrome OS and Windows 8.1, and supports Mac OSX (10.10) with driver installation.

Trouble-Free Connections through USB Type-C

The USB-C connector is smaller and easier to use than previous USB connectors. It’s a reversible plug so you can connect to your devices with either side facing up, without frustration or the risk of port damage.

With a compact design, this USB-C network adapter is as portable as your laptop, perfect for ultra-portable devices that have a USB-C port, such as the MacBook and Chromebook Pixel. The network adapter is bus-powered which makes it easy to connect when you’re on the go.

HARDWARE:

Bus Type
USB 3.1 Gen 1

Chipset ID
Asix AX88179 + VIA VL812

Industry Standards
IEEE 802.3, 802.3u and 802.3ab

Interface
RJ45 (Gigabit Ethernet)

Ports
1

USB Pass-Through
Yes

PERFORMANCE:

Auto MDIX
Yes

Compatible Networks
10/100/1000 Mbps

Full/Duplex Support
Yes

Jumbo Frame Support
4K Max

Maximum Data Transfer
5 Gbps (USB 3.1 Gen 1)

Type and Rate
USB 3.1 Gen 1 5Gbit/s

Connectors:

Connector Types:
1 x USB 3.1 USB Type-C (24 pin Gen 1 5 Gbps) Male

External Ports
1 x USB 3.1 USB Type-A (9 pin Gen 2 10 Gbps) Female
1 x RJ-45 Latching Female

Software:
OS Compatibility: Windows 8.1 (32/64bit), 8 (32/64), 7 (32/64), Vista(32/64), XP(32/64)
Windows Server 2012, 2008 R2, 2003(32/64)
Mac OS 10.6 - 10.11 - VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 - 3.17.0

Indicators:

LED Indicators:
1 x 1 10/100/1000 Link/Activity (Green)
1 x Gigabit Link/Activity (Amber)

Power:
Power Source: USB- Powered

Environmental:
Humidity: 5% to 80% RH
Operating Temperature: 0 C to 50 C (32 F to 122 F)
Storage Temperature: -10 C to 60 C (14 F to 140 F)

Physical Characteristics:

Color: Black
Enclosure Type: Plastic
Form Factor: Attached Cable

Package Contents
1 x USB-C to GbE Network Adapter

Item Dimension (L"xW"xH")
6 x 7 x 2

Weight
1.00 lb

Warranty Information
2 Years
