StarTech Accesory ET91000SM10 Gigabit Ethernet Copper-to-Fiber Converter SM LC 10km Retail

  • SKU: 183364
  • Vendor: StarTech
  • MPN: ET91000SM10
  • UPC: 065030864930

•&nbsp Flexible network integration, with support for standalone operation, or installation into the StarTech.com Rackmount Chassis (ETCHS2U - sold separately)

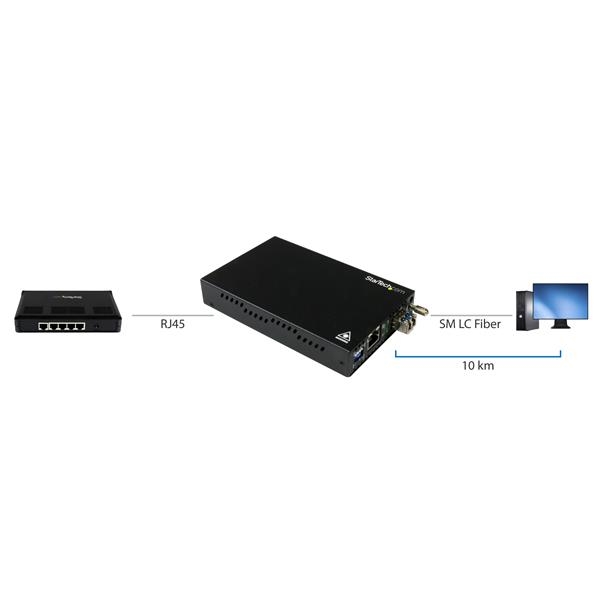

•&nbsp Converts copper to fiber and extends your network up to 10 km (6.2 mi.) using single-mode LC fiber-optic cable (1310 nm)

•&nbsp Removable SFP module (LC fiber connector) can be replaced should your network infrastructure change

•&nbsp Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), and Auto MDIX

•&nbsp Up to 9.6K Jumbo Frame support

•&nbsp Supports full- or half-duplex operation, as well as autonegotiation or forced mode

•&nbsp Media converter's card module is compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately)

•&nbsp Compatible with Gigabit (1000Mbps) copper (IEEE 802.3ab, 1000BASE-T) and fiber (IEEE 802.3z, 1000BASE-LX) protocols

•&nbsp Fast, hassle-free setup

•&nbsp Rugged steel enclosure

Hardware
Industry Standards
IEEE 802.3ab (1000BASE-T)
IEEE 802.3z (1000BASE-LX)
PoE
No
WDM
No

Performance
Auto MDIX
Yes
Compatible Networks
1000 Mbps (1 Gbps)
Fiber Operating Mode
Half/Full-Duplex
Fiber Type
Single Mode
Flow Control
None
Jumbo Frame Support
9.6K max.
Max Transfer Distance
10 km (6.2 mi)
Maximum Data Transfer Rate
2 Gbps (Full-Duplex)
MTBF
65,000 Hours
Remote Management Ability
No
Switching Architecture
None
Wavelength
1310nm

Connector(s)
Local Unit Connectors
1 - Fiber Optic LC Duplex Female
1 - RJ-45 Female

System and Cable Requirements
The media converter can only be used with Gigabit SFP modules, and will not support 10/100Mbps modules.

LED Indicators
1 PWR
1 RPF
1 LFP
1 LNK
1 - LINK - RJ45
1 - FULL - RJ45

Power
Center Tip Polarity
Positive
Input Current
0.48 A
Input Voltage
100 240 AC
Output Current
1.6 A
Output Voltage
12 DC
Plug Type
M
Power Consumption
19.2 W Max.
Power Source
AC Adapter Included

Environmental
Humidity
10-90% RH (Non-condensing)
Operating Temperature
0oC to 50oC (32oF to 122oF)
Storage Temperature
-10oC to 70oC (14oF to 158oF)

Enclosure Type
Steel and Plastic

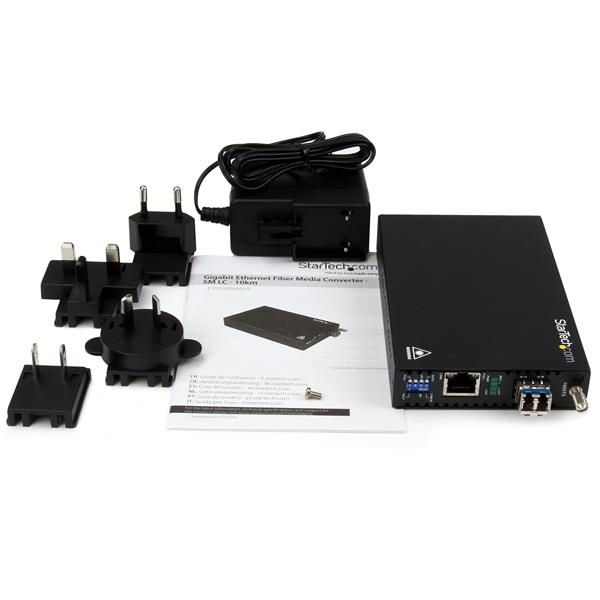

Included in Package
1 - Gigabit Ethernet fiber media converter
1 - universal power adapter (NA/EU/UK/AU)
1 - instruction manual

Item Dimension (L inchxW inchxH inch)
9 x 6 x 4

Weight
2.00lb

Warranty Information
2 Year Warranty
