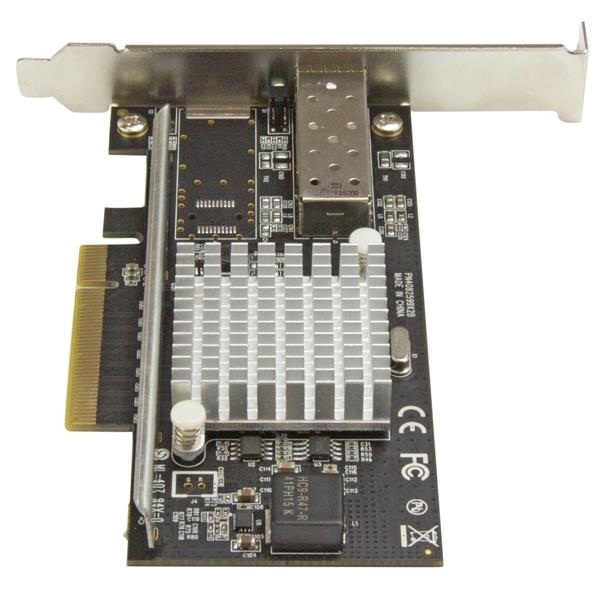

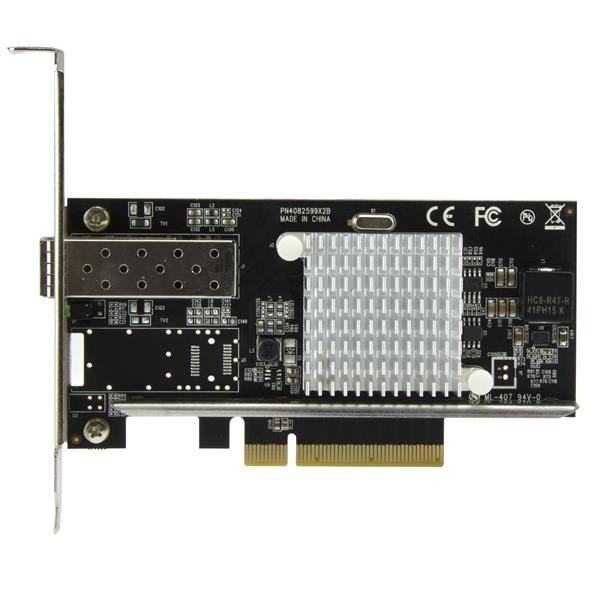

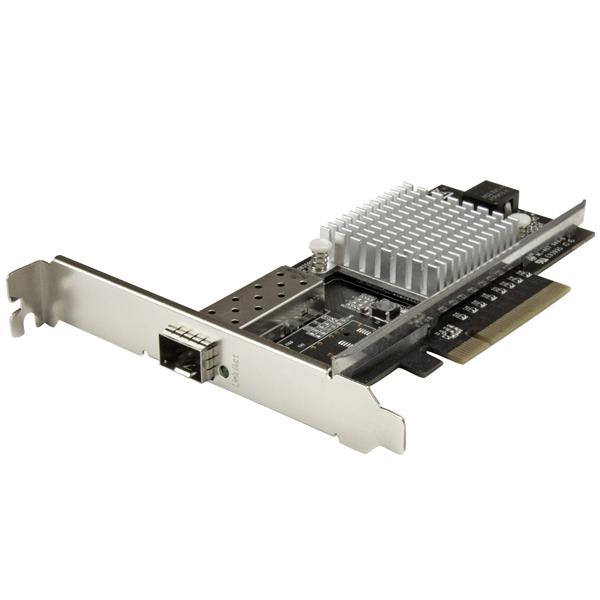

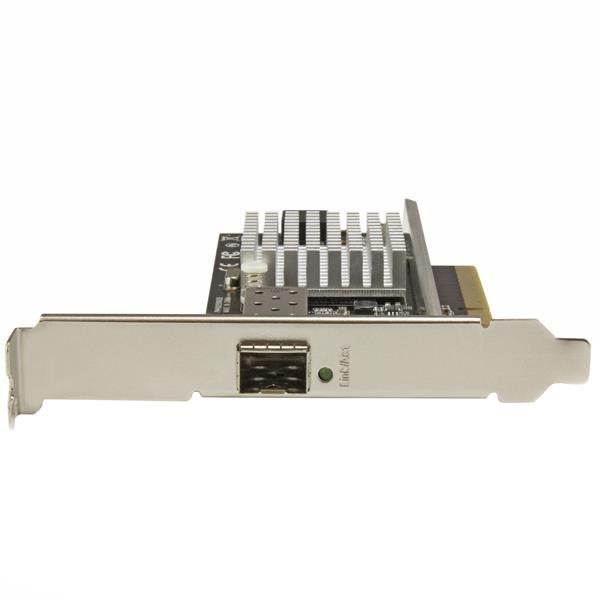

This fiber network card delivers reliable, high-performance network connectivity, by adding an open SFP+ slot to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade your server or workstation to a 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multimode or single-mode fiber.
Increase your network speed
Several factors drive the need for more bandwidth in your network infrastructure. An increase in the number of network users and data-intensive applications, such as multimedia streaming and large file transfers all contribute to the need for more bandwidth in your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.
Add scalable network connections to your server or workstation
The fiber NIC is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options for connecting your computer directly to a fiber network, at greater distances.
The card features an open SFP+ slot with support for one interchangeable 10GBase SFP+ module. This gives you the option to use the fiber transceiver module that best suits your network needs based on distance and connector type. StarTech.com offers a variety of SFP+ transceiver modules including the SFP10GLRST single-mode SFP+ the SFP10GLRMST multi-mode SFP+, and SFP10GSRST multimode LC with DDM.
In addition, StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
Bus Type : PCI Express
Card Type : Standard Profile (LP bracket incl.)
Chipset ID : Intel 82599
Industry Standards : IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)
PCI Express Rev 2.0, using PCIe x8 (or higher) slot
Interface : Fiber (10 Gigabit Ethernet)
Ports : 1
Compatible Networks : 10 Gbps
Full Duplex Support : Yes
Jumbo Frame Support : 15K max.
Maximum Data Transfer Rate : 10 Gbps
Supported Protocols : IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (Flow Control Support)
IEEE 802.1Q (VLAN tagging)
Connector Type(s) : 1 - PCI Express x8 Male
Internal Ports : 1 - SFP+ Slot Female
OS Compatibility : Windows 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2012 R2
Linux 2.6.24 to 4.4.x LTS Versions only
Humidity : 20% to 80% RH
Operating Temperature : 5o
C to 50o
F to 122o
Storage Temperature : -20o
C to 60o
F to 140o
Included in Package
1 - 10G open SFP+ fiber network card
1 - low-profile bracket
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
6 x 7 x 2Weight
1.00 lb Warranty Information
2 Year Warranty
