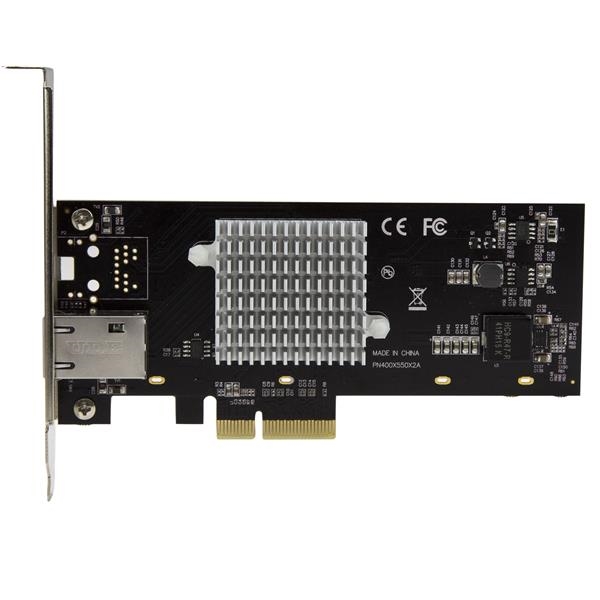

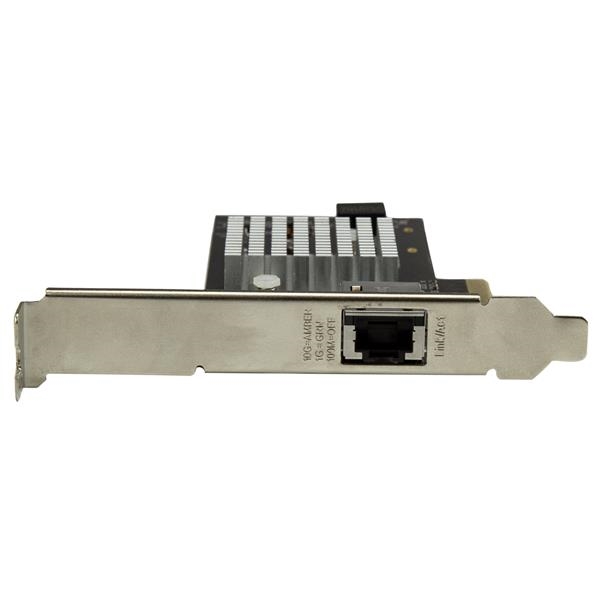

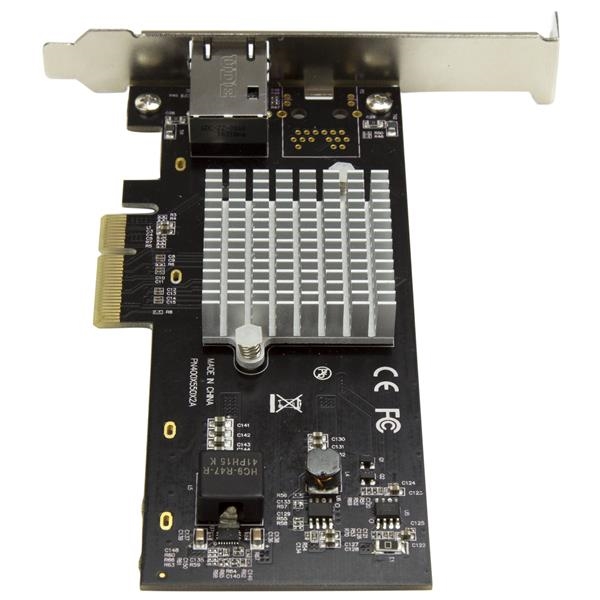

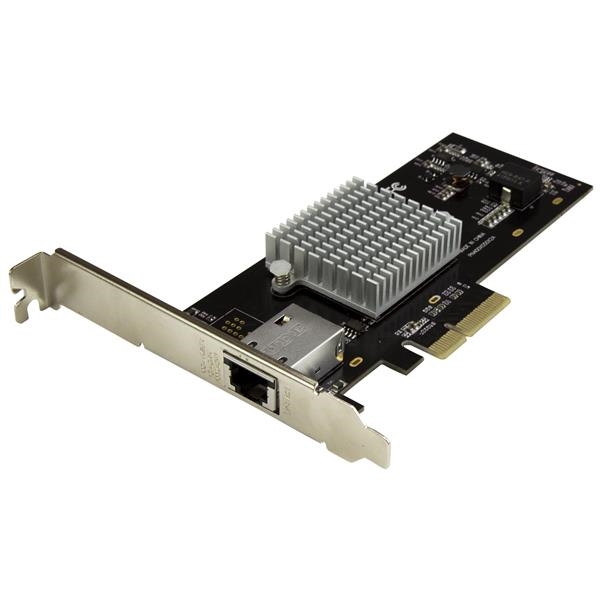

StarTech Netwok ST10000SPEXI 1PT PCIE 10GBase-T Ethernet Network Card X550-AT Chip Retail

  • SKU: 189723
  • Vendor: StarTech
  • UPC: 065030866156
Here’s a powerful and cost-effective solution for upgrading your server or workstation to 10 Gigabit Ethernet networking over copper. This PCI Express 10G NIC lets you add an Ethernet port to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G 1G and 100Mbps.

Reliable, high-performance connectivity
This 10G network card utilizes the Intel® X550-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections. Compliant with IEEE 802.3u/ab/an standards, the 1-port 10G card delivers a dependable way to upgrade or replace your existing network port, providing throughput capability of up to 10Gbps in each direction (20Gbps total). It connects easily through a single, four-lane (x4 or higher) PCI Express slot.

The Intel X550-AT chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support. The Intel chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation. It also lets you take advantage of advanced features such as VLAN tagging, up to 15K jumbo frame support, Wake-on-LAN and Auto MDIX.

Hardware
Bus Type : PCI Express
Card Type : Standard Profile (LP bracket incl.)
Chipset ID : Intel X550AT
Industry Standards : IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T)
NBASE-T (Linux only)
PCI Express Rev 2.0
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Full Duplex Flow Control
Interface : RJ45 (10 Gigabit Ethernet)
Port Style : Integrated on Card
Ports : 1

Performance
Auto MDIX : Yes
Compatible Networks : 10 Gbps/5G/2.5G/1G/100 Mbps
Full Duplex Support : Yes
Jumbo Frame Support : 9K max.
Maximum Data Transfer Rate : 10 Gbps
Supported Protocols : IEEE 802.3x (Flow Control Support)
IEEE 802.1Q (VLAN tagging)

Connector(s)
Connector Type(s) : 1 - PCI Express x4 Male
Internal Ports : 1 - RJ-45 Female

Software
OS Compatibility : Windows 7, 8, 8.1, 10 (64-bit only)
Windows Server 2008 R2, 2012, 2012 R2 (64-bit only)
Linux 2.4.x/2.6x/3.x LTS Versions Only
ESXi 5.1/5.5/6.0

Indicators
LED Indicators : 1 - Link/Activity
1 - 10G/1G Speed

Environmental
Humidity : 2080%
Operating Temperature : 5oC to 50oC (41oF to 122oF)
Storage Temperature : -20oC to 60oC (-4oF to 140oF)

Color
Black

Included in Package
1 - 10G network card
1 - low-profile bracket
1 - quick-start guide

Item Dimension (L inchxW inchxH inch)
7 x 6 x 2

Weight
1.00 lb

Warranty Information
2 Year Warranty
