Product Detail

CPU
1.Support for 7th and 6th generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
2.L3 cache varies with CPU

Chipset
Intel Z270 Express Chipset

Memory
1.4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
( Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.)
2.Dual channel memory architecture
3.Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1.1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 24 Hz (Support for HDMI 1.4 version.)
Maximum shared memory of 1 GB

Audio
1.Realtek ALC1220 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
4.Support for S/PDIF Out

LAN
Intel GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1.1 x PCI Express x16 slot, running at x16 (PCIEX16)
(For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
2.1 x PCI Express x16 slot, running at x8 (PCIEX8)
3.1 x PCI Express x16 slot, running at x4 (PCIEX4)
4.3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology
1.Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
2.Support for AMD Quad-GPU CrossFireX and 3-Way/2-Way AMD CrossFire technologies

Storage Interface
Chipset:
1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2.1 x SATA Express connector
3.6 x SATA 6Gb/s connectors
4.Support for RAID 0, RAID 1, RAID 5, and RAID 10

USB
Chipset+ASMedia ASM2142 USB 3.1 Gen 2 Controller:
1.1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
2.1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
1.10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
2.4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.1 x 8-pin ATX 12V power connector
3.1 x M.2 Socket 3 connector
4.1 x SATA Express connector
5.6 x SATA 6Gb/s connectors
6.1 x CPU fan header
7.1 x water cooling CPU fan header
8.2 x system fan headers
9.1 x system fan/water cooling pump header
10.1 x front panel header
11.1 x front panel audio header
12.1 x S/PDIF Out header
13.2 x USB 3.1 Gen 1 headers
14.2 x USB 2.0/1.1 headers
15.1 x Trusted Platform Module (TPM) header
16.1 x Thunderbolt add-in card connector
17.1 x serial port header
18.1 x parallel port header
19.1 x Clear CMOS jumper

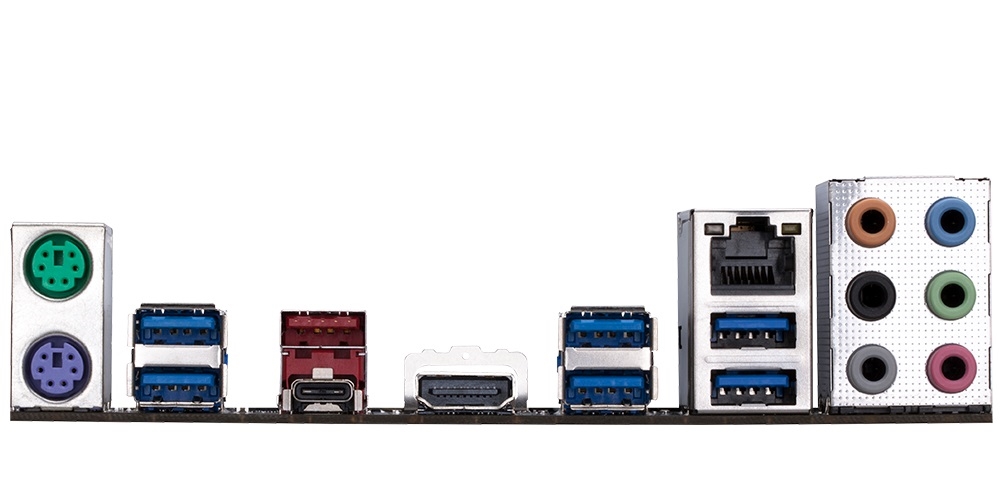

Back Panel Connectors
1.1 x PS/2 keyboard port
2.1 x PS/2 mouse port
3.1 x HDMI port
4.1 x USB Type-C port, with USB 3.1 Gen 2 support
5.1 x USB 3.1 Gen 2 Type-A port (red)
6.6 x USB 3.1 Gen 1 ports
7.1 x RJ-45 port
8.6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller
iTE Controller Chip

H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Overheating warning
5.Fan fail warning
6.Fan speed control
(Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.)

BIOS
1.2 x 64 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1.Support for APP Center
(Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.)
3D OSD
BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
2.Support for 3TB+ Unlock
3.Support for Q-Flash
4.Support for Xpress Install

Bundle Software
1.Norton Internet Security (OEM version)
2.Intel Optane Memory Ready
3.cFosSpeed

Operating System
1.Support for Windows 10/8.1 64-bit
2.Support for Windows 7 32-bit/64-bit
( Operating systems supported may vary depending on your processor model.)
( Please download the "Windows USB Installation Tool" from GIGABYTEs website and install it before installing Windows 7.)

Form Factor
ATX Form Factor 30.5cm x 24.4cm

Item Dimension (L inchxW inchxH inch)
13 x 11 x 3

Weight
3.00 lb

Warranty Information
3 Years
