Product Description

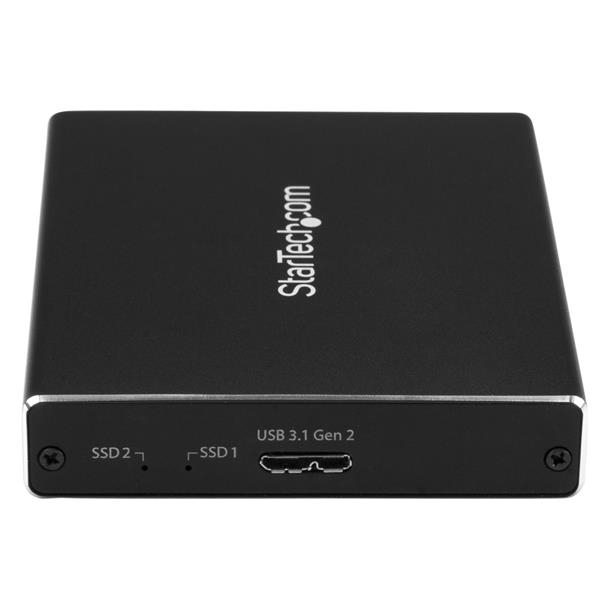

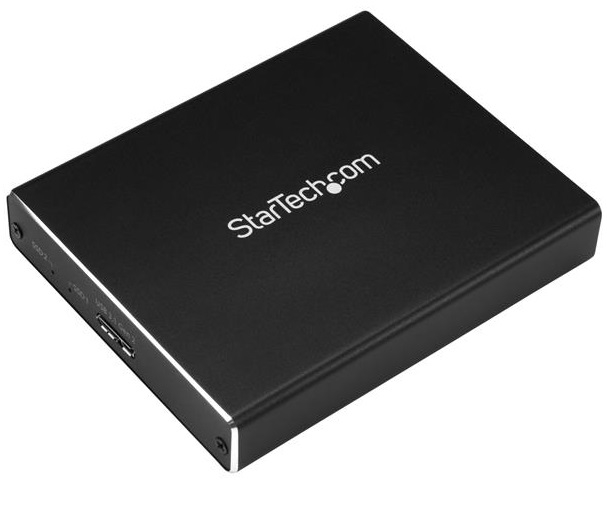

StarTech Removable Storage SM22BU31C3R Dual-Slot M.2 NGFF SATA Enclosure USB3.1 Black Retail

  • SKU: 194794
  • Vendor: StarTech
  • MPN: SM22BU31C3R
  • UPC: 065030870757
  • Overview
  • Specifications
This dual M.2 SATA enclosure with RAID makes it easy to add ultra-fast, portable external storage to your USB-C™ or USB-A enabled laptop, tablet, smartphone or desktop computer. Its multiple RAID modes provide increased capacity, improved performance, or data redundancy.

Access your external data at greater speeds
Quickly access, transfer, and backup your files wherever you go. This dual-slot M.2 RAID enclosure enables you to easily access your data by creating a high-performance, ultra-portable storage solution using two M.2 (NGFF) SATA SSDs. It’s ideal for creative professionals, such as photographers and videographers, as well as professionals in corporate, educational and government sectors who need fast access to important data files, while out in the field or back at the office.
The RAID enclosure enables you to leverage the speed of your M.2 (NGFF) SATA drives by taking advantage of USB 3.1 Gen 2, with data transfer rates of up to 10Gbps. It ensures easy access to your files for data migration and data backups so that you can safeguard important data at all times.

Increase performance and data redundancy
With multiple RAID options, the M.2 RAID enclosure enables you to gain increased storage size, performance, or redundancy. You can enjoy the peace of mind of knowing your files are continually backed up, or take advantage of greater speed and capacity offered by a combined solution. The enclosure supports RAID 0, RAID 1, Spanning, and JBOD, enabling you to choose your preferred backup mode. It also supports SSD TRIM to prolong drive lifespan and performance.

Hardware
Bus Type: USB 3.1 Gen 2
Chipset ID: ASMedia - ASM1352R
Compatible Drive Types: M.2 (NGFF, B-Key)
Drive Installation: Fixed
Drive Size: 22mm - M.2 SATA
Fan(s) : No
Interface: USB 3.1 Gen 2
Number of Drives: 2
Supported Drive Height(s):
- 2230
- 2242
- 2260
- 2280

Performance
General Specifications: Not compatible with PCI-Express M.2 SSDs
Max Drive Capacity: 2 TB
Maximum Data Transfer Rate: 10 Gbps
MTBF: 35,000
Port Multiplier: Yes
RAID: Yes
Supported:
- RAID Modes RAID 0 (Striped Disks)
- RAID 1 (Mirrored Disks)
- BIG (Spanning or Concatenation)
- JBOD - (Just a Bunch of Disks)
Trim Supported: Yes
Type and Rate:
- USB 3.1 Gen 2 - 10 Gbit/s
- SATA III (6 Gbps)
UASP Support: Yes

Connector(s)
Drive Connectors: 2 - M.2 SATA (67 pin, NGFF) Slot Receptacle
Host Connectors: 1 - USB 3.1 USB Type Micro-B (10 pin, Gen 2, 10 Gbps) Male

Software
OS Compatibility: OS independent No software or drivers required

Indicators
LED Indicators:
- 2 x Read / Write (green)
- 2 x Error / Rebuilt (red)

Power
Power Source: USB-Powered

Environmental
Humidity: 0% to 90% RH
Operating Temperature: 0oC to 60oC (32oF to 140oF)
Storage Temperature: -20oC to 70oC (-4oF to 158oF)

Physical Characteristics
Color: Black
Enclosure Type: Aluminum

Included in Package
1 - M.2 SATA enclosure
1 - USB-A to Micro-B cable
1 - USB-C to Micro-B cable
2 - housing assembly screws
2 - sets of M.2 mounting hardware
1 - screwdriver
1 - quick-start guide

Item Dimension (L inchxW inchxH inch)
7 x 6 x 2

Weight
1.00 lb

Warranty Information
2 Year Warranty
