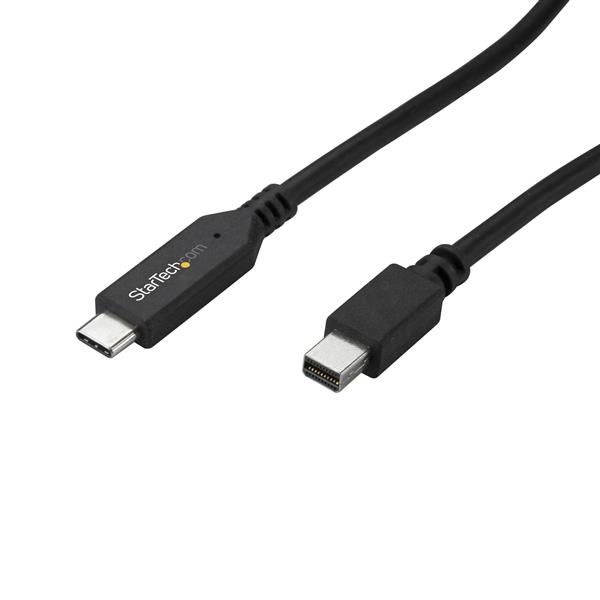

This USB-CTM to Mini DisplayPort adapter cable offers a convenient solution for directly connecting your DisplayPort over USB Type-CTM device to your Mini DP monitor. The adapter offers a connection distance of up to 1 m (3 ft.) and works with USB-C devices that support DP Alt Mode, such as the MacBook, Chromebook PixelTM and DellTM XPSTM models 15 and 13. It's also compatible with ThunderboltTM 3 ports.
At 1 m (3 ft.) in length, this adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation.
For longer installations, StarTech.com also offers a 1.8 m (6 ft.) USB-C to Mini DisplayPort cable (CDP2MDPMM6B), enabling you to choose the right cable length for your custom installation needs.
Astonishing picture quality
At four times the resolution of high-definition 1080p, youll be amazed at the picture quality of a 4K 60Hz monitor or television. This adapter cable lets you harness the video capabilities that are built into your USB Type-C connection, to deliver the astonishing quality of Ultra HD to your 4K display.
Plus, the adapter is still compatible with lower display resolutions, such as 1080p, which makes it a great accessory for your current home, office or other HD work environment, while future-proofing for 4K 60Hz implementation.
Adapter Style:Cable Adapters
Chipset ID:STMicroelectronics - STM32F072CBU6
Converter Type:Cable Adapters
Output Signal:Mini DisplayPort
Audio Specifications:7.1 surround sound
Maximum Digital Resolutions:3840x2160 at 60 Hz
Supported Resolutions:1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440
2560x1600 3840x2160 (Ultra HD 4K)
Wide Screen Supported:Yes
Connector A:1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B:1 - Mini-DisplayPort (20 pin) Male Output
SPECIAL NOTES / REQUIREMENTS
Note:Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
C to 35o
F to 95o
C to 60o
F to 140o
Cable Length:3.3 ft (1 m)
WHATS IN THE BOX
Included in Package:1 - USB-C to Mini DisplayPort cable
Item Dimension (L inchxW inchxH inch)
9 x 8 x 1
2 Year Warranty
