StarTech Accessory RKCOND17HD 17 inch HD 1U Rackmount KVM Console Dual Rail Black Retail
- SKU: 225246
- Vendor: StarTech
- UPC: 065030872515
Dual Rail Design
The dual rail KVM console design maximizes space in your datacenter’s rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.
High Definition LCD Monitor
The 1080p KVM console is 17.3” and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance.
Digital and Analog Support
Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.
Simple Setup
This KVM console comes with everything you need to set up:
✔ 1 Audio Cable
✔ 1 Set of KVM Cables (USB/VGA)
✔ 2 Rear Mounting Brackets
✔ M5 Cage Nuts and Screws
Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.
Hardware
Audio
Yes
Cables Included
Yes
Display Size
17.3"
KVM Ports
1
Number of Monitors Supported
1
Panel Type
Active Matrix TFT LCD
PC Interface
USB
PC Video Type
DVI+VGA
Rack-Mountable
Yes
U Height
1U
Performance
Aspect Ratio
16:9
Brightness
250 cd/m2
Color Depth
18-bit, 262,144 colors
Contrast Ratio
650:1
DVI Support
Yes
Hot-Key Selection
Yes
Maximum Analog Resolutions
1920 x 1080 at 60Hz
Maximum Digital Resolutions
1920 x 1080 at 60Hz
MTBF
Approx. 44230 hrs.
On-Screen Display
No
Pixel Pitch Support
0.199 x 0.199 mm
Response Time
8 ms
Supported Resolutions
1024576
1152648
1280720
136676
1600900
19201080
Viewing Angle
140o (H), 120o (V)
Wide Screen Supported
Yes

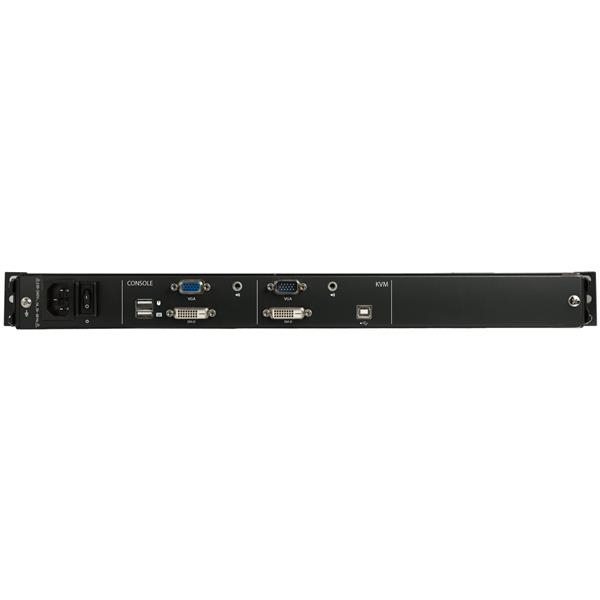

Connector(s)
Console Interface(s)
1 - VGA (15 pin, High Density D-Sub) Female Output
2 - USB Type-A (4 pin) USB 2.0 Female
1 - DVI-D (25 pin) Female Output
1 - 3.5 mm Stereo Audio Female Output
Host Connectors
1 - VGA (15 pin, High Density D-Sub) Male Input
1 - DVI-D (25 pin) Female Input
1 - USB Type-B (4 pin) USB 2.0 Female
1 - 3.5 mm Stereo Audio Female Input
Software
OS Compatibility
OS independent No software or drivers required
Indicators
LED Indicators
1 - Power
1 - Num Lock
1 - Caps Lock
1 - Scroll Lock
Power
Input Current
1A
Input Voltage
100 - 240 AC
Power Consumption (In Watts)
19.4W
Power Source
International Power Cords
Environmental
Humidity
0-80% RH Non-condensing
Operating Temperature
0-40 Celsius Degree
Storage Temperature
-20-60 Celsius Degree
Physical Characteristics
Cable Length
USB and VGA Combo Cable 1.2M
3.5in Audio cable 1.8M
Color
Black
Enclosure Type
Steel
Maximum Mounting Depth
39.4 in 1000 mm
Minimum Mounting Depth
25.6 in 649.8 mm
Whats in the Box
Included in Package
1 - LCD Console
2 - Rear Mounting Brackets
1 - Set of KVM Cables (USB/VGA)
1 - Audio Cable
1 - Firmware Update Cable
8 - M5 Cage Nuts
8 - M5 Screws
5 - Power Cords (NA, JP, UK, EU, ANZ)
1 - Quick-Start Guide
Item Dimension (L"xW"xH")
33 x 23 x 5
Weight
28 lbs
Warranty Information
2 Year Warranty
