FiiO Multimedia Player Q1 MARK II REFURB Portable Headphone Amplifier and DAC Retail
- SKU: 227105
- Vendor: FiiO
- UPC: NO
- EAN: 6953175750024
Being equipped with the XMOS platform allows the Q11 Mark II to support decoding of more formats with outstanding performance - it is capable of decoding up to 384kHz/32 bit PCM as well as up to DSD256 (the latter is indicated by a green light). When combined with the two separate crystal oscillators ,each designed to handle different samping rates to achieve the utmost accuracy in digital-to-analog conversion, the Q1 Mark II becomes an affordable product that punches well above its weight in terms of versatility and performance.
Hi-Res Audio Certification
The Q1 Mark II has been certified by the Japan Audio Society to be “Hi-Res Audio” capable. With this, you can be sure that the Q1 Mark II will grant you a natural and realistic listening experience.
Every last detail pored over in pursuit of perfection

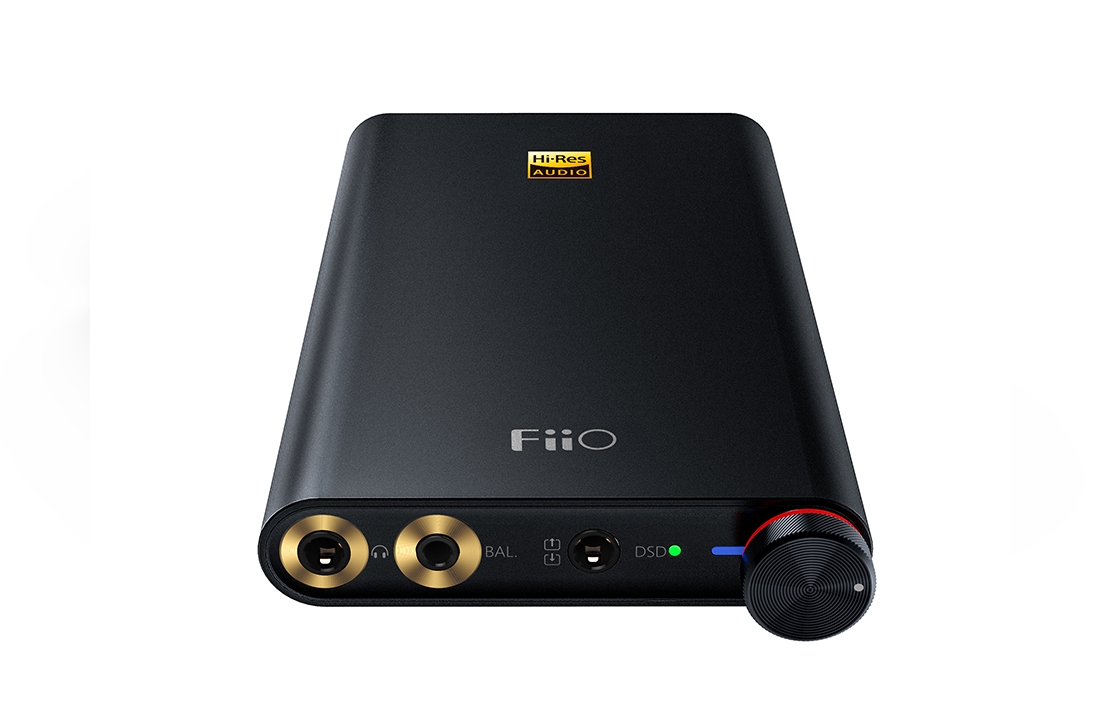

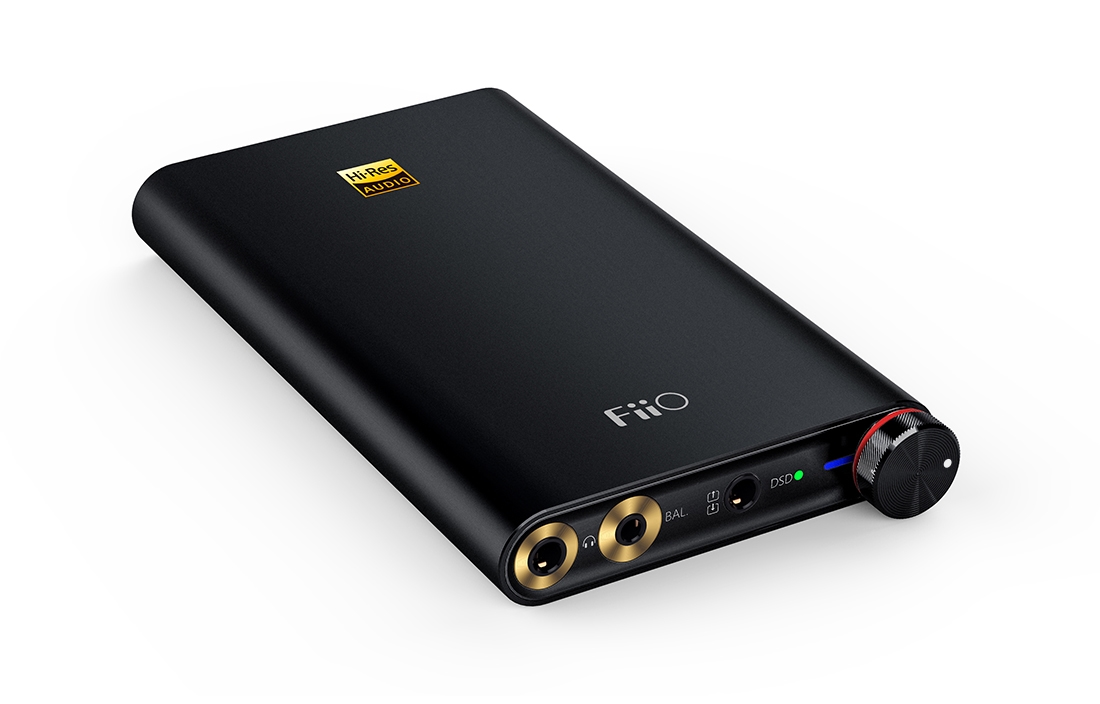

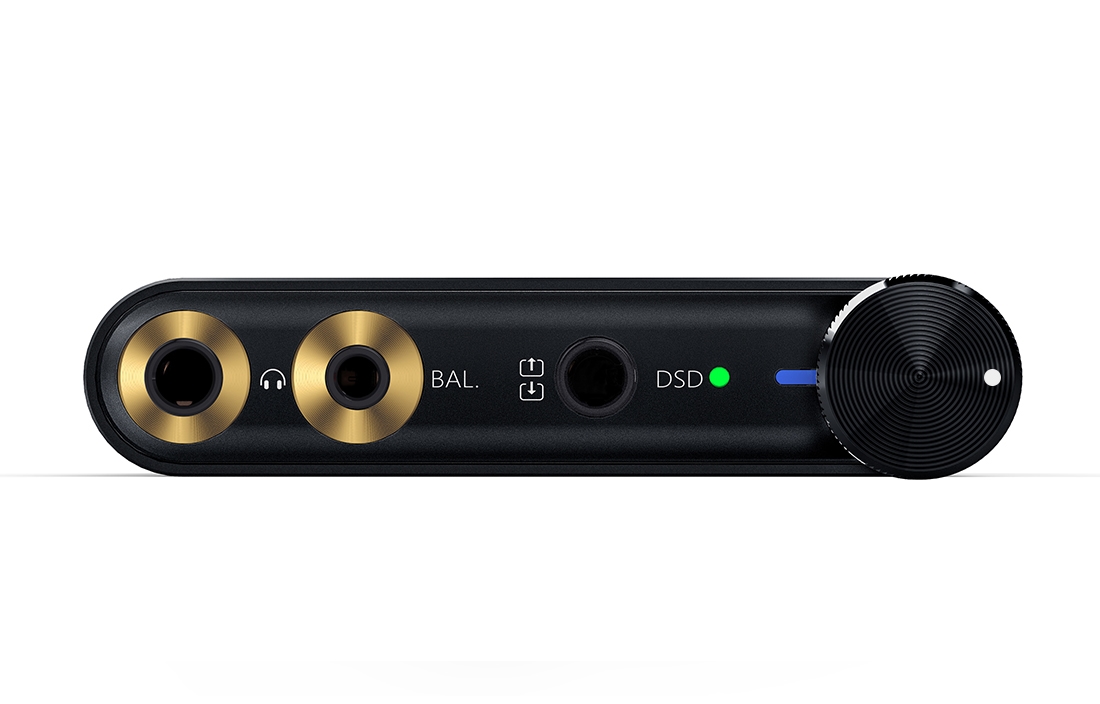

Every part of the Q1 Mark ll is purposely designed for an extremely cohesive product. For instance, the3.5mm single-ended output, 2.5mm balanced output, line-in/line-out, and volume knob are aligned in a straight line for a bold yet harmonious look.
General
Color
Black
Audio Input
Micro USB/3.5 mm Jack
Headphone Output
3.5 mm stereo jack
Balance Headphone Output
Supported (2.5mm balanced headphone jack)
Recommended Headphone Impedance
16 to 100ohm(PO)
16 to 150ohm(BAL)
Bass Boost
0/5.4dB
Channel Imbalance
0.2 dB
Power Input
DC5V 2A recommended
Battery Capacity
1800mAh
Charge Time
is less than or equal to 4h
Battery Life
>20h (AUX IN)
>10h (USB IN)
USB DAC
Up to 384kHz/32bit supported
DSD Support
DSD64/128/256
Supported
iDevicesiPhone X,iPhone 8,iPhone 8 Plus, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6,iPhone 5s, iPhone 5c, iPhone 5, iPad Pro(9.7-inch), iPad Pro(12.9-inch), iPad Air 2, iPad Air, iPad (4th generation), iPad mini 4, iPad mini 3, iPad mini 2, iPad mini, iPod touch (6th generation), iPod touch(5th generation)
Line output specifications
THD+N
<0.003% (1 kHz/10k ohm)
SNR
is more than or equal to110 dB (A-weighted)
Frequency Response
6 Hz to 80 kHz (-3dB)
Channel Separation
>90 dB (1 kHz)
Headphone out specifications (3.5mm headphone out jack)
Output Power 1
is more than or equal to112 mW (16ohm / THD+N<1%)
Output Impedance
<1.2ohm (32ohm loaded)
Output Power 2
is more than or equal to 75mW (32ohm /THD+N<1%)
Channel Separation
is more than or equal to 79 dB (1 kHzAUX IN)
Output Power 3
is more than or equal to11 mW (300ohm / THD+N<1%)
THD+N
<0.002% (1 kHz, AUX IN)
<0.003% (1 kHz, USB IN)
Frequency Response
5 Hz to 55 kHz (-3dB)
Peak Output Voltage
>4.4 Vp-p
SNR
is more than or equal to 116 dB (A-weighted, AUX IN)
is more than or equal to 109 dB (A-weighted, USB IN)
Max. Output Current
150mA (For reference)
Gain
-2.5dB (G is equal to L)
3.2dB (G is equal to H)
Max. Input Level
3.4V
Balanced headphone out specifications (2.5mm TRRS headphone out jack)
Output Power 1
is more than or equal to240 mW (16ohm / THD+N<1%)
Output Impedance
<2 (32ohm loaded)
Output Power 2
is more than or equal to220 mW (32ohm /THD+N<1%)
Channel Separation
is more than or equal to93 dB (1 kHzAUX IN)
Output Power 3
is more than or equal to45 mW (300ohm/ THD+N<1%)
THD+N
<0.002% (1 kHz, AUX IN)
is less than or equal to 0.003% (1 kHz, USB IN)
Frequency Response
6 Hz to 80kHz (-3dB)
Peak Output Voltage
>7.4 Vp-p
SNR
is more than or equal to115 dB (A-weighted, AUX IN)
is more than or equal to109 dB (A-weighted, USB IN)
Max. Output Current
150 mA (For reference)
Gain
3.2dB (G is equal to L)
9.1dB (G is equal to H)
Max. Input Level
3.4 Vrms
Item Dimension (L"xW"xH")
8 x 5 x 3
Weight
1.00 LB
Warranty Information
Limited 1-Year Warranty
