StarTech Accessory VGA2VID2 VGA to RCA and S-Video Converter USB Power Retail
- SKU: 240166
- Vendor: StarTech
- UPC: 065030882590
• Supports PC input resolutions up to 1920 x 1080
• Select between NTSC and PAL outputs

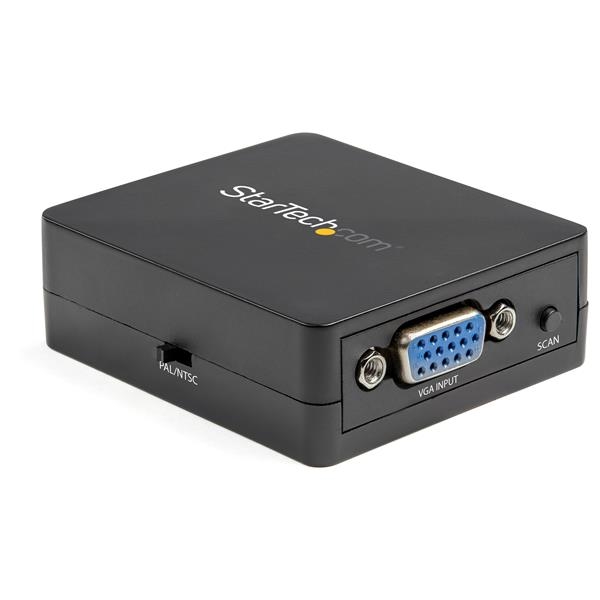

This VGA to RCA/S-Video converter box provides a simple way to convert and scale a 1080p VGA video input signal to a 480i composite (CVBS) or S-Video output signal. Perfect for use with legacy projectors or TV sets.
Hassle-Free Setup and Easy to Use
Equipped with a NTSC/PAL toggle switch and a scan button for simple configuration and selection of your video output settings, this compact VGA to Composite and S-Video adapter installs quickly and easily, for a true plug-and-play experience.
Save on Upgrade Costs
By using this VGA to AV adapter you can connect a PCs VGA connector to legacy TVs and projectors, ultimately saving the costs of upgrading your equipment. It's ideal for boardroom settings, medical imaging and watching videos on your S-Video or Composite display.
Crystal-Clear Picture Quality
The PC to television converter features an integrated video scaler circuit that dynamically converts VGA video input signals with resolutions up to 1920x1200 @ 60Hz. To ensure compatibility with your display or projector the computer to TV converter outputs high quality 640 x 480 video, the highest supported by S-Video or Composite.
VGA2VID2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
HARDWARE
Active or Passive Adapter
Active
Audio
No
AV Input
VGA
AV Output
Composite
S-Video
PERFORMANCE
Supported Resolutions
Input - Up to 1920x1080 60Hz
Output - 640x480 60Hz
CONNECTOR(S)
Connector A

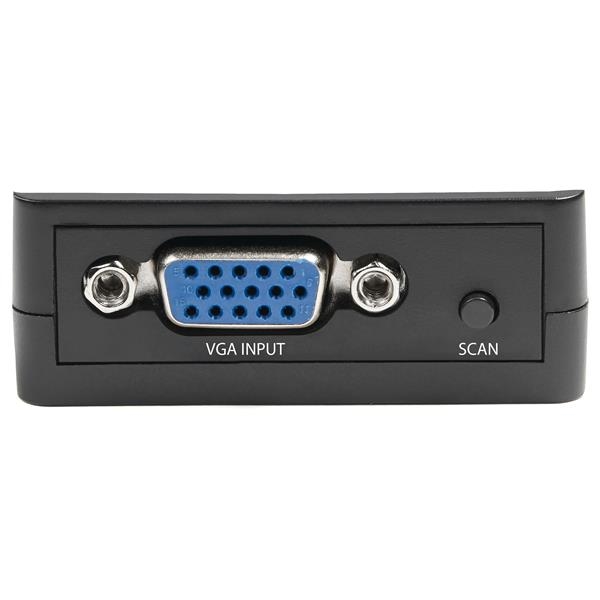

1 - VGA (15 pin, High Density D-Sub) Female Input
Connector B

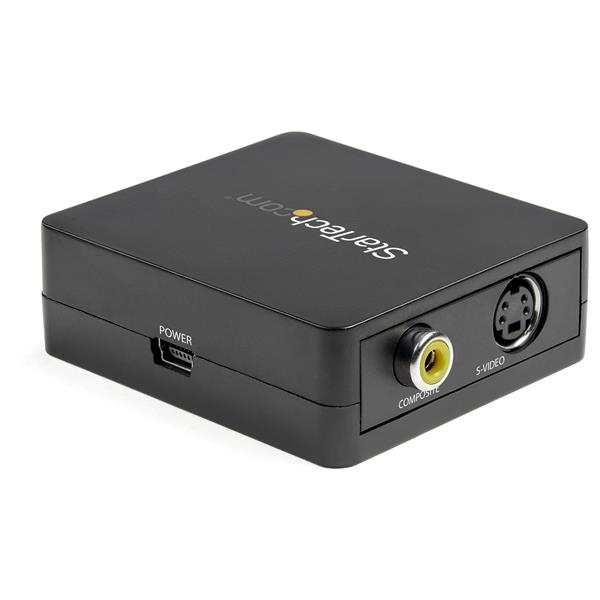

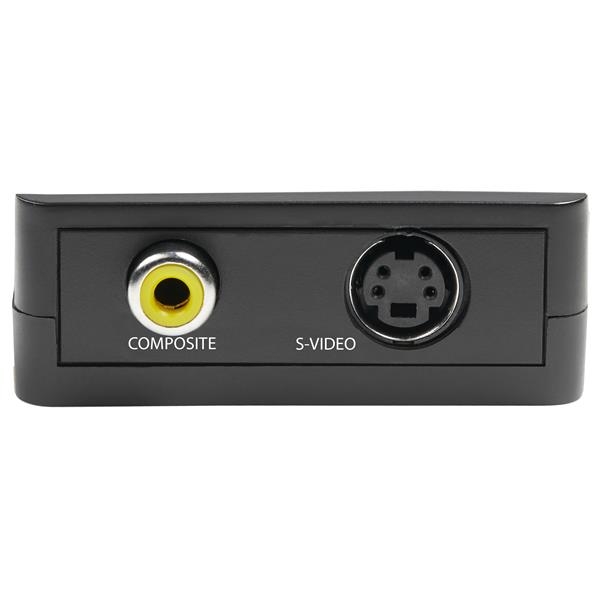

1 - S-Video (4 pin, Mini-DIN) Female Output
1 - Composite Video (1 x RCA) Female Output
POWER
Plug Type
USB Mini-B (5 pin)
Power Consumption (In Watts)
2.5W
Power Source
USB-Powered
ENVIRONMENTAL
Humidity
5 to 90 % RH
Operating Temperature
0 to 50oC(32 - 122oF)
Storage Temperature
-10 to 80oC (14 to 176oF)
PHYSICAL CHARACTERISTICS
Color
Black
WHATS IN THE BOX
Included in Package
1 - VGA to S-Video and Composite Adapter
1 - Mini USB Power Cable
1 - Quick-Start Guide
Item Dimension (L"xW"xH")
5 x 6 x 1
Weight
1.00lb
Warranty Information
2 Year Warranty
