StarTech Network CAB831HD 8Port KVM Module for Rack-mount Monitor Consoles Retail
- SKU: 240571
- Vendor: StarTech
- UPC: 065030802048
• Supports PCs with USB or PS/2 keyboard and mouse connectors
• Compatible with PC, Mac and Sun servers and systems
This 8-port KVM module works with the StarTech.com series of rack-mounted LCD consoles, enabling you to control eight servers from one location. You can upgrade a single port LCD console or replace a faulty console (see our list of compatible LCD consoles below).
With independent VGA and PS/2 keyboard and mouse ports, you can also use this switch as a standalone KVM, creating a discreet rack-mountable KVM solution.
Increase your productivity
By adding this KVM module to your rack mount LCD console you can control eight individual computers or servers from a centralized location.
Hassle-free integration
Because the KVM module works with your existing LCD console, you can ensure simple integration into your server room setup. To ensure compatibility this KVM module supports any operating system has been extensively tested in Windows®, Mac and Linux environments.
You can also connect to both PS/2 and USB servers using StarTech.com’s convenient line of interface specific KVM cables. The cables come in variety of lengths with PS/2 or USB depending on your specific server requirements.
HARDWARE
Audio
No
Daisy-Chain
Yes
KVM Ports
8
Number of Monitors Supported
1
PC Interface
USB and PS/2
PC Video Type
VGA
Rack-Mountable
Yes
U Height
1U
PERFORMANCE
Auto Scan
3, 8, 15 and 30 seconds
DVI Support
No
IP Control
No
Maximum Analog Resolutions
1920x1440
Maximum Cable Length
100ft(30.5m)
Maximum Cascaded Computers
64
Maximum Number of Users
1
MTBF
72,000 Hours
On-Screen Display
Yes
Port Selection Support
Hotkeys and OSD (On Screen Display)
Security Features
Per-Port Passwords
CONNECTOR(S)
Console Interface(s)
1 - VGA (15 pin, High Density D-Sub) Female
2 - PS/2 (6 pin, Mini-DIN) Female
Host Connectors
8 - VGA (15 pin, High Density D-Sub) Female
Other Interface(s)
1 - Centronics (36 pin) Male
SOFTWARE
OS Compatibility
OS independent No software or drivers required
SPECIAL NOTES / REQUIREMENTS
Note
This product adds an 8 port KVM module to our 1UCABCONS, IUCABCONS17 or 1UCABCONS19 units
POWER
Center Tip Polarity
Positive
Input Current
1.8
Input Voltage
110V-240V AC
Output Current
4A
Output Voltage
12V DC
Plug Type
M
Power Consumption (In Watts)
0.6
Power Source
Not Included (not required for standard applications)
PHYSICAL CHARACTERISTICS
Color
Black
Material
Steel

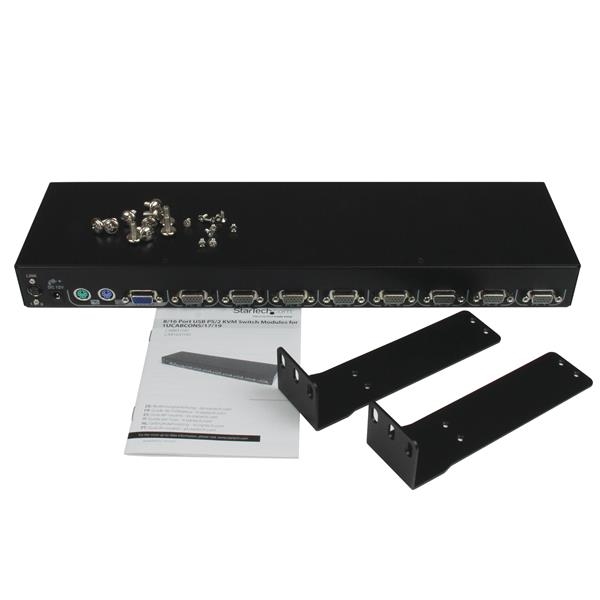

WHATS IN THE BOX
Included in Package
1 - 8 Port KVM Module
2 - Mounting Brackets (w/ Screws)
1 - Instruction Manual
Item Dimension (L inchxW inchxH inch)
21 x 3 x 7
Weight
7.24 LB
Warranty Information
3 Year Warranty
