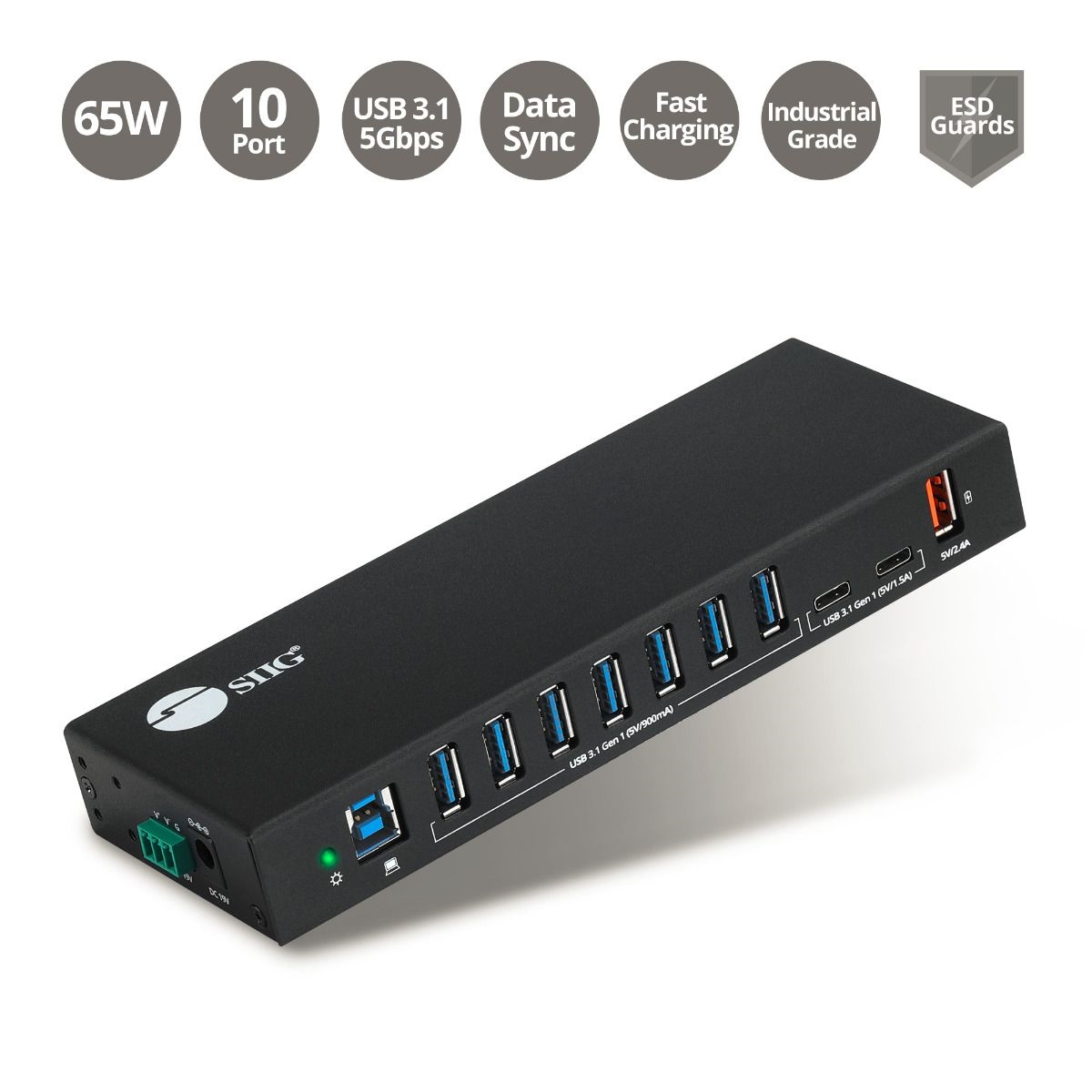

SIIG Accessory ID-US0811-S1 10Port Industrial USB Gen 1 Hub with Dual USB-C and 65W Charging Brown Box
- SKU: 251004
- Vendor: SIIG
- UPC: 662774044682
• Adds 9 USB 3.1 Gen 1 ports and one dedicated high power 5V/2.4A USB-A charging port for your system
• Provides seven USB 3.1 Gen 1 Type-A ports and two USB 3.1 Gen 1 USB-C ports
• Supports ultra-fast USB 3.1 data transfer rates of up to 5Gbps, and is backward compatible with USB 2.0 and USB 1.1 devices
• Works with high-bandwidth USB 3.1 Gen 1 Type-A and USB-C devices, such as external hard disks, high resolution webcams, camcorders, video surveillance cameras, digital video cameras, multi-channel audio and more
• Dedicated 5V/2.4A USB Type-A charging port to charge your Mobile or Tablet devices quickly
• Industrial grade rugged aluminum housing design to withstand harsh industrial environments, and provides excellent heat dissipation for reliable performance and long life
• Over-current detection and protection circuit design to protect the hub and connected devices

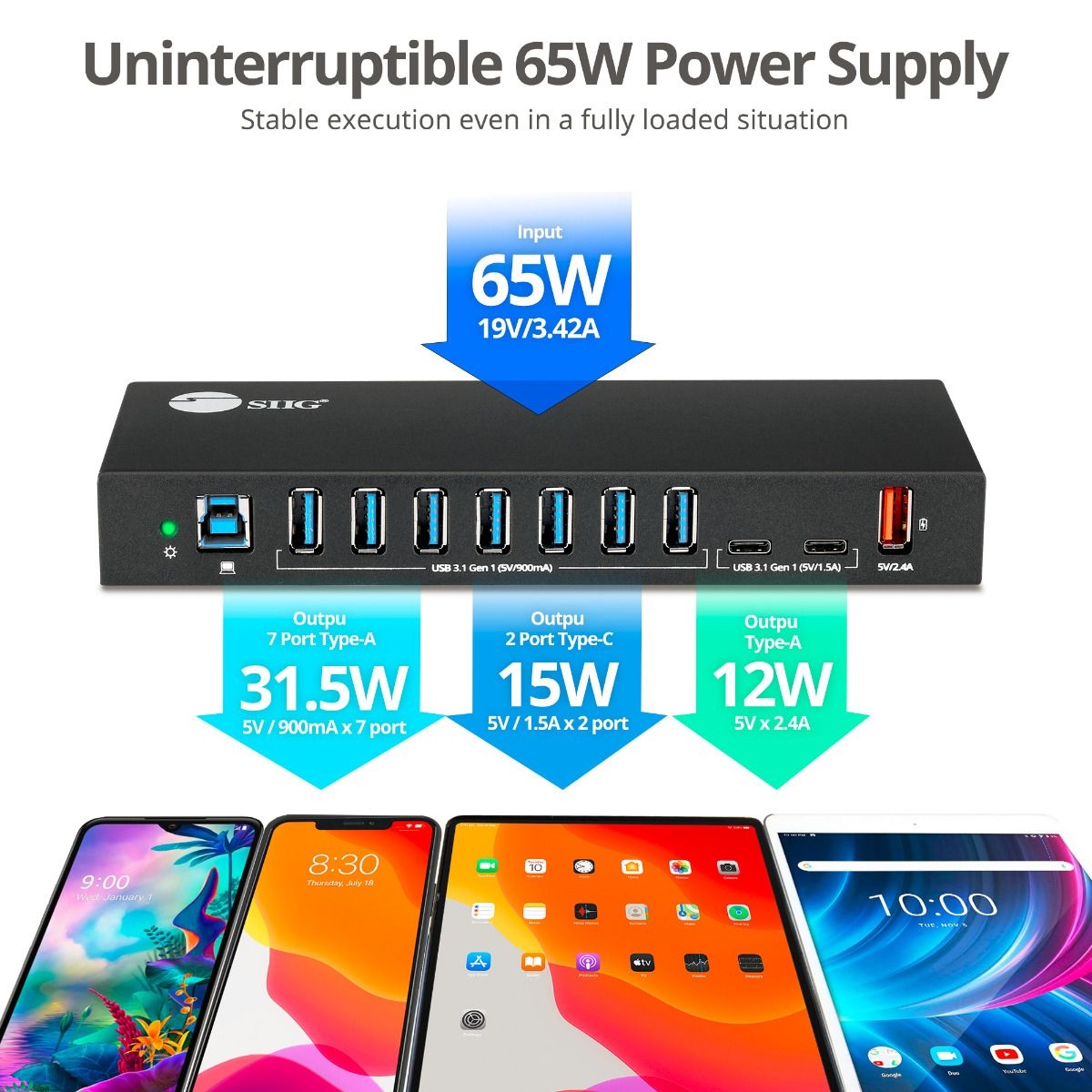

• The included 19V/3.42A power adapter provides sufficient power output to all ports 900mA power output on each USB 3.1 Gen 1 Type-A port and 1.5A power output for each USB 3.1 Gen 1 USB-C port
• Power input surge protection (600W) for each port
• Wall and DIN rail mount support
• Supports UASP function (with Windows 10 / 8 native USB 3.0 Host driver only)
Chipset:
VIA VL813 Q7
Compliant with USB 3.1 Gen 1 standard
Maximum data transfer rate:
USB 3.1 Gen 1 Type-A: Up to 5Gbps, 900mA
USB 3.1 Gen 1 Type-C: Up to 5Gbps, 1500mA
Fast Charging port: USB Type-A: Up to 5V/2.4A
Color:
Black
Housing:
Metal housing with din-rail or wall mount options

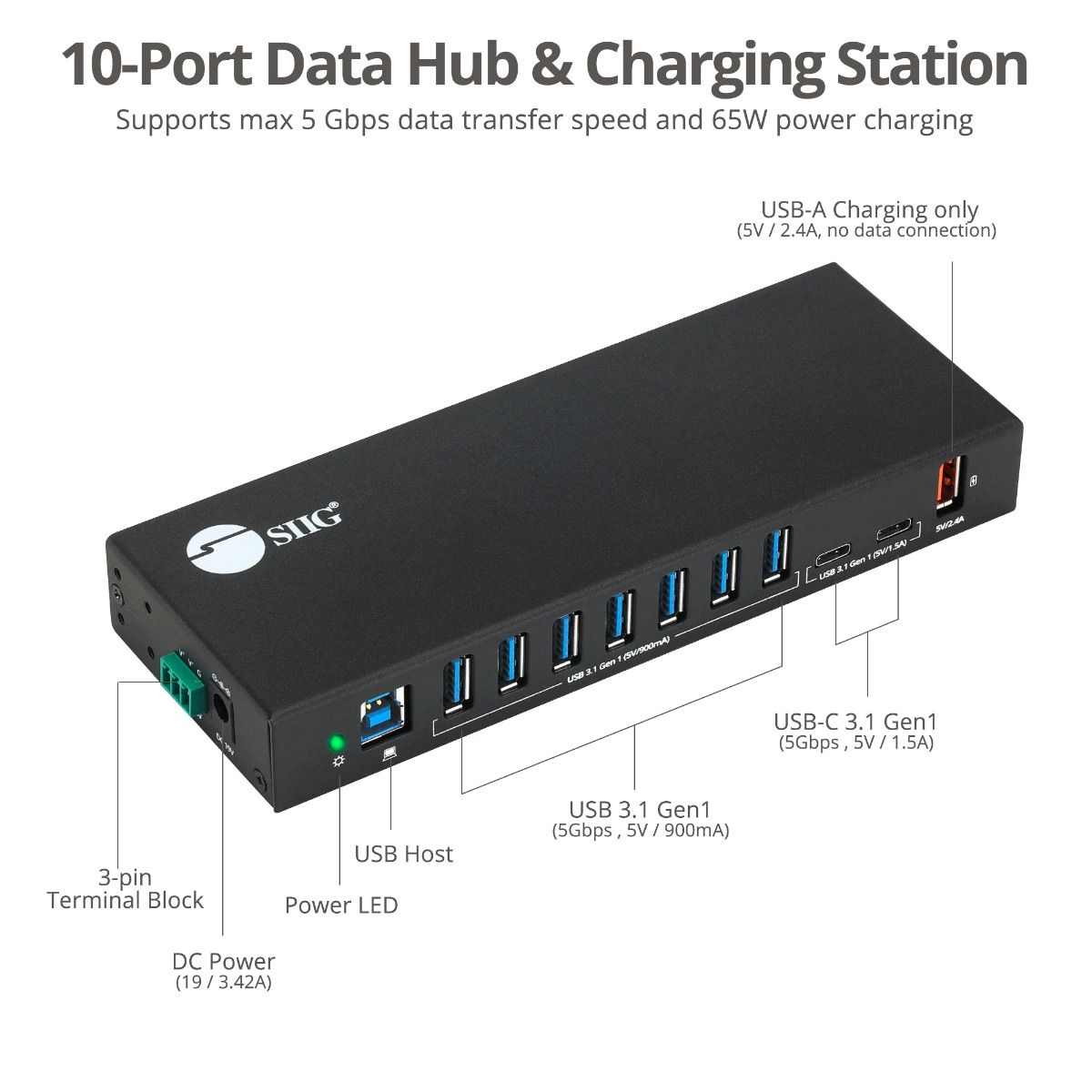

Connectors:
7x, 9-pin, USB 3.1 Gen 1 Type-A, Female
2x, 24-pin, USB 3.1 Gen 1 Type-C, Female
1x, 4-pin, USB Type-A, Female, Charging only
1x, 9-pin, USB Type-B, Female, Host/System connection
1x, 3-pin Terminal Block for extra power input
1x, Power Jack, 19V/3.42A
Power Adapter:
Universal auto switching
Input: 100-240V, 50/60Hz, 2.0A (max)
Output: 19V/ 3.42A (max)
USB 3.1 cable:
Type-A to Type-B, 6ft (2 meters)
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, RoHS
Country of origin:
China
System Requirements
Notebook and desktop computer with an available USB 3.1 Gen 1 Type-A port
Windows 10 / 8.x / 7
macOS 10.6 or later

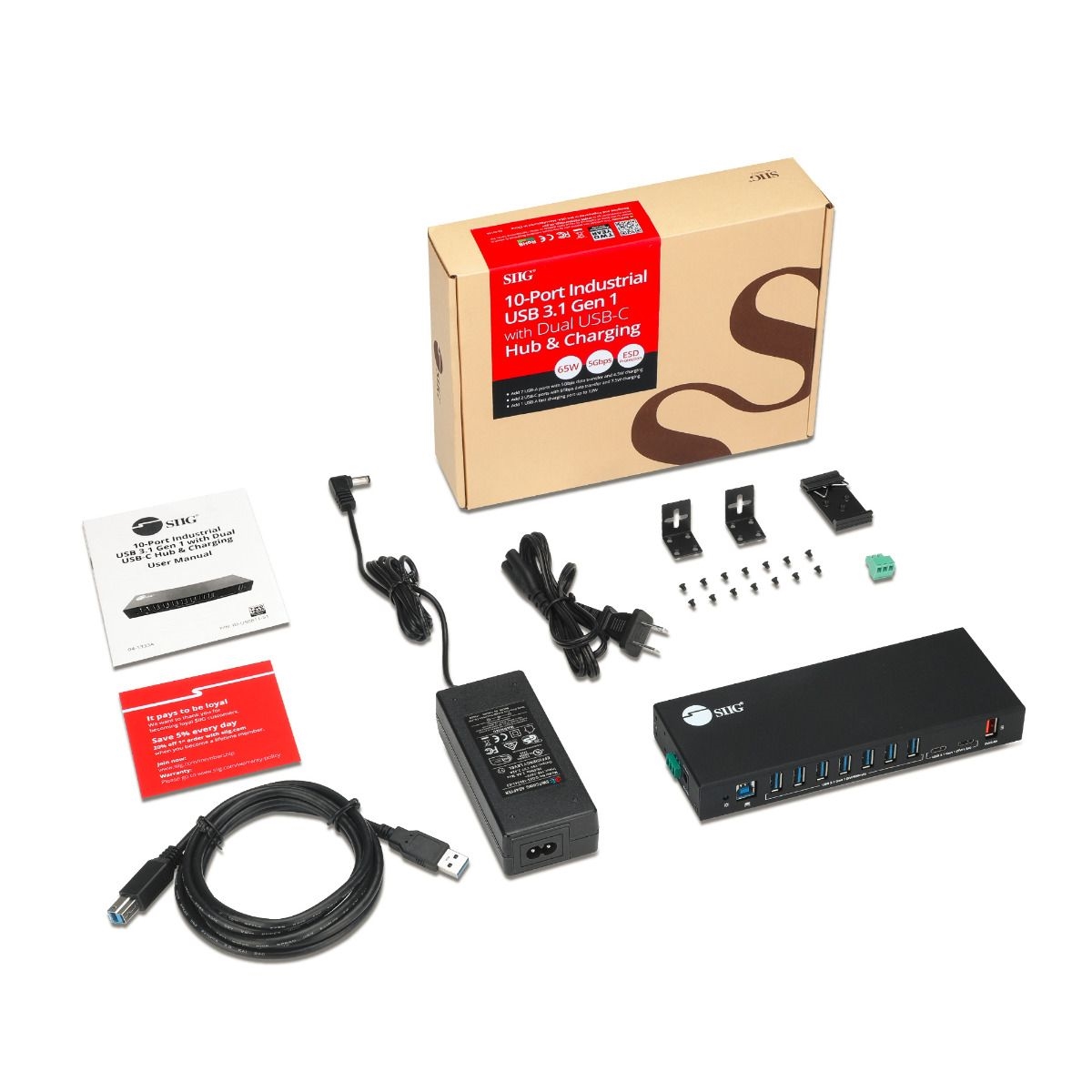

Package contents
10-Port Industrial USB 3.1 Gen 1 Hub with Dual USB-C and Charging
Switching power adapter (19V/3.42A) and AC power cord
USB 3.1 Gen 1 Type-A to Type-B cable (2m)
DIN-Rail and wall mount kit
Terminal block
User Manual
Item Dimension (L inchxW inchxH inch)
8 x 1 x 3
Weight
1.00 lb
Warranty Information
2 Years
