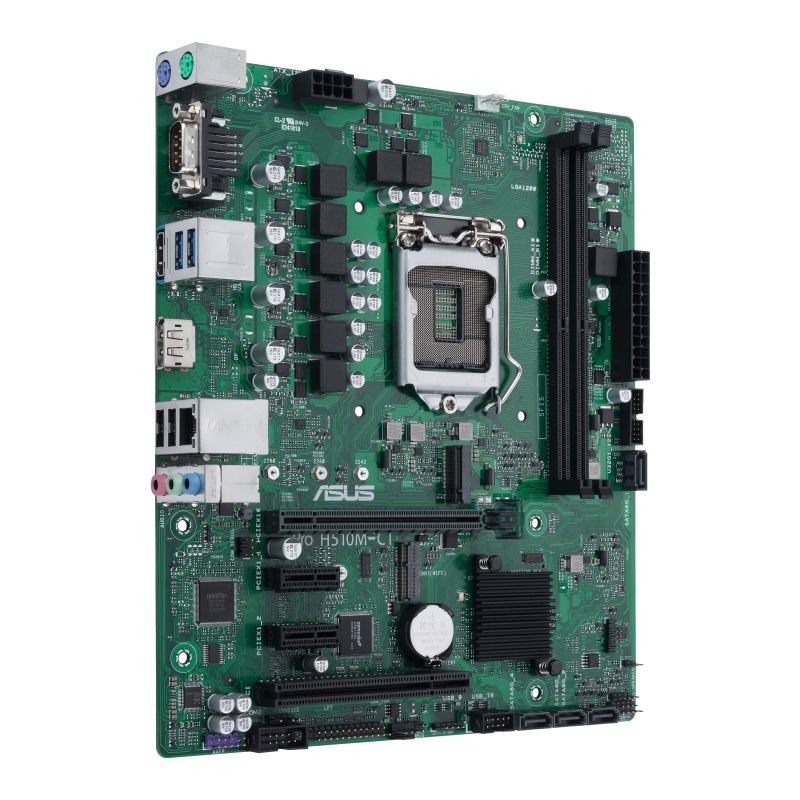

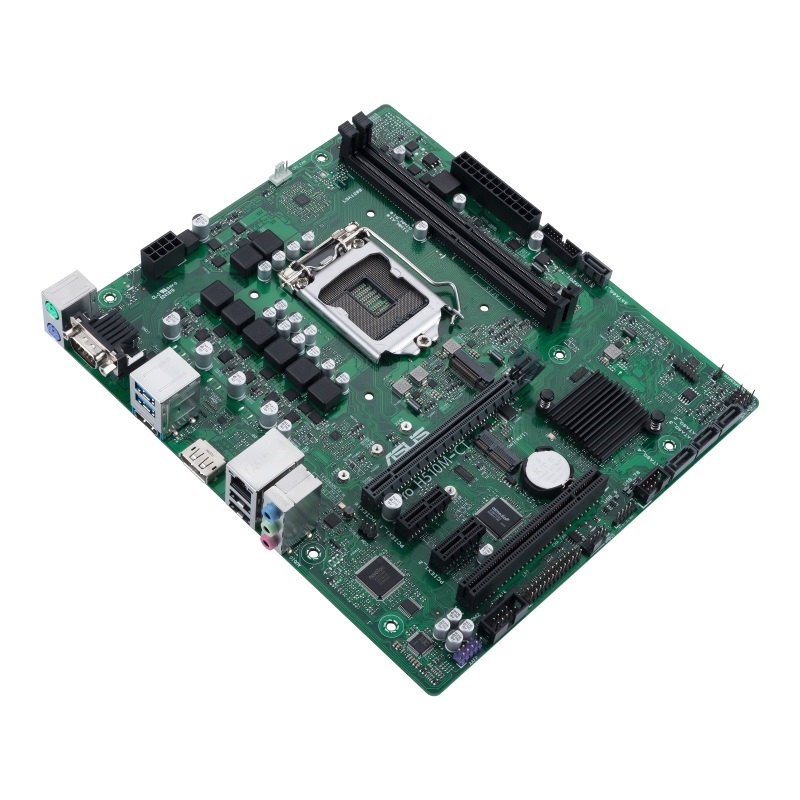

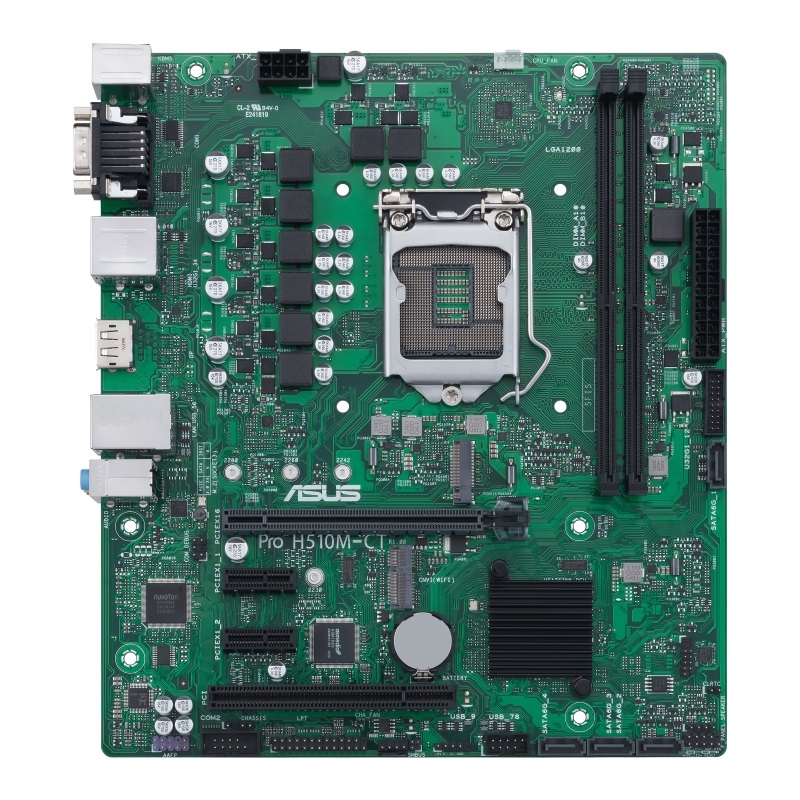

ASUS Motherboard PRO H510M-CT/CSM H510 LGA1200 Max.64GB DDR4 PCI Express Micro-ATX Retail
- SKU: 253858
- Vendor: ASUS
- UPC: 195553173230
• Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
• ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
• Supports SMBUS header that connects to a DASH LAN for remote IT management
• ASUS COM debug header for more efficient troubleshooting
• Event log for capturing and managing detailed system information
• Innovative moisture-resistant coating to protect the motherboard from harsh environments
• Commercial BIOS kit for faster and more efficient customization
• ASUS Control Center Express (ACCE) for easier IT endpoint management
• Ultrafast connectivity: PCIe® 4.0 and Intel® 1 Gb Ethernet
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
CPU
Intel Socket LGA1200 for 11th Gen Intel CoreTM processors and 10th Gen Intel CoreTM, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Refer to www.asus.com for CPU support list.
- Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
H510
Memory
2 x DIMM, Max.64 GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
- 10th Gen Intel i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
- 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.4
- Graphics specifications may vary between CPU types.
- Intel 11th and 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 at 60Hz. Please refer to www.intel.com for any updates.
- Only Intel 11th processors support HDMITM 2.0 with max. resolution of 4K at 60Hz, others will only support HDMITM 1.4 with max. resolution of 4K at 30Hz .Please refer to www.intel.com for any updates.
- Supports up to 2 displays simultaneously.
Expansion Slots
Intel 11th and 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16 mode
- Intel 10th processors support PCIe 3.0 x16 mode
Intel H510 Chipset
2 x PCIe 3.0 x1 slots
1 x PCI slot
- When a device is installed on the PCIe_1 slot, the PCI slot cannot be used.
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
4 x SATA 6Gb/s ports
- When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.
Ethernet
ASUS LANGuard
Wireless and Bluetooth
M.2 slot only (Key E, CNVi)
USB
Rear USB:Total 4 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 5 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port
Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
-- A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

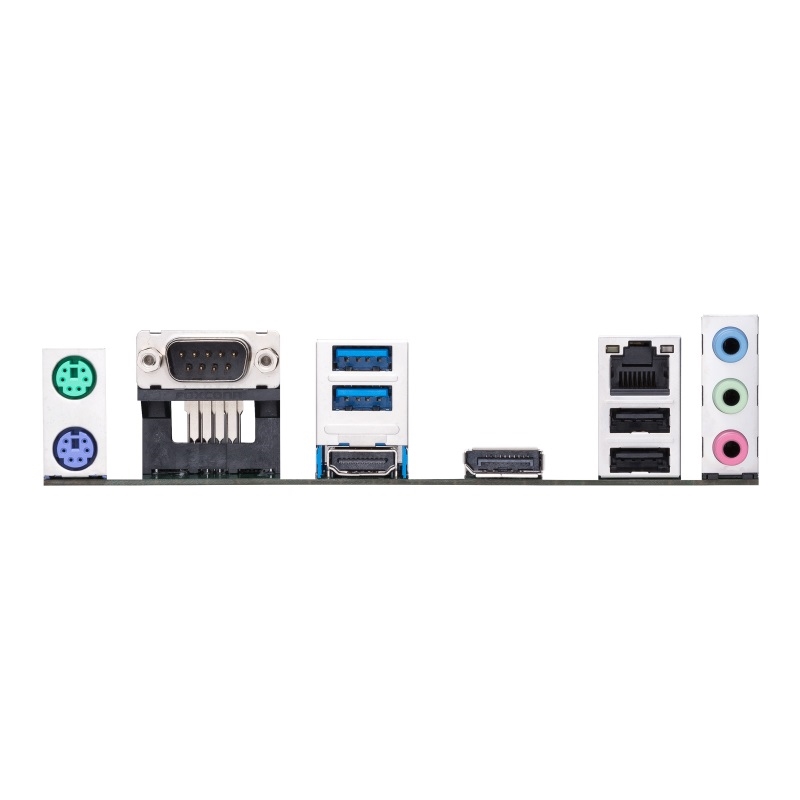

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Intel I219-V 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Intrernal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design and Business Focused Features
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM 2.0 IC onboard
Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User manual
Form Factor
microATX
24.4cm x 21.6cm
Item Dimension (L inchxW inchxH inch)
11 x 11 x 3
Weight
3.00 lb
Warranty Information
3 Years
