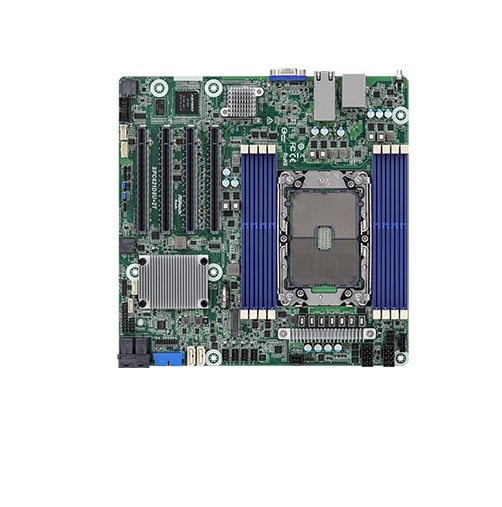

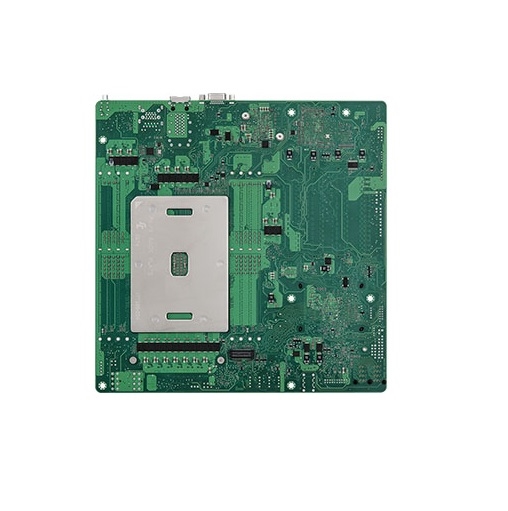

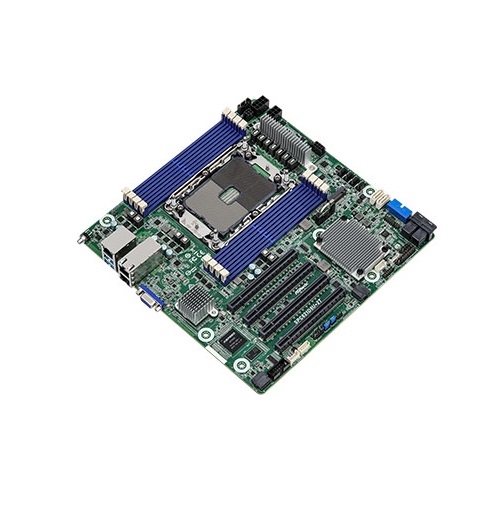

Product Detail

Physical Status
Form Factor
Micro-ATX

Processor System
CPU
Supports 3rd Gen Intel Xeon Scalable processors
Socket
Single Socket P+ (LGA 4189)
Chipset
Intel C621A

System Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel Optane Persistent Memory 200 series
Max. Capacity per DIMM
RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB
Max. DIMM Frequency
max. 3200MHz
Voltage
1.2V

PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe4.0 x16
SLOT6: PCIe4.0 x16
SLOT5: PCIe4.0 x16
SLOT4: PCIe4.0 x16

Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 2280 form factor

SATA/SAS Storage
PCH Built-in Storage
Intel C621A (11 SATA 6Gb/s RAID 0/1/5/10):
2 Mini-SAS HD, 2 SATA 7-pin, 1 M.2

Ethernet
Additional GbE Controller
Intel X710-AT2: 2 RJ45 (10 GbE)

Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN

Graphics
Controller
ASPEED AST2500
VRAM
DDR4 16MB

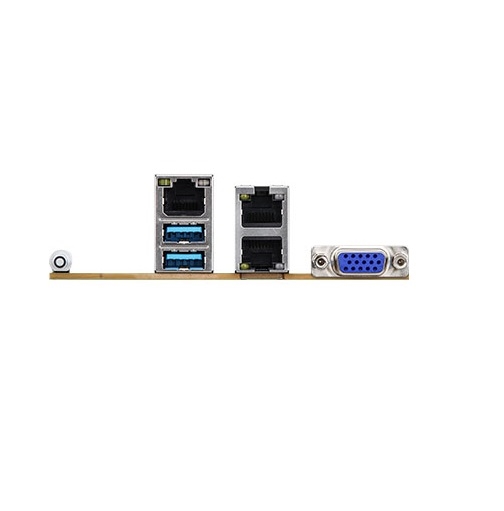

Rear I/O
UID Button/LED
1
VGA Port
1 DB15
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE)
Dedicate LAN
1 dedicated IPMI

Internal Connector/Headers
Power Connector
1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors
1 (4-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1
Fan Header
4 (4-pin)
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
VROC header
1
HSBP
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
NMI Header
1

LED Indicators
Standby PWR LED 5vsb
1
Fan Fail LED
4
BMC heartbeat LED
1

System BIOS
BIOS Type
AMI 256 Mb SPI Flash ROM
BIOS Features
ASRock Rack Instant Flash, ACPI 5.0, SMBIOS 2.3, Plug and Play (PnP)

Hardware Monitor
Temperature
CPU, PCH, MB, Card side Temperature Sensing
Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage
CPU1_PVCCIN, PVDDQ_ABCD,PVDDQ_EFGH, 1.05V_PCH,1.8V_PCH, +BAT,PVNN_PCH 3.3V,5V,12V,3.3VSB, 5VSB

Environment
Temperature
Operation temperature: 10^oC - 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)

Item Dimension (L"xW"xH")
14 x 12 x 3

Weight
4 lbs

Warranty Information
36M
