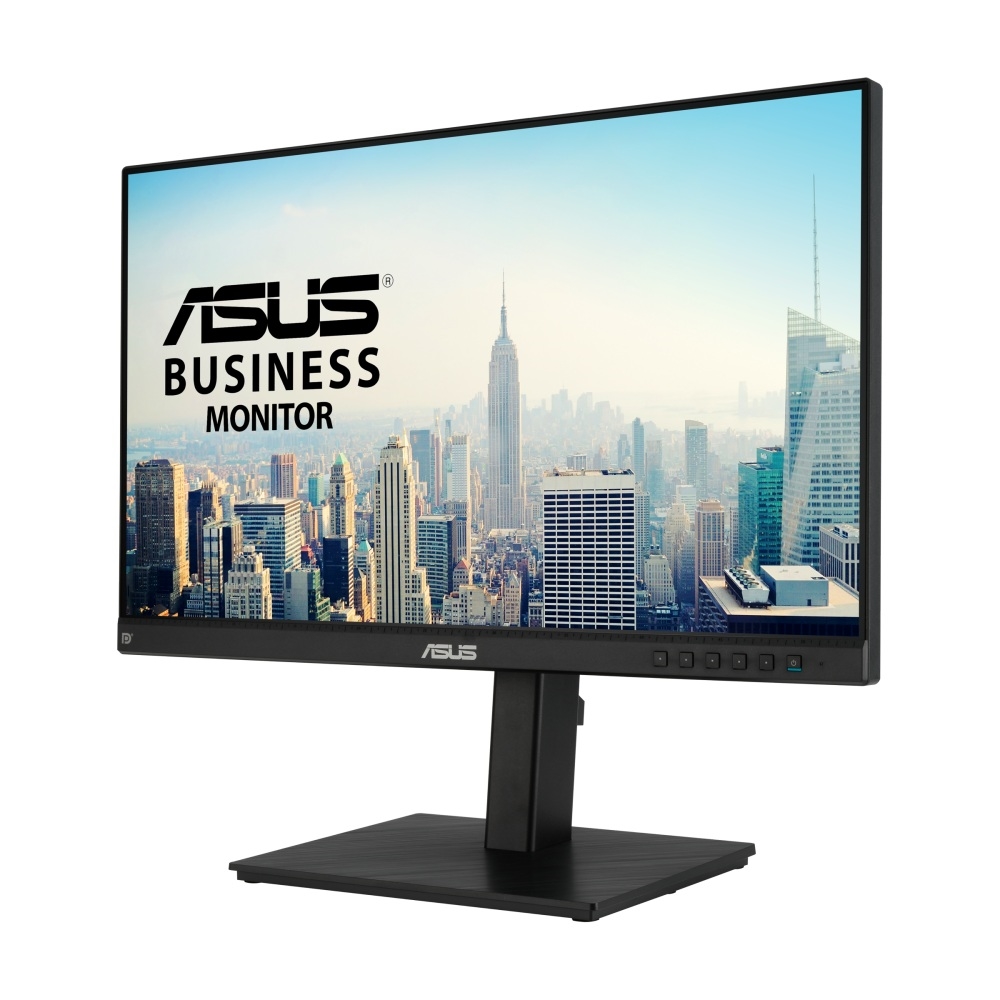

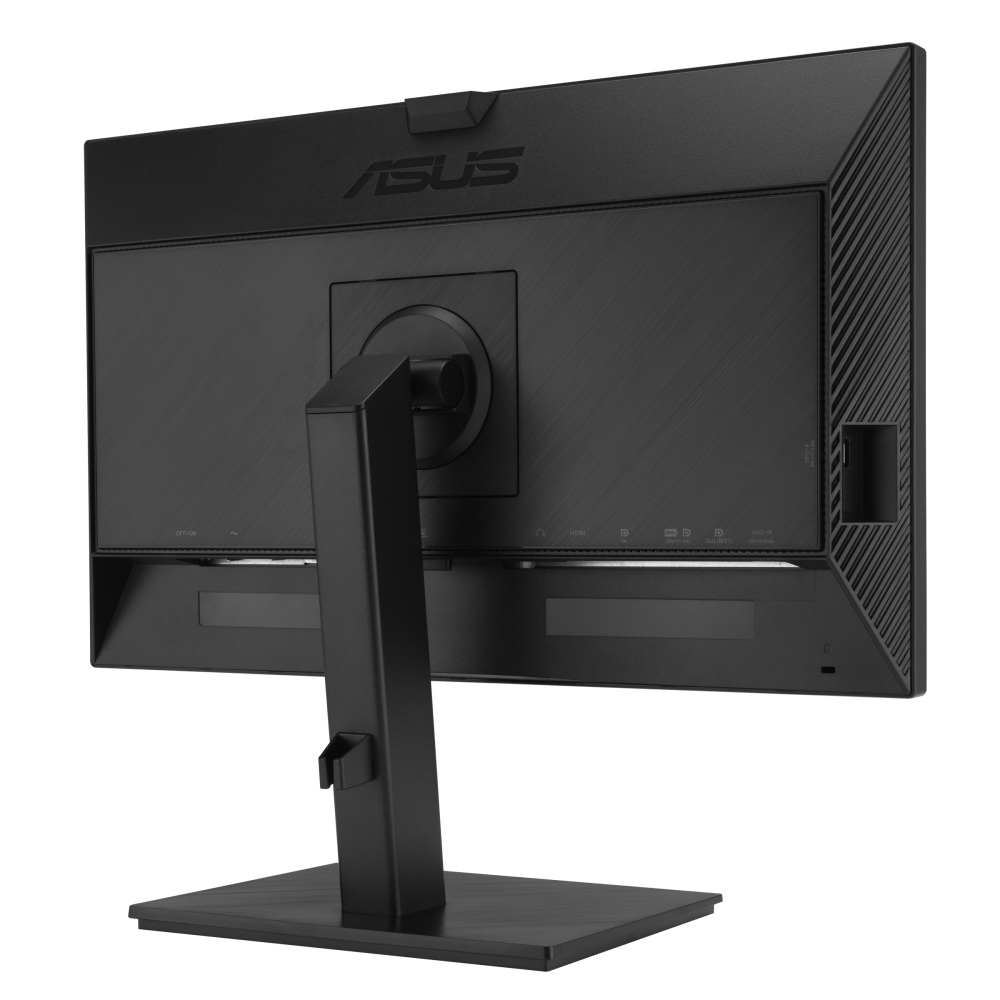

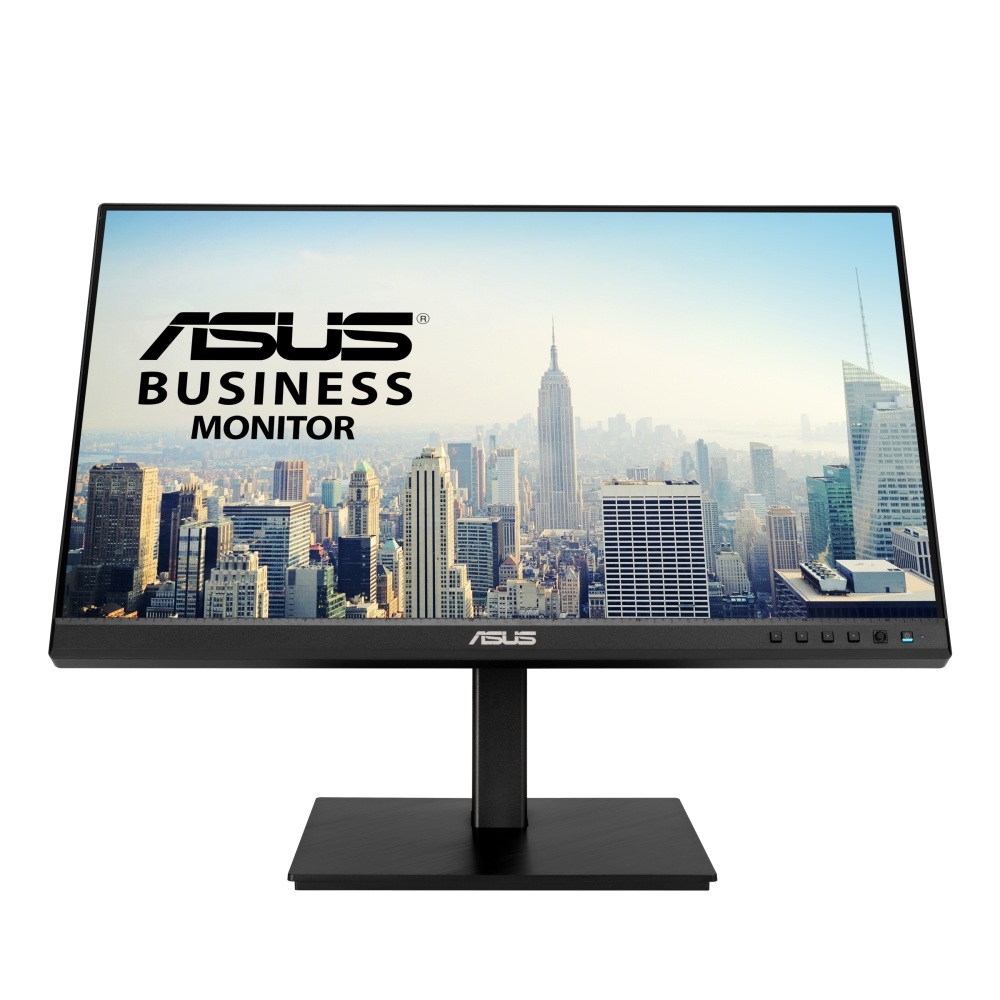

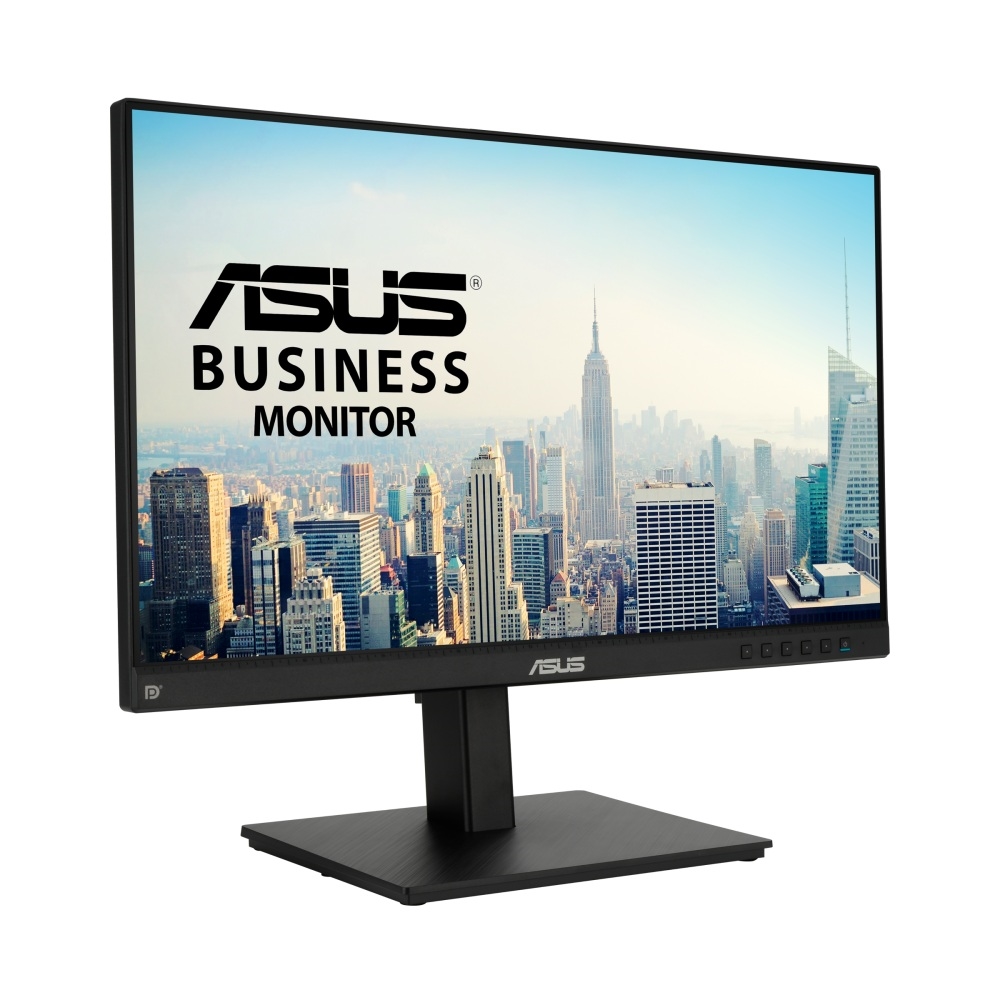

ASUS Monitor BE24ECSBT 24" IPS 1920x1080 16:9 5ms 75Hz 10-point Touch Speaker Retail
- SKU: 269742
- Vendor: ASUS
- MPN: BE24ECSBT
- UPC: 195553905459
• 23.8-inch Full HD(1920x1080) frameless IPS panel with wide viewing angles
• 10-point multi-touch capacity delivers smooth and intuitive touch experience.
• Extensive connectivity with USB-C with power delivery, HDMI, DisplayPort in and out for daisy-chain, Earphone jack and USB hub for the most flexibility
• Ergonomic design with +35° ~ -5° tilt, ±180° swivel, ±90° pivot and 130mm height adjustments for a comfortable viewing experience
• USB-C port allows simple laptop docking for data transmission and video signal to the display, as well as up to 80W power delivery to the laptop via just one cable.
Display
Panel Size (inch)
23.8
Aspect Ratio
16:9
Display Viewing Area (H x V)
527.04 x 296.46 mm
Backlight Type
LED
Panel Type
IPS
Viewing Angle (CR is more than or equal to 10, H/V)
178o/ 178o
Pixel Pitch
0.2745mm
Resolution
1920x1080
Color Space (sRGB)
100%
Brightness (Typ.)
300cd/m2
Contrast Ratio (Typ.)
1000:1
Display Colors
16.7M
Response Time
5ms(GTG)
Refresh Rate (Max)
75Hz
Touch
Yes, Projective Capacitive 10-point Touch
Flicker-free
Yes
Features
Trace Free Technology
Yes
SPLENDID Technology
Yes
Color Temp. Selection
Yes(4 modes)
QuickFit
Yes (Document/Letter/Photo/Alignment Grid)
HDCP
Yes, 1.4
Low Blue Light
Yes
Eye Care+ Technology
Yes
Audio
Speaker
Yes(2Wx2)
I/O Ports
USB-C x 1 (DP Alt Mode)
DisplayPort 1.4 x 2 (Daisy Chain)
HDMI(v1.4) x 1
USB Hub
3x USB 3.2 Gen 1 Type-A
Earphone Jack
Yes
USB-C Power Delivery
80W
Power Consumption
Power Consumption
13.2 W
Power Saving Mode
<0.5W
Power Off Mode
0W (hard switch)
Voltage
100-240V, 50/60Hz
Mechanical Design
Tilt
Yes (+35o to -5o)
Swivel
Yes (+180o to -180o)

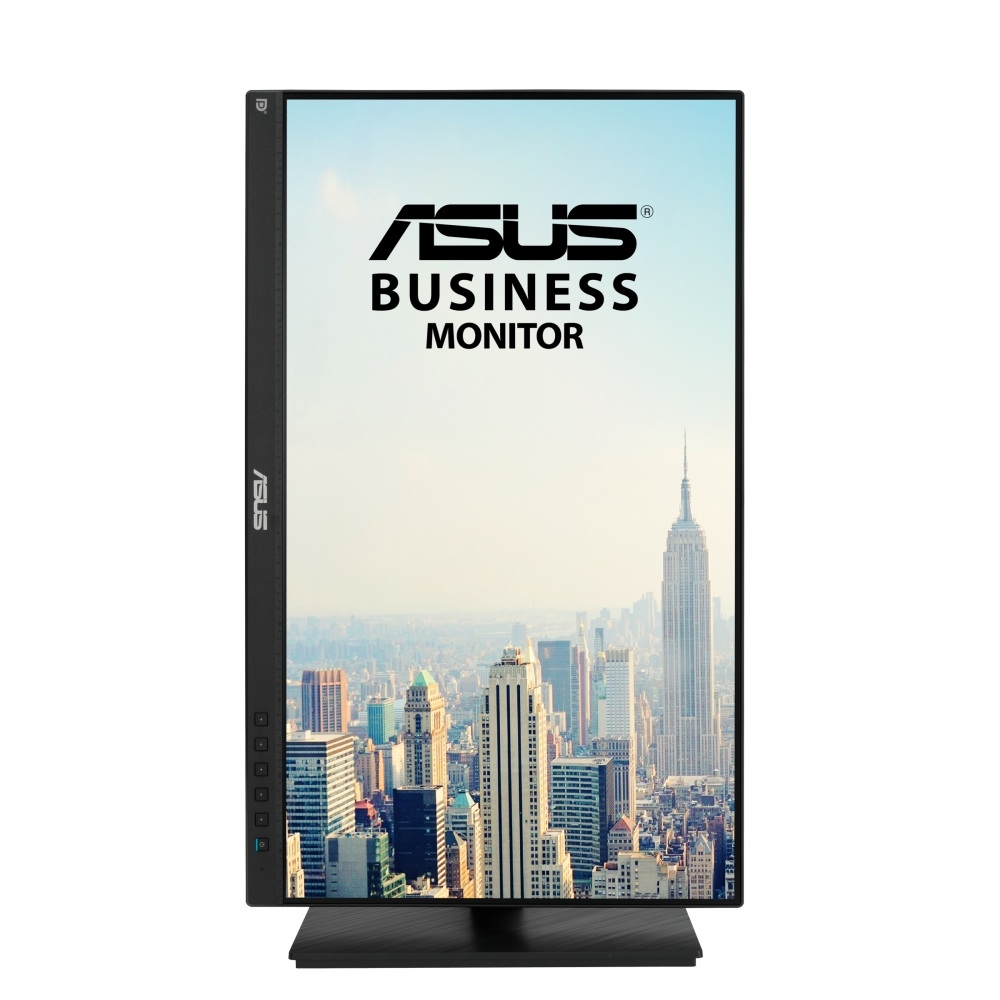

Pivot
Yes (+90o to -90o)
Height Adjustment
0 to 130mm
Ambient Light Sensor
Yes
VESA Wall Mounting
100x100mm
Kensington Lock
Yes
Accessories (varies by region)
DisplayPort cable
HDMI cable
Power cord
Quick release stand
Quick start guide
USB-C cable
USB-C to A cable
Warranty Card
Certificate
Energy Star
EPEAT Silver
TCO Certified
TUV Flicker-free
TUV Low Blue Light
Item Dimension (L inchxW inchxH inch)
7 x 30 x 18
Weight
28 lb
Warranty Information
3 Year Warranty with ARR
