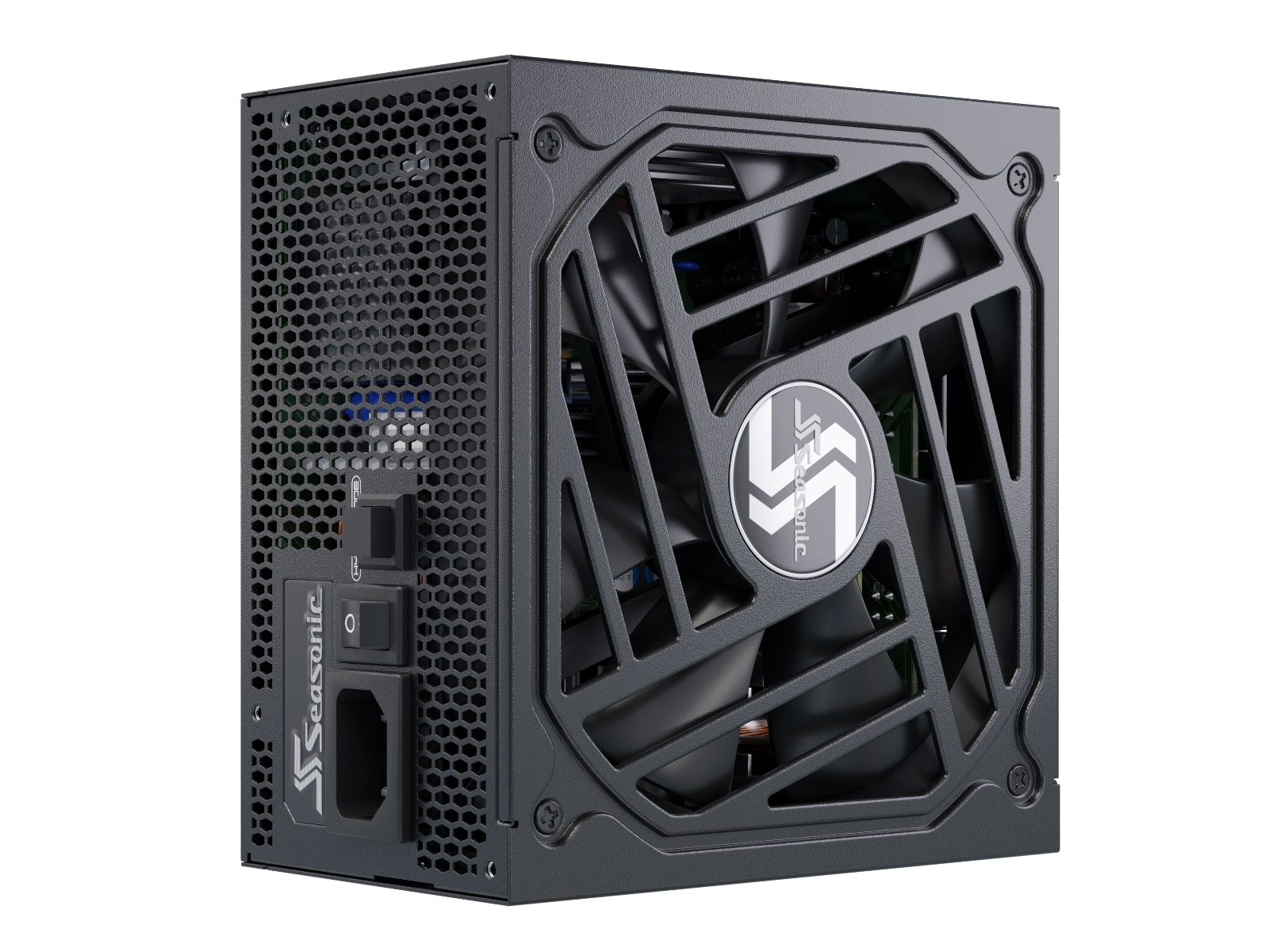

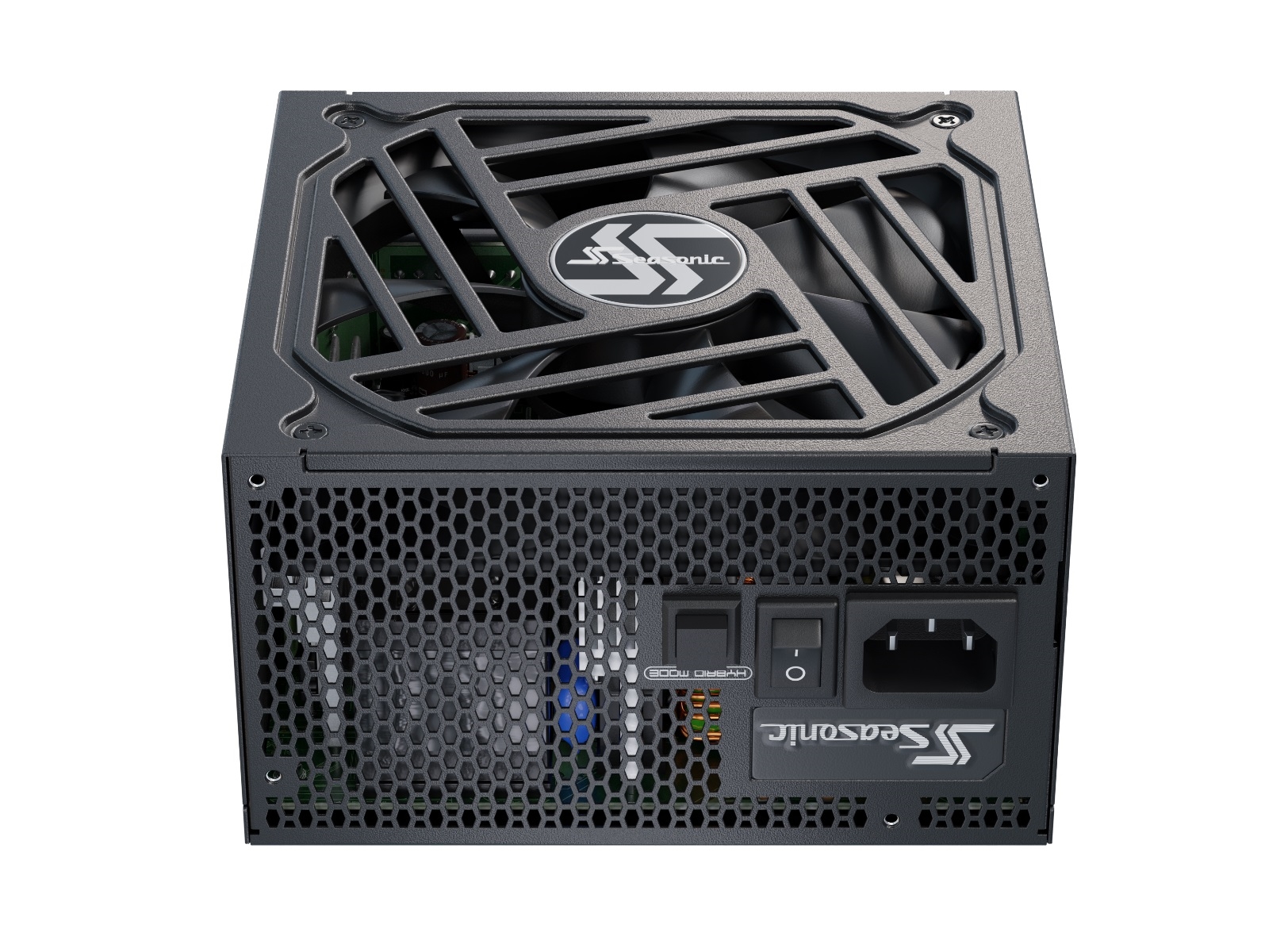

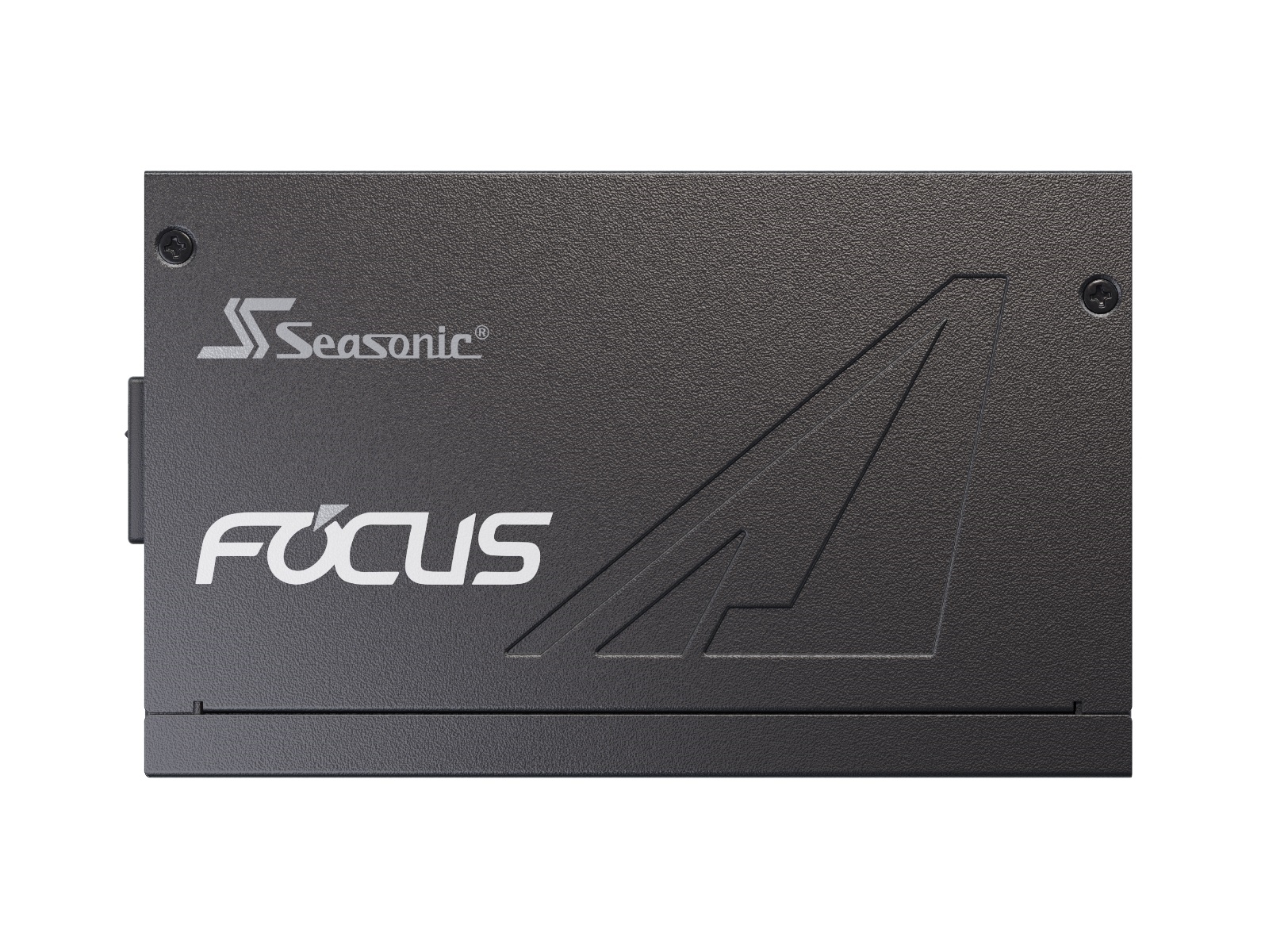

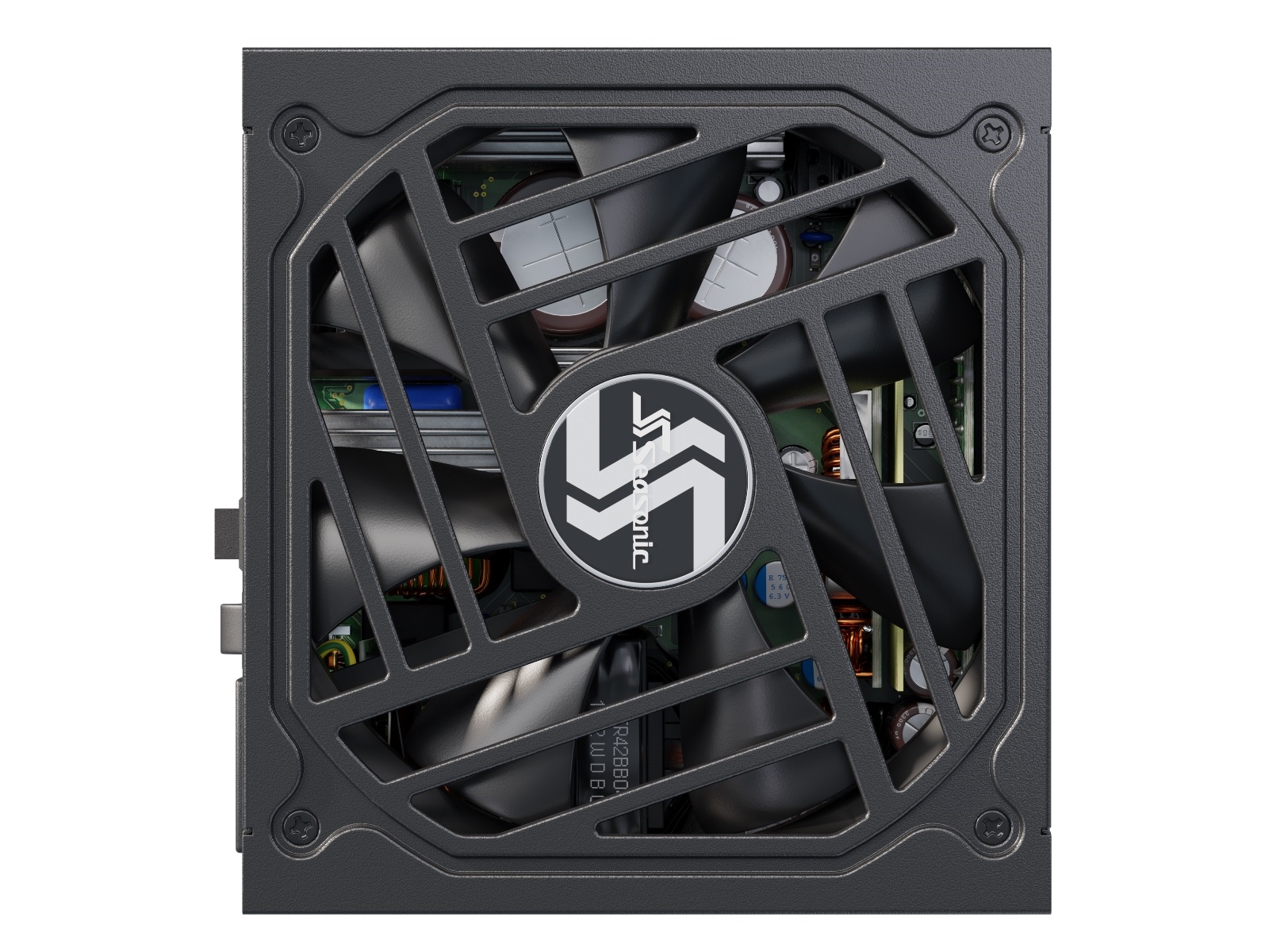

Seasonic Power Supply SSR-750FX3 750Watt FOCUS V3 GX-750 ATX 3.0 Retail

  • SKU: 273957
  • Vendor: Seasonic
  • MPN: SSR-750FX3
  • UPC: 882016002502
  • EAN: 4711173878063
FOCUS GX ATX 3.0
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
OVERVIEW
80 PLUS GOLD
The FOCUS GX achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonics latest FOCUS GX ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
DIGITAL HYBRID FAN CONTROL
The industrys first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
BENEFITS
Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode.

Technical Specifications
80PLUS
Gold
Cybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel ATX 12 V
Fan Information
Fan Size
135 mm
Fan Control
S3FC - Fanless until 30 % load
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 oC, 15 % - 65 % RH
Cable Information
Modularity
Fully Modular
Cable type
Individual Black Cables with Braided Pattern
Electrical Features
Operating Temperature
0 - 50 oC
MTBF at 25 oC, excl. fan
100,000 hours
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Power Output
AC Input
Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail
+3.3 V / +5 V /+12 V /-12 V / +5 VSB
Maximum Power
20 A / 20 A / 62 A / 0.3 A / 3 A
100 W / 100 W / 744 W / 3.6 W / 15 W
Total continuous power
750 W

Item Dimension (L"xW"xH")
12 x 8 x 5

Weight
6.23lbs

Warranty Information
10 Years
