StarTech Accessory 10G5A2CS-USB-C-HUB 7-Port USB-C Hub 5xUSB-A+2xUSB-C w/65Watts Power Supply Retail
- SKU: 275606
- Vendor: StarTech
- MPN: 10G5A2CS-USB-C-HUB
- UPC: 065030899086

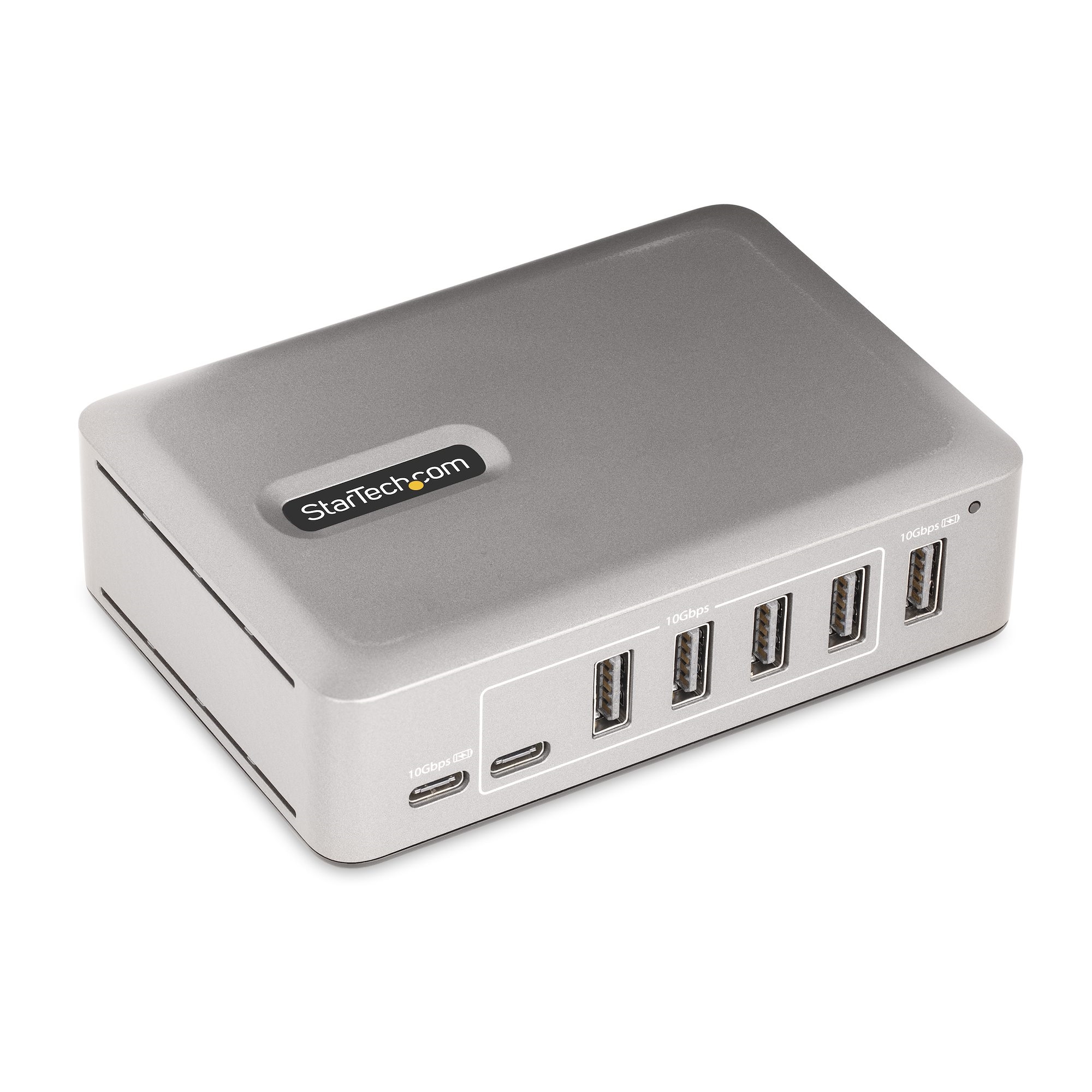

Add 5x USB-A and 2x USB-C ports to a USB-C enabled Desktop/Laptop
Product ID: 10G5A2CS-USB-C-HUB
7-PORT USB-C HUB: USB 3.2 Gen 2 (10Gbps) expansion hub features a USB-C host connector with 7x downstream USB ports (5x USB-A, 2x USB-C); Self-powered with included power supply
65W POWER ADAPTER INCLUDED: Power Adapter ensures each port provides specified power; 2x USB BC 1.2 ports (1x USB-C, 1x USB-A) each provide 12W for charging devices w/Charging Data Port & Dedicated Charging Port modes; Other ports provide 4.5W
USB-IF CERTIFIED HOST CABLE: Premium 3ft (1m) USB-C host cable included; USB-IF certified; Flexible and durable TPE jacket; USB-IF certified cable and screw-locking USB-C port ensures a reliable and secure connection to the USB hub
IT PRO PERFORMANCE: Overcurrent Protection (OCP) prevents peripherals from overdrawing power to reduce device dropouts/shutdown; Wake On USB wakes desktop/laptop from sleep state; Mount to desk/wall/VESA mount w/SSPMSUDWM & SSPMSVESA (sold separately)
OUR ADVANTAGE: Includes IT Pro Connectivity Tools software to improve USB security on Windows systems - Featuring USB Event logging functionality with timestamps to allow admins to identify potentially malicious devices; Works w/ USB-C and Thunderbolt 3/4
Compatibility
OS Independent - No software or drivers required
Connector(s)
External Ports
4 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
1 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 12W Power)
1 - USB 3.2 Type-C (24 Pin, Gen 2, 10Gbps, 12W Power)
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental
Operating Temperature
0oC to 50oC (32oF to 122oF)
Storage Temperature
-20oC to 70oC (-4oF to 158oF)
Humidity
0% - 95% RH (no condensation) at 25oC (77oF)
Hardware
Fast-Charge Port(s)
Yes
Ports
7
Cable Jacket Material
TPE - Thermoplastic Elastomers
Interface
USB 3.2 Gen 2 (10 Gbps)
Bus Type
USB 3.2 Gen 2 10Gbps
Industry Standards
USB 3.2 Gen 2 (10Gbps) - Backward compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1.1
Chipset ID
VIA - VL822-Q7
VIA - VL162
Indicators
LED Indicators
1 - Status LED - Green: Solid (Power is on, USB HUB is connected to a host), Slow Pulse (Power is on, USB HUB is not connected to a host), Off (Power is not connected, USB Hub is in off state)
Performance
Wake On Lan
Yes
Maximum Data Transfer Rate
10 Gbps (USB 3.2 Gen 2)
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
Supported Charging Outputs
BC 1.2 (1.5A)
Apple 2.4A
Apple 1A
Physical Characteristics
Color
Space Gray
Form Factor
Desktop
Material
Santoprene - Thermoplastic Rubber (TPE)
Cable Length
3,3 ft 1 m
Power
Power Source
AC Adapter Included
Input Voltage
110V-240V AC
Output Voltage
19V DC
Output Current
3.42 A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
65 W
Software
OS Compatibility
OS Independent - No software or drivers required
Special Notes / Requirements
Note
USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).
The base of the USB hub can reach temperatures of up to 75oC (167oF) during normal operation.
Whats in the Box
Included in Package
1 - USB Hub
1 - USB-C Host Cable
1 - Universal Power Adapter (NA, EU, UK)
Item Dimension (L"xW"xH")
9 x 7 x 4
Weight
2 lbs
Warranty Information
2 Year Warranty
