Product Detail

Processor
Family
Raptor Lake
Brand
Core^TM i7
Gen
13

CPU
Intel Core^TM i7-1360P

Chipset
Intel Platform

RAM
W/O RAM, supports 2 x SO-DIMM DDR4 3200 MHz memory slots (up to 32GBx2)

XMP
Support
No

VGA
Integrated - Intel Iris Xe Graphics

Storage
W/O Storage, supports (3) internal storage drives:
1 x M.2 2280 NVMe^TM PCIe G4x4 SSD
1 x M.2 2242 for SATA or PCIe G3x1 SSD
1 x 6 Gb/s SATA for 2.5"" HDD

Side I/O
1 x Kensington Lock Slot

Front I/O
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x Audio Jack (Line out/Mic in/Headphone out)

Rear I/O
2 x Thunderbolt^TM 4 (with DP1.4 , 5V/3A, 40Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
2 x HDMI 2.1 (up to 4K at 60Hz)
1 x Intel i226-V LAN, 2.5GbE (RJ45)
1 x Cable Locking Arm
1 x DC-in

Number of Displays
Supported
4

Graphics Output
2 x Thunderbolt^TM 4 (DisplayPort 1.4)
2 x HDMI 2.1 (TMDS compatible)

vPro
Support
No

LAN
1 x 2.5 GbE

TPM
fTPM 2.0 (Intel PTT)

OS
W/O OS, supports Windows 11 Home/Pro, Windows 10 IOT Enterprise

WLAN
Intel Wi-Fi 6E AX211 (Gig+), 2x2

BT
BT 5.3

Power
120W

Country
Cord
US Only

Form Factor
Tall Kit (L6)

Segment
Commercial

Intel Model Name
RNUC13ANHi7000U

Intel Product Description

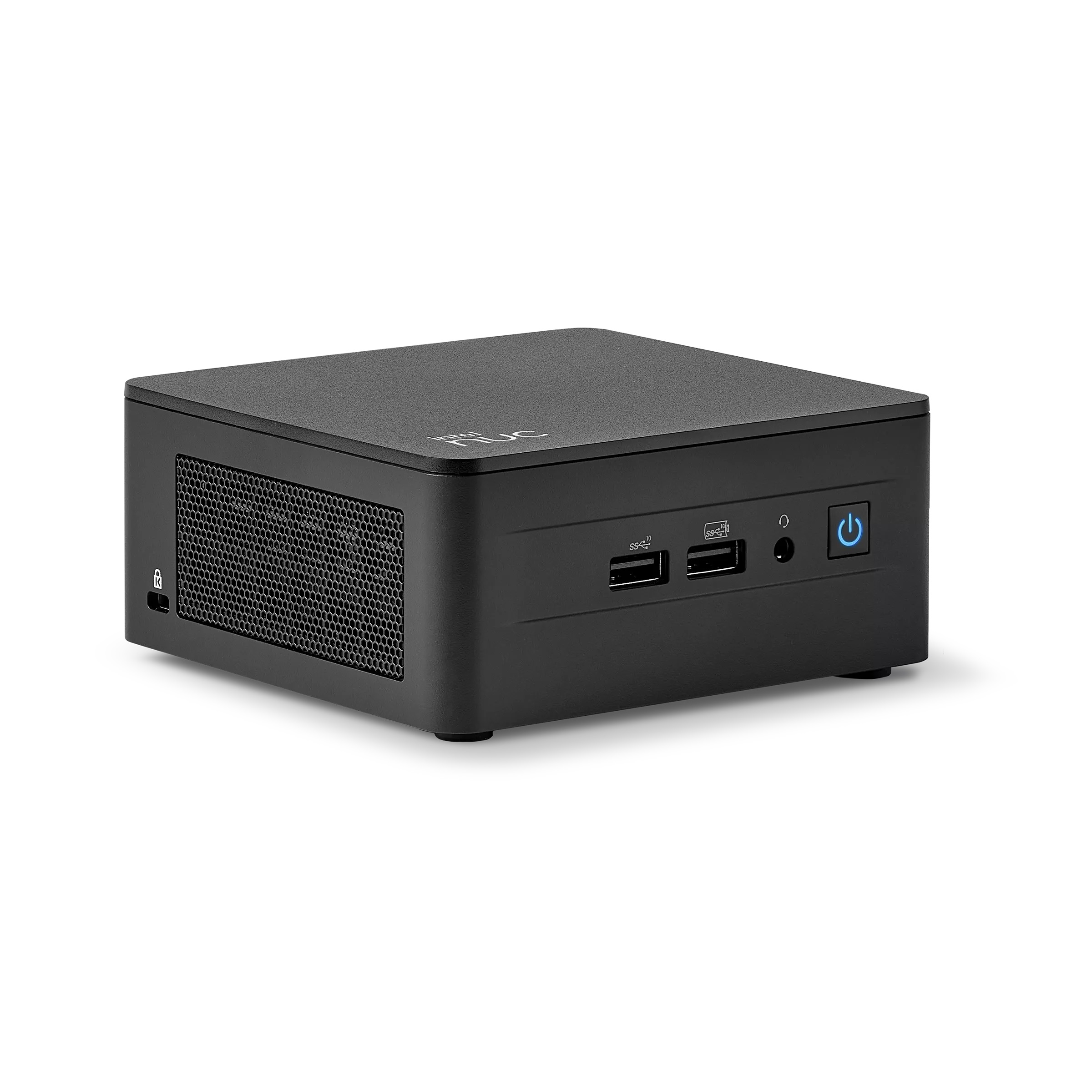

Arena Canyon i7 Tall NUC kit

Accessories
VESA Mount / Power Adapter/ Power Cord

Energy Star
8.0

EPEAT
N/A

Item Dimension (L inchxW inchxH inch)
5 x 5 x 3

Weight
2.48 lb

Warranty Information
3-year limited
