Product Detail

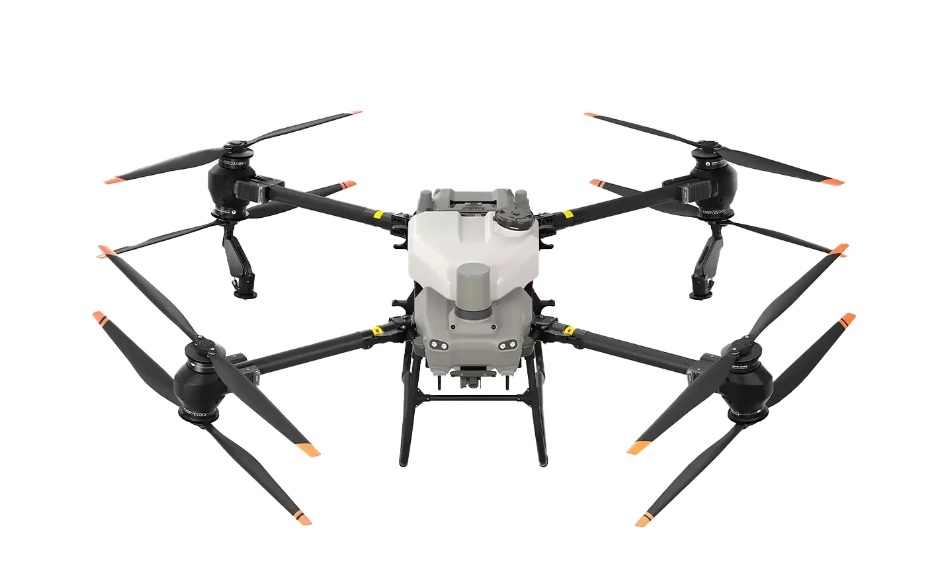

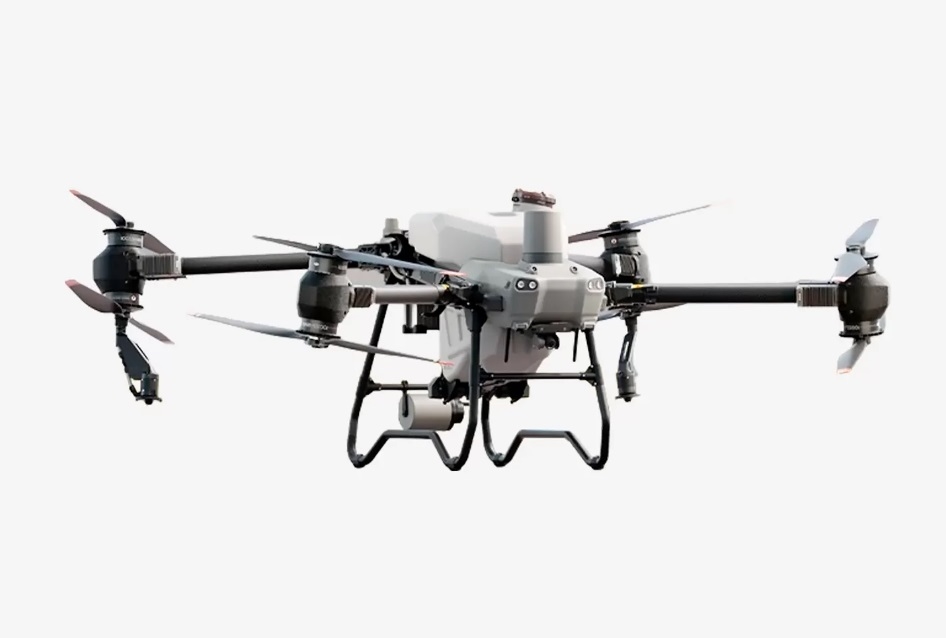

Aircraft
Max Takeoff Weight^Definition1
Max takeoff weight for spraying: 92 kg (at sea level)
Max takeoff weight for spreading: 103 kg (at sea level)
Max Diagonal Wheelbase
2200 mm
Hovering Accuracy Range (with strong GNSS signal)
RTK enabled:
Horizontal: +/-10 cm, Vertical: +/-10 cm
RTK disabled:
Horizontal: +/-60 cm, Vertical: +/-30 cm (radar module enabled: +/-10 cm)
RTK/GNSSOperating Frequency
RTK:
GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
GNSS:
GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1
Max Configurable Flight Radius
2000 m
Max Wind Resistance
6 m/s

Propulsion System - Motors
Stator Size
100x33 mm
KV
48 rpm/V
Power
4000 W/rotor

Propulsion System - Propellers
Material
Nylon carbon fiber filament
Propeller Rotation Diameter
1375 mm
Quantity
8

Dual Atomizing Spraying System - Spray Tank
Material
Plastic (HDPE)
Volume
40 L
Operating Payload ^Definition1
40 kg^Definition1
Quantity
1

Dual Atomizing Spraying System - Sprinklers
Model
LX8060SZ
Quantity
2
Nozzle Distance
1570 mmRear Nozzles
Droplet Size
50-500 Micrometre
Effective Spray Width ^Definition2
4-11 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System - Delivery Pumps
Type
Impreller pump (magnetic drive)
Quantity
2
Single Pump Flow Rate
0-12 L/min
Max Flow Rate
16 L/min (2 sprinklers), 24 L/min (4 sprinklers)

T50 Spreading System
Compatible Material Diameter
0.5-5 mm dry granules
Spread Tank Volume
75 L
Spread Tank Internal Load ^Definition10
50 kg
Spread Width
8 m

Phased Array Radar System
Model
RD241608RF (forward phased array radar), RD241608RB (rear phased array radar)
Terrain Follow
Max slope in mapping-free operation: 50^o
Altitude detection range: 1-50 m
Stabilization working range: 1.5-30 m
Obstacle Avoidance ^Definition4
Obstacle sensing range (multidirectional): 1-50 m
FOV:
Forward phased array radar: horizontal 360^o, vertical +/-45^o, upward +/-45^o (cone)
Rear phased array radar: vertical 360^o, horizontal +/-45^o
Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
Sensing direction: 360^o multidirectional sensing

Binocular Vision System
Measurement range
0.5-29 m
Effective Sensing Speed
is less than or equal to 10 m/s
FOV
Horizontal: 90^o, Vertical: 106^o
Operating Environment
Adequate light and discernible surroundings

Remote Controller
Model
RM700B
Operating Frequency ^Definition5
2.4000-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance
7 km (FCC), 5 km (SRRC), 4 km (MIC/CE), (unobstructed, free of interference, and at an altitude of 2.5 m)
Wi-Fi Protocol
Wi-Fi 6
Wi-Fi Operating Frequency ^Definition5
2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz
Bluetooth Protocol
Bluetooth 5.1
Bluetooth Operating Frequency
2.4000-2.4835 GHz
GNSS
GPS+Galileo+BeiDou
Screen
7.02-in LCD touchscreen, with a resolution of 1920x1200 pixels, and high brightness of 1200 cd/m2
Operating Temperature
-20^o to 50^o C (-4^o to 122^o F)
Storage Temperature Range
Less than one month: -30^o to 45^o C (-22^o to 113^o F)
One to three months: -30^o to 35^o C (-22^o to 95^o F)
Six months to one year: -30^o to 30^o C (-22^o to 86^o F)
Charging Temperature
5^o to 40^o C (41^o to 104^o F)
Internal Battery Runtime
3 hours 18 minutes
External Battery Runtime
2 hours 42 minutes
Charging Type
It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.
Charging Time
2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

DB1560 Intelligent Flight Battery
Model
DB1560 Intelligent Flight Battery (BAX702-30000mAh-52.22V)
Capacity
30000 mAh
Nominal Voltage
52.22 V

D12000iE Multifunctional Inverter Generator
Output Channel
1.DC charging output 42-59.92V/9000W
2.Power supply for Air-Cooled Heat Sink 12 V/6 A
3.AC output 230V/1500W or 120V/750W ^Definition8
Battery Charging Time^Definition11
To fully charge one battery (DB1560 battery) takes 9-12 mins
Fuel Tank Capacity
30 L
Starting Method
Starting the Generator via the One-Button Start Switch
Max Power of Engine
12000 W
Fuel Type
Unleaded gasoline with RON is more than or equal to 91 (AKI is more than or equal to 87) and alcohol content less than 10%
(Brazil: unleaded gasoline with RON is more than or equal to 91 and alcohol content of 27%)
Reference Fuel Consumption ^Definition9
500 ml/kWh
Engine Oil Model
SJ 10W-40

C10000 Intelligent Power Supply
Model Number
CSX702-9500
Input/Output
Input (Main): 220-240 VAC, 50/60 Hz, 24 A MAX
Input (Auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX
Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX
Input (Main): 100-120 VAC, 50/60 Hz, 16 A MAX
Input (Auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX
Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX
Charging Time^Definition11
Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery)
Protection Functions
Over-voltage, over-charge, under-voltage and over-temperature protection.
Charging Safety
AC wire protection, power wire protection, and charge connector protection

Relay
Model
RL01-65
Input Voltage ^Definition6
9 V3 A / 12 V2.5 A / 15 V2 A
Power Consumption
9 W (SRRC), 12 W (FCC)
Capacity
6500 mAh
Operating Time
4 hours
Operating Frequency ^Definition5
2.4000-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance
5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
(unobstructed, free of interference, and at a flight altitude of 2.5 m)
Charging Time
2 hours and 20 minutes (when using a standard DJI charger)
IP Rating ^Definition6
IP55

Definition
1. Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced by 10 kg for every 1,000m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
2. The spray width of the spraying system depends on the operating scenario and demand for coverage evenness.
3. The spread width of the spreading system depends on the operating scenario and demand for coverage evenness.
4. The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing mainly assists in Terrain Follow and Altitude Hold. The sensing in other directions is used for Obstacle Avoidance.
5. 5.8 GHz frequency is unavailable in some contries. Check local regulations for more information.
6. Use chargers or external power supplies that meet the specifications. Otherwise, the device may not work normally.
7. The protection rating may be reduced due to improper use and damage caused by external forces or environmental factors.
8. The actual power and voltage may vary according to local regulations.
9. Measured using RON 92 gasoline at near sea level with an ambient temperature of 25^o C, while charging at 9 kW.
10. The DJI Agras app will intelligently recommend the payload weight limit for the spread tank according to the current status and surroundings of the aircraft. DO NOT exceed the recommended payload weight limit when adding material to the spread tank. Otherwise, the flight safety may be affected.
11. Factors impacting charging time: Altitude of the charging station, Charging cable meets

Item Dimension (L inchxW inchxH inch)
48 x 43 x 34

Weight
505.00 lb

Warranty Information
12 months
