DJI Drone CB.202504243045 AGRAS T100 Retail
- SKU: 302186
- Vendor: DJI
- MPN: CB.202504243045
- UPC: NO
Big Drone, Big Jobs.

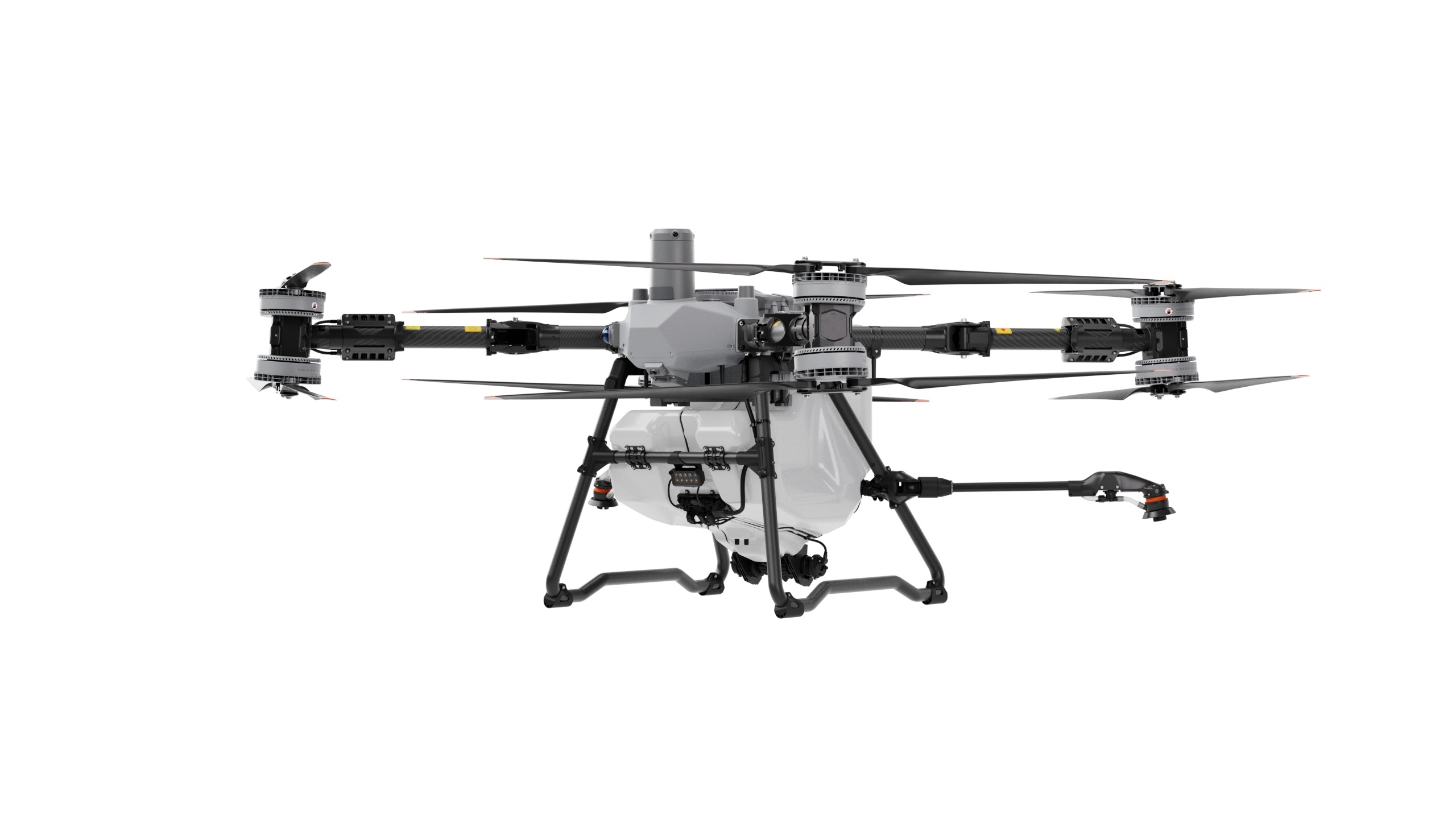

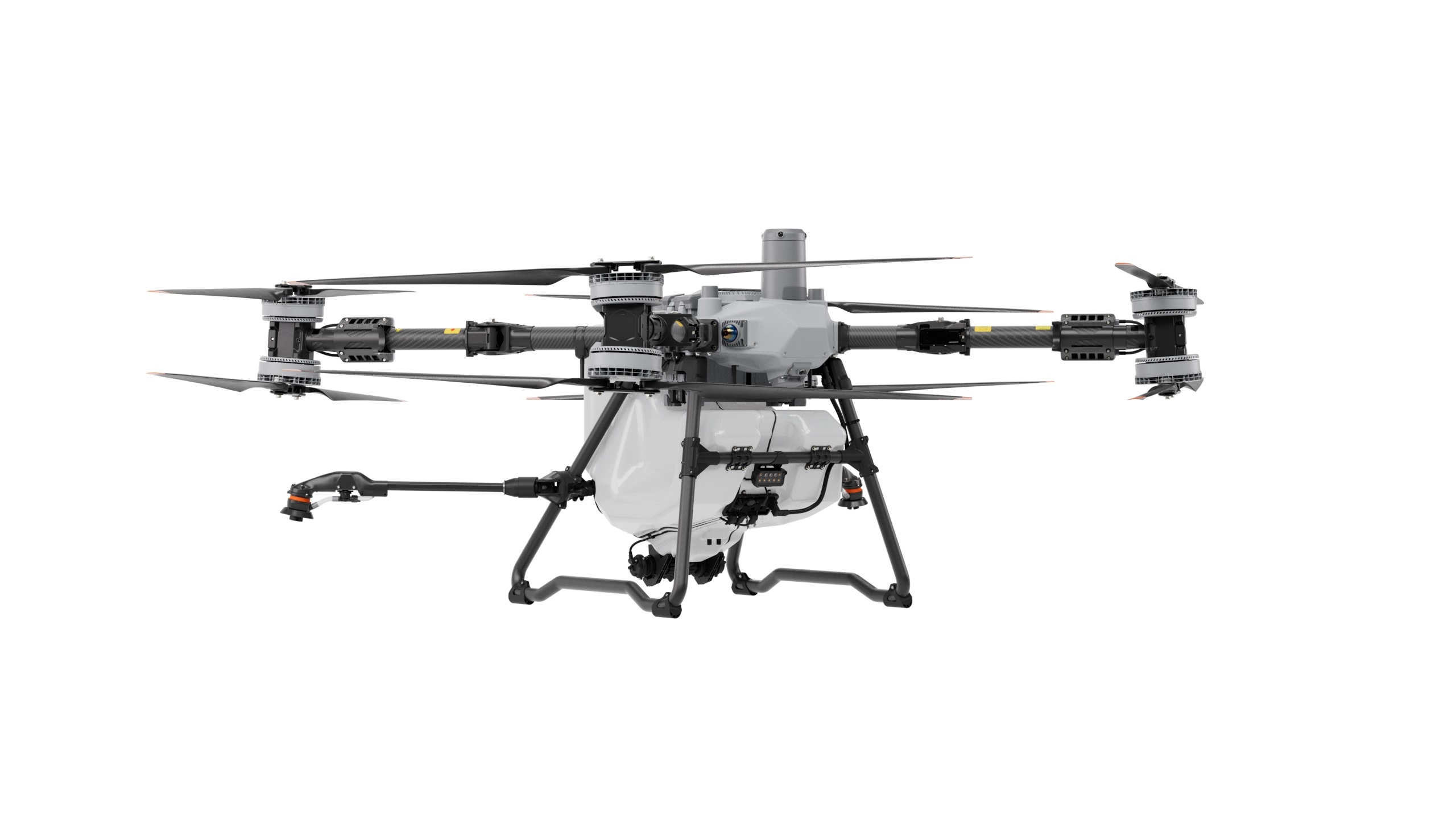

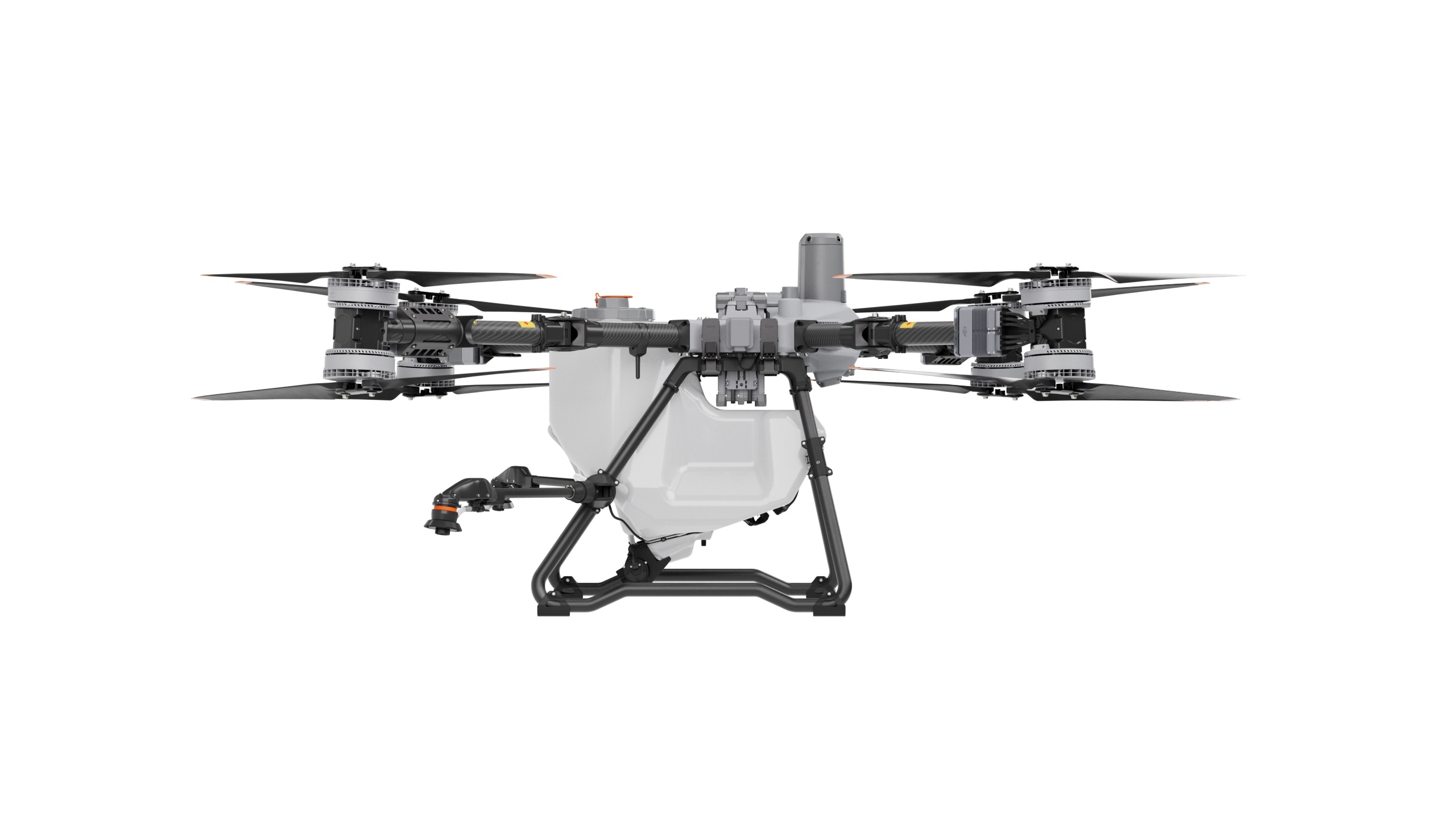

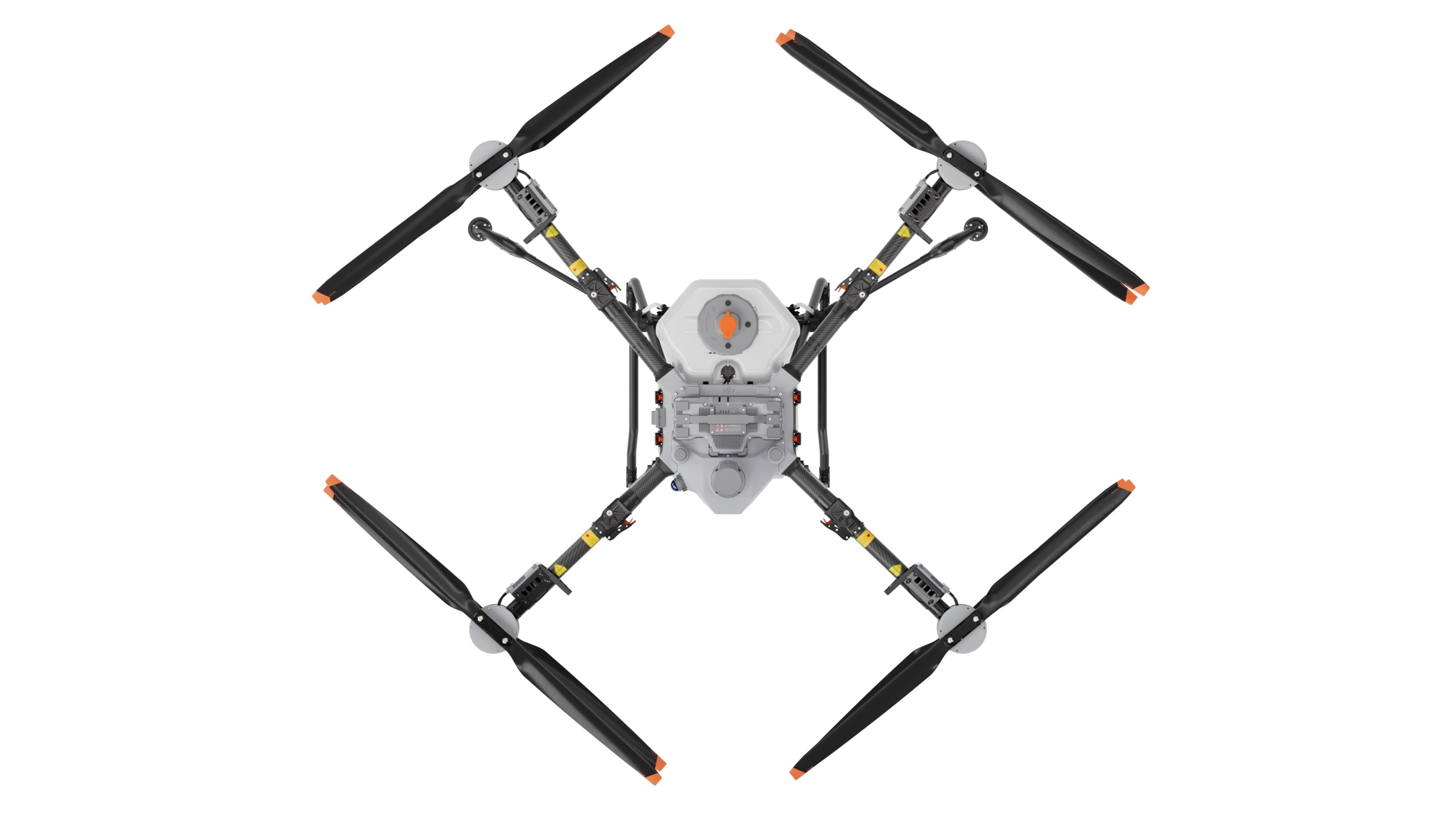

The T100 Agricultural Drone, a groundbreaking creation twelve years in the making, boasts a maximum payload of 100 kg. Its operational efficiency is doubled, supporting multiple application scenarios, including spraying, spreading, and lifting tasks. Featuring industry-leading safety systems and advanced algorithms, it delivers unparalleled safety performance and an intelligent operational experience.
Spraying System
Efficient operation, Outstanding performance.
The T100 comes equipped with a 100 L tank and dual atomizing centrifugal sprinklers, enabling faster flight speeds, wider spray coverage, and higher operation efficiency for large-scale field applications. Orchard users can choose an optional mist sprinkler set, which upgrades flow rates and atomization effects to penetrate dense canopies and reach the undersides of leaves on tall, thickly-canopied trees, ensuring outstanding versatility and performance across various agricultural tasks.
Spreading System
Bigger Loads, Faster Flow, Better Efficiency
The T100 Spreading System has been fully upgraded, with double the load capacity, and a 270% increase in flow rate. Equipped with a brand-new screw feeder, it is suitable for various granulars and can handle spreading scenarios in large fields, orchards, aquaculture, and more.
Specs
Aircraft
Weight
Weight for spraying: 75 kg (standard with 2 nozzles)
Weight for spraying: 77 kg (optional with 4 nozzles)
Weight for spreading: 75 kg (equipped with spreading system)
Weight for lifting: 65 kg (equipped with lifting system)
Weight for lifting: 90 kg (equipped with dual-battery lifting system)
Max Takeoff Weight1
Max takeoff weight for spraying: 175 kg (standard with 2 nozzles)
Max takeoff weight for spraying: 177 kg (optional with 4 nozzles)
Max takeoff weight for spreading: 175 kg (equipped with spreading system)
Max takeoff weight for lifting: 165 kg (equipped with lifting system)
Max takeoff weight for lifting: 170 kg (equipped with dual-battery lifting system)
Max Diagonal Wheelbase
2330 mm (diagonal)
Dimensions
3220 mm x 3224 mm x 975 mm(arms and propellers unfolded)
1820 mm x 1840 mm x 975 mm(arms unfolded and propellers folded)
1105 mm x 1265 mm x 975 mm(arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK Enabled:
+/-10 cm (horizontal), +/-10 cm (vertical)
RTK not enabled:
Horizontal +/- 0.6 m, vertical +/- 0.3 m
Max Configurable Flight Radius
2 km
Operating Temperature
0 oC to 40 oC
Max Wind Resistance
<6 m/s
Propulsion System - Motors
Stator Size
155 x 16 mm
KV
60 rpm/V
Propulsion System - Propellers
Material
Carbon Fiber Composite
Dimensions
62 inches
Quantity
8 pairs
Spraying System
Model
LS100
Dimensions
880 mm x 870 mm x 810 mm (spray rod folded)
1020 mm x 1930 mm x 810 mm (spray rod unfolded)
Spraying System - Spray Tank
Material
HDPE
Volume
100 L
Operating Payload1
100 kg
Spraying System - Sprinklers
Model
LX07550SX (Standard Nozzle) / LX09550SX (Optional Mist Nozzle)
Quantity
2 (Standard) / 4 (Optional)
Nozzle Distance
1834 mm (Two Nozzles / Four Nozzles Outermost)
Droplet Size
50 - 500 micrometer
Effective Spray Width2
5 - 13 m
Spraying system - Delivery Pumps
Type
Impeller Pump (Magnetic Drive)
Quantity
2
Max Flow Rate
30 L/min (Standard 2 nozzles), 40 L/min (Optional 4 nozzles)
Spreading Load
Dimensions
900 mm x 820 mm x 920 mm
Compatible Material Diameter
Standard configuration:
Extra-large auger: 0.5 mm - 10 mm granules (fertilizer, wheat, feed, etc.)
Medium auger: 4 mm - 6 mm granules (rice)
Optional:
Large auger: 4 mm - 10 mm granules (rice, fertilizer)
Small auger: 0.5 mm - 4 mm granules (rapeseed, granular herbicides, granular insecticides)
Spreading System 4.0
Spreading Tank Volume
150 L
Spreader structure type
Centrifugal Disc
Discharge Structure Type
Screw Feeder Feeding
Max Discharge Rate
400 kg/min (compound fertilizer)
Max load inside the spreading operation box
100 kg
Effective spreading width3
3 - 10 m
400 kg/min (compound fertilizer)
Dimensions
Standard payload: 805 mm x 764 mm x 669 mm
Lifting System
Load capacity4
100 kg
Lifting Cable Length
10 m (standard configuration)
Recommended cable length
10 - 15 m
Operating Temperature
0 oC to 40 oC
Dual Battery Lifting System
Dimensions
805 mm x 960 mm x 669 mm
Load capacity4
80 kg
Lifting Cable Length
10 m (standard configuration)
Emergency Escape Mode
Cable Fuse Disconnection and Escape
Recommended cable length
10 - 15 m
Operating Temperature
0 oC to 40 oC
Safety System 3.0
Millimeter wave radar EIRP
< 20 dBm (NCC / MIC / KC / CE / FCC)
Operating Temperature
0 oC to 40 oC
Operating environment requirements
Adequate light and discernible surroundings
Field of View (FOV)
Laser radar: Vertical 272o, Horizontal 60o
Front Radar: Horizontal 360o, Vertical +/- 45o
Downward Radar: Left and Right +/- 12.5o, Front and Back +/- 22.5o
Rear Radar: Left and Right +/- 45o, Front and Back +/- 45o
Quad vision system: Horizontal 360o, Vertical 180o
FPV camera: Horizontal +/- 86o, Vertical 108o
Measurement range4
< 60 m
Effective safe obstacle avoidance speed5
< 13.8 m/s
Effective Obstacle Avoidance Height
> 1.5 m
Remote Controller
Model
TKPL 2
Screen
7-inch LCD touchscreen resolution: 1920 x 1200 brightness: 1400 cd/m2
Storage Temperature Range
Less than one month: -30o to 45o C (-22o to 113o F)
One to three months: -30o to 35o C (-22o to 95o F)
Three months to one year: -30o to 30o C (-22o to 86o F)
Charging Temperature
5o to 40o C (41o to 104o F)
Internal Battery Runtime
3.8 hours
External Battery Runtime
3.2 hours
Charging Type
Use a USB-C fast charger with a maximum power of 65 W (maximum voltage 20 V), and it is recommended to use the DJI Portable Charger.
Charging Time
2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)
DB2160 Intelligent Flight Battery
Weight1
14.7 +/- 0.3 kg
Capacity
41000 mAh
Nominal Voltage
52 V
D14000iE Multifunctional Inverter Generator
Output Channels
1. DC recharge output 42 - 61.6 V/11500 W
2. Air-cooled radiator charge 12 V/6 A
3. AC output 220 V/1500 W
Recharge Time6
8 - 9 minutes (DB2160 Intelligent Flight Battery, 30% - 95% charge)
Fuel tank capacity
30 L
Starting Method
Starting the Generator via the One-Button Start Switch
Operating Temperature
0 oC to 40 oC
Compatible Battery
DB1580 / DB2160 Intelligent Flight Battery
Dimensions
757 mm x 704 mm x 677 mm
Weight
87 +/- 0.5 kg
Fuel type
Unleaded gasoline with RON >91 (AKI >87) and alcohol content less than 10%
(Brazil: unleaded gasoline with RON > 91 and alcohol content of 27%)
Reference fuel consumption
500 mL/kWh
Engine Oil Capacity
1.3 L
Engine Oil Model
SJ 10W-40
C12000 Smart Charger
Charger Model
CSX901-12000
Dimensions
456 mm x 291 mm x 107 mm
Weight1
13.13 kg
Input Voltage
Three-phase AC input: 175 - 520 V
Single-phase AC input: 200 - 264 V
Output Voltage
62 V
Rated output current
194 A
Rated Power
12000 W (three-phase 380 V input)3000 W (single-phase 220 V input)
Recharge Time6
8 - 9 minutes (DB2160 Intelligent Flight Battery, 30% - 95% charge)
Protection functions
Over-temperature, over-voltage, under-voltage, short circuit, fan stall, and other protection functions
Operating Temperature
0o to 40o C
Output Channels
1
Compatible with Intelligent Flight Battery
DB1580 / DB2160 Intelligent Flight Battery
Relay
Dimensions
112 mm x 112 mm x 51 mm (None Antenna)
120 mm x 112 mm x 101 mm (with antenna)
Weight1
630 g
Input
2.7 V - 24 V
Power consumption
10.48 W (FCC), 8.8 W (SRRC)
Battery capacity
6500 mAh
Operating Time
5 hours
Operating Frequency
2.4000 - 2.4835 GHz, 5.150 - 5.250 GHz, 5.725 - 5.850 GHz
Effective signal range
5 km (SRRC), 4 km (MIC/KCC/CE), 8 km (FCC)
(In an interference-free, unobstructed environment, flight altitude 2.5 m)
Charging Time
2.5 hours (30W recharge)
Ingress Protection Rating
IP55
D-RTK 3 AG
Supports satellite systems
GPS: L1/L2/L5
BeiDou: B1I/B2I/B3I/B1C/B2A/B2B
Galileo: E1/E5a/E5b/E6
GLONASS: G1/G2
QZSS: L1CA/L2C/L5
L-BAND
Dimensions
345 mm x 244 mm x 300 mm
Weight1
3.77 kg (including packaging)
Power consumption
7 W
Battery capacity
6500 mAh
Operating Time
7 hours
Operating Frequency
Broadcast Mode: O4: 2.4G/5.8G
Relay Mode: Not Supported
Effective signal range
FCC: 15 km
SRRC: 12 km
CE/JP: 8 km
Charging Time
2.5 hours (30W recharge)
Ingress Protection Rating
IP67
Positioning Accuracy7
PPP Satellite-Based Service Accuracy:
Convergence Time: 20 mins
Horizontal: 30 cm (RMS)
Elevation: 40 cm (RMS)
Network RTK Calibration:
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
1 ppm: Accuracy decreases by 1 mm for every 1 km increase in distance between the aircraft and the base station. For example, if the aircraft is 1 km away from the base station, the accuracy is 1.1 cm.
Footnotes
1 Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions, and operational tasks. Users should not exceed the recommended maximum loading weight, as it may affect flight safety. When using in Australia, please follow local regulations and keep the maximum takeoff weight at 149.9kg.
2 The effective spray width of the spraying system depends on the actual working scene.
3 Working height is 3 m, disc rotation speed is 1100 rpm, uniformity requirement (CV<30%) measured broadcast width is 10 m. The faster the disc rotation speed, the higher the flight altitude, the larger the broadcast width.
4 Includes the weight of ropes and hooks. Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current state of the aircraft, environmental conditions, and operational tasks. The maximum weight of the loaded material should not exceed the recommended value, as it may affect flight safety.
5 The effective working range of sensing distance, obstacle avoidance, and bypassing capabilities may vary due to different environmental lighting, rain, fog, and the material, location, and shape of the subject object. The downward sensing is used to assist in terrain-following altitude flight, while sensing in other directions is used for obstacle avoidance. Except for scenes without linear obstacles, if a collision occurs at speeds up to 13.8 m/s resulting in aircraft damage, responsibility can be determined through log analysis, and the aircraft may be eligible for free warranty if non-human causes are identified. If there are linear obstacles like wires or guy wires on power poles, please mark them as obstacles otherwise, failure to bypass them will be the customers responsibility.
Note:1. The downward perception is used to assist terrain-following altitude flight. If a collision with an obstacle occurs below, it is considered the customers responsibility.2. Due to the performance limitations of the safety system, the aircraft cannot actively avoid moving objects. Accidents in such scenes are considered the customers responsibility.
6 Sea level height, environmental temperature between 15-40 degrees Celsius, time to charge the battery from 30% to 95% fast charging is supported when the battery cell temperature is within the range of 15-75 degrees Celsius charging time varies depending on input power, ASL, initial charge level, and other factors.
7 Positioning accuracy and reliability are affected by various factors, including equipment tilt, signal obstruction, multipath, number of satellites, geometric distribution, and atmospheric conditions. It is recommended to set up the equipment in open scenes, away from electromagnetic interference and multipath environments.
Item Dimension (L"xW"xH")
90 x 43 x 59
Weight
1643 lbs
Warranty Information
1 Year
